802.11s Peer Management Protocol model More...

#include "peer-management-protocol.h"

Inheritance diagram for ns3::dot11s::PeerManagementProtocol:

Collaboration diagram for ns3::dot11s::PeerManagementProtocol:

Classes
struct	BeaconInfo
	Keeps information about beacon of peer station: beacon interval, association ID, last time we have received a beacon. More...

struct	Statistics
	Statistics structure. More...

Public Types
typedef void(*	LinkOpenCloseTracedCallback) (Mac48Address src, const Mac48Address dst)
	TracedCallback signature for link open/close events. More...

Public Member Functions
	PeerManagementProtocol ()

	PeerManagementProtocol (const PeerManagementProtocol &)=delete

	~PeerManagementProtocol () override

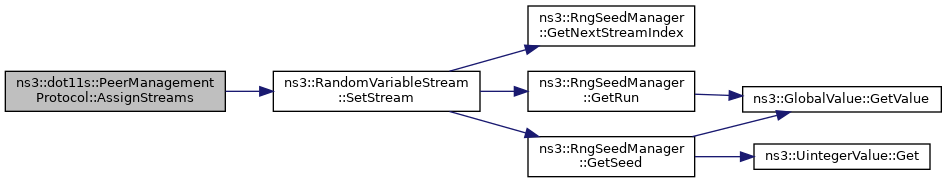

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	DoDispose () override
	Destructor implementation. More...

bool	Install (Ptr< MeshPointDevice > mp)
	Install PMP on given mesh point. More...

PeerManagementProtocol &	operator= (const PeerManagementProtocol &)=delete

void	Report (std::ostream &os) const
	Report statistics. More...

void	ResetStats ()
	Reset statistics function. More...

This methods interact with MAC_layer plug-in
Methods that handle beacon sending/receiving procedure.

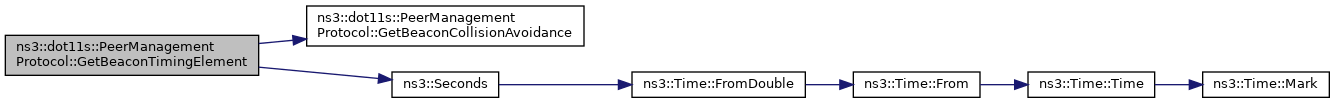

Ptr< IeBeaconTiming >	GetBeaconTimingElement (uint32_t interface)
	When we are sending a beacon - we fill beacon timing element. More...

void	ReceiveBeacon (uint32_t interface, Mac48Address peerAddress, Time beaconInterval, Ptr< IeBeaconTiming > beaconTiming)
	To initiate peer link we must notify about received beacon. More...

Methods that handle Peer link management frames interaction:
void	ReceivePeerLinkFrame (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddress, uint16_t aid, IePeerManagement peerManagementElement, IeConfiguration meshConfig)
	Deliver Peer link management information to the protocol-part. More...

void	ConfigurationMismatch (uint32_t interface, Mac48Address peerAddress)
	Cancels peer link due to broken configuration (Mesh ID or Supported rates) More...

void	TransmissionFailure (uint32_t interface, const Mac48Address peerAddress)
	Cancels peer link due to successive transmission failures. More...

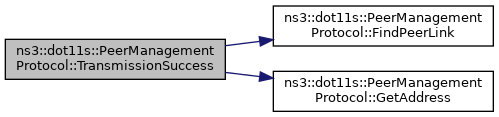

void	TransmissionSuccess (uint32_t interface, const Mac48Address peerAddress)
	resets transmission failure statistics More...

bool	IsActiveLink (uint32_t interface, Mac48Address peerAddress)
	Checks if there is established link. More...

Interface to other protocols (MLME)
void	SetPeerLinkStatusCallback (Callback< void, Mac48Address, Mac48Address, uint32_t, bool > cb)
	Set peer link status change callback. More...

Ptr< PeerLink >	FindPeerLink (uint32_t interface, Mac48Address peerAddress)
	Find active peer link by my interface and peer interface MAC. More...

std::vector< Ptr< PeerLink > >	GetPeerLinks () const
	Get list of all active peer links. More...

std::vector< Mac48Address >	GetPeers (uint32_t interface) const
	Get list of active peers of my given interface. More...

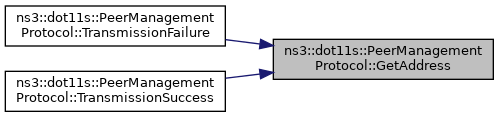

Mac48Address	GetAddress ()
	Get mesh point address. More...

uint8_t	GetNumberOfLinks () const
	Get number of links. More...

void	SetMeshId (std::string s)
	Set mesh ID to a string value. More...

Ptr< IeMeshId >	GetMeshId () const
	Get mesh ID information element. More...

void	SetBeaconCollisionAvoidance (bool enable)
	Enable or disable beacon collision avoidance. More...

bool	GetBeaconCollisionAvoidance () const
	Get beacon collision avoidance. More...

void	NotifyBeaconSent (uint32_t interface, Time beaconInterval)
	Notify about beacon send event, needed to schedule BCA. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Types
typedef std::map< uint32_t, BeaconsOnInterface >	BeaconInfoMap
	This map keeps beacon information on all interfaces. More...

typedef std::map< Mac48Address, BeaconInfo >	BeaconsOnInterface
	This map keeps relationship between peer address and its beacon information. More...

typedef std::map< uint32_t, PeerLinksOnInterface >	PeerLinksMap
	This map keeps all peer links. More...

typedef std::vector< Ptr< PeerLink > >	PeerLinksOnInterface
	We keep a vector of pointers to PeerLink class. More...

typedef std::map< uint32_t, Ptr< PeerManagementProtocolMac > >	PeerManagementProtocolMacMap
	this vector keeps pointers to MAC-plugins More...

Private Member Functions
void	CheckBeaconCollisions (uint32_t interface)
	BCA. More...

void	DoInitialize () override
	Initialize() implementation. More...

Ptr< PeerLink >	InitiateLink (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddress)
	Initiate link function. More...

void	NotifyLinkClose (Mac48Address peerMp, Mac48Address peerIface, Mac48Address myIface, uint32_t interface)
	Aux. More...

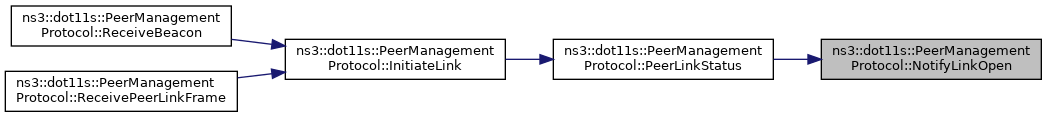

void	NotifyLinkOpen (Mac48Address peerMp, Mac48Address peerIface, Mac48Address myIface, uint32_t interface)
	Aux. More...

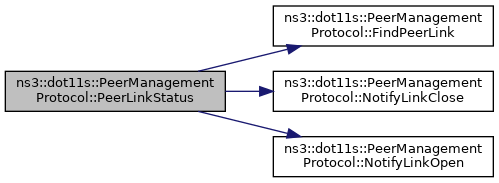

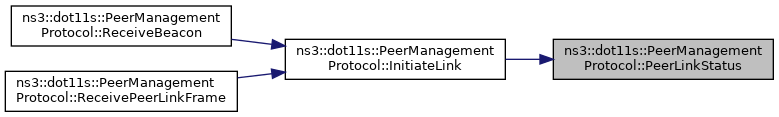

void	PeerLinkStatus (uint32_t interface, Mac48Address peerAddress, Mac48Address peerMeshPointAddress, PeerLink::PeerState ostate, PeerLink::PeerState nstate)
	Indicates changes in peer links. More...

void	ShiftOwnBeacon (uint32_t interface)
	Shift own beacon function. More...

bool	ShouldAcceptOpen (uint32_t interface, Mac48Address peerAddress, PmpReasonCode &reasonCode) const
	External peer-chooser. More...

bool	ShouldSendOpen (uint32_t interface, Mac48Address peerAddress) const
	External peer-chooser. More...

int	TimeToTu (Time x)
	Time<-->TU converters: More...

Time	TuToTime (int x)
	Time<-->TU converters: More...

Private Attributes
Mac48Address	m_address
	address More...

std::map< uint32_t, Time >	m_beaconInterval
	Beacon interval at each interface. More...

bool	m_enableBca
	Flag which enables BCA. More...

uint16_t	m_lastAssocId
	last associated ID More...

std::map< uint32_t, Time >	m_lastBeacon
	Last beacon at each interface. More...

uint16_t	m_lastLocalLinkId
	last local link ID More...

uint16_t	m_maxBeaconShift
	Beacon can be shifted at [-m_maxBeaconShift; +m_maxBeaconShift] TUs. More...

uint8_t	m_maxNumberOfPeerLinks
	maimum number of peer links More...

Ptr< IeMeshId >	m_meshId
	mesh ID More...

PeerManagementProtocolMacMap	m_plugins
	plugins More...

Peer Links
typedef TracedCallback< Mac48Address, Mac48Address >	LinkEventCallback
	Simple link open/close trace source type. Addresses are: src interface, dst interface. More...

PeerLinksMap	m_peerLinks
	Simple link open/close trace source type. Addresses are: src interface, dst interface. More...

Callback< void, Mac48Address, Mac48Address, uint32_t, bool >	m_peerStatusCallback
	Callback to notify about peer link changes: Mac48Address is peer address of mesh point, Mac48Address is peer address of interface, uint32_t - interface ID, bool is status - true when new link has appeared, false - when link was closed,. More...

LinkEventCallback	m_linkOpenTraceSrc
	LinkOpen trace source. More...

LinkEventCallback	m_linkCloseTraceSrc
	LinkClose trace source. More...

Statistics	m_stats
	statistics More...

Ptr< UniformRandomVariable >	m_beaconShift
	Add randomness to beacon shift. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

802.11s Peer Management Protocol model

Definition at line 54 of file peer-management-protocol.h.

Member Typedef Documentation

◆ BeaconInfoMap

typedef std::map<uint32_t, BeaconsOnInterface> ns3::dot11s::PeerManagementProtocol::BeaconInfoMap

private

This map keeps beacon information on all interfaces.

Definition at line 267 of file peer-management-protocol.h.

◆ BeaconsOnInterface

typedef std::map<Mac48Address, BeaconInfo> ns3::dot11s::PeerManagementProtocol::BeaconsOnInterface

private

This map keeps relationship between peer address and its beacon information.

Definition at line 265 of file peer-management-protocol.h.

◆ LinkEventCallback

typedef TracedCallback<Mac48Address, Mac48Address> ns3::dot11s::PeerManagementProtocol::LinkEventCallback

private

Simple link open/close trace source type. Addresses are: src interface, dst interface.

Definition at line 389 of file peer-management-protocol.h.

◆ LinkOpenCloseTracedCallback

typedef void(* ns3::dot11s::PeerManagementProtocol::LinkOpenCloseTracedCallback) (Mac48Address src, const Mac48Address dst)

TracedCallback signature for link open/close events.

Parameters

[in]	src	MAC address of source interface.
[in]	dst	MAC address of destination interface.

Definition at line 244 of file peer-management-protocol.h.

◆ PeerLinksMap

typedef std::map<uint32_t, PeerLinksOnInterface> ns3::dot11s::PeerManagementProtocol::PeerLinksMap

private

This map keeps all peer links.

Definition at line 263 of file peer-management-protocol.h.

◆ PeerLinksOnInterface

typedef std::vector<Ptr<PeerLink> > ns3::dot11s::PeerManagementProtocol::PeerLinksOnInterface

private

We keep a vector of pointers to PeerLink class.

This vector keeps all peer links at a given interface.

Definition at line 261 of file peer-management-protocol.h.

◆ PeerManagementProtocolMacMap

typedef std::map<uint32_t, Ptr<PeerManagementProtocolMac> > ns3::dot11s::PeerManagementProtocol::PeerManagementProtocolMacMap

private

this vector keeps pointers to MAC-plugins

Definition at line 269 of file peer-management-protocol.h.

Constructor & Destructor Documentation

◆ PeerManagementProtocol() [1/2]

ns3::dot11s::PeerManagementProtocol::PeerManagementProtocol ( )

Definition at line 89 of file peer-management-protocol.cc.

References m_beaconShift.

◆ ~PeerManagementProtocol()

ns3::dot11s::PeerManagementProtocol::~PeerManagementProtocol ( )

override

Definition at line 98 of file peer-management-protocol.cc.

References m_meshId.

◆ PeerManagementProtocol() [2/2]

ns3::dot11s::PeerManagementProtocol::PeerManagementProtocol ( const PeerManagementProtocol & )

delete

Member Function Documentation

◆ AssignStreams()

int64_t ns3::dot11s::PeerManagementProtocol::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 656 of file peer-management-protocol.cc.

References m_beaconShift, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

◆ CheckBeaconCollisions()

void ns3::dot11s::PeerManagementProtocol::CheckBeaconCollisions ( uint32_t interface )

private

BCA.

Parameters

interface interface

Definition at line 418 of file peer-management-protocol.cc.

References GetBeaconCollisionAvoidance(), m_beaconInterval, m_lastBeacon, m_maxBeaconShift, m_peerLinks, m_plugins, NS_ASSERT, NS_ASSERT_MSG, ShiftOwnBeacon(), TimeToTu(), and TuToTime().

Referenced by NotifyBeaconSent().

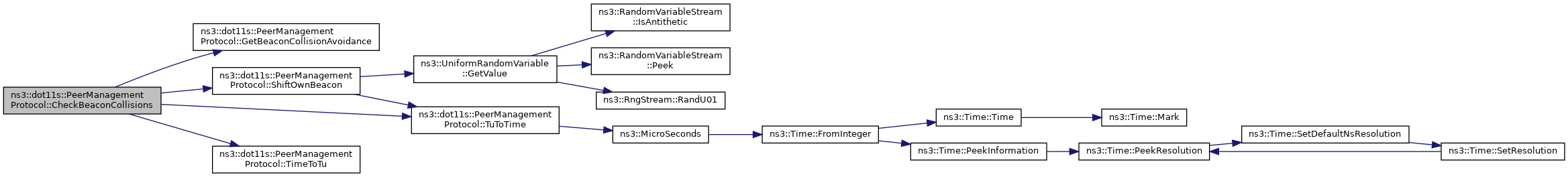

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConfigurationMismatch()

void ns3::dot11s::PeerManagementProtocol::ConfigurationMismatch	(	uint32_t	interface,
		Mac48Address	peerAddress
	)

Cancels peer link due to broken configuration (Mesh ID or Supported rates)

Parameters

interface	interface of the link to cancel
peerAddress	peer address of the link to cancel

Definition at line 262 of file peer-management-protocol.cc.

References FindPeerLink(), and ns3::dot11s::REASON11S_MESH_CAPABILITY_POLICY_VIOLATION.

Here is the call graph for this function:

◆ DoDispose()

void ns3::dot11s::PeerManagementProtocol::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 104 of file peer-management-protocol.cc.

References m_peerLinks, and m_plugins.

◆ DoInitialize()

void ns3::dot11s::PeerManagementProtocol::DoInitialize ( void )

overrideprivatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 664 of file peer-management-protocol.cc.

References m_beaconShift, m_maxBeaconShift, and ns3::ObjectBase::SetAttribute().

Here is the call graph for this function:

◆ FindPeerLink()

Ptr< PeerLink > ns3::dot11s::PeerManagementProtocol::FindPeerLink	(	uint32_t	interface,
		Mac48Address	peerAddress
	)

Find active peer link by my interface and peer interface MAC.

Parameters

interface	interface of the link to find
peerAddress	peer address of the link to find

Returns: The peer link (null if not found)

Definition at line 323 of file peer-management-protocol.cc.

References m_peerLinks, and NS_ASSERT.

Referenced by ConfigurationMismatch(), InitiateLink(), IsActiveLink(), PeerLinkStatus(), ReceiveBeacon(), ReceivePeerLinkFrame(), TransmissionFailure(), and TransmissionSuccess().

Here is the caller graph for this function:

◆ GetAddress()

Mac48Address ns3::dot11s::PeerManagementProtocol::GetAddress ( )

Get mesh point address.

Todo:: this used by plugins only. Now MAC plugins can ask MP address directly from main MAC

Returns: Mac48Address

Definition at line 588 of file peer-management-protocol.cc.

References m_address.

Referenced by TransmissionFailure(), and TransmissionSuccess().

Here is the caller graph for this function:

◆ GetBeaconCollisionAvoidance()

bool ns3::dot11s::PeerManagementProtocol::GetBeaconCollisionAvoidance ( ) const

Get beacon collision avoidance.

Returns: the beacon collision avoidance flag

Definition at line 680 of file peer-management-protocol.cc.

References m_enableBca.

Referenced by CheckBeaconCollisions(), GetBeaconTimingElement(), GetTypeId(), and ReceiveBeacon().

Here is the caller graph for this function:

◆ GetBeaconTimingElement()

Ptr< IeBeaconTiming > ns3::dot11s::PeerManagementProtocol::GetBeaconTimingElement ( uint32_t interface )

When we are sending a beacon - we fill beacon timing element.

Returns: IeBeaconTiming is a beacon timing element that should be present in beacon

Parameters

interface is a interface sending a beacon

Definition at line 150 of file peer-management-protocol.cc.

References GetBeaconCollisionAvoidance(), m_peerLinks, NS_ASSERT, and ns3::Seconds().

Here is the call graph for this function:

◆ GetMeshId()

Ptr< IeMeshId > ns3::dot11s::PeerManagementProtocol::GetMeshId ( ) const

Get mesh ID information element.

Returns: the mesh ID information element

Definition at line 575 of file peer-management-protocol.cc.

References m_meshId, and NS_ASSERT.

◆ GetNumberOfLinks()

uint8_t ns3::dot11s::PeerManagementProtocol::GetNumberOfLinks ( ) const

Get number of links.

Returns: the number of links

Definition at line 569 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, and m_stats.

◆ GetPeerLinks()

std::vector< Ptr< PeerLink > > ns3::dot11s::PeerManagementProtocol::GetPeerLinks ( ) const

Get list of all active peer links.

Returns: a list of all the active peer links

Definition at line 370 of file peer-management-protocol.cc.

References m_peerLinks.

◆ GetPeers()

std::vector< Mac48Address > ns3::dot11s::PeerManagementProtocol::GetPeers ( uint32_t interface ) const

Get list of active peers of my given interface.

Parameters

interface the interface

Returns: a list of all the active peer links on an interface

Definition at line 354 of file peer-management-protocol.cc.

References m_peerLinks, and NS_ASSERT.

Referenced by ns3::Dot11sStack::InstallStack().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::dot11s::PeerManagementProtocol::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 51 of file peer-management-protocol.cc.

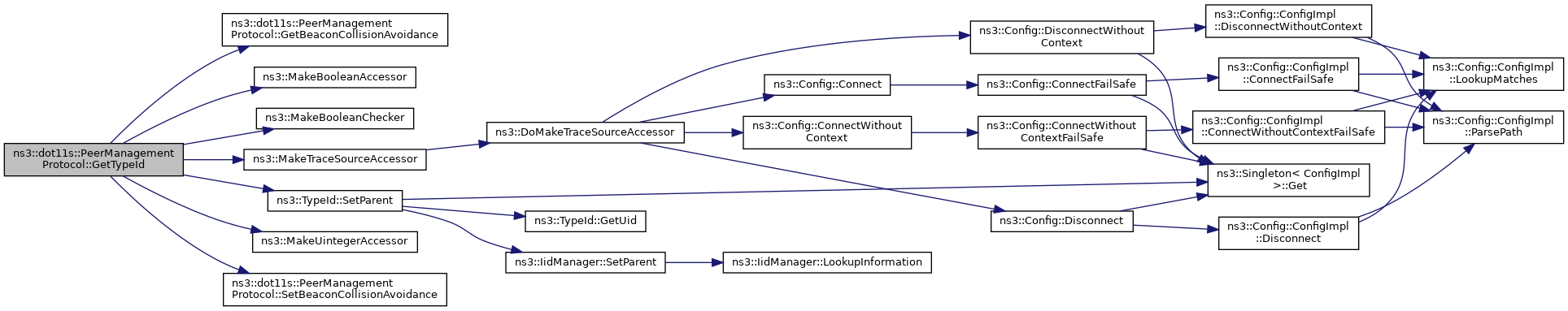

References GetBeaconCollisionAvoidance(), m_linkCloseTraceSrc, m_linkOpenTraceSrc, m_maxBeaconShift, m_maxNumberOfPeerLinks, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), SetBeaconCollisionAvoidance(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ InitiateLink()

Ptr< PeerLink > ns3::dot11s::PeerManagementProtocol::InitiateLink	(	uint32_t	interface,
		Mac48Address	peerAddress,
		Mac48Address	peerMeshPointAddress
	)

private

Initiate link function.

Parameters

interface	the interface to use
peerAddress	the peer address
peerMeshPointAddress	the peer mesh point address

Returns: the peer link

Definition at line 295 of file peer-management-protocol.cc.

References FindPeerLink(), m_lastAssocId, m_lastLocalLinkId, m_peerLinks, m_plugins, ns3::MakeCallback(), NS_ASSERT, NS_FATAL_ERROR, and PeerLinkStatus().

Referenced by ReceiveBeacon(), and ReceivePeerLinkFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install()

bool ns3::dot11s::PeerManagementProtocol::Install ( Ptr< MeshPointDevice > mp )

Install PMP on given mesh point.

Parameters

mp	the MeshPointDevice to install onto

Returns: true if successful

Installing protocol causes installation of its interface MAC plugins.

Also MP aggregates all installed protocols, PMP protocol can be accessed via MeshPointDevice::GetObject<PeerManagementProtocol>();

Definition at line 121 of file peer-management-protocol.cc.

References ns3::Mac48Address::ConvertFrom(), ns3::WifiNetDevice::GetMac(), ns3::Object::GetObject(), first::interfaces, m_address, m_peerLinks, m_plugins, and third::mac.

Here is the call graph for this function:

◆ IsActiveLink()

bool ns3::dot11s::PeerManagementProtocol::IsActiveLink	(	uint32_t	interface,
		Mac48Address	peerAddress
	)

Checks if there is established link.

Parameters

interface	interface of the link to check
peerAddress	peer address of the link to check

Returns: true if the link is active

Definition at line 388 of file peer-management-protocol.cc.

References FindPeerLink().

Here is the call graph for this function:

◆ NotifyBeaconSent()

void ns3::dot11s::PeerManagementProtocol::NotifyBeaconSent	(	uint32_t	interface,
		Time	beaconInterval
	)

Notify about beacon send event, needed to schedule BCA.

Parameters

interface	the interface to use
beaconInterval	the beacon interval

Definition at line 594 of file peer-management-protocol.cc.

References CheckBeaconCollisions(), m_beaconInterval, m_lastBeacon, m_maxBeaconShift, ns3::Simulator::Now(), ns3::Simulator::Schedule(), and TuToTime().

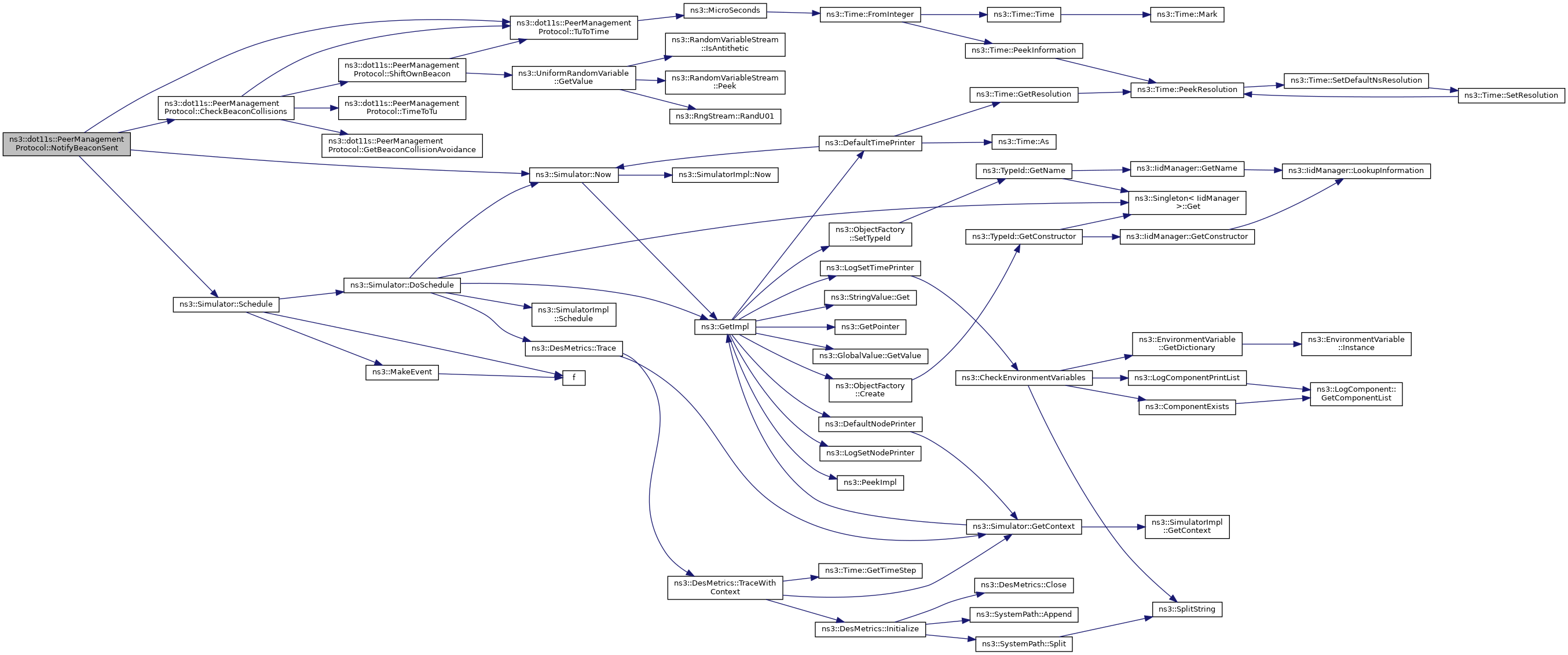

Here is the call graph for this function:

◆ NotifyLinkClose()

void ns3::dot11s::PeerManagementProtocol::NotifyLinkClose	(	Mac48Address	peerMp,
		Mac48Address	peerIface,
		Mac48Address	myIface,
		uint32_t	interface
	)

private

Aux.

method to register closed links

Parameters

peerMp	peer mesh point address
peerIface	peer address
myIface	my address
interface	interface

Definition at line 523 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksClosed, ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_linkCloseTraceSrc, m_peerStatusCallback, m_stats, and NS_LOG_LOGIC.

Referenced by PeerLinkStatus().

Here is the caller graph for this function:

◆ NotifyLinkOpen()

void ns3::dot11s::PeerManagementProtocol::NotifyLinkOpen	(	Mac48Address	peerMp,
		Mac48Address	peerIface,
		Mac48Address	myIface,
		uint32_t	interface
	)

private

Aux.

method to register open links

Parameters

peerMp	peer mesh point address
peerIface	peer address
myIface	my address
interface	interface

Definition at line 507 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksOpened, ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_linkOpenTraceSrc, m_peerStatusCallback, m_stats, and NS_LOG_LOGIC.

Referenced by PeerLinkStatus().

Here is the caller graph for this function:

◆ operator=()

PeerManagementProtocol& ns3::dot11s::PeerManagementProtocol::operator= ( const PeerManagementProtocol & )

delete

◆ PeerLinkStatus()

void ns3::dot11s::PeerManagementProtocol::PeerLinkStatus	(	uint32_t	interface,
		Mac48Address	peerAddress,
		Mac48Address	peerMeshPointAddress,
		PeerLink::PeerState	ostate,
		PeerLink::PeerState	nstate
	)

private

Indicates changes in peer links.

Parameters

interface	the interface
peerAddress	the peer address
peerMeshPointAddress	the peer mesh point address
ostate	old state
nstate	new state

Definition at line 539 of file peer-management-protocol.cc.

References ns3::dot11s::PeerLink::ESTAB, FindPeerLink(), ns3::dot11s::PeerLink::IDLE, openflow-switch::link, m_address, m_plugins, NotifyLinkClose(), NotifyLinkOpen(), NS_ASSERT, NS_LOG_DEBUG, and ns3::dot11s::PeerLink::PeerStateNames.

Referenced by InitiateLink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceiveBeacon()

void ns3::dot11s::PeerManagementProtocol::ReceiveBeacon	(	uint32_t	interface,
		Mac48Address	peerAddress,
		Time	beaconInterval,
		Ptr< IeBeaconTiming >	beaconTiming
	)

To initiate peer link we must notify about received beacon.

Parameters

interface	the interface where a beacon was received from
peerAddress	address of station, which sent a beacon
beaconInterval	beacon interval (needed by beacon loss counter)
beaconTiming	beacon timing element (needed by BCA)

Definition at line 176 of file peer-management-protocol.cc.

References FindPeerLink(), GetBeaconCollisionAvoidance(), ns3::Mac48Address::GetBroadcast(), InitiateLink(), m_plugins, ns3::Simulator::Now(), ns3::PeekPointer(), and ShouldSendOpen().

Here is the call graph for this function:

◆ ReceivePeerLinkFrame()

void ns3::dot11s::PeerManagementProtocol::ReceivePeerLinkFrame	(	uint32_t	interface,
		Mac48Address	peerAddress,
		Mac48Address	peerMeshPointAddress,
		uint16_t	aid,
		IePeerManagement	peerManagementElement,
		IeConfiguration	meshConfig
	)

Deliver Peer link management information to the protocol-part.

Parameters

interface	is a interface ID of a given MAC (interfaceID rather than MAC address, because many interfaces may have the same MAC)
peerAddress	is address of peer
peerMeshPointAddress	is address of peer mesh point device (equal to peer address when only one interface)
aid	is association ID, which peer has assigned to us
peerManagementElement	is peer link management element
meshConfig	is mesh configuration element taken from the peer management frame

Definition at line 211 of file peer-management-protocol.cc.

References FindPeerLink(), ns3::dot11s::IePeerManagement::GetLocalLinkId(), ns3::dot11s::IePeerManagement::GetPeerLinkId(), ns3::dot11s::IePeerManagement::GetReasonCode(), InitiateLink(), ns3::dot11s::REASON11S_RESERVED, ShouldAcceptOpen(), ns3::dot11s::IePeerManagement::SubtypeIsClose(), ns3::dot11s::IePeerManagement::SubtypeIsConfirm(), and ns3::dot11s::IePeerManagement::SubtypeIsOpen().

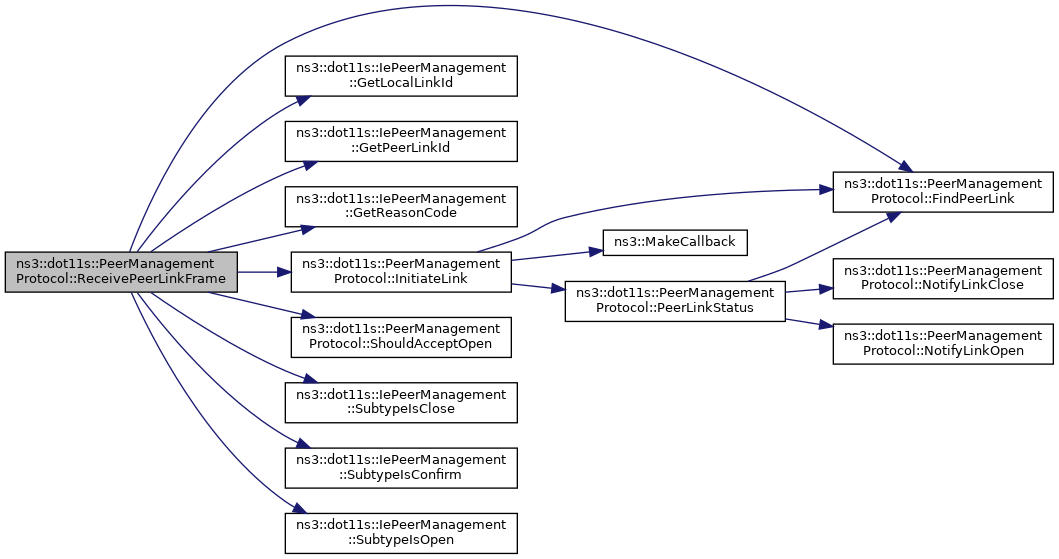

Here is the call graph for this function:

◆ Report()

void ns3::dot11s::PeerManagementProtocol::Report ( std::ostream & os ) const

Report statistics.

Parameters

os	the output stream

Definition at line 626 of file peer-management-protocol.cc.

References m_peerLinks, m_plugins, m_stats, NS_ASSERT, visualizer.base::plugins, and ns3::dot11s::PeerManagementProtocol::Statistics::Print().

Here is the call graph for this function:

◆ ResetStats()

void ns3::dot11s::PeerManagementProtocol::ResetStats ( )

Reset statistics function.

Definition at line 646 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_plugins, m_stats, and visualizer.base::plugins.

◆ SetBeaconCollisionAvoidance()

void ns3::dot11s::PeerManagementProtocol::SetBeaconCollisionAvoidance ( bool enable )

Enable or disable beacon collision avoidance.

Parameters

enable true to enable beacon collision avoidance

Definition at line 674 of file peer-management-protocol.cc.

References m_enableBca.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetMeshId()

void ns3::dot11s::PeerManagementProtocol::SetMeshId ( std::string s )

Set mesh ID to a string value.

Parameters

s	the mesh ID string value

Definition at line 582 of file peer-management-protocol.cc.

References m_meshId.

◆ SetPeerLinkStatusCallback()

void ns3::dot11s::PeerManagementProtocol::SetPeerLinkStatusCallback ( Callback< void, Mac48Address, Mac48Address, uint32_t, bool > cb )

Set peer link status change callback.

Parameters

cb	the callback

Definition at line 347 of file peer-management-protocol.cc.

References m_peerStatusCallback.

◆ ShiftOwnBeacon()

void ns3::dot11s::PeerManagementProtocol::ShiftOwnBeacon ( uint32_t interface )

private

Shift own beacon function.

Parameters

interface interface

Definition at line 481 of file peer-management-protocol.cc.

References ns3::UniformRandomVariable::GetValue(), m_beaconShift, m_plugins, NS_ASSERT, and TuToTime().

Referenced by CheckBeaconCollisions().

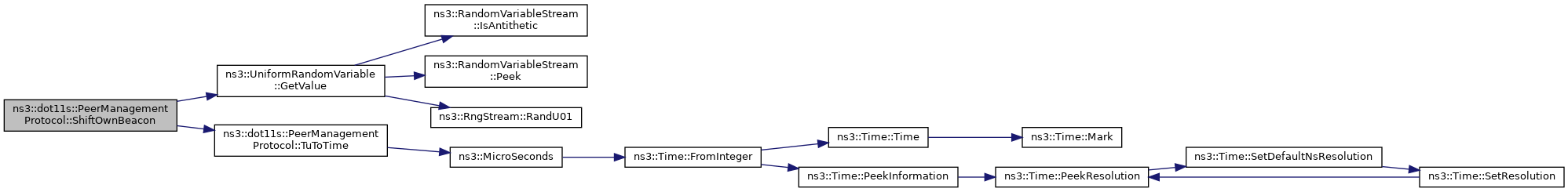

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ShouldAcceptOpen()

bool ns3::dot11s::PeerManagementProtocol::ShouldAcceptOpen	(	uint32_t	interface,
		Mac48Address	peerAddress,
		PmpReasonCode &	reasonCode
	)		const

private

External peer-chooser.

Parameters

interface	the interface to use
peerAddress	the peer address
reasonCode	reason code

Returns: true is should send an open

Definition at line 405 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_maxNumberOfPeerLinks, m_stats, and ns3::dot11s::REASON11S_MESH_MAX_PEERS.

Referenced by ReceivePeerLinkFrame().

Here is the caller graph for this function:

◆ ShouldSendOpen()

bool ns3::dot11s::PeerManagementProtocol::ShouldSendOpen	(	uint32_t	interface,
		Mac48Address	peerAddress
	)		const

private

External peer-chooser.

Parameters

interface	the interface to use
peerAddress	the peer address

Returns: true is should send an open

Definition at line 399 of file peer-management-protocol.cc.

References ns3::dot11s::PeerManagementProtocol::Statistics::linksTotal, m_maxNumberOfPeerLinks, and m_stats.

Referenced by ReceiveBeacon().

Here is the caller graph for this function:

◆ TimeToTu()

int ns3::dot11s::PeerManagementProtocol::TimeToTu ( Time x )

private

Time<-->TU converters:

Parameters

x Time

Returns: TU

Definition at line 501 of file peer-management-protocol.cc.

References two-ray-to-three-gpp-ch-calibration::x.

Referenced by CheckBeaconCollisions().

Here is the caller graph for this function:

◆ TransmissionFailure()

void ns3::dot11s::PeerManagementProtocol::TransmissionFailure	(	uint32_t	interface,
		const Mac48Address	peerAddress
	)

Cancels peer link due to successive transmission failures.

Parameters

interface	interface of the link to cancel
peerAddress	peer address of the link to cancel

Definition at line 272 of file peer-management-protocol.cc.

References FindPeerLink(), GetAddress(), and NS_LOG_DEBUG.

Here is the call graph for this function:

◆ TransmissionSuccess()

void ns3::dot11s::PeerManagementProtocol::TransmissionSuccess	(	uint32_t	interface,
		const Mac48Address	peerAddress
	)

resets transmission failure statistics

Parameters

interface	interface of the link to reset
peerAddress	peer address of the link to reset

Definition at line 284 of file peer-management-protocol.cc.

References FindPeerLink(), GetAddress(), and NS_LOG_DEBUG.

Here is the call graph for this function:

◆ TuToTime()

Time ns3::dot11s::PeerManagementProtocol::TuToTime ( int x )

private

Time<-->TU converters:

Parameters

x TU

Returns: Time

Definition at line 495 of file peer-management-protocol.cc.

References ns3::MicroSeconds(), and two-ray-to-three-gpp-ch-calibration::x.

Referenced by CheckBeaconCollisions(), NotifyBeaconSent(), and ShiftOwnBeacon().

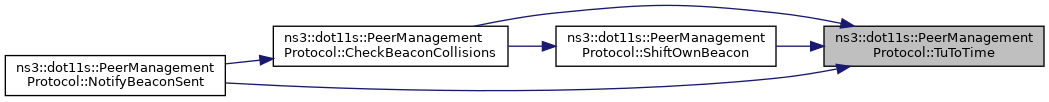

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_address

Mac48Address ns3::dot11s::PeerManagementProtocol::m_address

private

address

Definition at line 360 of file peer-management-protocol.h.

Referenced by GetAddress(), Install(), and PeerLinkStatus().

◆ m_beaconInterval

std::map<uint32_t, Time> ns3::dot11s::PeerManagementProtocol::m_beaconInterval

private

Beacon interval at each interface.

Definition at line 373 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), and NotifyBeaconSent().

◆ m_beaconShift

Ptr<UniformRandomVariable> ns3::dot11s::PeerManagementProtocol::m_beaconShift

private

Add randomness to beacon shift.

Definition at line 418 of file peer-management-protocol.h.

Referenced by PeerManagementProtocol(), AssignStreams(), DoInitialize(), and ShiftOwnBeacon().

◆ m_enableBca

bool ns3::dot11s::PeerManagementProtocol::m_enableBca

private

Flag which enables BCA.

Definition at line 367 of file peer-management-protocol.h.

Referenced by GetBeaconCollisionAvoidance(), and SetBeaconCollisionAvoidance().

◆ m_lastAssocId

uint16_t ns3::dot11s::PeerManagementProtocol::m_lastAssocId

private

last associated ID

Definition at line 363 of file peer-management-protocol.h.

Referenced by InitiateLink().

◆ m_lastBeacon

std::map<uint32_t, Time> ns3::dot11s::PeerManagementProtocol::m_lastBeacon

private

Last beacon at each interface.

Definition at line 371 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), and NotifyBeaconSent().

◆ m_lastLocalLinkId

uint16_t ns3::dot11s::PeerManagementProtocol::m_lastLocalLinkId

private

last local link ID

Definition at line 364 of file peer-management-protocol.h.

Referenced by InitiateLink().

◆ m_linkCloseTraceSrc

LinkEventCallback ns3::dot11s::PeerManagementProtocol::m_linkCloseTraceSrc

private

LinkClose trace source.

Definition at line 393 of file peer-management-protocol.h.

Referenced by GetTypeId(), and NotifyLinkClose().

◆ m_linkOpenTraceSrc

LinkEventCallback ns3::dot11s::PeerManagementProtocol::m_linkOpenTraceSrc

private

LinkOpen trace source.

Definition at line 391 of file peer-management-protocol.h.

Referenced by GetTypeId(), and NotifyLinkOpen().

◆ m_maxBeaconShift

uint16_t ns3::dot11s::PeerManagementProtocol::m_maxBeaconShift

private

Beacon can be shifted at [-m_maxBeaconShift; +m_maxBeaconShift] TUs.

Definition at line 369 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), DoInitialize(), GetTypeId(), and NotifyBeaconSent().

◆ m_maxNumberOfPeerLinks

uint8_t ns3::dot11s::PeerManagementProtocol::m_maxNumberOfPeerLinks

private

maimum number of peer links

Definition at line 365 of file peer-management-protocol.h.

Referenced by GetTypeId(), ShouldAcceptOpen(), and ShouldSendOpen().

◆ m_meshId

Ptr<IeMeshId> ns3::dot11s::PeerManagementProtocol::m_meshId

private

mesh ID

Definition at line 361 of file peer-management-protocol.h.

Referenced by ~PeerManagementProtocol(), GetMeshId(), and SetMeshId().

◆ m_peerLinks

PeerLinksMap ns3::dot11s::PeerManagementProtocol::m_peerLinks

private

Simple link open/close trace source type. Addresses are: src interface, dst interface.

Definition at line 378 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), DoDispose(), FindPeerLink(), GetBeaconTimingElement(), GetPeerLinks(), GetPeers(), InitiateLink(), Install(), and Report().

◆ m_peerStatusCallback

Callback<void, Mac48Address, Mac48Address, uint32_t, bool> ns3::dot11s::PeerManagementProtocol::m_peerStatusCallback

private

Callback to notify about peer link changes: Mac48Address is peer address of mesh point, Mac48Address is peer address of interface, uint32_t - interface ID, bool is status - true when new link has appeared, false - when link was closed,.

Definition at line 386 of file peer-management-protocol.h.

Referenced by NotifyLinkClose(), NotifyLinkOpen(), and SetPeerLinkStatusCallback().

◆ m_plugins

PeerManagementProtocolMacMap ns3::dot11s::PeerManagementProtocol::m_plugins

private

plugins

Definition at line 359 of file peer-management-protocol.h.

Referenced by CheckBeaconCollisions(), DoDispose(), InitiateLink(), Install(), PeerLinkStatus(), ReceiveBeacon(), Report(), ResetStats(), and ShiftOwnBeacon().

◆ m_stats

Statistics ns3::dot11s::PeerManagementProtocol::m_stats

private

statistics

Definition at line 415 of file peer-management-protocol.h.

Referenced by GetNumberOfLinks(), NotifyLinkClose(), NotifyLinkOpen(), Report(), ResetStats(), ShouldAcceptOpen(), and ShouldSendOpen().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/peer-management-protocol.h
src/mesh/model/dot11s/peer-management-protocol.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Peer Links

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BeaconInfoMap

◆ BeaconsOnInterface

◆ LinkEventCallback

◆ LinkOpenCloseTracedCallback

◆ PeerLinksMap

◆ PeerLinksOnInterface

◆ PeerManagementProtocolMacMap

Constructor & Destructor Documentation

◆ PeerManagementProtocol() [1/2]

◆ ~PeerManagementProtocol()

◆ PeerManagementProtocol() [2/2]

Member Function Documentation

◆ AssignStreams()

◆ CheckBeaconCollisions()

◆ ConfigurationMismatch()

◆ DoDispose()

◆ DoInitialize()

◆ FindPeerLink()

◆ GetAddress()

◆ GetBeaconCollisionAvoidance()

◆ GetBeaconTimingElement()

◆ GetMeshId()

◆ GetNumberOfLinks()

◆ GetPeerLinks()

◆ GetPeers()

◆ GetTypeId()

◆ InitiateLink()

◆ Install()

◆ IsActiveLink()

◆ NotifyBeaconSent()

◆ NotifyLinkClose()

◆ NotifyLinkOpen()

◆ operator=()

◆ PeerLinkStatus()

◆ ReceiveBeacon()

◆ ReceivePeerLinkFrame()

◆ Report()

◆ ResetStats()

◆ SetBeaconCollisionAvoidance()

◆ SetMeshId()

◆ SetPeerLinkStatusCallback()

◆ ShiftOwnBeacon()

◆ ShouldAcceptOpen()

◆ ShouldSendOpen()

◆ TimeToTu()

◆ TransmissionFailure()

◆ TransmissionSuccess()

◆ TuToTime()

Member Data Documentation

◆ m_address

◆ m_beaconInterval

◆ m_beaconShift

◆ m_enableBca

◆ m_lastAssocId

◆ m_lastBeacon

◆ m_lastLocalLinkId

◆ m_linkCloseTraceSrc

◆ m_linkOpenTraceSrc

◆ m_maxBeaconShift

◆ m_maxNumberOfPeerLinks

◆ m_meshId

◆ m_peerLinks

◆ m_peerStatusCallback

◆ m_plugins

◆ m_stats
