#include "simple-ofdm-wimax-channel.h"

Inheritance diagram for ns3::SimpleOfdmWimaxChannel:

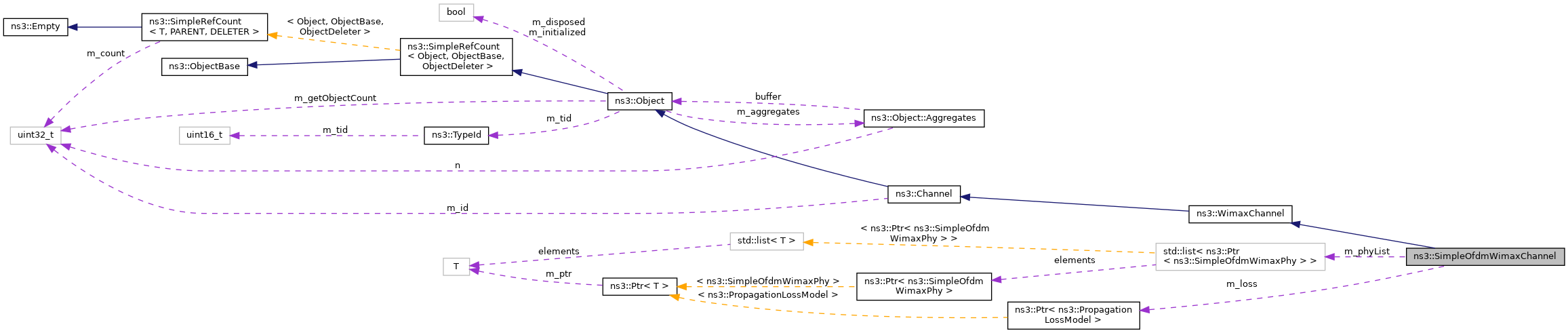

Collaboration diagram for ns3::SimpleOfdmWimaxChannel:

Public Types
enum	PropModel { RANDOM_PROPAGATION , FRIIS_PROPAGATION , LOG_DISTANCE_PROPAGATION , COST231_PROPAGATION }
	PropModel enumeration. More...

Public Member Functions
	SimpleOfdmWimaxChannel ()

	SimpleOfdmWimaxChannel (PropModel propModel)
	Creates a channel and sets the propagation model. More...

	~SimpleOfdmWimaxChannel () override

int64_t	AssignStreams (int64_t stream) override
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	Send (Time BlockTime, uint32_t burstSize, Ptr< WimaxPhy > phy, bool isFirstBlock, bool isLastBlock, uint64_t frequency, WimaxPhy::ModulationType modulationType, uint8_t direction, double txPowerDbm, Ptr< PacketBurst > burst)
	Sends a dummy fec block to all connected physical devices. More...

void	SetPropagationModel (PropModel propModel)
	sets the propagation model More...

Public Member Functions inherited from ns3::WimaxChannel
	WimaxChannel ()

	~WimaxChannel () override

void	Attach (Ptr< WimaxPhy > phy)
	attach the channel to a physical layer of a device More...

Ptr< NetDevice >	GetDevice (std::size_t i) const override

std::size_t	GetNDevices () const override

Public Member Functions inherited from ns3::Channel
	Channel ()

	~Channel () override

uint32_t	GetId () const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::WimaxChannel
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
void	DoAttach (Ptr< WimaxPhy > phy) override
	Attach function. More...

Ptr< NetDevice >	DoGetDevice (std::size_t i) const override
	Get device function. More...

std::size_t	DoGetNDevices () const override
	Get number of devices function. More...

void	EndSendDummyBlock (Ptr< SimpleOfdmWimaxPhy > rxphy, SimpleOfdmSendParam *param)
	End send dummy block function. More...

Private Attributes
Ptr< PropagationLossModel >	m_loss
	loss More...

std::list< Ptr< SimpleOfdmWimaxPhy > >	m_phyList
	phy list More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

SimpleOfdmWimaxChannel class.

Definition at line 44 of file simple-ofdm-wimax-channel.h.

Member Enumeration Documentation

◆ PropModel

enum ns3::SimpleOfdmWimaxChannel::PropModel

PropModel enumeration.

Enumerator
RANDOM_PROPAGATION
FRIIS_PROPAGATION
LOG_DISTANCE_PROPAGATION
COST231_PROPAGATION

Definition at line 51 of file simple-ofdm-wimax-channel.h.

Constructor & Destructor Documentation

◆ SimpleOfdmWimaxChannel() [1/2]

ns3::SimpleOfdmWimaxChannel::SimpleOfdmWimaxChannel ( )

Definition at line 44 of file simple-ofdm-wimax-channel.cc.

References m_loss.

◆ ~SimpleOfdmWimaxChannel()

ns3::SimpleOfdmWimaxChannel::~SimpleOfdmWimaxChannel ( )

override

Definition at line 49 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

◆ SimpleOfdmWimaxChannel() [2/2]

ns3::SimpleOfdmWimaxChannel::SimpleOfdmWimaxChannel ( PropModel propModel )

Creates a channel and sets the propagation model.

Parameters

propModel the propagation model to use

Definition at line 65 of file simple-ofdm-wimax-channel.cc.

References COST231_PROPAGATION, FRIIS_PROPAGATION, LOG_DISTANCE_PROPAGATION, m_loss, and RANDOM_PROPAGATION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::SimpleOfdmWimaxChannel::AssignStreams ( int64_t stream )

overridevirtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::WimaxChannel.

Definition at line 216 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

◆ DoAttach()

void ns3::SimpleOfdmWimaxChannel::DoAttach ( Ptr< WimaxPhy > phy )

overrideprivatevirtual

Attach function.

Parameters

phy	the phy layer

Implements ns3::WimaxChannel.

Definition at line 115 of file simple-ofdm-wimax-channel.cc.

References m_phyList, and third::phy.

◆ DoGetDevice()

Ptr< NetDevice > ns3::SimpleOfdmWimaxChannel::DoGetDevice ( std::size_t i ) const

overrideprivatevirtual

Get device function.

Parameters

i	the device index

Returns: the device

Implements ns3::WimaxChannel.

Definition at line 128 of file simple-ofdm-wimax-channel.cc.

References m_phyList, and NS_FATAL_ERROR.

◆ DoGetNDevices()

std::size_t ns3::SimpleOfdmWimaxChannel::DoGetNDevices ( ) const

overrideprivatevirtual

Get number of devices function.

Returns: the number of devices

Implements ns3::WimaxChannel.

Definition at line 122 of file simple-ofdm-wimax-channel.cc.

References m_phyList.

◆ EndSendDummyBlock()

void ns3::SimpleOfdmWimaxChannel::EndSendDummyBlock	(	Ptr< SimpleOfdmWimaxPhy >	rxphy,
		SimpleOfdmSendParam *	param
	)

private

End send dummy block function.

Parameters

rxphy	the Ptr<SimpleOfdmWimaxPhy>
param	the SimpleOfdmSendParam *

Definition at line 203 of file simple-ofdm-wimax-channel.cc.

References ns3::SimpleOfdmSendParam::GetBurst(), ns3::SimpleOfdmSendParam::GetBurstSize(), ns3::SimpleOfdmSendParam::GetDirection(), ns3::SimpleOfdmSendParam::GetFrequency(), ns3::SimpleOfdmSendParam::GetIsFirstBlock(), ns3::SimpleOfdmSendParam::GetModulationType(), and ns3::SimpleOfdmSendParam::GetRxPowerDbm().

Referenced by Send().

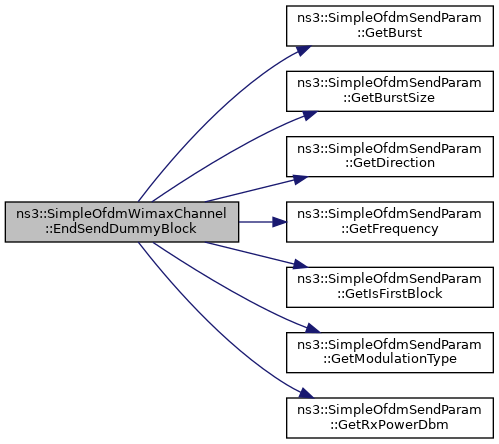

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SimpleOfdmWimaxChannel::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 56 of file simple-ofdm-wimax-channel.cc.

References ns3::TypeId::SetParent().

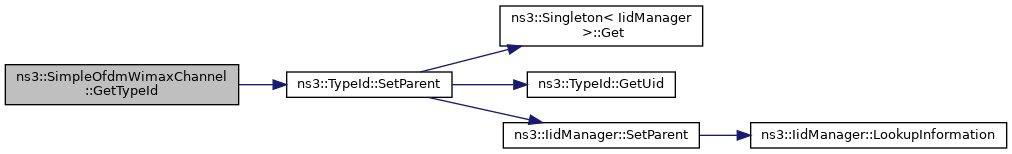

Here is the call graph for this function:

◆ Send()

void ns3::SimpleOfdmWimaxChannel::Send	(	Time	BlockTime,
		uint32_t	burstSize,
		Ptr< WimaxPhy >	phy,
		bool	isFirstBlock,
		bool	isLastBlock,
		uint64_t	frequency,
		WimaxPhy::ModulationType	modulationType,
		uint8_t	direction,
		double	txPowerDbm,
		Ptr< PacketBurst >	burst
	)

Sends a dummy fec block to all connected physical devices.

Parameters

BlockTime	the time needed to send the block
burstSize	the size of the burst
phy	the sender device
isFirstBlock	true if this block is the first one, false otherwise
isLastBlock	true if this block is the last one, false otherwise
frequency	the frequency on which the block is sent
modulationType	the modulation used to send the fec block
direction	uplink or downlink
txPowerDbm	the transmission power
burst	the packet burst to send
