WiFi adhoc experiment class. More...

#include "uan-cw-example.h"

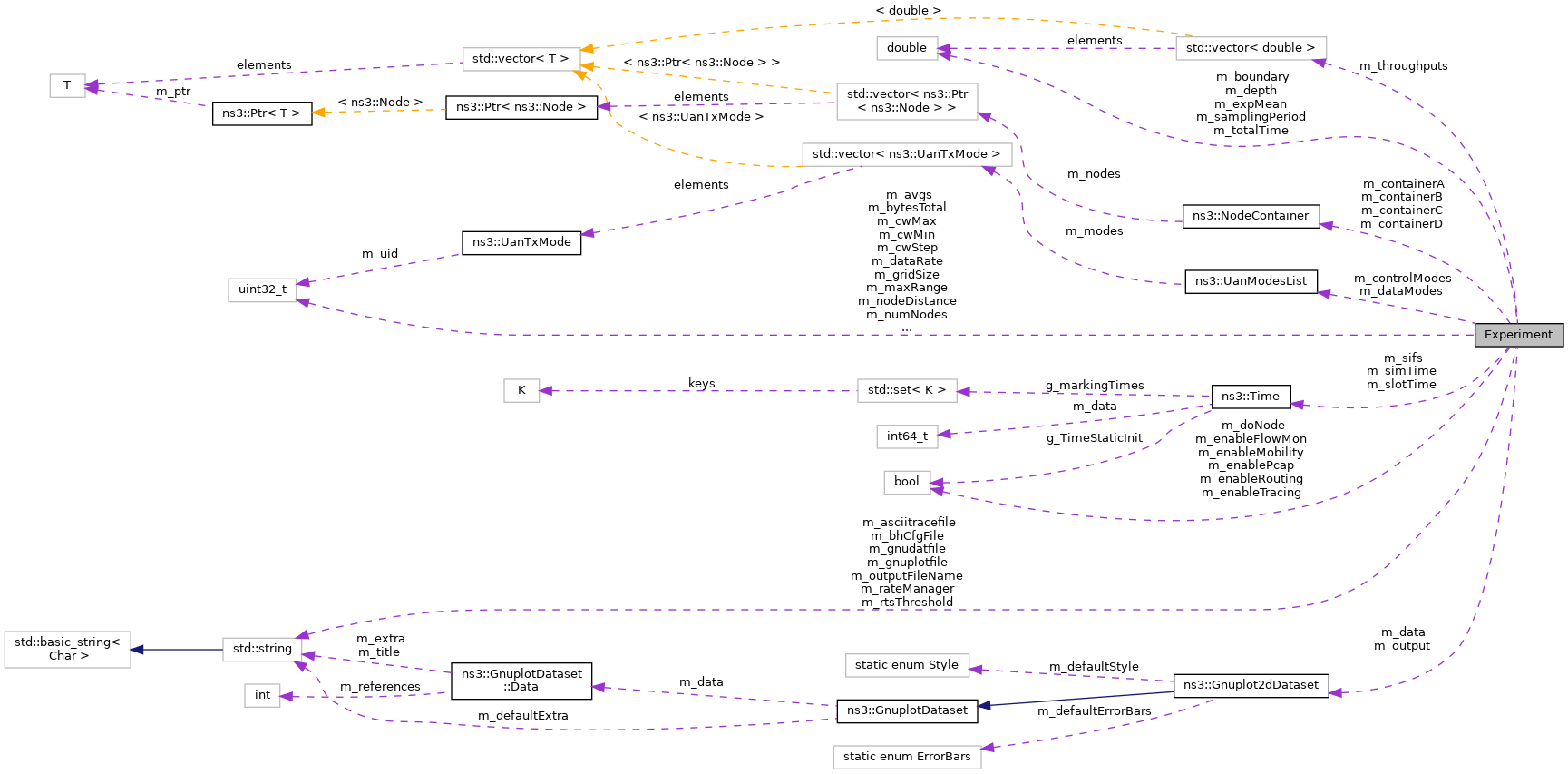

Collaboration diagram for Experiment:

Public Member Functions
	Experiment ()

	Experiment ()

	Experiment ()

	Experiment ()

	Experiment ()
	Default constructor. More...

	Experiment ()
	Default constructor. More...

	Experiment ()

	Experiment (std::string name)
	Constructor. More...

	Experiment (std::string name)
	Constructor. More...

	Experiment (std::string name)
	Construct a new Experiment object. More...

bool	CommandSetup (int argc, char **argv)
	Setup the experiment from the command line arguments. More...

void	CreateDualModes (uint32_t fc)
	Create m_numRates matching control and data modes. More...

UanTxMode	CreateMode (uint32_t kass, uint32_t fc, bool upperblock, std::string name) const
	Create a UanTxMode. More...

std::string	GetOutputFileName () const
	Get the Output File Name. More...

std::string	GetRateManager () const
	Get the Rate Manager. More...

std::string	GetRtsThreshold () const
	Get the RTS Threshold. More...

uint32_t	GetScenario () const
	Get the Scenario number. More...

void	IncrementCw (uint32_t cw)
	Compute average throughput for a set of runs, then increment CW. More...

bool	IsMobility () const
	Check if mobility is enabled. More...

bool	IsRouting () const
	Check if routing is enabled. More...

void	ReceivePacket (Ptr< Socket > socket)
	Receive all available packets from a socket. More...

void	ReceivePacket (Ptr< Socket > socket)
	Callback to receive a packet. More...

void	ResetData ()
	Save the throughput from a single run. More...

Gnuplot2dDataset	Run (const WifiHelper &wifi, const YansWifiPhyHelper &wifiPhy, const WifiMacHelper &wifiMac, const YansWifiChannelHelper &wifiChannel)
	Run an experiment. More...

uint32_t	Run (const WifiHelper &wifi, const YansWifiPhyHelper &wifiPhy, const WifiMacHelper &wifiMac, const YansWifiChannelHelper &wifiChannel)
	Run an experiment. More...

Gnuplot2dDataset	Run (const WifiHelper &wifi, const YansWifiPhyHelper &wifiPhy, const WifiMacHelper &wifiMac, const YansWifiChannelHelper &wifiChannel, const MobilityHelper &mobility)
	Run an experiment. More...

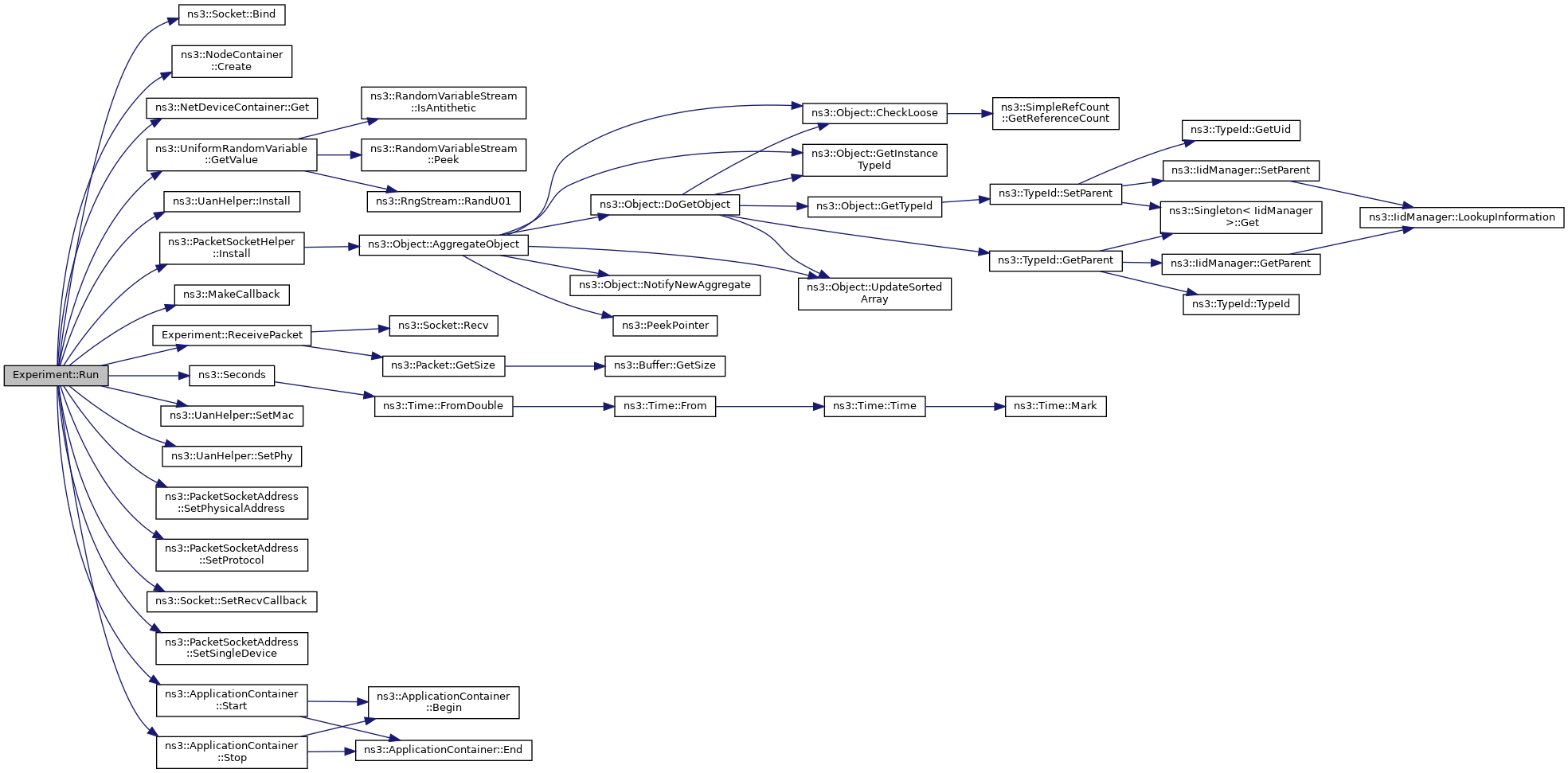

int	Run (const WifiHelper &wifi, const YansWifiPhyHelper &wifiPhy, const WifiMacHelper &wifiMac, const YansWifiChannelHelper &wifiChannel, uint32_t trialNumber, uint32_t networkSize, Time duration, bool pcap, bool infra, uint16_t guardIntervalNs, double distanceM, double apTxPowerDbm, double staTxPowerDbm, Time pktInterval)
	Configure and run the experiment. More...

double	Run (Parameters params)
	Run an experiment with the given parameters. More...

Gnuplot2dDataset	Run (UanHelper &uan)
	Run an experiment across a range of congestion window values. More...

uint32_t	Run (uint32_t param)
	Run a parametrized experiment. More...

void	UpdatePositions (NodeContainer &nodes) const
	Assign new random positions to a set of nodes. More...

Public Attributes
std::string	m_asciitracefile
	Name for ascii trace file, default uan-cw-example.asc. More...

uint32_t	m_avgs
	Number of topologies to test for each cw point. More...

std::string	m_bhCfgFile
	(Unused) More...

double	m_boundary
	Size of boundary in meters. More...

UanModesList	m_controlModes
	List of UanTxModes used for control channels. More...

uint32_t	m_cwMax
	Max CW to simulate. More...

uint32_t	m_cwMin
	Min CW to simulate. More...

uint32_t	m_cwStep
	CW step size, default 10. More...

Gnuplot2dDataset	m_data
	Container for the simulation data. More...

UanModesList	m_dataModes
	List of UanTxModes used for data channels. More...

uint32_t	m_dataRate
	DataRate in bps. More...

double	m_depth
	Depth of transmitting and sink nodes. More...

bool	m_doNode
	1 for do max nodes simulation (invalidates AMin and AMax values). More...

std::string	m_gnudatfile
	Name for GNU Plot output, default uan-cw-example.gpl. More...

std::string	m_gnuplotfile
	Filename for GnuPlot. More...

uint32_t	m_maxRange
	Maximum range between gateway and acoustic node. More...

uint32_t	m_numNodes
	Number of transmitting nodes. More...

uint32_t	m_numRates
	Number of divided rates ( (NumberRates+1)TotalRate should be 0). More...

uint32_t	m_pktSize
	Packet size in bytes. More...

Time	m_sifs
	SIFS time duration. More...

uint32_t	m_simMax
	Maximum parameter to test. More...

uint32_t	m_simMin
	Minimum parameter to test. More...

uint32_t	m_simStep
	Amount to increment param per trial. More...

Time	m_simTime
	Simulation run time, default 1000 s. More...

Time	m_slotTime
	Slot time duration. More...

std::vector< double >	m_throughputs
	Throughput for each run. More...

uint32_t	m_totalRate
	Total channel capacity. More...

Private Member Functions
void	AdvancePosition (Ptr< Node > node)
	Move a node by 1m on the x axis, stops at 210m. More...

void	ApplicationSetup (Ptr< Node > client, Ptr< Node > server, double start, double stop)
	Setup the application in the nodes. More...

void	AssignNeighbors (NodeContainer c)
	Take the grid map, divide it into 4 quadrants Assign all nodes from each quadrant to a specific container. More...

void	CheckThroughput ()
	Calculate the throughput. More...

NodeContainer	GenerateNeighbors (NodeContainer c, uint32_t senderId)
	Generate 1-hop and 2-hop neighbors of a node in grid topology. More...

void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)
	Generate the traffic. More...

Vector	GetPosition (Ptr< Node > node)
	Get the position of a node. More...

Vector	GetPosition (Ptr< Node > node)
	Get the position of a node. More...

void	ReceivePacket (Ptr< Socket > socket)
	Receive a packet. More...

void	ReceivePacket (Ptr< Socket > socket)
	Receive a packet. More...

void	ReceivePacket (Ptr< Socket > socket)
	Receive a packet. More...

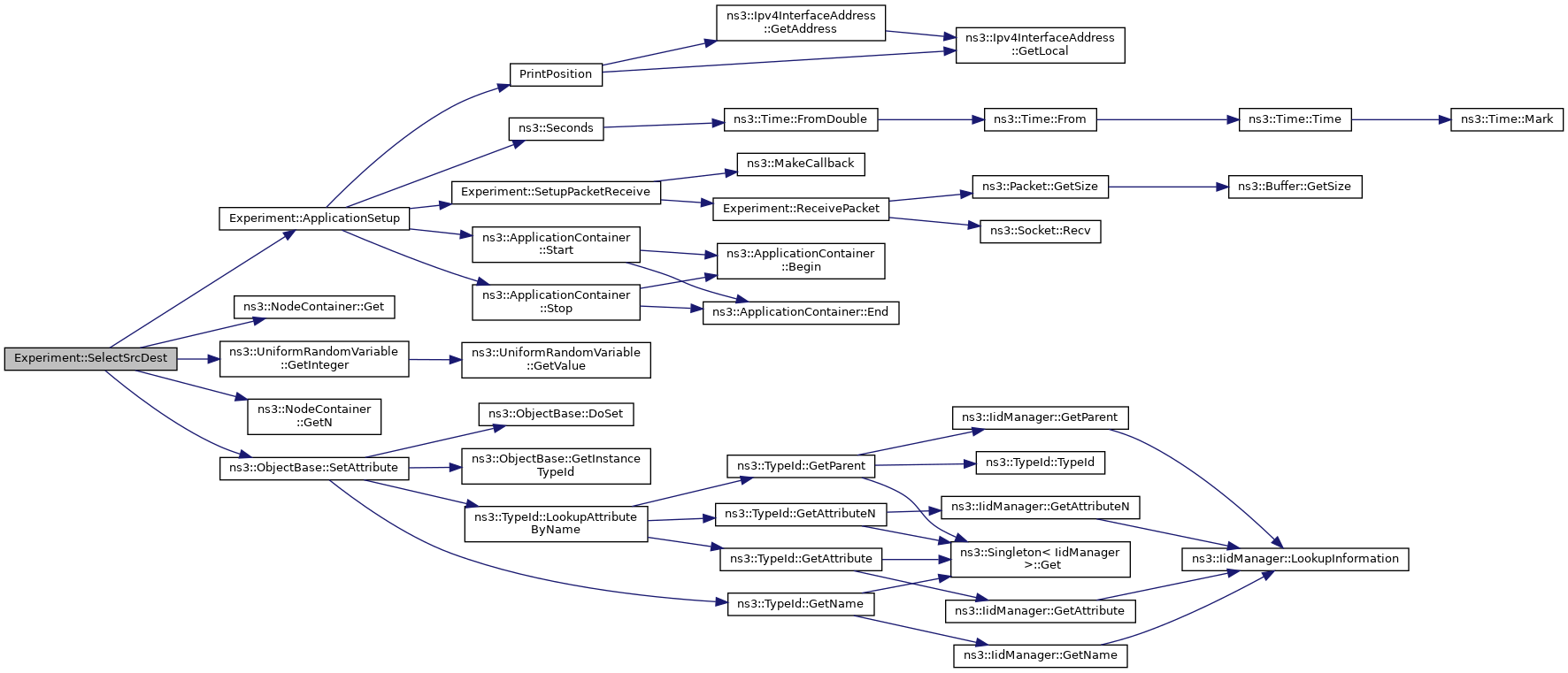

void	SelectSrcDest (NodeContainer c)
	Sources and destinations are randomly selected such that a node may be the source for multiple destinations and a node maybe a destination for multiple sources. More...

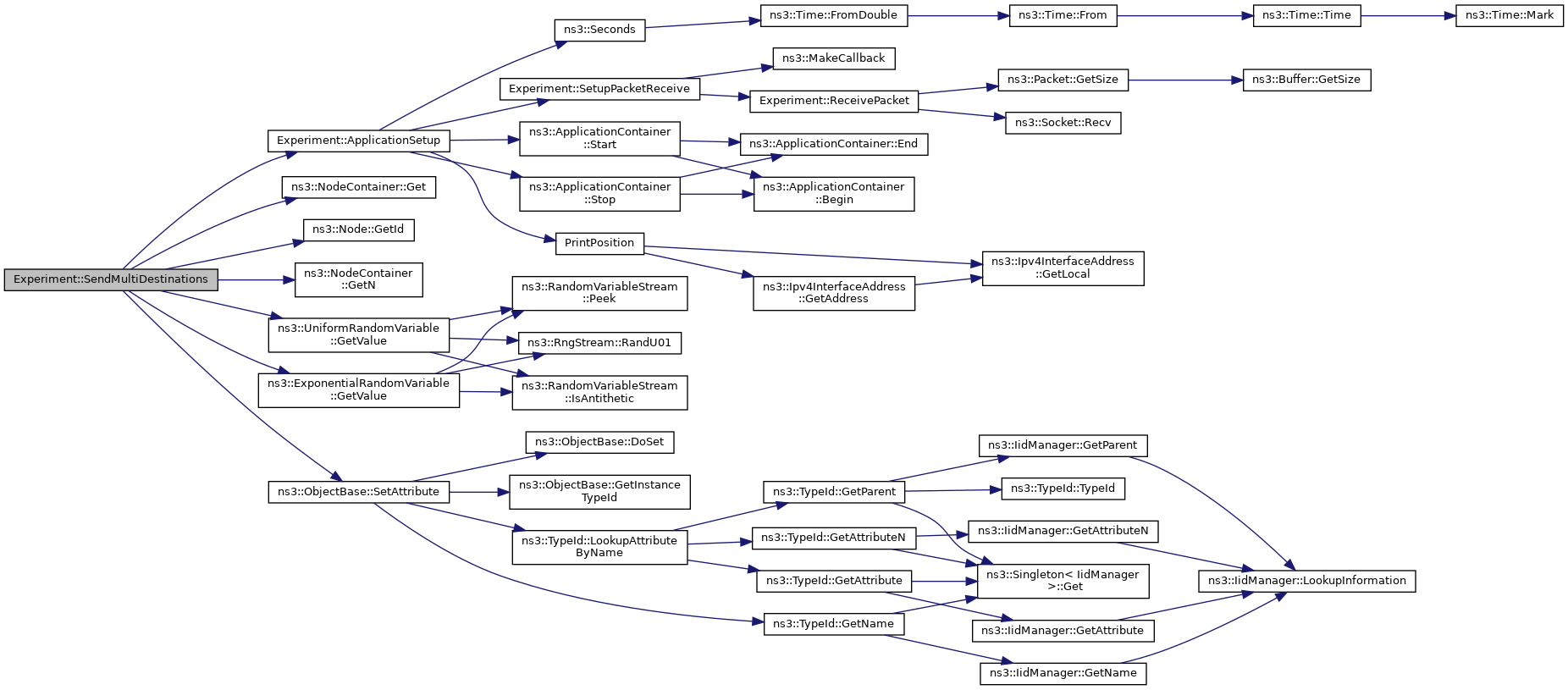

void	SendMultiDestinations (Ptr< Node > sender, NodeContainer c)
	A sender node will set up a flow to each of the its neighbors in its quadrant randomly. More...

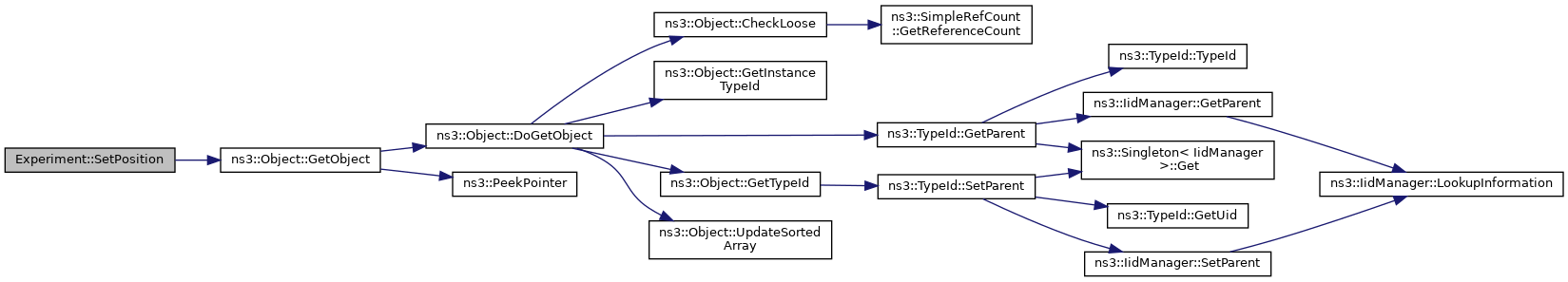

void	SetPosition (Ptr< Node > node, Vector position)
	Set the position of a node. More...

void	SetPosition (Ptr< Node > node, Vector position)
	Set the position of a node. More...

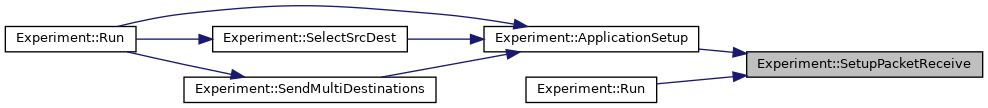

Ptr< Socket >	SetupPacketReceive (Ptr< Node > node)
	Setup the receiving socket. More...

Ptr< Socket >	SetupPacketReceive (Ptr< Node > node)
	Setup the receiving socket. More...

Ptr< Socket >	SetupPacketReceive (Ptr< Node > node)
	Setup the receiving socket. More...

Private Attributes
uint32_t	m_bytesTotal
	The number of received bytes. More...

bool	m_enableFlowMon
	True if FlowMon is enabled. More...

bool	m_enableMobility
	True if mobility is enabled. More...

bool	m_enablePcap
	True if PCAP output is enabled. More...

bool	m_enableRouting
	True if routing is enabled. More...

bool	m_enableTracing
	True if tracing output is enabled. More...

double	m_expMean
	Exponential parameter for sending packets. More...

uint32_t	m_gridSize
	Grid size. More...

uint32_t	m_nodeDistance
	Node distance. More...

Gnuplot2dDataset	m_output
	The output dataset. More...

std::string	m_outputFileName
	Output file name. More...

uint32_t	m_packetSize
	Packet size. More...

uint32_t	m_pktsTotal
	Total number of received packets. More...

uint32_t	m_port
	Listening port. More...

std::string	m_rateManager
	Rate manager. More...

std::string	m_rtsThreshold
	Rts threshold. More...

double	m_samplingPeriod
	Sampling period. More...

uint32_t	m_scenario
	Scenario number. More...

double	m_totalTime
	Total experiment time. More...


NodeContainer	m_containerA
	Node containers for each quadrant. More...

NodeContainer	m_containerB
	Node containers for each quadrant. More...

NodeContainer	m_containerC
	Node containers for each quadrant. More...

NodeContainer	m_containerD
	Node containers for each quadrant. More...

Detailed Description

WiFi adhoc experiment class.

Class to configure and run an experiment.

Container for the parameters describing a single experiment.

Helper class for UAN CW MAC example.

WiFi multirate experiment class.

WiFi clear channel cmu experiment class.

It handles the creation and run of an experiment.

Scenarios: 100 nodes, multiple simultaneous flows, multi-hop ad hoc, routing, and mobility

QUICK INSTRUCTIONS:

To optimize build: ./ns3 configure -d optimized ./ns3

To compile: ./ns3 run wifi-multirate

To compile with command line(useful for varying parameters): ./ns3 run "wifi-multirate --totalTime=0.3s --rateManager=ns3::MinstrelWifiManager"

To turn on NS_LOG: export NS_LOG=multirate=level_all (can only view log if built with ./ns3 configure -d debug)

To debug: ./ns3 shell gdb ./build/debug/examples/wireless/wifi-multirate

To view pcap files: tcpdump -nn -tt -r filename.pcap

To monitor the files: tail -f filename.pcap

An experiment measures the average throughput for a series of CW values.

See also: uan-cw-example.cc

An experiment samples a range of parameter values. The parameter controls the number of nodes (if m_doNode is true), or the UanMacRcGw MaxReservations attribute.

See also: uan-rc-example.cc

Definition at line 44 of file wifi-adhoc.cc.

Constructor & Destructor Documentation

◆ Experiment() [1/10]

Experiment::Experiment ( )

Definition at line 101 of file wifi-adhoc.cc.

◆ Experiment() [2/10]

Experiment::Experiment ( std::string name )

Constructor.

Parameters

name	The name of the experiment.

Definition at line 105 of file wifi-adhoc.cc.

References m_output, and ns3::Gnuplot2dDataset::SetStyle().

Here is the call graph for this function:

◆ Experiment() [3/10]

Experiment::Experiment ( )

◆ Experiment() [4/10]

Experiment::Experiment ( std::string name )

Constructor.

Parameters

name	The name of the experiment.

◆ Experiment() [5/10]

Experiment::Experiment ( )

◆ Experiment() [6/10]

Experiment::Experiment ( )

◆ Experiment() [7/10]

Experiment::Experiment ( std::string name )

Construct a new Experiment object.

Parameters

name	The name of the experiment.

◆ Experiment() [8/10]

Experiment::Experiment ( )

Default constructor.

◆ Experiment() [9/10]

Experiment::Experiment ( )

Default constructor.

◆ Experiment() [10/10]

Experiment::Experiment ( )

Member Function Documentation

◆ AdvancePosition()

void Experiment::AdvancePosition ( Ptr< Node > node )

private

Move a node by 1m on the x axis, stops at 210m.

Parameters

node The node.

Definition at line 126 of file wifi-adhoc.cc.

References ns3::Gnuplot2dDataset::Add(), GetPosition(), m_bytesTotal, m_output, ns3::Seconds(), and SetPosition().

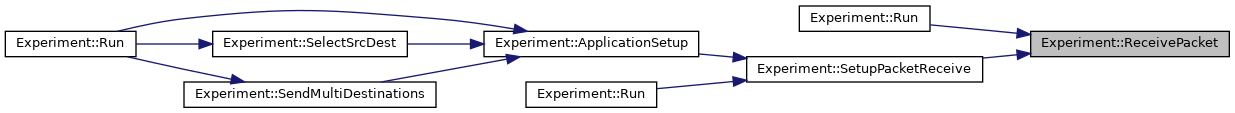

Referenced by Run().

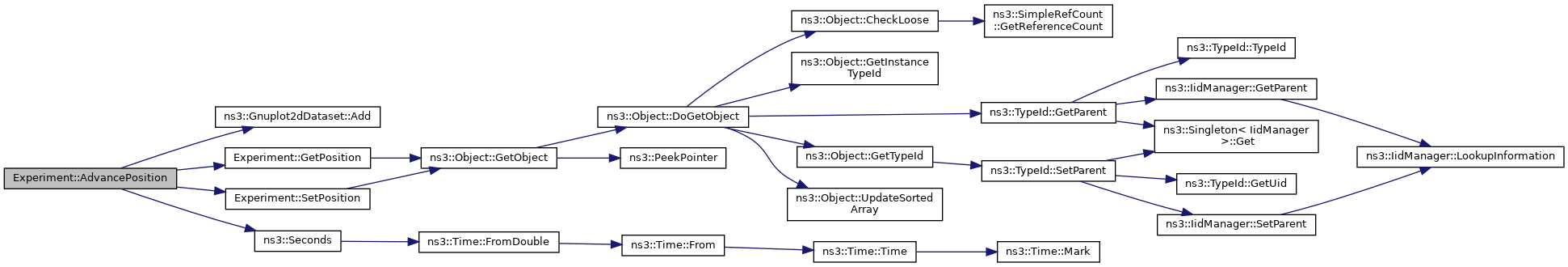

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ApplicationSetup()

void Experiment::ApplicationSetup	(	Ptr< Node >	client,
		Ptr< Node >	server,
		double	start,
		double	stop
	)

private

Setup the application in the nodes.

Parameters

client	Client node.
server	Server node.
start	Start time.
stop	Stop time.

Definition at line 471 of file wifi-multirate.cc.

References brite-generic-example::client, m_packetSize, m_port, NS_LOG_DEBUG, openflow-switch::onoff, PrintPosition(), ns3::Seconds(), brite-generic-example::server, SetupPacketReceive(), sink, ns3::ApplicationContainer::Start(), two-ray-to-three-gpp-ch-calibration::start, ns3::ApplicationContainer::Stop(), and two-ray-to-three-gpp-ch-calibration::stop.

Referenced by Run(), SelectSrcDest(), and SendMultiDestinations().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AssignNeighbors()

void Experiment::AssignNeighbors ( NodeContainer c )

private

Take the grid map, divide it into 4 quadrants Assign all nodes from each quadrant to a specific container.

Parameters

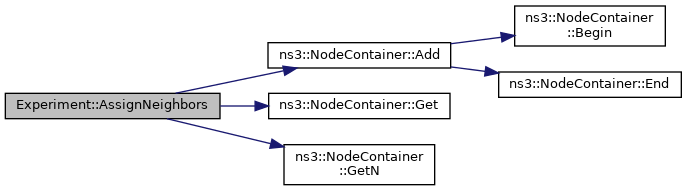

c	The node container.

Definition at line 328 of file wifi-multirate.cc.

References ns3::NodeContainer::Add(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), m_containerA, m_containerB, m_containerC, m_containerD, and m_gridSize.

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckThroughput()

void Experiment::CheckThroughput ( )

private

Calculate the throughput.

Definition at line 317 of file wifi-multirate.cc.

References ns3::Gnuplot2dDataset::Add(), m_bytesTotal, m_output, m_samplingPeriod, ns3::Now(), and ns3::Seconds().

Referenced by Run().

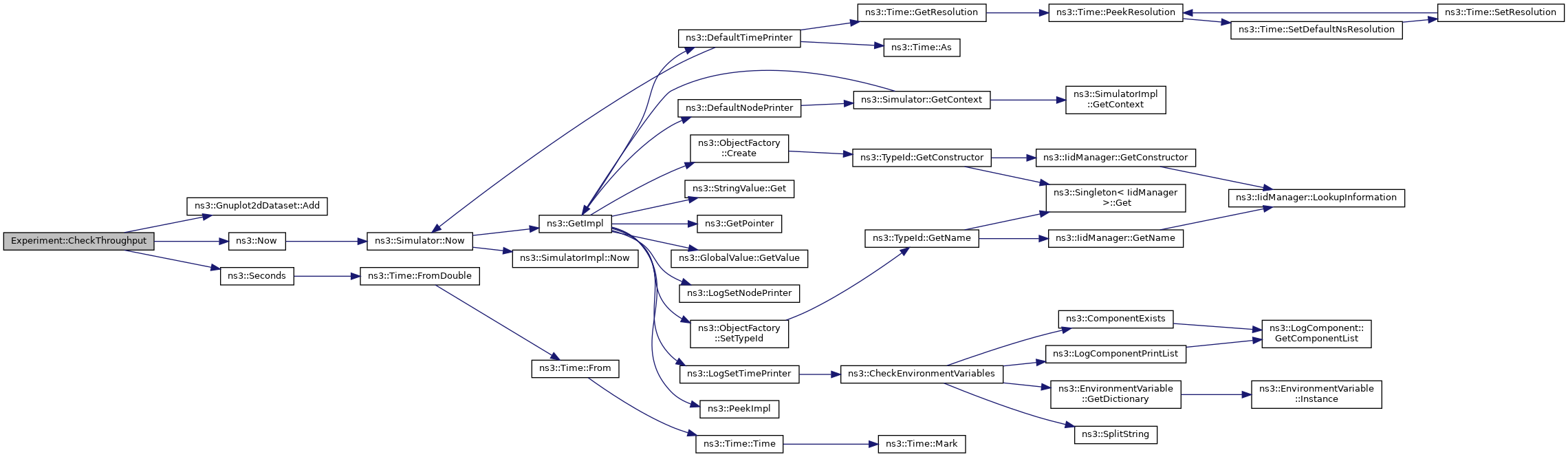

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CommandSetup()

bool Experiment::CommandSetup	(	int	argc,
		char **	argv
	)

Setup the experiment from the command line arguments.

Parameters

argc	The argument count.
argv	The argument vector.

Returns: true

Definition at line 666 of file wifi-multirate.cc.

References second::cmd, m_enableMobility, m_enableRouting, m_outputFileName, m_packetSize, m_rateManager, m_rtsThreshold, m_samplingPeriod, m_scenario, and m_totalTime.

◆ CreateDualModes()

void Experiment::CreateDualModes ( uint32_t fc )

Create m_numRates matching control and data modes.

Parameters

fc	Mode center frequency offset.

Definition at line 125 of file uan-rc-example.cc.

References ns3::UanModesList::AppendMode(), CreateMode(), m_controlModes, m_dataModes, and m_numRates.

Here is the call graph for this function:

◆ CreateMode()

UanTxMode Experiment::CreateMode	(	uint32_t	kass,
		uint32_t	fc,
		bool	upperblock,
		std::string	name
	)		const

Create a UanTxMode.

The mode physical rate is set equal to m_totalRate. The data rate and bandwidth are set to

${\rm{rate, bandwidth}} = {\rm{kass}}\frac{{{\rm{m\_totalRate}}}}{{{\rm{m\_numRates}} + 1}}$

The center frequency is set to

${f_{center}} = {\rm{fc}} + \frac{{ \pm {\rm{m\_totalRate}} \mp {\rm{rate}}}}{2}$

where the upper sign is taken if upperblock is true.

Parameters

kass	Fraction of total bandwidth assigned to mode.
fc	Mode center frequency offset.
upperblock	Sign choice in setting the center frequency.
name	Mode name.

Returns: The new mode.

Definition at line 98 of file uan-rc-example.cc.

References m_numRates, and m_totalRate.

Referenced by CreateDualModes().

Here is the caller graph for this function:

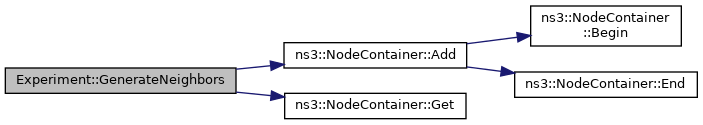

◆ GenerateNeighbors()

NodeContainer Experiment::GenerateNeighbors	(	NodeContainer	c,
		uint32_t	senderId
	)

private

Generate 1-hop and 2-hop neighbors of a node in grid topology.

Parameters

c	The node container.
senderId	The sender ID.

Returns: the neighbor nodes.

Definition at line 365 of file wifi-multirate.cc.

References ns3::NodeContainer::Add(), and ns3::NodeContainer::Get().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GenerateTraffic()

void Experiment::GenerateTraffic	(	Ptr< Socket >	socket,
		uint32_t	pktSize,
		uint32_t	pktCount,
		Time	pktInterval
	)

private

Generate the traffic.

Parameters

socket	The sending socket.
pktSize	The packet size.
pktCount	The number of packets to send.
pktInterval	The time between packets.

Definition at line 147 of file wifi-clear-channel-cmu.cc.

References ns3::Socket::Close(), pktSize, and ns3::Socket::Send().

Here is the call graph for this function:

◆ GetOutputFileName()

std::string Experiment::GetOutputFileName ( ) const

inline

Get the Output File Name.

Returns: the Output File Name.

Definition at line 157 of file wifi-multirate.cc.

Referenced by Run().

Here is the caller graph for this function:

◆ GetPosition() [1/2]

Vector Experiment::GetPosition ( Ptr< Node > node )

private

Get the position of a node.

Parameters

node The node.

Returns: the position of the node.

Definition at line 119 of file wifi-adhoc.cc.

References ns3::Object::GetObject(), and third::mobility.

Referenced by AdvancePosition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPosition() [2/2]

Vector Experiment::GetPosition ( Ptr< Node > node )

private

Get the position of a node.

Parameters

node The node.

Returns: the position of the node.

◆ GetRateManager()

std::string Experiment::GetRateManager ( ) const

inline

Get the Rate Manager.

Returns: the Rate Manager.

Definition at line 167 of file wifi-multirate.cc.

◆ GetRtsThreshold()

std::string Experiment::GetRtsThreshold ( ) const

inline

Get the RTS Threshold.

Returns: the RTS Threshold.

Definition at line 147 of file wifi-multirate.cc.

◆ GetScenario()

uint32_t Experiment::GetScenario ( ) const

inline

Get the Scenario number.

Returns: the scenario number.

Definition at line 137 of file wifi-multirate.cc.

◆ IncrementCw()

void Experiment::IncrementCw ( uint32_t cw )

Compute average throughput for a set of runs, then increment CW.

Parameters

cw	CW value for completed runs.

Definition at line 85 of file uan-cw-example.cc.

References ns3::Gnuplot2dDataset::Add(), m_avgs, m_cwStep, m_data, m_throughputs, NS_ASSERT, NS_LOG_DEBUG, and ns3::Config::Set().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsMobility()

bool Experiment::IsMobility ( ) const

inline

Check if mobility is enabled.

Returns: true if mobility is enabled.

Definition at line 127 of file wifi-multirate.cc.

◆ IsRouting()

bool Experiment::IsRouting ( ) const

inline

Check if routing is enabled.

Returns: true if routing is enabled.

Definition at line 117 of file wifi-multirate.cc.

◆ ReceivePacket() [1/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

private

Receive a packet.

Parameters

socket The receiving socket.

Definition at line 142 of file wifi-adhoc.cc.

References ns3::Packet::GetSize(), m_bytesTotal, and ns3::Socket::Recv().

Referenced by Run(), and SetupPacketReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReceivePacket() [2/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

private

Receive a packet.

Parameters

socket The receiving socket.

◆ ReceivePacket() [3/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

private

Receive a packet.

Parameters

socket The receiving socket.

◆ ReceivePacket() [4/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

Receive all available packets from a socket.

Parameters

socket The receive socket.

◆ ReceivePacket() [5/5]

void Experiment::ReceivePacket ( Ptr< Socket > socket )

Callback to receive a packet.

Parameters

socket The socket receiving packets.

◆ ResetData()

void Experiment::ResetData ( )

Save the throughput from a single run.

Definition at line 77 of file uan-cw-example.cc.

References ns3::Time::GetSeconds(), m_bytesTotal, m_simTime, m_throughputs, ns3::Now(), and NS_LOG_DEBUG.

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

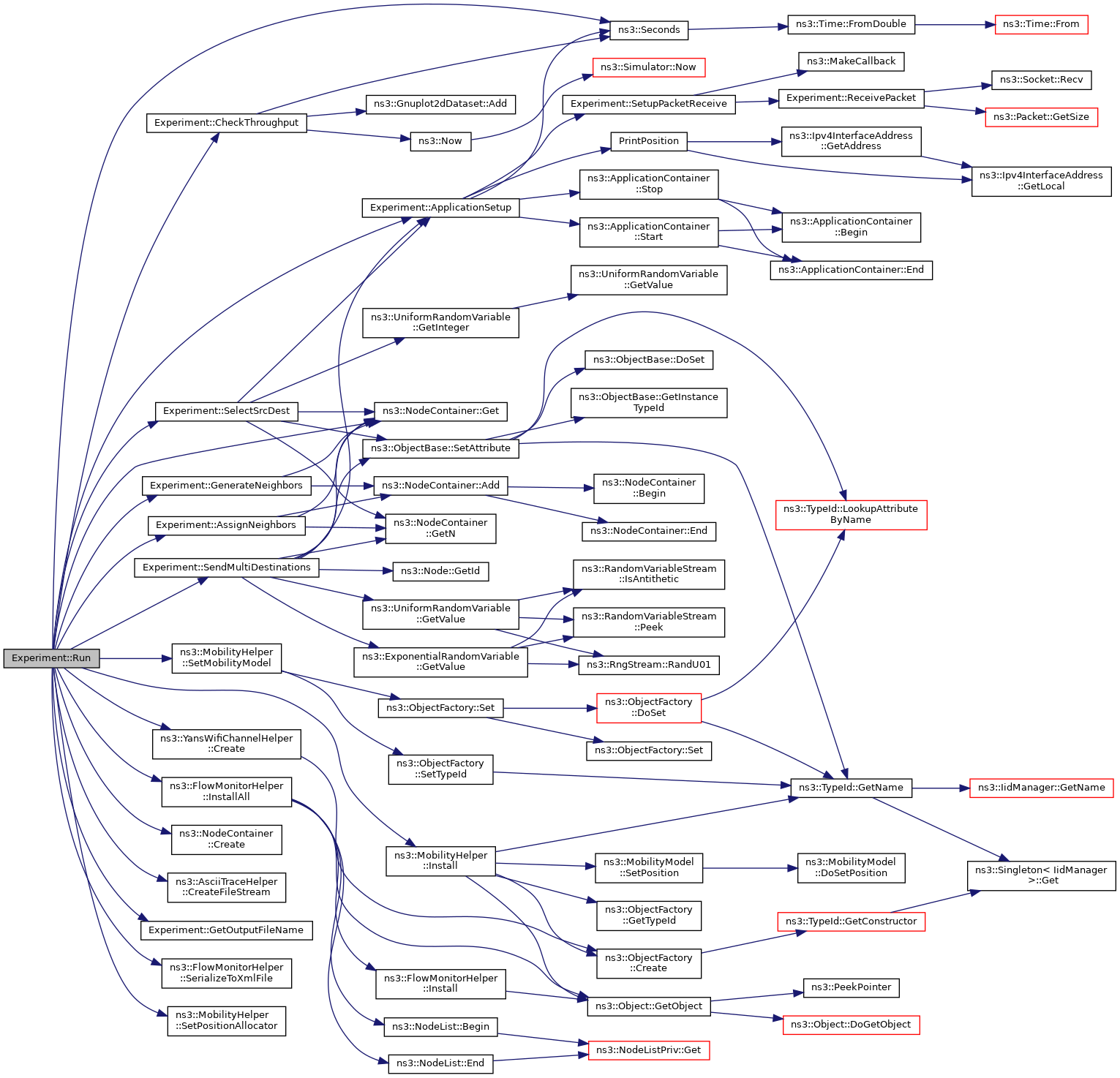

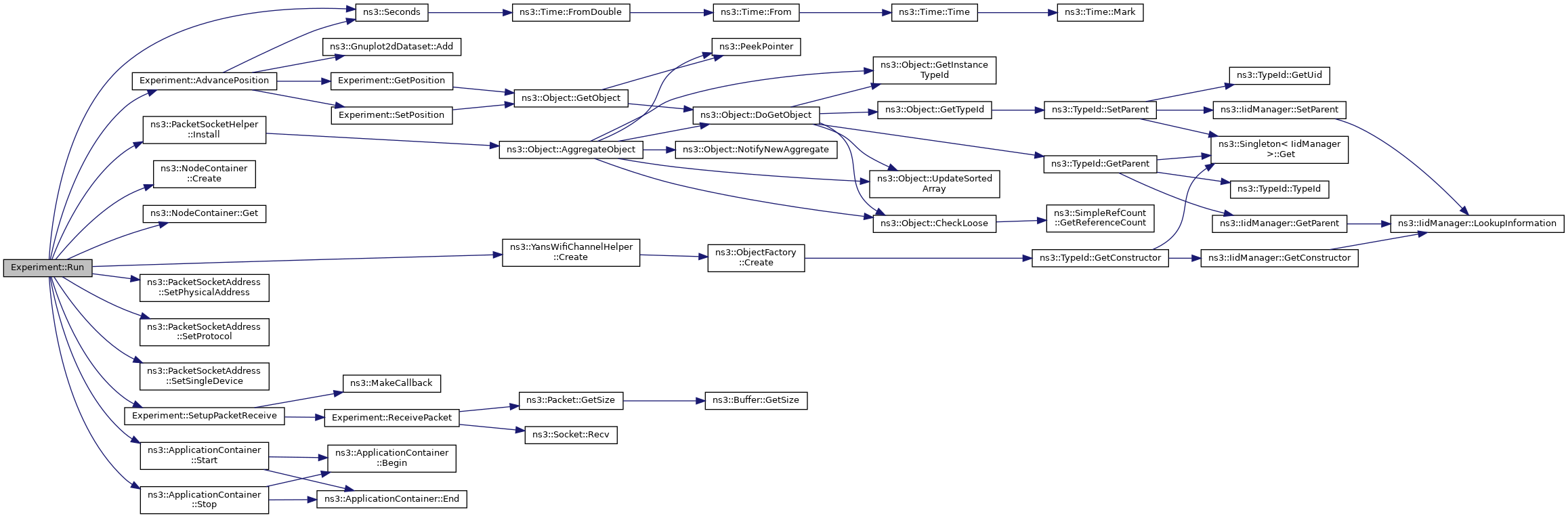

◆ Run() [1/7]

uint32_t Experiment::Run	(	const WifiHelper &	wifi,
		const YansWifiPhyHelper &	wifiPhy,
		const WifiMacHelper &	wifiMac,
		const YansWifiChannelHelper &	wifiChannel
	)

Run an experiment.

Parameters

wifi	//!< The WifiHelper class.
wifiPhy	//!< The YansWifiPhyHelper class.
wifiMac	//!< The WifiMacHelper class.
wifiChannel	//!< The YansWifiChannelHelper class.

Returns: a 2D dataset of the experiment data.

Definition at line 162 of file wifi-adhoc.cc.

References AdvancePosition(), ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), first::devices, ns3::NodeContainer::Get(), ns3::PacketSocketHelper::Install(), m_bytesTotal, m_output, third::mobility, openflow-switch::onoff, third::phy, ns3::Seconds(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::PacketSocketAddress::SetSingleDevice(), SetupPacketReceive(), ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and third::wifi.

Here is the call graph for this function:

◆ Run() [2/7]

uint32_t Experiment::Run	(	const WifiHelper &	wifi,
		const YansWifiPhyHelper &	wifiPhy,
		const WifiMacHelper &	wifiMac,
		const YansWifiChannelHelper &	wifiChannel
	)

Run an experiment.

Parameters

wifi	//!< The WifiHelper class.
wifiPhy	//!< The YansWifiPhyHelper class.
wifiMac	//!< The WifiMacHelper class.
wifiChannel	//!< The YansWifiChannelHelper class.

Returns: the number of received packets.

◆ Run() [3/7]

Gnuplot2dDataset Experiment::Run	(	const WifiHelper &	wifi,
		const YansWifiPhyHelper &	wifiPhy,
		const WifiMacHelper &	wifiMac,
		const YansWifiChannelHelper &	wifiChannel,
		const MobilityHelper &	mobility
	)

Run an experiment.

Parameters

wifi	The WifiHelper class.
wifiPhy	The YansWifiPhyHelper class.
wifiMac	The WifiMacHelper class.
wifiChannel	The YansWifiChannelHelper class.
mobility	The MobilityHelper class.

Returns: a 2D dataset of the experiment data.

Definition at line 495 of file wifi-multirate.cc.

References first::address, ApplicationSetup(), AssignNeighbors(), CheckThroughput(), ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), ns3::AsciiTraceHelper::CreateFileStream(), first::devices, GenerateNeighbors(), ns3::NodeContainer::Get(), GetOutputFileName(), ns3::MobilityHelper::Install(), ns3::FlowMonitorHelper::InstallAll(), nsclick-simple-lan::internet, list, m_containerA, m_containerB, m_containerC, m_containerD, m_enableFlowMon, m_enableMobility, m_enablePcap, m_enableRouting, m_enableTracing, m_gridSize, m_nodeDistance, m_output, m_scenario, m_totalTime, third::mobility, NS_LOG_DEBUG, third::phy, ns3::Seconds(), SelectSrcDest(), SendMultiDestinations(), ns3::FlowMonitorHelper::SerializeToXmlFile(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), and third::wifi.

Here is the call graph for this function:

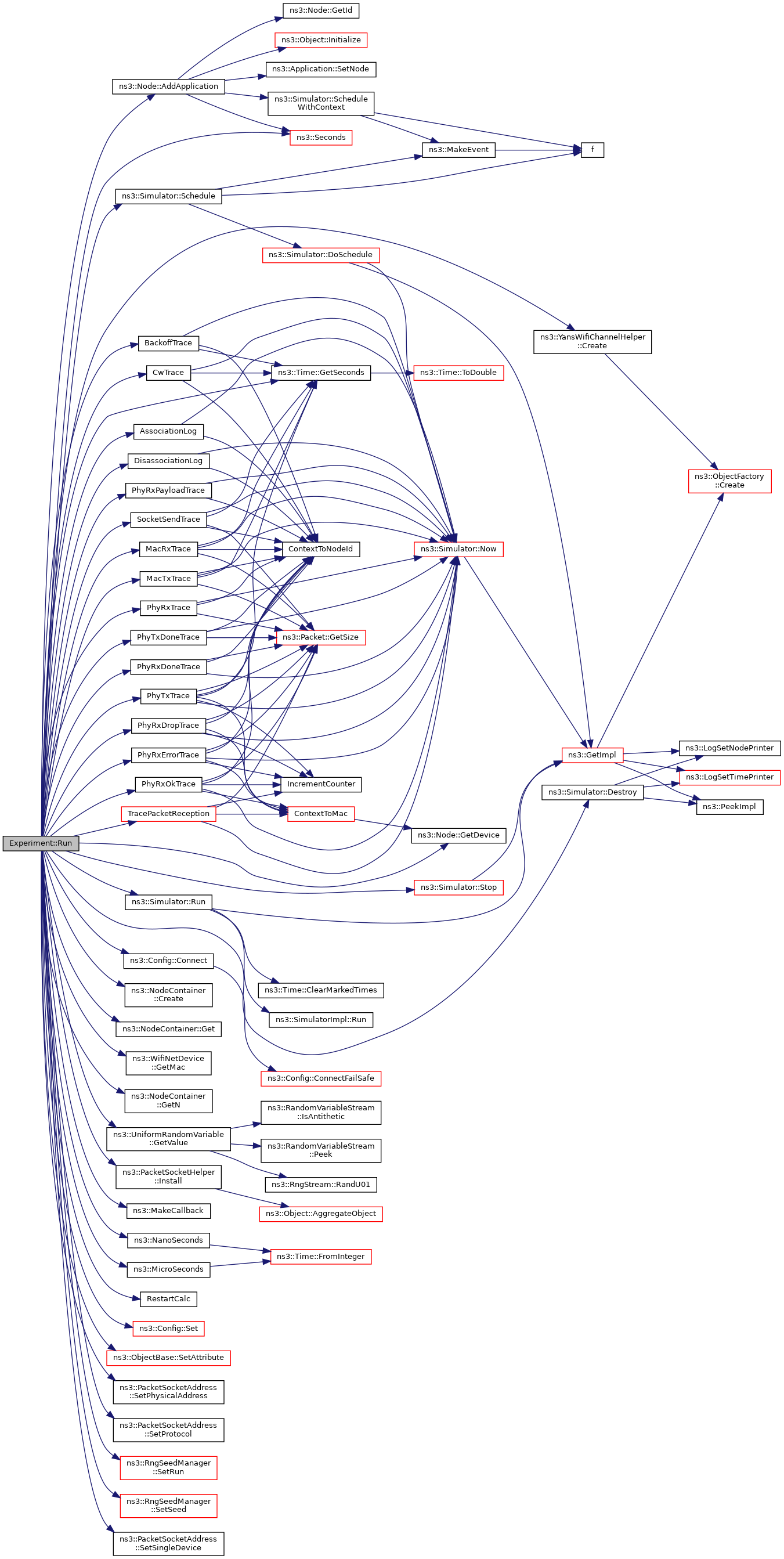

◆ Run() [4/7]

int Experiment::Run	(	const WifiHelper &	wifi,
		const YansWifiPhyHelper &	wifiPhy,
		const WifiMacHelper &	wifiMac,
		const YansWifiChannelHelper &	wifiChannel,
		uint32_t	trialNumber,
		uint32_t	networkSize,
		Time	duration,
		bool	pcap,
		bool	infra,
		uint16_t	guardIntervalNs,
		double	distanceM,
		double	apTxPowerDbm,
		double	staTxPowerDbm,
		Time	pktInterval
	)

Configure and run the experiment.

Parameters

wifi	the pre-configured WifiHelper
wifiPhy	the pre-configured YansWifiPhyHelper
wifiMac	the pre-configured WifiMacHelper
wifiChannel	the pre-configured YansWifiChannelHelper
trialNumber	the trial index
networkSize	the number of stations
duration	the duration of each simulation run
pcap	flag to enable/disable PCAP files generation
infra	flag to enable infrastructure model, ring adhoc network if not set
guardIntervalNs	the guard interval in ns
distanceM	the distance in meters
apTxPowerDbm	the AP transmit power in dBm
staTxPowerDbm	the STA transmit power in dBm
pktInterval	the packet interval

Returns: 0 if all went well

Definition at line 2437 of file wifi-bianchi.cc.

References ns3::Node::AddApplication(), AssociationLog(), BackoffTrace(), backoffTraceFile, brite-generic-example::client, ns3::Config::Connect(), ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), CwTrace(), cwTraceFile, ns3::Simulator::Destroy(), first::devices, DisassociationLog(), ns3::WifiPhyHelper::DLT_IEEE802_11_RADIO, ns3::NodeContainer::Get(), ns3::Node::GetDevice(), ns3::WifiNetDevice::GetMac(), ns3::NodeContainer::GetN(), ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), ns3::PacketSocketHelper::Install(), third::mac, MacRxTrace(), macRxTraceFile, MacTxTrace(), macTxTraceFile, ns3::MakeCallback(), max, maxMpdus, ns3::MicroSeconds(), third::mobility, ns3::NanoSeconds(), NS_LOG_DEBUG, third::phy, PhyRxDoneTrace(), PhyRxDropTrace(), PhyRxErrorTrace(), PhyRxOkTrace(), PhyRxPayloadTrace(), PhyRxTrace(), PhyTxDoneTrace(), PhyTxTrace(), phyTxTraceFile, PI, pktSize, RestartCalc(), ns3::Simulator::Run(), ns3::Simulator::Schedule(), ns3::Seconds(), brite-generic-example::server, ns3::Config::Set(), ns3::ObjectBase::SetAttribute(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::RngSeedManager::SetRun(), ns3::RngSeedManager::SetSeed(), ns3::PacketSocketAddress::SetSingleDevice(), SocketSendTrace(), socketSendTraceFile, third::ssid, two-ray-to-three-gpp-ch-calibration::start, ns3::Simulator::Stop(), TracePacketReception(), tracing, and third::wifi.

Here is the call graph for this function:

◆ Run() [5/7]

double Experiment::Run ( Parameters params )

Run an experiment with the given parameters.

Parameters

params the given parameters

Returns: the throughput

Definition at line 104 of file wifi-mixed-network.cc.

References first::address, third::channel, brite-generic-example::client, first::clientApps, ns3::NodeContainer::Create(), ns3::YansWifiChannelHelper::Default(), ns3::Simulator::Destroy(), ns3::PointerValue::Get(), ns3::ApplicationContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Ipv4Address::GetAny(), ns3::ObjectBase::GetAttribute(), ns3::Node::GetDevice(), ns3::WifiNetDevice::GetMac(), third::mac, ns3::MicroSeconds(), third::mobility, openflow-switch::onoff, nsclick-simple-lan::packetSinkHelper, two-ray-to-three-gpp-ch-calibration::params, third::phy, port, nsclick-simple-lan::remoteAddress, ns3::Simulator::Run(), ns3::Seconds(), brite-generic-example::server, ns3::Config::Set(), ns3::Config::SetDefault(), ns3::Txop::SetTxopLimit(), third::ssid, first::stack, ns3::ApplicationContainer::Start(), ns3::Simulator::Stop(), ns3::ApplicationContainer::Stop(), throughput, third::wifi, ns3::WIFI_STANDARD_80211b, ns3::WIFI_STANDARD_80211g, ns3::WIFI_STANDARD_80211n, and third::wifiApNode.

Here is the call graph for this function:

◆ Run() [6/7]

Gnuplot2dDataset Experiment::Run ( UanHelper & uan )

Run an experiment across a range of congestion window values.

Parameters

uan	The Uan stack helper to configure nodes in the model.

Returns: The data set of CW values and measured throughput

Definition at line 131 of file uan-cw-example.cc.

References ns3::Object::AggregateObject(), openflow-switch::app, ns3::Socket::Bind(), third::channel, ns3::NodeContainer::Create(), first::devices, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::NetDeviceContainer::GetN(), ns3::NodeContainer::GetN(), ns3::Object::GetObject(), ns3::MobilityModel::GetPosition(), ns3::UniformRandomVariable::GetValue(), IncrementCw(), ns3::UanHelper::Install(), ns3::PacketSocketHelper::Install(), m_asciitracefile, m_avgs, m_boundary, m_bytesTotal, m_cwMax, m_cwMin, m_cwStep, m_data, m_dataRate, m_depth, m_numNodes, m_packetSize, m_simTime, m_slotTime, ns3::MakeCallback(), min, third::mobility, NS_FATAL_ERROR, NS_LOG_DEBUG, ReceivePacket(), ResetData(), ns3::Seconds(), ns3::UanHelper::SetMac(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::Socket::SetRecvCallback(), ns3::PacketSocketAddress::SetSingleDevice(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), UpdatePositions(), and two-ray-to-three-gpp-ch-calibration::x.

Here is the call graph for this function:

◆ Run() [7/7]

uint32_t Experiment::Run ( uint32_t param )

Run a parametrized experiment.

The parameter sets either the number of nodes (if m_doNode is true) or the "a" parameter, which controls the UanMacRcGw MaxReservations attribute.

Parameters

param The parameter value.

Returns: The total number of bytes delivered.

Definition at line 138 of file uan-rc-example.cc.

References openflow-switch::app, ns3::Socket::Bind(), ns3::NodeContainer::Create(), first::devices, ns3::NetDeviceContainer::Get(), ns3::UniformRandomVariable::GetValue(), ns3::UanHelper::Install(), ns3::PacketSocketHelper::Install(), m_bytesTotal, m_controlModes, m_dataModes, m_doNode, m_maxRange, m_numNodes, m_numRates, m_pktSize, m_sifs, m_simTime, m_totalRate, ns3::MakeCallback(), third::mobility, nodes, ReceivePacket(), ns3::Seconds(), ns3::UanHelper::SetMac(), ns3::UanHelper::SetPhy(), ns3::PacketSocketAddress::SetPhysicalAddress(), ns3::PacketSocketAddress::SetProtocol(), ns3::Socket::SetRecvCallback(), ns3::PacketSocketAddress::SetSingleDevice(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and two-ray-to-three-gpp-ch-calibration::x.

Here is the call graph for this function:

◆ SelectSrcDest()

void Experiment::SelectSrcDest ( NodeContainer c )

private

Sources and destinations are randomly selected such that a node may be the source for multiple destinations and a node maybe a destination for multiple sources.

Parameters

c	The node container.

Definition at line 382 of file wifi-multirate.cc.

References ApplicationSetup(), ns3::NodeContainer::Get(), ns3::UniformRandomVariable::GetInteger(), ns3::NodeContainer::GetN(), m_totalTime, and ns3::ObjectBase::SetAttribute().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendMultiDestinations()

void Experiment::SendMultiDestinations	(	Ptr< Node >	sender,
		NodeContainer	c
	)

private

A sender node will set up a flow to each of the its neighbors in its quadrant randomly.

All the flows are exponentially distributed.

Parameters

sender	The sender node.
c	The node neighbors.

Definition at line 399 of file wifi-multirate.cc.

References ApplicationSetup(), ns3::NodeContainer::Get(), ns3::Node::GetId(), ns3::NodeContainer::GetN(), ns3::ExponentialRandomVariable::GetValue(), ns3::UniformRandomVariable::GetValue(), m_expMean, m_totalTime, NS_LOG_DEBUG, ns3::ObjectBase::SetAttribute(), two-ray-to-three-gpp-ch-calibration::start, and two-ray-to-three-gpp-ch-calibration::stop.

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPosition() [1/2]

void Experiment::SetPosition	(	Ptr< Node >	node,
		Vector	position
	)

private

Set the position of a node.

Parameters

node	The node.
position	The position of the node.

Definition at line 112 of file wifi-adhoc.cc.

References ns3::Object::GetObject(), and third::mobility.

Referenced by AdvancePosition().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPosition() [2/2]

void Experiment::SetPosition	(	Ptr< Node >	node,
		Vector	position
	)

private

Set the position of a node.

Parameters

node	The node.
position	The position of the node.

◆ SetupPacketReceive() [1/3]

Ptr< Socket > Experiment::SetupPacketReceive ( Ptr< Node > node )

private

Setup the receiving socket.

Parameters

node	The receiving node.

Returns: the socket.

Definition at line 152 of file wifi-adhoc.cc.

References ns3::MakeCallback(), ReceivePacket(), and sink.

Referenced by ApplicationSetup(), and Run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetupPacketReceive() [2/3]

Ptr<Socket> Experiment::SetupPacketReceive ( Ptr< Node > node )

private

Setup the receiving socket.

Parameters

node	The receiving node.

Returns: the socket.

◆ SetupPacketReceive() [3/3]

Ptr<Socket> Experiment::SetupPacketReceive ( Ptr< Node > node )

private

Setup the receiving socket.

Parameters

node	The receiving node.

Returns: the Rx socket.

◆ UpdatePositions()

void Experiment::UpdatePositions ( NodeContainer & nodes ) const

Assign new random positions to a set of nodes.

New positions are randomly assigned within the bounding box.

Parameters

nodes The nodes to reposition.

Definition at line 106 of file uan-cw-example.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::Object::GetObject(), ns3::UniformRandomVariable::GetValue(), m_boundary, nodes, ns3::Now(), NS_LOG_DEBUG, and ns3::MobilityModel::SetPosition().

Referenced by Run().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_asciitracefile

std::string Experiment::m_asciitracefile

Name for ascii trace file, default uan-cw-example.asc.

Definition at line 84 of file uan-cw-example.h.

Referenced by Run().

◆ m_avgs

uint32_t Experiment::m_avgs

Number of topologies to test for each cw point.

Definition at line 78 of file uan-cw-example.h.

Referenced by IncrementCw(), and Run().

◆ m_bhCfgFile

std::string Experiment::m_bhCfgFile

(Unused)

Definition at line 85 of file uan-cw-example.h.

◆ m_boundary

double Experiment::m_boundary

Size of boundary in meters.

Definition at line 72 of file uan-cw-example.h.

Referenced by Run(), and UpdatePositions().

◆ m_bytesTotal

uint32_t Experiment::m_bytesTotal

private

The number of received bytes.

Total number of bytes received in a simulation run.

Total bytes received.

Total number of received bytes.

Definition at line 97 of file wifi-adhoc.cc.

Referenced by AdvancePosition(), CheckThroughput(), ReceivePacket(), ResetData(), and Run().

◆ m_containerA

NodeContainer Experiment::m_containerA

private

Node containers for each quadrant.

Definition at line 254 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ m_containerB

NodeContainer Experiment::m_containerB

private

Node containers for each quadrant.

Definition at line 255 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ m_containerC

NodeContainer Experiment::m_containerC

private

Node containers for each quadrant.

Definition at line 256 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ m_containerD

NodeContainer Experiment::m_containerD

private

Node containers for each quadrant.

Definition at line 257 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ m_controlModes

UanModesList Experiment::m_controlModes

List of UanTxModes used for control channels.

Definition at line 61 of file uan-rc-example.h.

Referenced by CreateDualModes(), and Run().

◆ m_cwMax

uint32_t Experiment::m_cwMax

Max CW to simulate.

Definition at line 76 of file uan-cw-example.h.

Referenced by Run().

◆ m_cwMin

uint32_t Experiment::m_cwMin

Min CW to simulate.

Definition at line 75 of file uan-cw-example.h.

Referenced by Run().

◆ m_cwStep

uint32_t Experiment::m_cwStep

CW step size, default 10.

Definition at line 77 of file uan-cw-example.h.

Referenced by IncrementCw(), and Run().

◆ m_data

Gnuplot2dDataset Experiment::m_data

Container for the simulation data.

Definition at line 87 of file uan-cw-example.h.

Referenced by IncrementCw(), and Run().

◆ m_dataModes

UanModesList Experiment::m_dataModes

List of UanTxModes used for data channels.

Definition at line 60 of file uan-rc-example.h.

Referenced by CreateDualModes(), and Run().

◆ m_dataRate

uint32_t Experiment::m_dataRate

DataRate in bps.

Definition at line 70 of file uan-cw-example.h.

Referenced by Run().

◆ m_depth

double Experiment::m_depth

Depth of transmitting and sink nodes.

Definition at line 71 of file uan-cw-example.h.

Referenced by Run().

◆ m_doNode

bool Experiment::m_doNode

1 for do max nodes simulation (invalidates AMin and AMax values).

Definition at line 52 of file uan-rc-example.h.

Referenced by Run().

◆ m_enableFlowMon

bool Experiment::m_enableFlowMon

private

True if FlowMon is enabled.

Definition at line 246 of file wifi-multirate.cc.

Referenced by Run().

◆ m_enableMobility

bool Experiment::m_enableMobility

private

True if mobility is enabled.

Definition at line 248 of file wifi-multirate.cc.

Referenced by CommandSetup(), and Run().

◆ m_enablePcap

bool Experiment::m_enablePcap

private

True if PCAP output is enabled.

Definition at line 244 of file wifi-multirate.cc.

Referenced by Run().

◆ m_enableRouting

bool Experiment::m_enableRouting

private

True if routing is enabled.

Definition at line 247 of file wifi-multirate.cc.

Referenced by CommandSetup(), and Run().

◆ m_enableTracing

bool Experiment::m_enableTracing

private

True if tracing output is enabled.

Definition at line 245 of file wifi-multirate.cc.

Referenced by Run().

◆ m_expMean

double Experiment::m_expMean

private

Exponential parameter for sending packets.

Definition at line 234 of file wifi-multirate.cc.

Referenced by SendMultiDestinations().

◆ m_gnudatfile

std::string Experiment::m_gnudatfile

Name for GNU Plot output, default uan-cw-example.gpl.

Definition at line 83 of file uan-cw-example.h.

◆ m_gnuplotfile

std::string Experiment::m_gnuplotfile

Filename for GnuPlot.

Definition at line 56 of file uan-rc-example.h.

◆ m_gridSize

uint32_t Experiment::m_gridSize

private

Grid size.

Definition at line 239 of file wifi-multirate.cc.

Referenced by AssignNeighbors(), and Run().

◆ m_maxRange

uint32_t Experiment::m_maxRange

Maximum range between gateway and acoustic node.

Definition at line 49 of file uan-rc-example.h.

Referenced by Run().

◆ m_nodeDistance

uint32_t Experiment::m_nodeDistance

private

Node distance.

Definition at line 240 of file wifi-multirate.cc.

Referenced by Run().

◆ m_numNodes

uint32_t Experiment::m_numNodes

Number of transmitting nodes.

Number of nodes (invalid for m_doNode true).

Definition at line 69 of file uan-cw-example.h.

Referenced by Run().

◆ m_numRates

uint32_t Experiment::m_numRates

Number of divided rates ( (NumberRates+1)TotalRate should be 0).

Definition at line 47 of file uan-rc-example.h.

Referenced by CreateDualModes(), CreateMode(), and Run().

◆ m_output

Gnuplot2dDataset Experiment::m_output

private

The output dataset.

Output dataset.

Definition at line 98 of file wifi-adhoc.cc.

Referenced by Experiment(), AdvancePosition(), CheckThroughput(), and Run().

◆ m_outputFileName

std::string Experiment::m_outputFileName

private

Output file name.

Definition at line 261 of file wifi-multirate.cc.

Referenced by CommandSetup().

◆ m_packetSize

uint32_t Experiment::m_packetSize

private

Packet size.

Generated packet size in bytes.

Definition at line 238 of file wifi-multirate.cc.

Referenced by ApplicationSetup(), CommandSetup(), and Run().

◆ m_pktSize

uint32_t Experiment::m_pktSize

Packet size in bytes.

Definition at line 51 of file uan-rc-example.h.

Referenced by Run().

◆ m_pktsTotal

uint32_t Experiment::m_pktsTotal

private

Total number of received packets.

Definition at line 97 of file wifi-clear-channel-cmu.cc.

◆ m_port

uint32_t Experiment::m_port

private

Listening port.

Definition at line 241 of file wifi-multirate.cc.

Referenced by ApplicationSetup().

◆ m_rateManager

std::string Experiment::m_rateManager

private

Rate manager.

Definition at line 260 of file wifi-multirate.cc.

Referenced by CommandSetup().

◆ m_rtsThreshold

std::string Experiment::m_rtsThreshold

private

Rts threshold.

Definition at line 259 of file wifi-multirate.cc.

Referenced by CommandSetup().

◆ m_samplingPeriod

double Experiment::m_samplingPeriod

private

Sampling period.

Definition at line 235 of file wifi-multirate.cc.

Referenced by CheckThroughput(), and CommandSetup().

◆ m_scenario

uint32_t Experiment::m_scenario

private

Scenario number.

Definition at line 242 of file wifi-multirate.cc.

Referenced by CommandSetup(), and Run().

◆ m_sifs

Time Experiment::m_sifs

SIFS time duration.

Definition at line 53 of file uan-rc-example.h.

Referenced by Run().

◆ m_simMax

uint32_t Experiment::m_simMax

Maximum parameter to test.

Definition at line 45 of file uan-rc-example.h.

◆ m_simMin

uint32_t Experiment::m_simMin

Minimum parameter to test.

Definition at line 44 of file uan-rc-example.h.

◆ m_simStep

uint32_t Experiment::m_simStep

Amount to increment param per trial.

Definition at line 46 of file uan-rc-example.h.

◆ m_simTime

Time Experiment::m_simTime

Simulation run time, default 1000 s.

Simulation time per trial.

Definition at line 81 of file uan-cw-example.h.

Referenced by ResetData(), and Run().

◆ m_slotTime

Time Experiment::m_slotTime

Slot time duration.

Definition at line 80 of file uan-cw-example.h.

Referenced by Run().

◆ m_throughputs

std::vector<double> Experiment::m_throughputs

Throughput for each run.

Definition at line 88 of file uan-cw-example.h.

Referenced by IncrementCw(), and ResetData().

◆ m_totalRate

uint32_t Experiment::m_totalRate

Total channel capacity.

Definition at line 48 of file uan-rc-example.h.

Referenced by CreateMode(), and Run().

◆ m_totalTime

double Experiment::m_totalTime

private

Total experiment time.

Definition at line 233 of file wifi-multirate.cc.

Referenced by CommandSetup(), Run(), SelectSrcDest(), and SendMultiDestinations().

The documentation for this class was generated from the following files:

examples/wireless/wifi-adhoc.cc
examples/wireless/wifi-clear-channel-cmu.cc
examples/wireless/wifi-multirate.cc
src/uan/examples/uan-cw-example.h
src/uan/examples/uan-rc-example.h
examples/wireless/wifi-mixed-network.cc
src/wifi/examples/wifi-bianchi.cc
src/uan/examples/uan-cw-example.cc
src/uan/examples/uan-rc-example.cc

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Experiment() [1/10]

◆ Experiment() [2/10]

◆ Experiment() [3/10]

◆ Experiment() [4/10]

◆ Experiment() [5/10]

◆ Experiment() [6/10]

◆ Experiment() [7/10]

◆ Experiment() [8/10]

◆ Experiment() [9/10]

◆ Experiment() [10/10]

Member Function Documentation

◆ AdvancePosition()

◆ ApplicationSetup()

◆ AssignNeighbors()

◆ CheckThroughput()

◆ CommandSetup()

◆ CreateDualModes()

◆ CreateMode()

◆ GenerateNeighbors()

◆ GenerateTraffic()

◆ GetOutputFileName()

◆ GetPosition() [1/2]

◆ GetPosition() [2/2]

◆ GetRateManager()

◆ GetRtsThreshold()

◆ GetScenario()

◆ IncrementCw()

◆ IsMobility()

◆ IsRouting()

◆ ReceivePacket() [1/5]

◆ ReceivePacket() [2/5]

◆ ReceivePacket() [3/5]

◆ ReceivePacket() [4/5]

◆ ReceivePacket() [5/5]

◆ ResetData()

◆ Run() [1/7]

◆ Run() [2/7]

◆ Run() [3/7]

◆ Run() [4/7]

◆ Run() [5/7]

◆ Run() [6/7]

◆ Run() [7/7]

◆ SelectSrcDest()

◆ SendMultiDestinations()

◆ SetPosition() [1/2]

◆ SetPosition() [2/2]

◆ SetupPacketReceive() [1/3]

◆ SetupPacketReceive() [2/3]

◆ SetupPacketReceive() [3/3]

◆ UpdatePositions()

Member Data Documentation

◆ m_asciitracefile

◆ m_avgs

◆ m_bhCfgFile

◆ m_boundary

◆ m_bytesTotal

◆ m_containerA

◆ m_containerB

◆ m_containerC

◆ m_containerD

◆ m_controlModes

◆ m_cwMax

◆ m_cwMin

◆ m_cwStep

◆ m_data

◆ m_dataModes

◆ m_dataRate

◆ m_depth

◆ m_doNode

◆ m_enableFlowMon

◆ m_enableMobility

◆ m_enablePcap

◆ m_enableRouting

◆ m_enableTracing
