ns3::BufferSizeLevelBsr Class Reference

BufferSizeLevelBsr class. More...

#include "lte-common.h"

Collaboration diagram for ns3::BufferSizeLevelBsr:

Static Public Member Functions
static uint32_t	BsrId2BufferSize (uint8_t val)
	Convert BSR ID to buffer size. More...
static uint8_t	BufferSize2BsrId (uint32_t val)
	Convert Buffer size to BSR ID. More...

Static Public Attributes
static int	m_bufferSizeLevelBsr [64]
	buffer size level BSR More...

Detailed Description

BufferSizeLevelBsr class.

Definition at line 149 of file lte-common.h.

Member Function Documentation

BsrId2BufferSize()

uint32_t ns3::BufferSizeLevelBsr::BsrId2BufferSize ( uint8_t  val )

static

Convert BSR ID to buffer size.

Parameters

val

BSR ID

Returns

buffer size

Definition at line 184 of file lte-common.cc.

References ns3::BufferSizeLevelBsrTable, and NS_ABORT_MSG_UNLESS.

Referenced by ns3::CqaFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::FdBetFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::FdMtFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::FdTbfqFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::PfFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::PssFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::RrFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::TdBetFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::TdMtFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::TdTbfqFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::TtaFfMacScheduler::DoSchedUlMacCtrlInfoReq(), ns3::NoOpComponentCarrierManager::DoUlReceiveMacCe(), and ns3::RrComponentCarrierManager::DoUlReceiveMacCe().

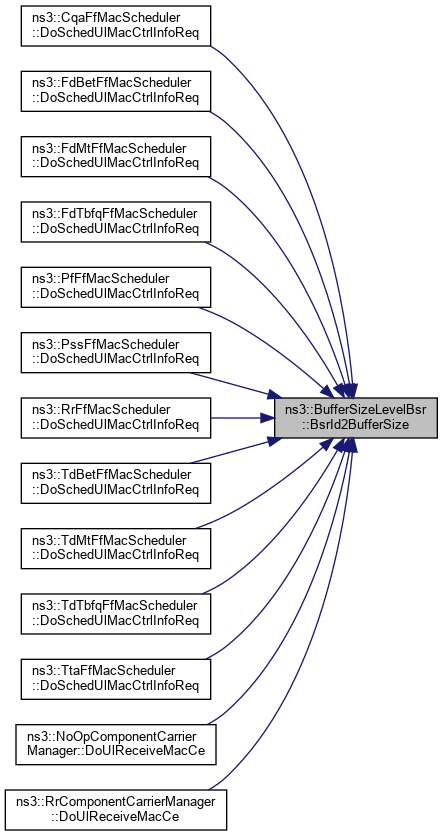

Here is the caller graph for this function:

BufferSize2BsrId()

uint8_t ns3::BufferSizeLevelBsr::BufferSize2BsrId ( uint32_t  val )

static

Convert Buffer size to BSR ID.

Parameters

val	buffer size

Returns

BSR ID

Definition at line 191 of file lte-common.cc.

References ns3::BufferSizeLevelBsrTable, and NS_ASSERT.

Referenced by ns3::NoOpComponentCarrierManager::DoUlReceiveMacCe(), ns3::RrComponentCarrierManager::DoUlReceiveMacCe(), and ns3::LteUeMac::SendReportBufferStatus().

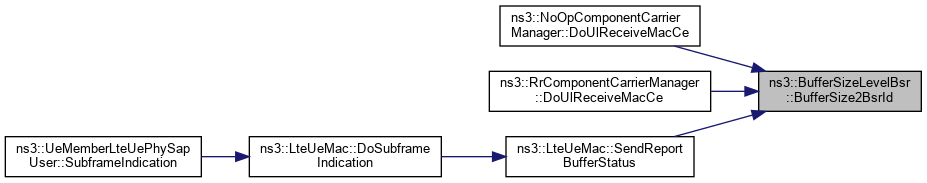

Here is the caller graph for this function:

Member Data Documentation

m_bufferSizeLevelBsr

int ns3::BufferSizeLevelBsr::m_bufferSizeLevelBsr[64]

static

buffer size level BSR

Definition at line 168 of file lte-common.h.

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-common.h
• src/lte/model/lte-common.cc
