Class that implements the LR-WPAN MAC state machine. More...
#include "lr-wpan-mac.h"

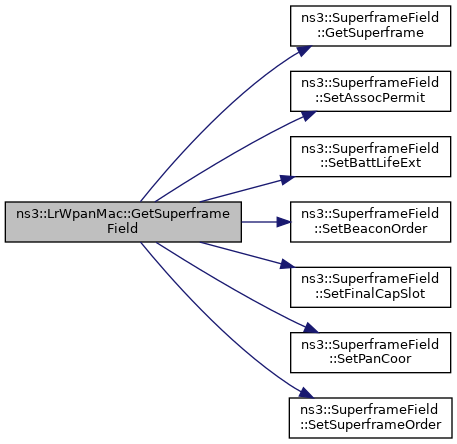

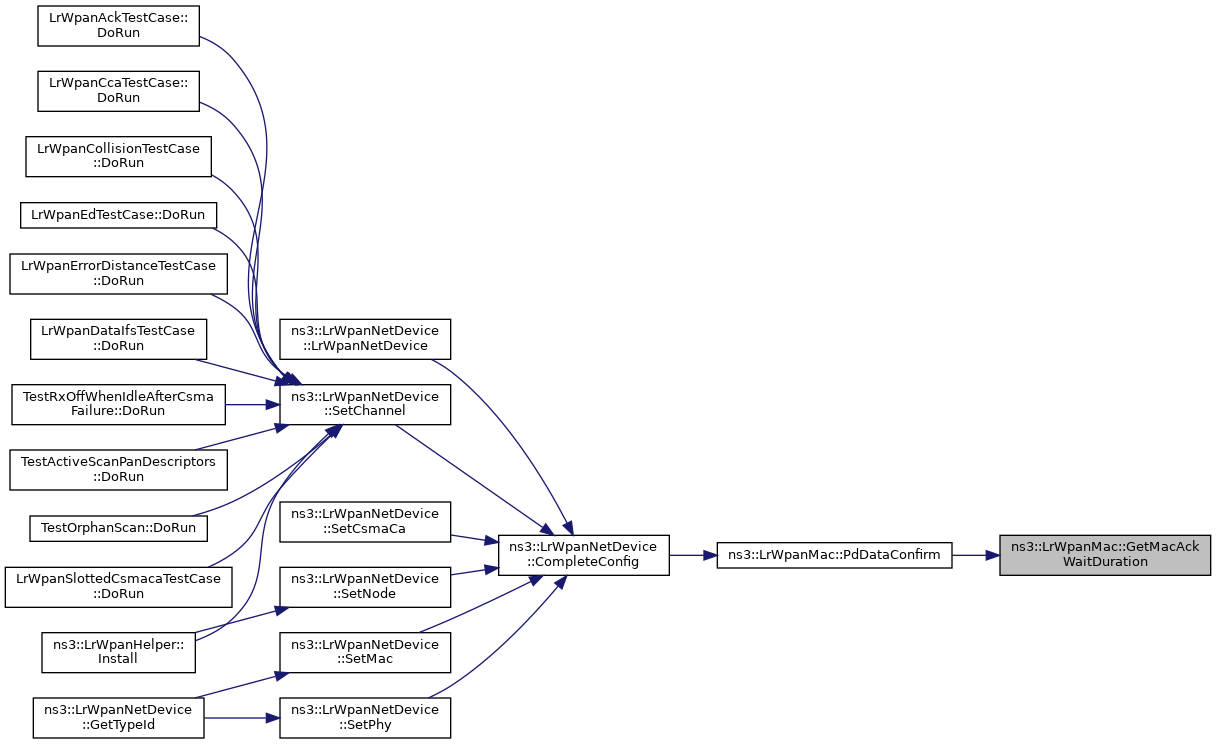

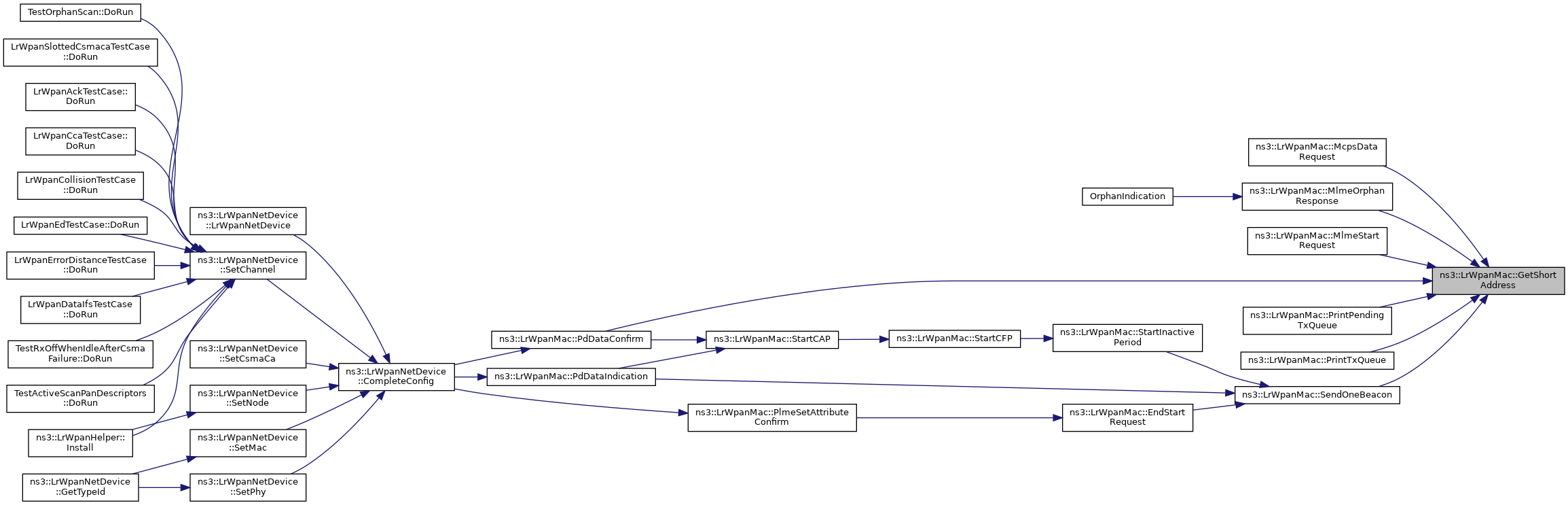

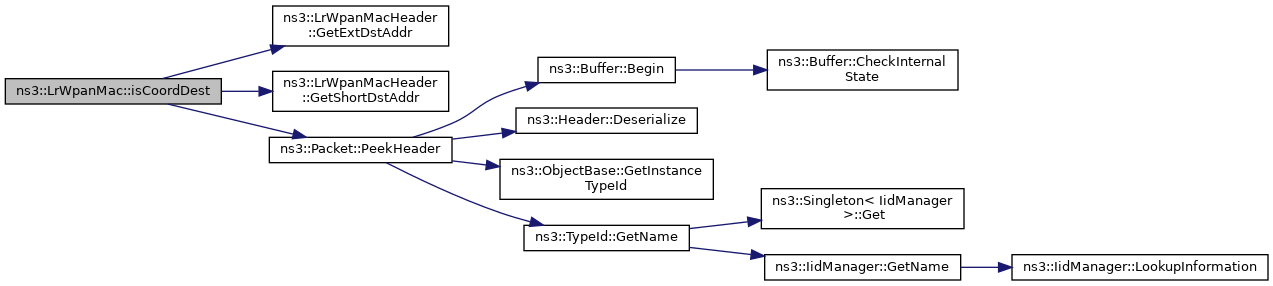

Inheritance diagram for ns3::LrWpanMac: Collaboration diagram for ns3::LrWpanMac:Classes | |
| struct | IndTxQueueElement |
| Helper structure for managing pending transaction list elements (Indirect transmissions). More... | |
| struct | TxQueueElement |
| Helper structure for managing transmission queue elements. More... | |
Public Types | |
| typedef void(* | SentTracedCallback) (Ptr< const Packet > packet, uint8_t retries, uint8_t backoffs) |
| TracedCallback signature for sent packets. More... | |
| typedef void(* | StateTracedCallback) (LrWpanMacState oldState, LrWpanMacState newState) |
| TracedCallback signature for LrWpanMacState change events. More... | |
Public Member Functions | |
| LrWpanMac () | |
| Default constructor. More... | |
| ~LrWpanMac () override | |
| Mac64Address | GetCoordExtAddress () const |
| Get the coordinator extended address currently associated to this device. More... | |
| Mac16Address | GetCoordShortAddress () const |
| Get the coordinator short address currently associated to this device. More... | |
| Mac64Address | GetExtendedAddress () const |
| Get the extended address of this MAC. More... | |
| uint32_t | GetIfsSize () |
| Get the size of the Interframe Space according to MPDU size (m_txPkt). More... | |
| uint64_t | GetMacAckWaitDuration () const |
| Get the macAckWaitDuration attribute value. More... | |
| uint8_t | GetMacMaxFrameRetries () const |
| Get the macMaxFrameRetries attribute value. More... | |
| uint16_t | GetPanId () const |
| Get the PAN id used by this MAC. More... | |
| Ptr< LrWpanPhy > | GetPhy () |
| Get the underlying PHY of the MAC. More... | |
| bool | GetRxOnWhenIdle () const |
| Check if the receiver will be enabled when the MAC is idle. More... | |
| Mac16Address | GetShortAddress () const |
| Get the short address of this MAC. More... | |
| uint64_t | GetTxPacketSymbols () |
| Obtain the number of symbols in the packet which is currently being sent by the MAC layer. More... | |
| bool | isCoordDest () |
| Check if the packet destination is its coordinator. More... | |
| bool | isTxAckReq () |
| Check if the packet to transmit requires acknowledgment. More... | |
| void | McpsDataRequest (McpsDataRequestParams params, Ptr< Packet > p) override |
| IEEE 802.15.4-2006, section 7.1.1.1 MCPS-DATA.request Request to transfer a MSDU. More... | |
| void | MlmeAssociateRequest (MlmeAssociateRequestParams params) override |
| IEEE 802.15.4-2011, section 6.2.2.1 MLME-ASSOCIATE.request Request primitive used by a device to request an association with a coordinator. More... | |
| void | MlmeAssociateResponse (MlmeAssociateResponseParams params) override |
| IEEE 802.15.4-2011, section 6.2.2.3 MLME-ASSOCIATE.response Primitive used to initiate a response to an MLME-ASSOCIATE.indication primitive. More... | |
| void | MlmeGetRequest (LrWpanMacPibAttributeIdentifier id) override |
| IEEE 802.15.4-2011, section 6.2.5.1 MLME-GET.request Request information about a given PIB attribute. More... | |
| void | MlmeOrphanResponse (MlmeOrphanResponseParams params) override |
| IEEE 802.15.4-2011, section 6.2.7.2 MLME-ORPHAN.response Primitive used to initiatte a response to an MLME-ORPHAN.indication primitive. More... | |
| void | MlmePollRequest (MlmePollRequestParams params) override |
| IEEE 802.15.4-2011, section 6.2.14.2 MLME-POLL.request Prompts the device to request data from the coordinator. More... | |
| void | MlmeScanRequest (MlmeScanRequestParams params) override |
| IEEE 802.15.4-2011, section 6.2.10.1 MLME-SCAN.request Request primitive used to initiate a channel scan over a given list of channels. More... | |
| void | MlmeSetRequest (LrWpanMacPibAttributeIdentifier id, Ptr< LrWpanMacPibAttributes > attribute) override |
| IEEE 802.15.4-2011, section 6.2.11.1 MLME-SET.request Attempts to write the given value to the indicated PIB attribute. More... | |
| void | MlmeStartRequest (MlmeStartRequestParams params) override |
| IEEE 802.15.4-2006, section 7.1.14.1 MLME-START.request Request to allow a PAN coordinator to initiate a new PAN or beginning a new superframe configuration. More... | |
| void | MlmeSyncRequest (MlmeSyncRequestParams params) override |
| IEEE 802.15.4-2011, section 6.2.13.1 MLME-SYNC.request Request to synchronize with the coordinator by acquiring and, if specified, tracking beacons. More... | |
| void | PdDataConfirm (LrWpanPhyEnumeration status) |
| IEEE 802.15.4-2006 section 6.2.1.2 Confirm the end of transmission of an MPDU to MAC. More... | |
| void | PdDataIndication (uint32_t psduLength, Ptr< Packet > p, uint8_t lqi) |
| IEEE 802.15.4-2006 section 6.2.1.3 PD-DATA.indication Indicates the transfer of an MPDU from PHY to MAC (receiving) More... | |
| void | PlmeCcaConfirm (LrWpanPhyEnumeration status) |
| IEEE 802.15.4-2006 section 6.2.2.2 PLME-CCA.confirm status. More... | |
| void | PlmeEdConfirm (LrWpanPhyEnumeration status, uint8_t energyLevel) |
| IEEE 802.15.4-2006 section 6.2.2.4 PLME-ED.confirm status and energy level. More... | |
| void | PlmeGetAttributeConfirm (LrWpanPhyEnumeration status, LrWpanPibAttributeIdentifier id, Ptr< LrWpanPhyPibAttributes > attribute) |
| IEEE 802.15.4-2006 section 6.2.2.6 PLME-GET.confirm Get attributes per definition from Table 23 in section 6.4.2. More... | |
| void | PlmeSetAttributeConfirm (LrWpanPhyEnumeration status, LrWpanPibAttributeIdentifier id) |
| IEEE 802.15.4-2006 section 6.2.2.10 PLME-SET.confirm Set attributes per definition from Table 23 in section 6.4.2. More... | |
| void | PlmeSetTRXStateConfirm (LrWpanPhyEnumeration status) |
| IEEE 802.15.4-2006 section 6.2.2.8 PLME-SET-TRX-STATE.confirm Set PHY state. More... | |
| void | PrintPendingTxQueue (std::ostream &os) const |
| Print the Pending transaction list. More... | |
| void | PrintTransmitQueueSize () |
| Print the number of elements in the packet transmit queue. More... | |

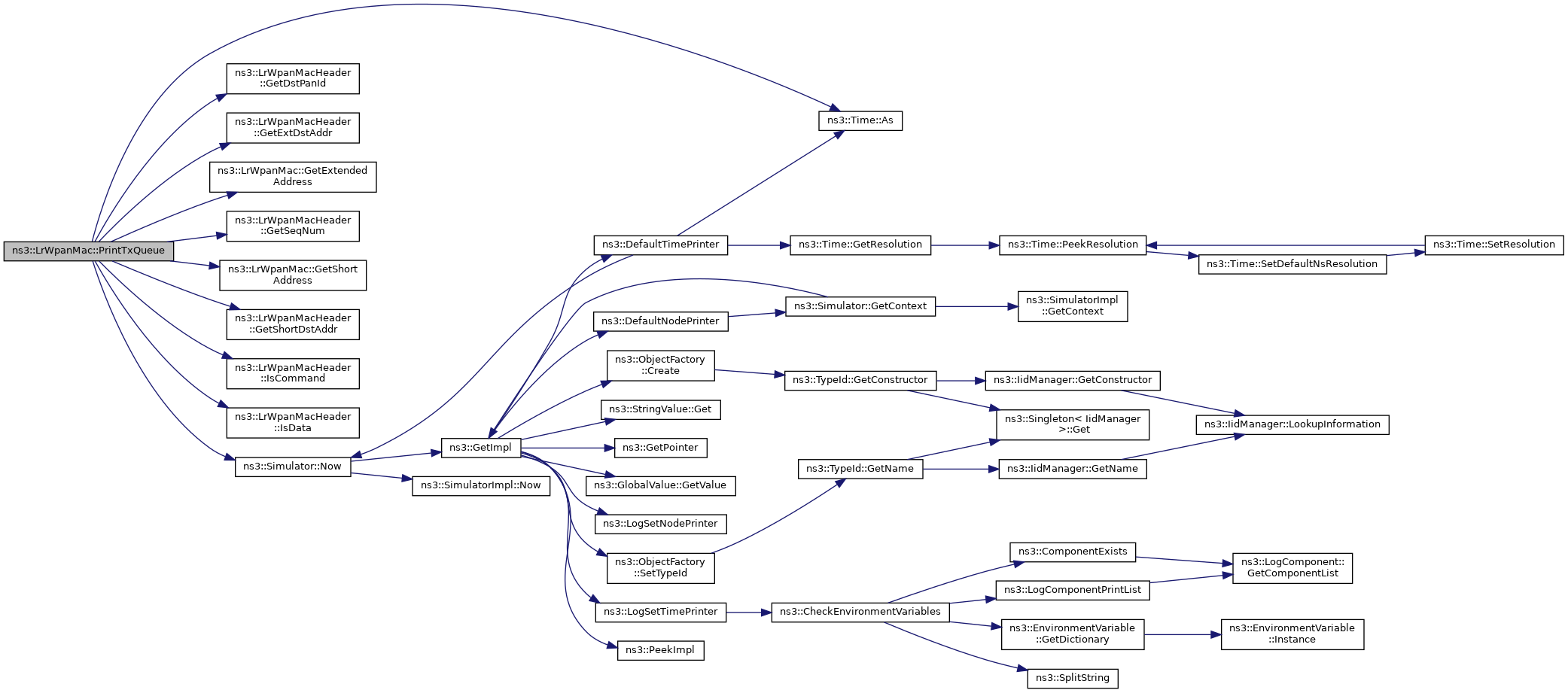

| void | PrintTxQueue (std::ostream &os) const |
| Print the Transmit Queue. More... | |
| void | SetAssociatedCoor (Mac16Address mac) |
| Check if the packet destination is its coordinator. More... | |
| void | SetAssociatedCoor (Mac64Address mac) |
| Check if the packet destination is its coordinator. More... | |
| void | SetCsmaCa (Ptr< LrWpanCsmaCa > csmaCa) |
| Set the CSMA/CA implementation to be used by the MAC. More... | |
| void | SetExtendedAddress (Mac64Address address) |
| Set the extended address of this MAC. More... | |
| void | SetIndTxQMaxSize (uint32_t queueSize) |
| Set the max size of the indirect transmit queue (Pending Transaction list) More... | |

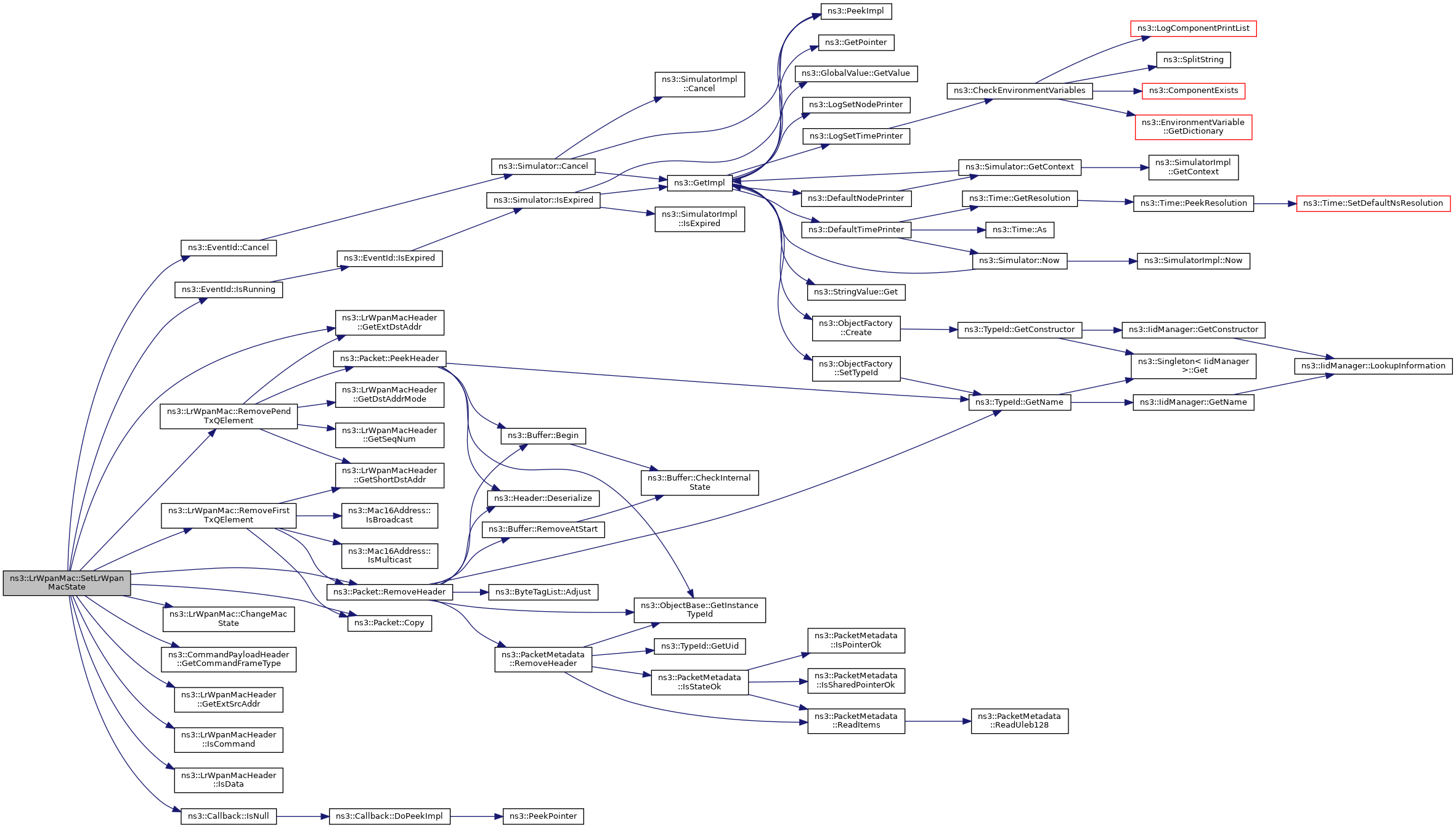

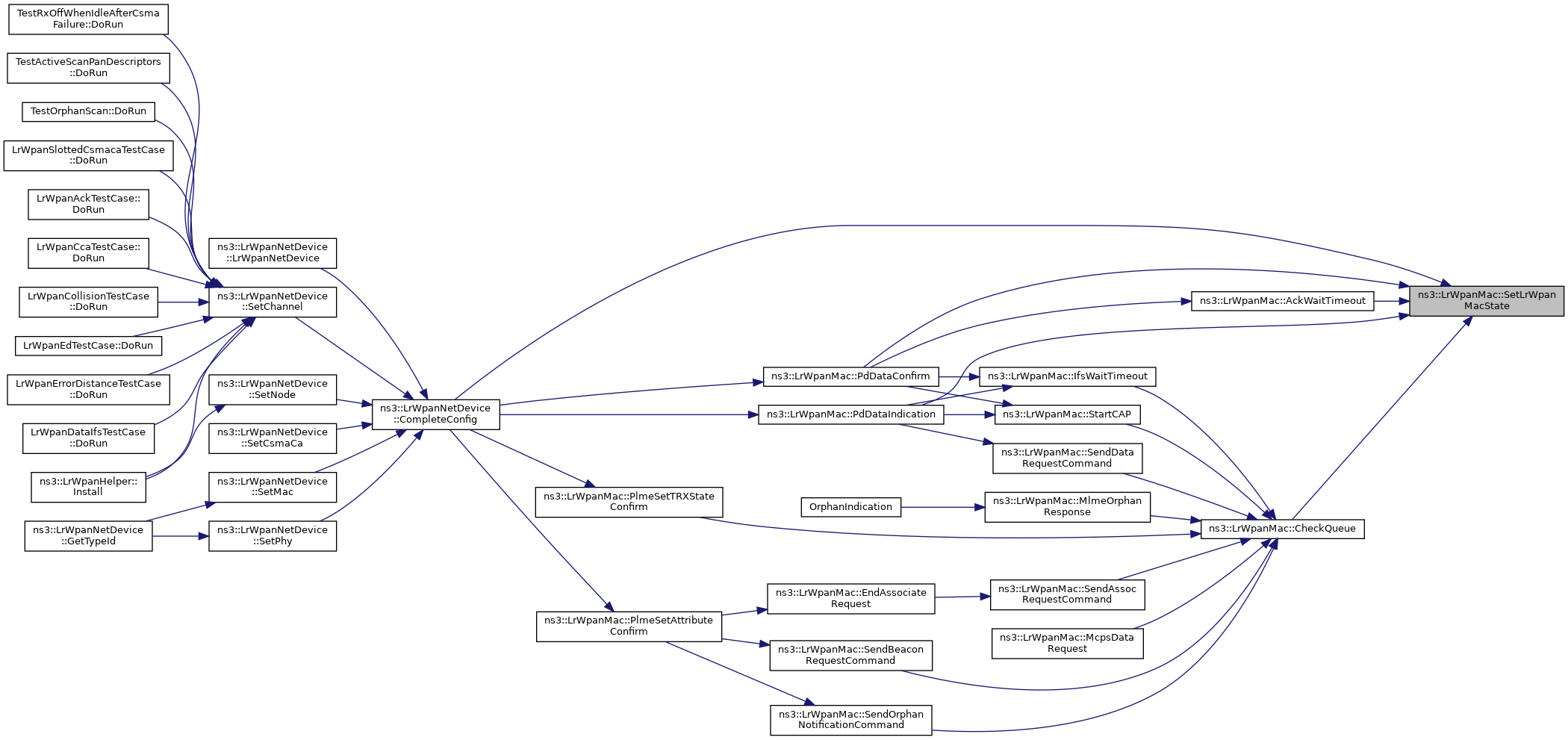

| void | SetLrWpanMacState (LrWpanMacState macState) |
| CSMA-CA algorithm calls back the MAC after executing channel assessment. More... | |
| void | SetMacMaxFrameRetries (uint8_t retries) |
| Set the macMaxFrameRetries attribute value. More... | |
| void | SetPanId (uint16_t panId) |
| Set the PAN id used by this MAC. More... | |
| void | SetPhy (Ptr< LrWpanPhy > phy) |
| Set the underlying PHY for the MAC. More... | |
| void | SetRxOnWhenIdle (bool rxOnWhenIdle) |
| Set if the receiver should be enabled when the MAC is idle. More... | |
| void | SetShortAddress (Mac16Address address) |
| Set the short address of this MAC. More... | |
| void | SetTxQMaxSize (uint32_t queueSize) |
| Set the max size of the transmit queue. More... | |
| Public Member Functions inherited from ns3::LrWpanMacBase | |
| ~LrWpanMacBase () override | |
| void | SetMcpsDataConfirmCallback (McpsDataConfirmCallback c) |
| Set the callback for the confirmation of a data transmission request. More... | |
| void | SetMcpsDataIndicationCallback (McpsDataIndicationCallback c) |
| Set the callback for the indication of an incoming data packet. More... | |
| void | SetMlmeAssociateConfirmCallback (MlmeAssociateConfirmCallback c) |
| Set the callback for the confirmation of a data transmission request. More... | |
| void | SetMlmeAssociateIndicationCallback (MlmeAssociateIndicationCallback c) |
| Set the callback for the indication of an incoming associate request command. More... | |
| void | SetMlmeBeaconNotifyIndicationCallback (MlmeBeaconNotifyIndicationCallback c) |
| Set the callback for the indication of an incoming beacon packet. More... | |
| void | SetMlmeCommStatusIndicationCallback (MlmeCommStatusIndicationCallback c) |
| Set the callback for the indication to a response primitive. More... | |
| void | SetMlmeGetConfirmCallback (MlmeGetConfirmCallback c) |
| Set the callback for the confirmation of an attempt to read an attribute. More... | |
| void | SetMlmeOrphanIndicationCallback (MlmeOrphanIndicationCallback c) |
| Set the callback for the indication to the reception of an orphan notification. More... | |
| void | SetMlmePollConfirmCallback (MlmePollConfirmCallback c) |
| Set the callback for the confirmation of a data transmission request. More... | |
| void | SetMlmeScanConfirmCallback (MlmeScanConfirmCallback c) |
| Set the callback for the confirmation of a data transmission request. More... | |
| void | SetMlmeSetConfirmCallback (MlmeSetConfirmCallback c) |
| Set the callback for the confirmation of an attempt to write an attribute. More... | |
| void | SetMlmeStartConfirmCallback (MlmeStartConfirmCallback c) |
| Set the callback for the confirmation of a data transmission request. More... | |
| void | SetMlmeSyncLossIndicationCallback (MlmeSyncLossIndicationCallback c) |
| Set the callback for the loss of synchronization with a coordinator. More... | |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| ~Object () override | |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose () |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator () const |
| Get an iterator to the Objects aggregated to this one. More... | |
| TypeId | GetInstanceTypeId () const override |
| Get the most derived TypeId for this Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject () const |
| Get a pointer to the requested aggregated Object. More... | |
| template<> | |
| Ptr< Object > | GetObject () const |
| Specialization of () for objects of type ns3::Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. More... | |
| template<> | |
| Ptr< Object > | GetObject (TypeId tid) const |
| Specialization of (TypeId tid) for objects of type ns3::Object. More... | |
| void | Initialize () |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| bool | IsInitialized () const |
| Check if the object has been initialized. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Default constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o[[maybe_unused]]) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o[[maybe_unused]]) |
| Assignment operator. More... | |
| void | Ref () const |
| Increment the reference count. More... | |
| void | Unref () const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::LrWpanMacBase | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId () |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
Public Attributes | |
| uint64_t | m_assocRespCmdWaitTime |
| The maximum wait time for an association response command after the reception of data request command ACK during the association process. More... | |
| uint32_t | m_beaconInterval |
| Indication of the Interval used by the coordinator to transmit beacon frames expressed in symbols. More... | |
| bool | m_beaconTrackingOn |
| Indication of whether the current device is tracking incoming beacons. More... | |
| bool | m_coor |
| Indicates if the current device is a coordinator type. More... | |
| uint8_t | m_deviceCapability |
| Indication of current device capability (FFD or RFD) More... | |
| uint8_t | m_fnlCapSlot |
| Indication of the Slot where the CAP portion of the OUTGOING Superframe ends. More... | |
| uint32_t | m_ifs |
| The value of the necessary InterFrame Space after the transmission of a packet. More... | |
| uint32_t | m_incomingBeaconInterval |
| Indication of the interval a node should receive a superframe expressed in symbols. More... | |
| uint8_t | m_incomingBeaconOrder |
| The beaconOrder value of the INCOMING frame. More... | |
| uint8_t | m_incomingFnlCapSlot |
| Indication of the Slot where the CAP portion of the INCOMING Superframe ends. More... | |
| uint32_t | m_incomingSuperframeDuration |
| Indication of the superframe duration in symbols (e.g. More... | |
| uint8_t | m_incomingSuperframeOrder |
| Used by all devices that have a parent. More... | |
| bool | m_macAssociationPermit |
| Indication of whether a coordinator is currently allowing association. More... | |
| bool | m_macAutoRequest |
| Indication of whether a device automatically sends data request command if its address is listed in the beacon frame. More... | |
| uint8_t | m_macBeaconOrder |
| Used by a PAN coordinator or coordinator. More... | |
| Ptr< Packet > | m_macBeaconPayload |
| The contents of the beacon payload. More... | |
| uint32_t | m_macBeaconPayloadLength |
| The length, in octets, of the beacon payload. More... | |
| Time | m_macBeaconRxTime |
| The time that the device received its last bit of the beacon frame. More... | |
| Time | m_macBeaconTxTime |
| The time that the device transmitted its last beacon frame. More... | |
| SequenceNumber8 | m_macBsn |
| Sequence number added to transmitted beacon frame, 00-ff. More... | |
| Mac64Address | m_macCoordExtendedAddress |
| The extended address of the coordinator through which the device is associated. More... | |
| Mac16Address | m_macCoordShortAddress |
| The short address of the coordinator through which the device is associated. More... | |
| SequenceNumber8 | m_macDsn |
| Sequence number added to transmitted data or MAC command frame, 00-ff. More... | |
| uint32_t | m_macLIFSPeriod |
| The minimum time forming a Long InterFrame Spacing (LIFS) period. More... | |
| uint8_t | m_macMaxFrameRetries |
| The maximum number of retries allowed after a transmission failure. More... | |
| uint16_t | m_macPanId |
| 16 bits id of PAN on which this device is operating. More... | |
| uint16_t | m_macPanIdScan |
| Temporally stores the value of the current m_macPanId when a MLME-SCAN.request is performed. More... | |
| bool | m_macPromiscuousMode |
| Indicates if MAC sublayer is in receive all mode. More... | |
| uint64_t | m_macResponseWaitTime |
| The maximum time, in multiples of aBaseSuperframeDuration, a device shall wait for a response command frame to be available following a request command frame. More... | |
| bool | m_macRxOnWhenIdle |
| Indication of whether the MAC sublayer is to enable its receiver during idle periods. More... | |
| uint32_t | m_macSIFSPeriod |
| The minimum time forming a Short InterFrame Spacing (SIFS) period. More... | |
| uint8_t | m_macSuperframeOrder |
| Used by a PAN coordinator or coordinator. More... | |
| uint64_t | m_macSyncSymbolOffset |
| Symbol boundary is same as m_macBeaconTxTime. More... | |
| uint16_t | m_macTransactionPersistenceTime |
| The maximum time (in UNIT periods) that a transaction is stored by a coordinator and indicated in its beacon. More... | |
| uint8_t | m_maxEnergyLevel |
| The maximum energy level detected during ED scan on the current channel. More... | |
| uint8_t | m_numLostBeacons |
| The number of consecutive loss beacons in a beacon tracking operation. More... | |
| bool | m_panCoor |
| Indication of whether the current device is the PAN coordinator. More... | |
| uint64_t | m_rxBeaconSymbols |
| The total size of the received beacon in symbols. More... | |
| uint32_t | m_superframeDuration |
| Indication of the superframe duration in symbols. More... | |
Protected Member Functions | |
| void | DoDispose () override |
| Destructor implementation. More... | |
| void | DoInitialize () override |
| Initialize() implementation. More... | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | NotifyNewAggregate () |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. More... | |
Private Member Functions | |
| void | AckWaitTimeout () |
| Handle an ACK timeout with a packet retransmission, if there are retransmission left, or a packet drop. More... | |
| void | AwaitBeacon () |
| Called after the end of an INCOMING superframe to start the moment a device waits for a new incoming beacon. More... | |
| void | BeaconSearchTimeout () |
| Called if the device is unable to locate a beacon in the time set by MLME-SYNC.request. More... | |
| void | ChangeMacState (LrWpanMacState newState) |
| Change the current MAC state to the given new state. More... | |
| void | CheckQueue () |
| Check the transmission queue. More... | |
| bool | DequeueInd (Mac64Address dst, Ptr< IndTxQueueElement > entry) |
| Extracts a packet from pending transactions list (Indirect transmissions). More... | |

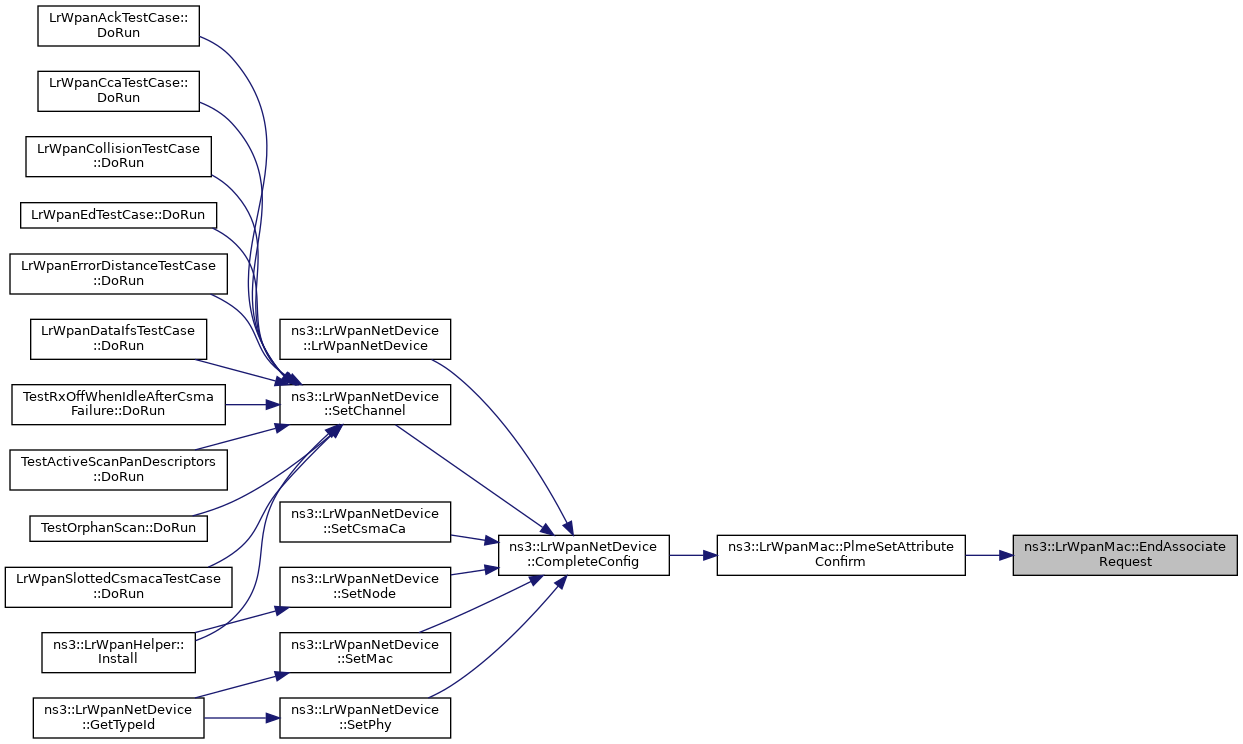

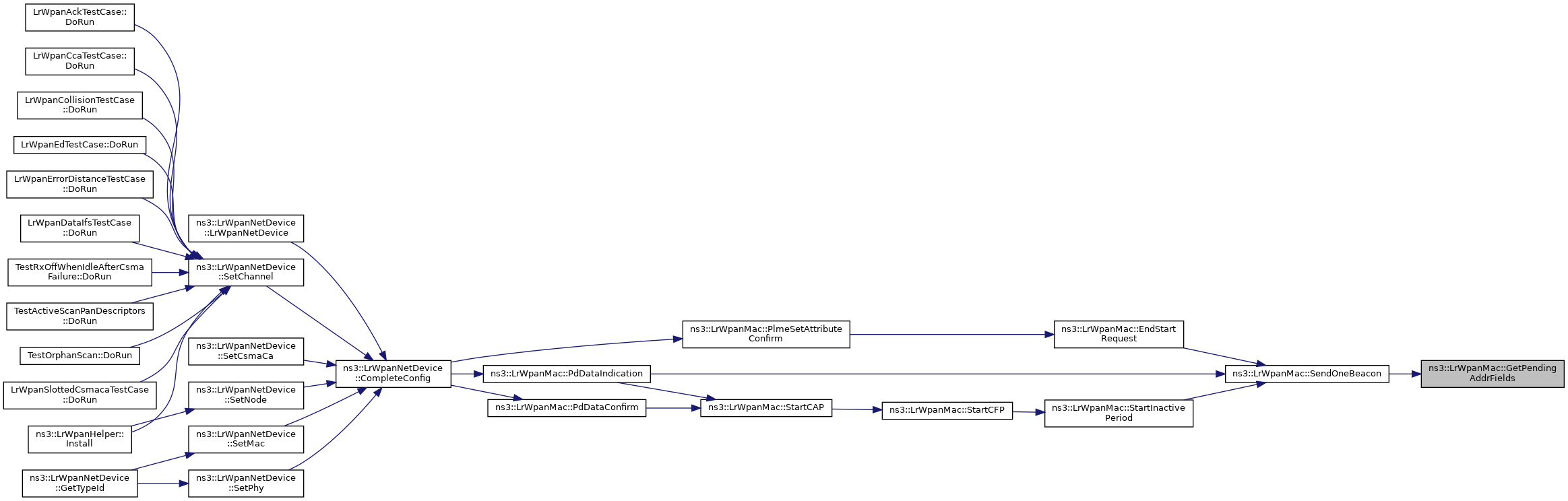

| void | EndAssociateRequest () |
| Called to end an MLME-ASSOCIATE.request after changing the page and channel number. More... | |
| void | EndChannelEnergyScan () |
| Called at the end of one ED channel scan. More... | |
| void | EndChannelScan () |
| Called at the end of the current channel scan (Active or Passive) for a given duration. More... | |
| void | EndStartRequest () |
| Called to end a MLME-START.request after changing the page and channel number. More... | |
| void | EnqueueInd (Ptr< Packet > p) |
| Adds a packet to the pending transactions list (Indirect transmissions). More... | |
| void | EnqueueTxQElement (Ptr< TxQueueElement > txQElement) |
| Add an element to the transmission queue. More... | |
| GtsFields | GetGtsFields () |
| Constructs the Guaranteed Time Slots (GTS) Fields from local information. More... | |
| PendingAddrFields | GetPendingAddrFields () |
| Constructs Pending Address Fields from the local information, the Pending Address Fields are part of the beacon frame. More... | |

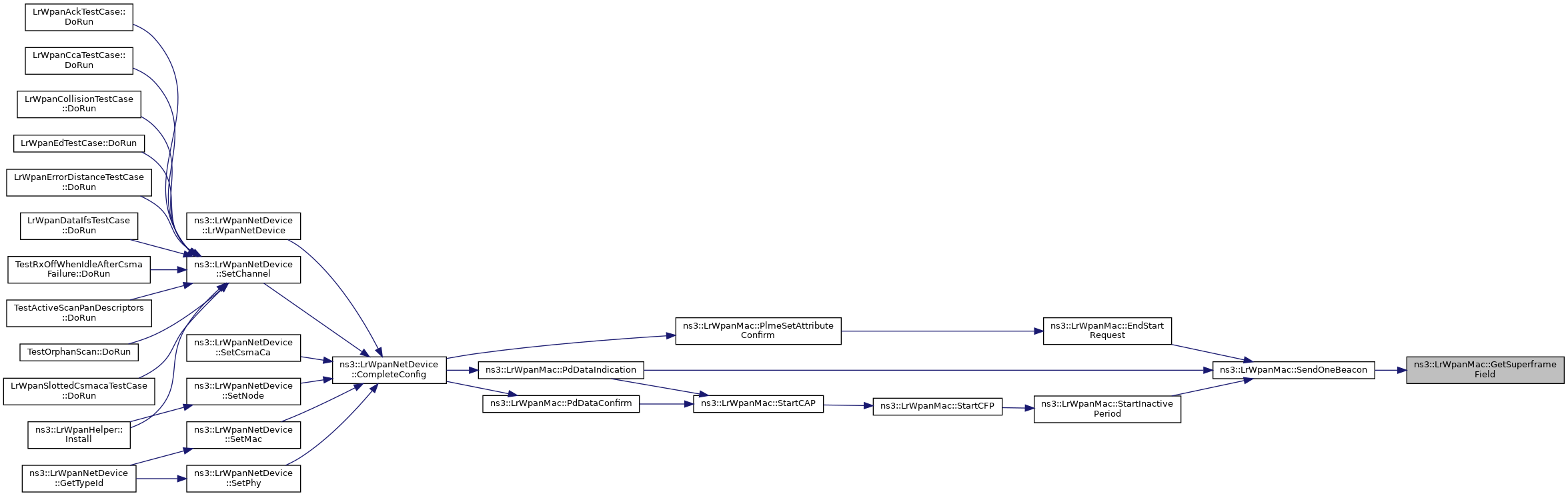

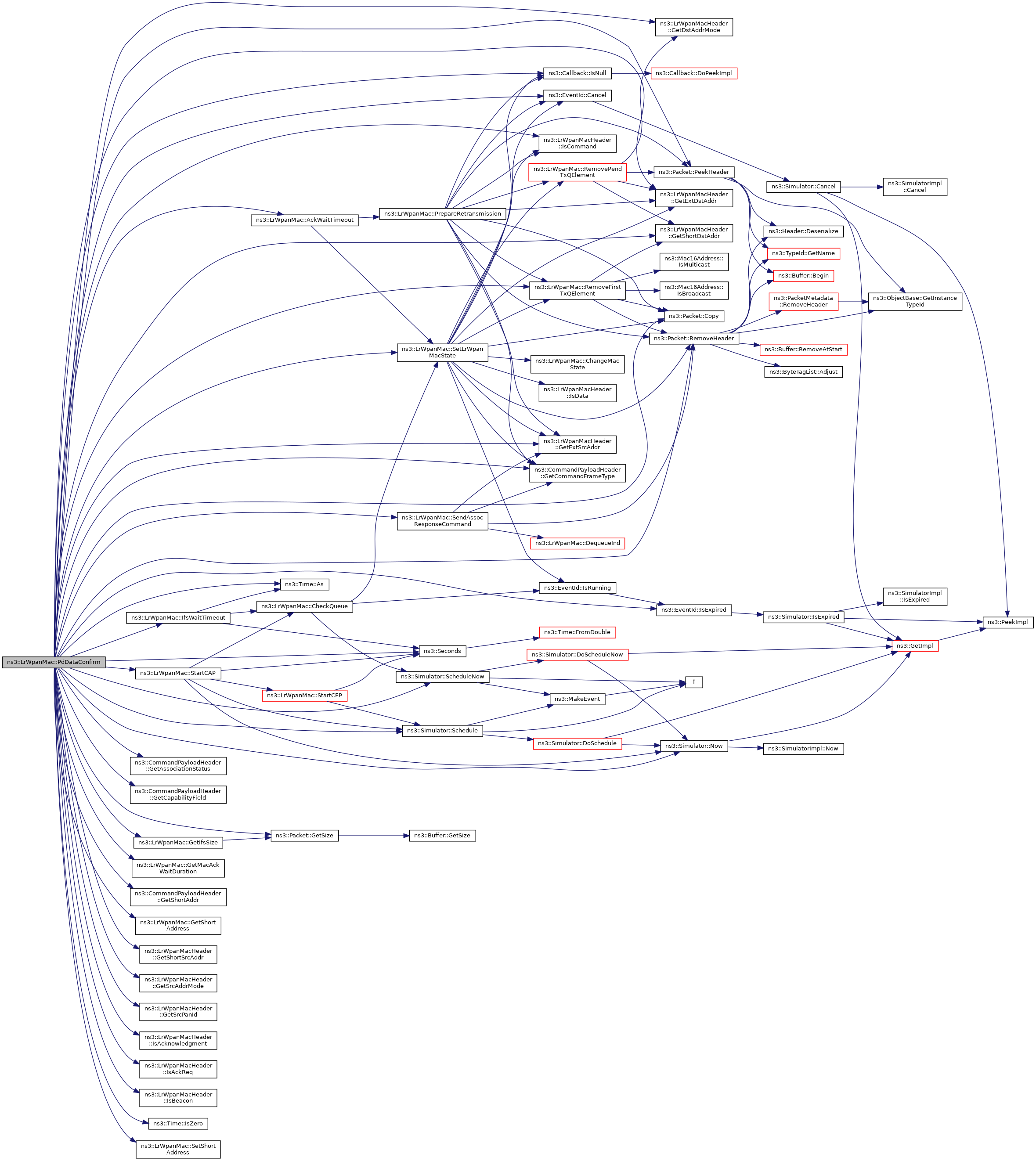

| uint16_t | GetSuperframeField () |
| Constructs a Superframe specification field from the local information, the superframe Specification field is necessary to create a beacon frame. More... | |
| void | IfsWaitTimeout (Time ifsTime) |
| After a successful transmission of a frame (beacon, data) or an ack frame reception, the mac layer wait an Interframe Space (IFS) time and triggers this function to continue with the MAC flow. More... | |

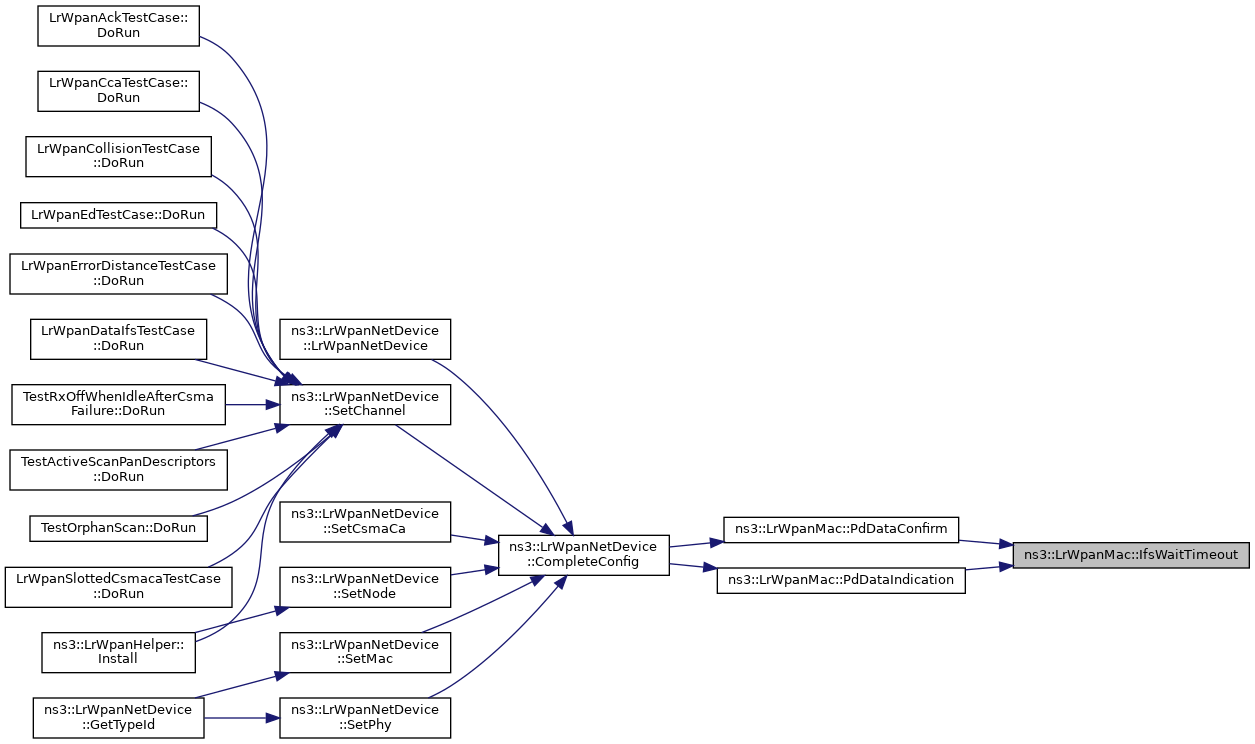

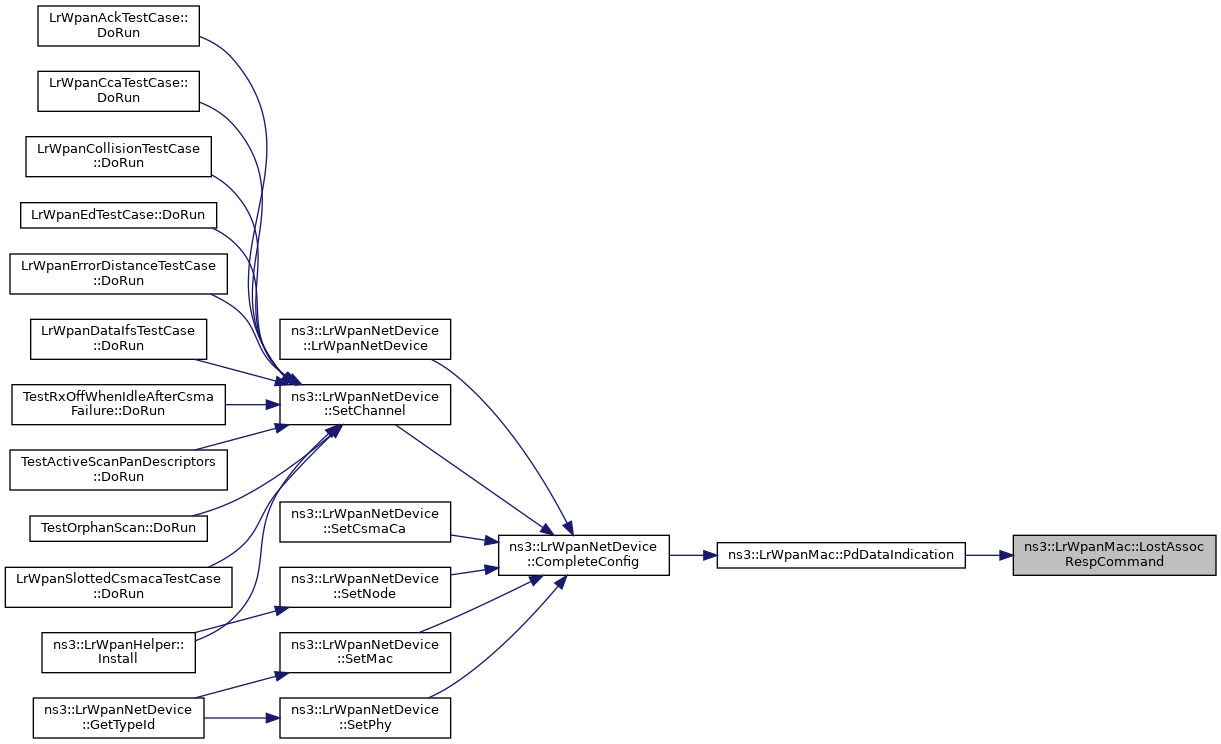

| void | LostAssocRespCommand () |
| Called after m_assocRespCmdWaitTime timeout while waiting for an association response command. More... | |
| bool | PrepareRetransmission () |
| Check for remaining retransmissions for the packet currently being sent. More... | |

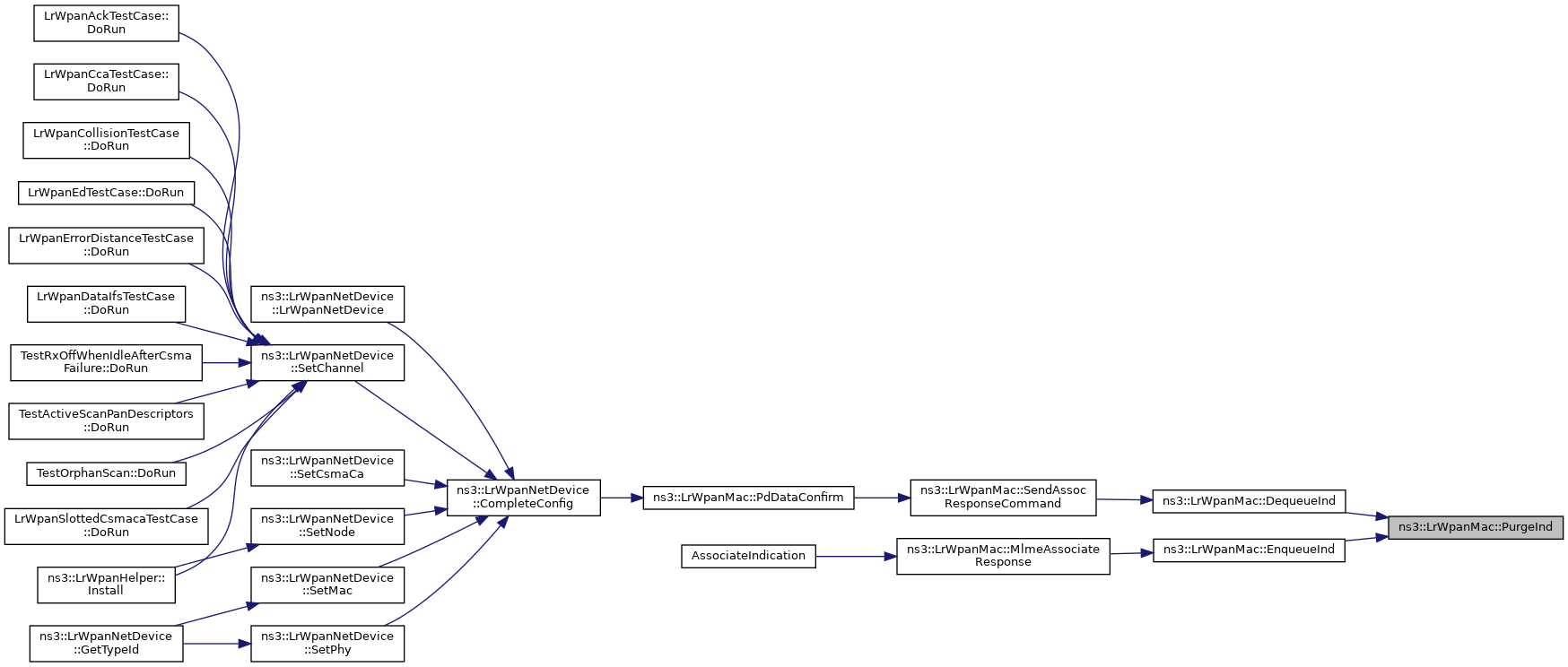

| void | PurgeInd () |
| Purge expired transactions from the pending transactions list. More... | |
| void | RemoveFirstTxQElement () |
| Remove the tip of the transmission queue, including clean up related to the last packet transmission. More... | |

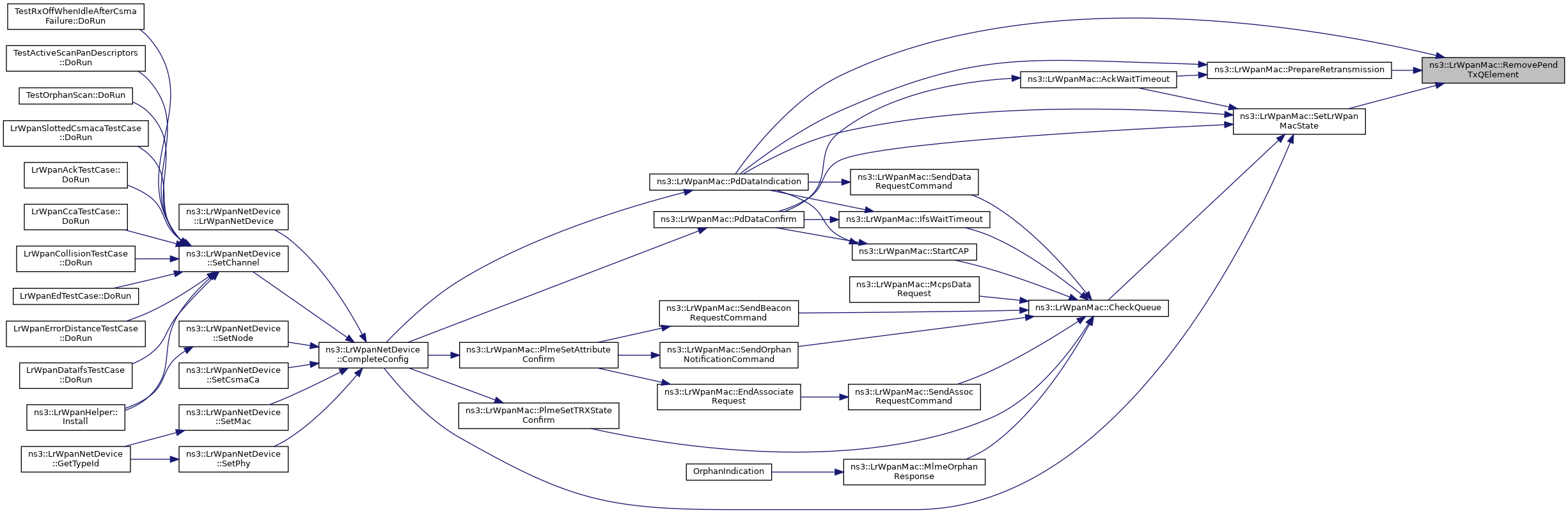

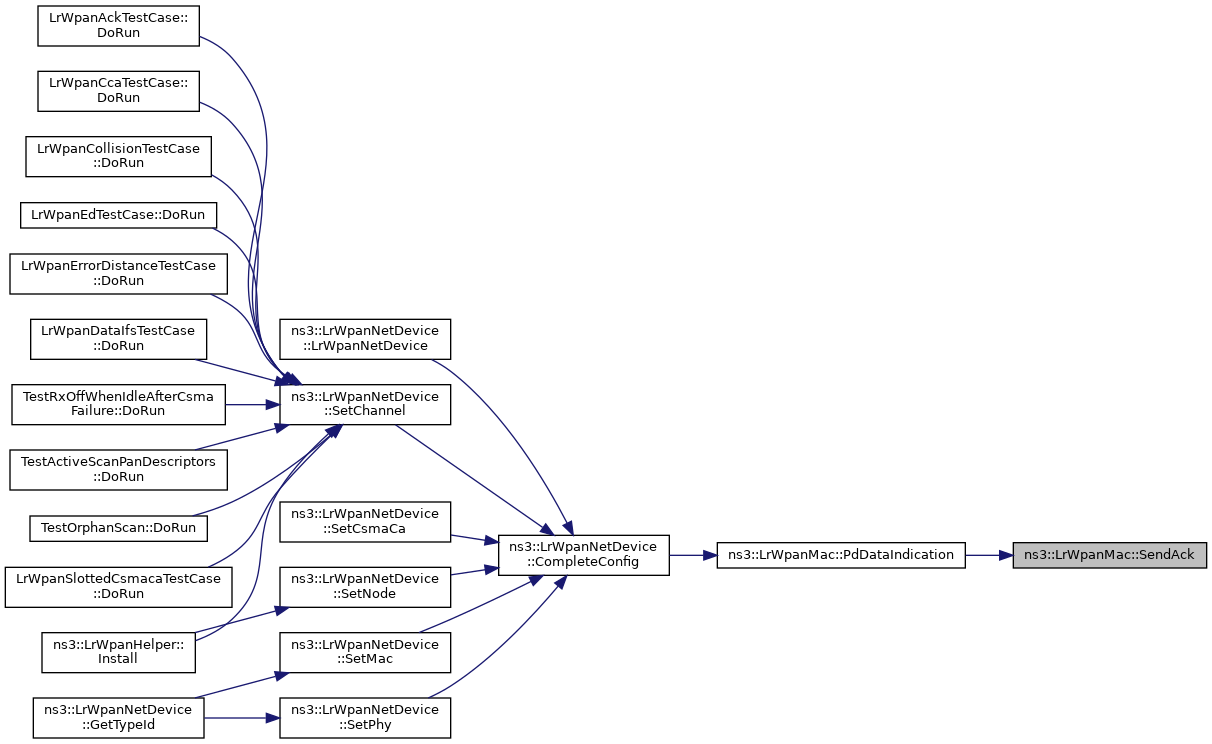

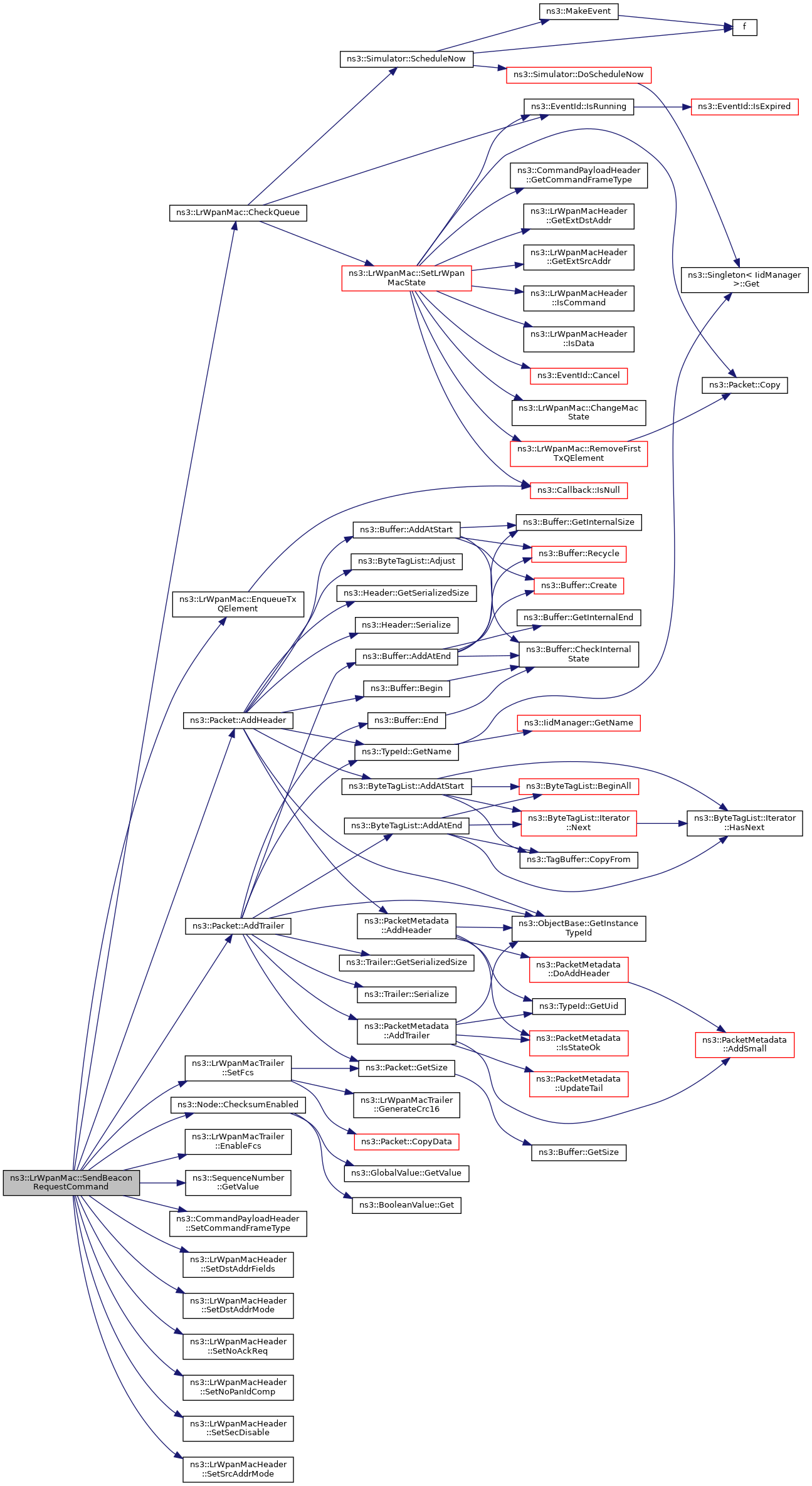

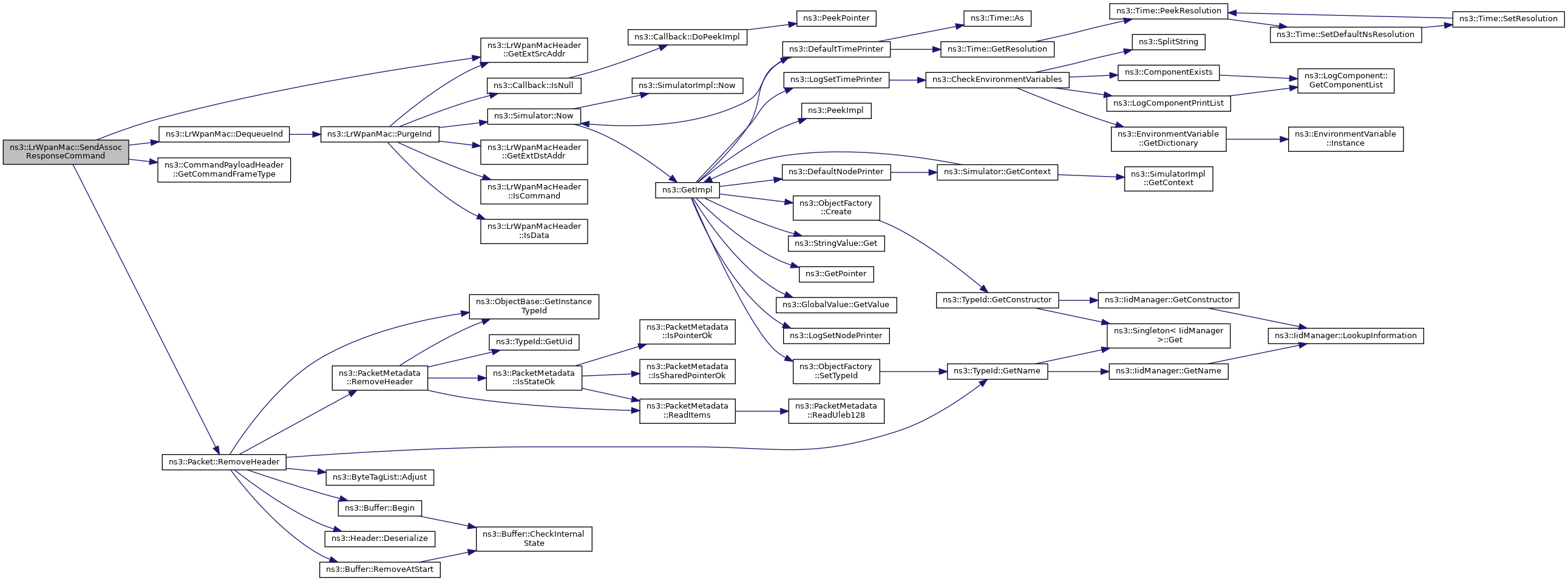

| void | RemovePendTxQElement (Ptr< Packet > p) |
| Remove an element from the pending transaction list. More... | |
| void | SendAck (uint8_t seqno) |
| Send an acknowledgment packet for the given sequence number. More... | |
| void | SendAssocRequestCommand () |
| Called to send an associate request command. More... | |
| void | SendAssocResponseCommand (Ptr< Packet > rxDataReqPkt) |
| Called to send an associate response command. More... | |
| void | SendBeaconRequestCommand () |
| Called to send a beacon request command. More... | |
| void | SendDataRequestCommand () |
| Used to send a data request command (i.e. More... | |
| void | SendOneBeacon () |
| Called to send a single beacon frame. More... | |
| void | SendOrphanNotificationCommand () |
| Called to send a orphan notification command. More... | |
| void | StartCAP (SuperframeType superframeType) |
| Called to begin the Contention Access Period (CAP) in a beacon-enabled mode. More... | |

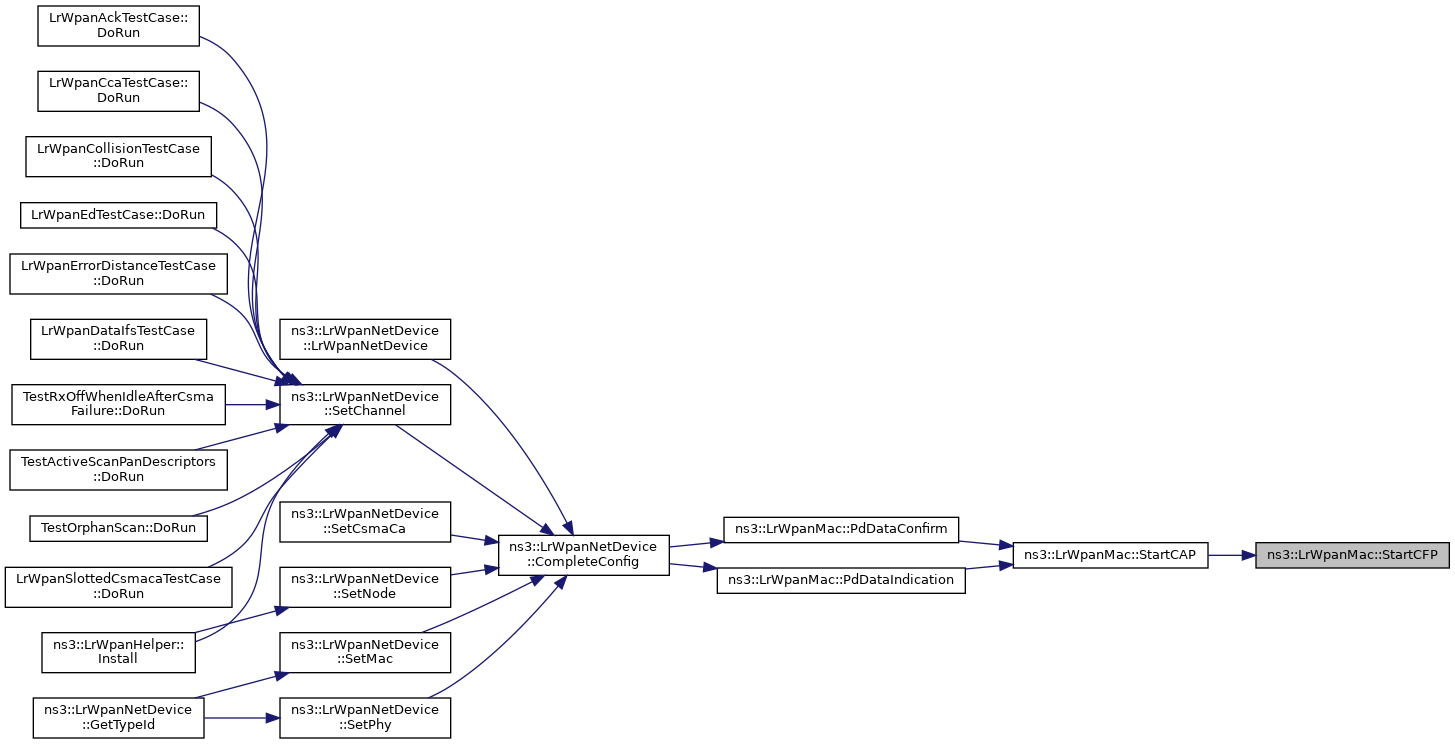

| void | StartCFP (SuperframeType superframeType) |
| Called to begin the Contention Free Period (CFP) in a beacon-enabled mode. More... | |
| void | StartInactivePeriod (SuperframeType superframeType) |
| Start the Inactive Period in a beacon-enabled mode. More... | |
Private Attributes | |
| EventId | m_ackWaitTimeout |
| Scheduler event for the ACK timeout of the currently transmitted data packet. More... | |
| MlmeAssociateRequestParams | m_associateParams |
| The parameters used during a MLME-ASSOCIATE.request. More... | |
| EventId | m_assocResCmdWaitTimeout |
| Scheduler event for the lost of a association response command frame. More... | |
| EventId | m_beaconEvent |
| Scheduler event for generation of one beacon. More... | |
| EventId | m_capEvent |
| Scheduler event for the end of the outgoing superframe CAP. More... | |
| EventId | m_cfpEvent |
| Scheduler event for the end of the outgoing superframe CFP. More... | |
| uint16_t | m_channelScanIndex |
| The channel list index used to obtain the current scanned channel. More... | |
| Ptr< LrWpanCsmaCa > | m_csmaCa |
| The CSMA/CA implementation used by this MAC. More... | |
| std::vector< uint8_t > | m_energyDetectList |
| The list of energy measurements, one for each channel searched during an ED scan. More... | |
| EventId | m_ifsEvent |
| Scheduler event for Interframe spacing wait time. More... | |
| EventId | m_incCapEvent |
| Scheduler event for the end of the incoming superframe CAP. More... | |
| EventId | m_incCfpEvent |
| Scheduler event for the end of the incoming superframe CFP. More... | |
| TracedValue< SuperframeStatus > | m_incSuperframeStatus |
| The current period of the incoming superframe. More... | |
| std::deque< Ptr< IndTxQueueElement > > | m_indTxQueue |
| The indirect transmit queue used by the MAC pending messages (The pending transaction list). More... | |
| uint8_t | m_lastRxFrameLqi |
| Keep track of the last received frame Link Quality Indicator. More... | |
| TracedValue< LrWpanMacState > | m_lrWpanMacState |
| The current state of the MAC layer. More... | |
| TracedCallback< Time > | m_macIfsEndTrace |
| The trace source is fired at the end of any Interframe Space (IFS). More... | |
| TracedCallback< Ptr< const Packet > > | m_macIndTxDequeueTrace |
| The trace source fired when packets are dequeued from the L3/l2 indirect transmission queue (Pending transaction list). More... | |
| TracedCallback< Ptr< const Packet > > | m_macIndTxDropTrace |
| The trace source fired when packets are dropped due to indirect Tx queue overflows or expiration. More... | |
| TracedCallback< Ptr< const Packet > > | m_macIndTxEnqueueTrace |
| The trace source fired when packets come into the "top" of the device at the L3/L2 transition, when being queued for indirect transmission (pending transaction list). More... | |
| TracedCallback< Ptr< const Packet > > | m_macPromiscRxTrace |
| The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More... | |
| TracedCallback< Ptr< const Packet > > | m_macRxDropTrace |
| The trace source fired for packets successfully received by the device but dropped before being forwarded up to higher layers (at the L2/L3 transition). More... | |
| TracedCallback< Ptr< const Packet > > | m_macRxTrace |
| The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition). More... | |
| TracedCallback< LrWpanMacState, LrWpanMacState > | m_macStateLogger |
| A trace source that fires when the LrWpanMac changes states. More... | |
| TracedCallback< Ptr< const Packet > > | m_macTxDequeueTrace |
| The trace source fired when packets are dequeued from the L3/l2 transmission queue. More... | |
| TracedCallback< Ptr< const Packet > > | m_macTxDropTrace |
| The trace source fired when packets are dropped due to missing ACKs or because of transmission failures in L1. More... | |
| TracedCallback< Ptr< const Packet > > | m_macTxEnqueueTrace |
| The trace source fired when packets come into the "top" of the device at the L3/L2 transition, when being queued for transmission. More... | |
| TracedCallback< Ptr< const Packet > > | m_macTxOkTrace |
| The trace source fired when packets where successfully transmitted, that is an acknowledgment was received, if requested, or the packet was successfully sent by L1, if no ACK was requested. More... | |
| TracedCallback< Ptr< const Packet > > | m_macTxTrace |
| The trace source fired when packets are being sent down to L1. More... | |
| uint32_t | m_maxIndTxQueueSize |
| The maximum size of the indirect transmit queue (The pending transaction list). More... | |
| uint32_t | m_maxTxQueueSize |
| The maximum size of the transmit queue. More... | |
| uint8_t | m_numCsmacaRetry |
| The number of CSMA/CA retries used for sending the current packet. More... | |
| TracedValue< SuperframeStatus > | m_outSuperframeStatus |
| The current period of the outgoing superframe. More... | |
| std::vector< PanDescriptor > | m_panDescriptorList |
| The list of PAN descriptors accumulated during channel scans, used to select a PAN to associate. More... | |
| PendingPrimitiveStatus | m_pendPrimitive |
| Indicates the pending primitive when PLME.SET operation (page or channel switch) is called from within another MLME primitive (e.g. More... | |
| Ptr< LrWpanPhy > | m_phy |
| The PHY associated with this MAC. More... | |
| TracedCallback< Ptr< const Packet > > | m_promiscSnifferTrace |
| A trace source that emulates a promiscuous mode protocol sniffer connected to the device. More... | |
| EventId | m_respWaitTimeout |
| Scheduler event for a response to a request command frame. More... | |
| uint8_t | m_retransmission |
| The number of already used retransmission for the currently transmitted packet. More... | |
| Ptr< Packet > | m_rxPkt |
| The command request packet received. More... | |
| EventId | m_scanEnergyEvent |
| Scheduler event for the end of a ED channel scan. More... | |
| EventId | m_scanEvent |
| Scheduler event for the end of an ACTIVE or PASSIVE channel scan. More... | |
| EventId | m_scanOrphanEvent |
| Scheduler event for the end of an ORPHAN channel scan. More... | |
| MlmeScanRequestParams | m_scanParams |
| The parameters used during a MLME-SCAN.request. More... | |
| Mac64Address | m_selfExt |
| The extended 64 address (IEEE EUI-64) used by this MAC. More... | |
| TracedCallback< Ptr< const Packet >, uint8_t, uint8_t > | m_sentPktTrace |
| The trace source fired when packets are considered as successfully sent or the transmission has been given up. More... | |
| EventId | m_setMacState |
| Scheduler event for a deferred MAC state change. More... | |
| Mac16Address | m_shortAddress |
| The short address (16 bit address) used by this MAC. More... | |
| TracedCallback< Ptr< const Packet > > | m_snifferTrace |
| A trace source that emulates a non-promiscuous protocol sniffer connected to the device. More... | |
| MlmeStartRequestParams | m_startParams |
| The parameters used during a MLME-START.request. More... | |
| EventId | m_trackingEvent |
| Scheduler event to track the incoming beacons. More... | |
| Ptr< Packet > | m_txPkt |
| The packet which is currently being sent by the MAC layer. More... | |
| std::deque< Ptr< TxQueueElement > > | m_txQueue |
| The transmit queue used by the MAC. More... | |
| std::vector< uint8_t > | m_unscannedChannels |
| The list of unscanned channels during a scan operation. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from ns3::LrWpanMacBase | |
| McpsDataConfirmCallback | m_mcpsDataConfirmCallback |
| This callback is used to report data transmission request status to the upper layers. More... | |
| McpsDataIndicationCallback | m_mcpsDataIndicationCallback |
| This callback is used to notify incoming packets to the upper layers. More... | |
| MlmeAssociateConfirmCallback | m_mlmeAssociateConfirmCallback |
| This callback is used to report the status after a device request an association with a coordinator. More... | |
| MlmeAssociateIndicationCallback | m_mlmeAssociateIndicationCallback |
| This callback is used to indicate the reception of an association request command. More... | |
| MlmeBeaconNotifyIndicationCallback | m_mlmeBeaconNotifyIndicationCallback |
| This callback is used to notify incoming beacon packets to the upper layers. More... | |
| MlmeCommStatusIndicationCallback | m_mlmeCommStatusIndicationCallback |
| This callback is instigated through a response primitive. More... | |
| MlmeGetConfirmCallback | m_mlmeGetConfirmCallback |
| This callback is used to report the result of an attribute read request to the upper layers. More... | |
| MlmeOrphanIndicationCallback | m_mlmeOrphanIndicationCallback |
| This callback is used to indicate the reception of a orphan notification command. More... | |
| MlmePollConfirmCallback | m_mlmePollConfirmCallback |
| This callback is used to report the status after a device send data command request to the coordinator to transmit data. More... | |
| MlmeScanConfirmCallback | m_mlmeScanConfirmCallback |
| This callback is used to report the result of a scan on a group of channels for the selected channel page. More... | |
| MlmeSetConfirmCallback | m_mlmeSetConfirmCallback |
| This callback is used to report the result of an attribute writing request to the upper layers. More... | |
| MlmeStartConfirmCallback | m_mlmeStartConfirmCallback |
| This callback is used to report the start of a new PAN or the begin of a new superframe configuration. More... | |
| MlmeSyncLossIndicationCallback | m_mlmeSyncLossIndicationCallback |
| This callback is used to indicate the loss of synchronization with a coordinator. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Class that implements the LR-WPAN MAC state machine.
Definition at line 160 of file lr-wpan-mac.h.
| typedef void(* ns3::LrWpanMac::SentTracedCallback) (Ptr< const Packet > packet, uint8_t retries, uint8_t backoffs) |
TracedCallback signature for sent packets.
| [in] | packet | The packet. |
| [in] | retries | The number of retries. |
| [in] | backoffs | The number of CSMA backoffs. |
Definition at line 720 of file lr-wpan-mac.h.
| typedef void(* ns3::LrWpanMac::StateTracedCallback) (LrWpanMacState oldState, LrWpanMacState newState) |
TracedCallback signature for LrWpanMacState change events.
| [in] | oldValue | The original state value. |
| [in] | newValue | The new state value. |
MacStateValue. The MacState TracedCallback will be removed in a future release. Definition at line 731 of file lr-wpan-mac.h.
| ns3::LrWpanMac::LrWpanMac | ( | ) |
Default constructor.
Definition at line 202 of file lr-wpan-mac.cc.
References ns3::lrwpan::aBaseSuperframeDuration, ns3::Mac64Address::Allocate(), ChangeMacState(), ns3::FFD, ns3::UniformRandomVariable::GetValue(), ns3::INACTIVE, m_assocRespCmdWaitTime, m_beaconTrackingOn, m_channelScanIndex, m_coor, m_deviceCapability, m_ifs, m_incomingBeaconOrder, m_incomingSuperframeOrder, m_incSuperframeStatus, m_indTxQueue, m_lastRxFrameLqi, m_lrWpanMacState, m_macAssociationPermit, m_macAutoRequest, m_macBeaconOrder, m_macBeaconPayload, m_macBeaconPayloadLength, m_macBsn, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macDsn, m_macLIFSPeriod, m_macMaxFrameRetries, m_macPanId, m_macPromiscuousMode, m_macResponseWaitTime, m_macRxOnWhenIdle, m_macSIFSPeriod, m_macSuperframeOrder, m_macTransactionPersistenceTime, m_maxEnergyLevel, m_maxIndTxQueueSize, m_maxTxQueueSize, m_numCsmacaRetry, m_numLostBeacons, m_outSuperframeStatus, m_panCoor, m_pendPrimitive, m_retransmission, m_rxPkt, m_selfExt, m_shortAddress, m_txPkt, m_txQueue, ns3::MAC_IDLE, ns3::MLME_NONE, and ns3::ObjectBase::SetAttribute().

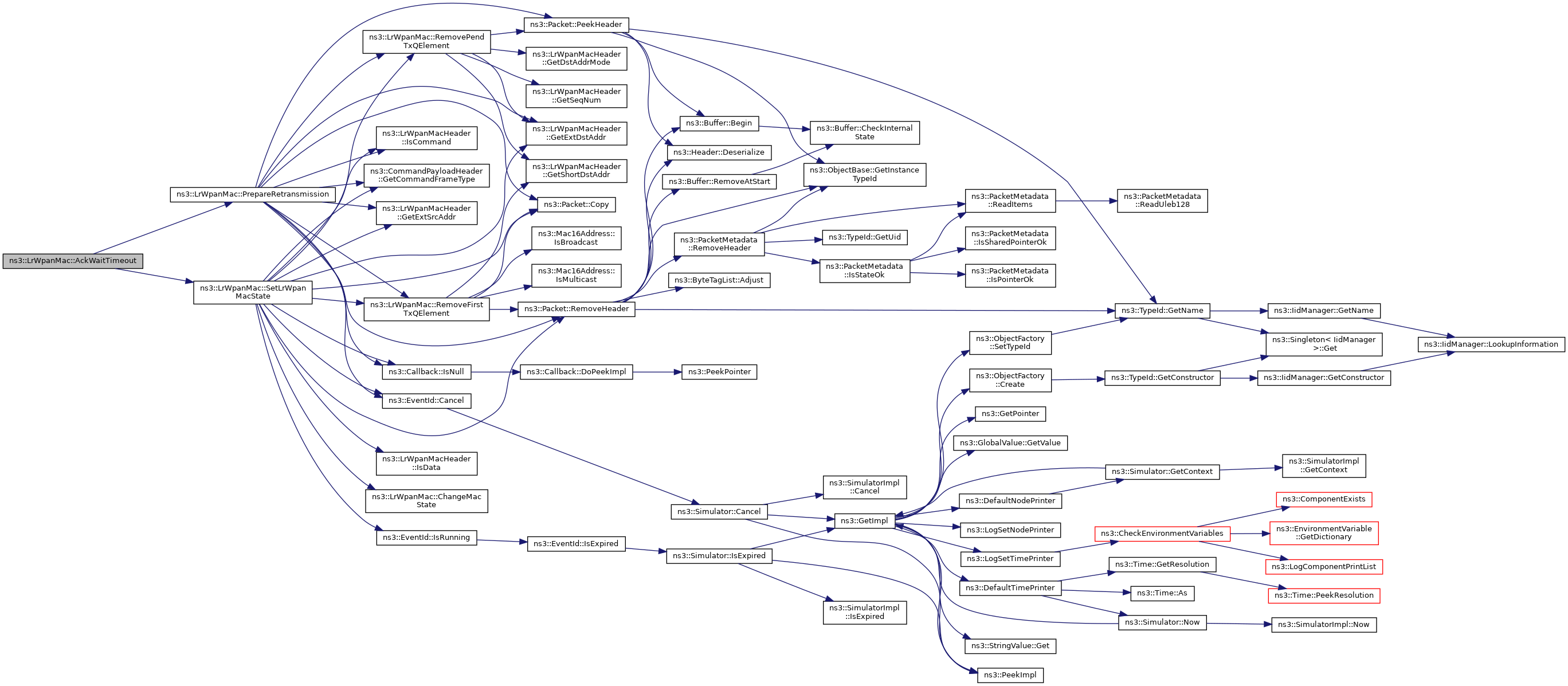

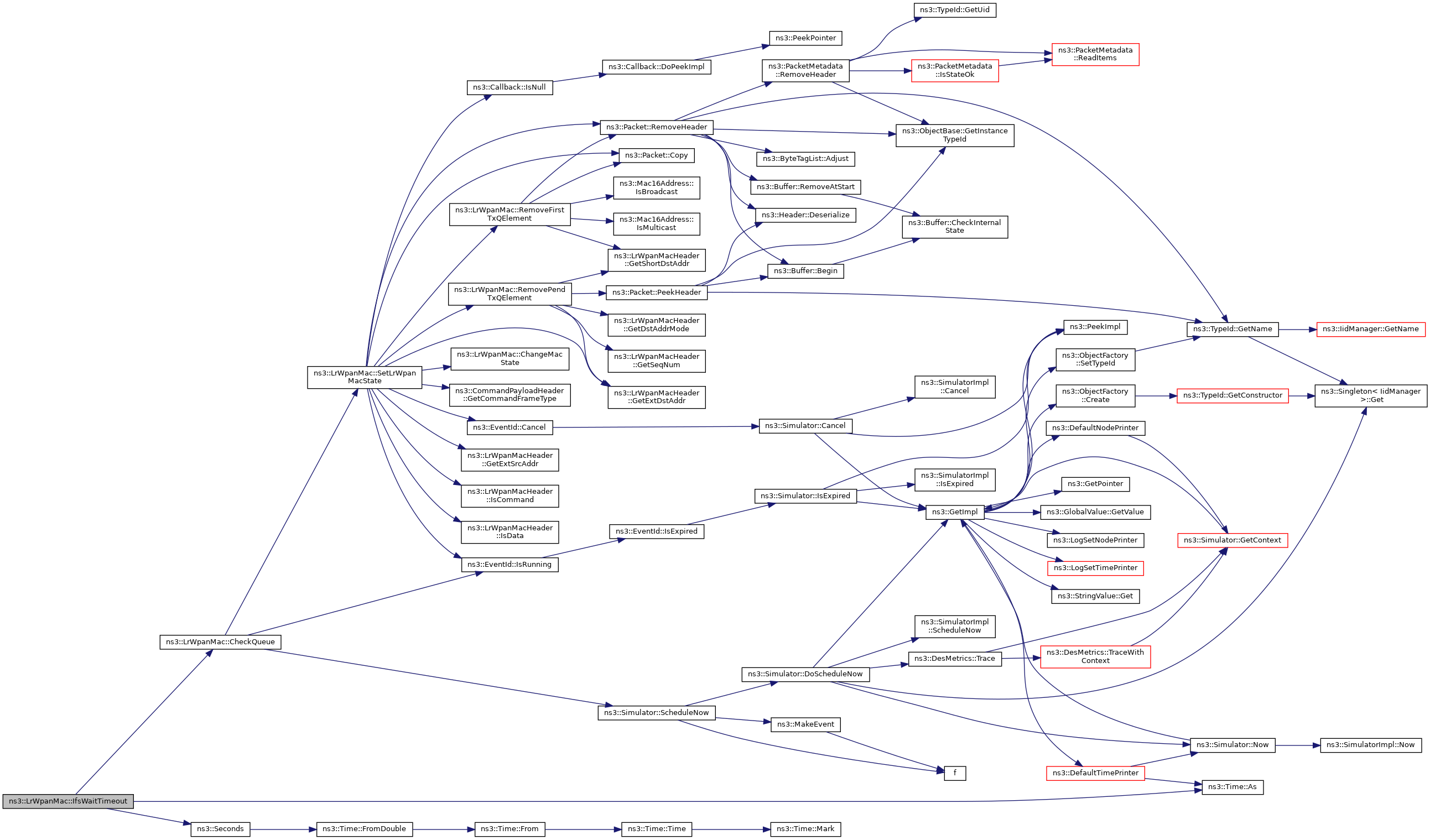

Here is the call graph for this function:
|
override |
Definition at line 263 of file lr-wpan-mac.cc.
|
private |

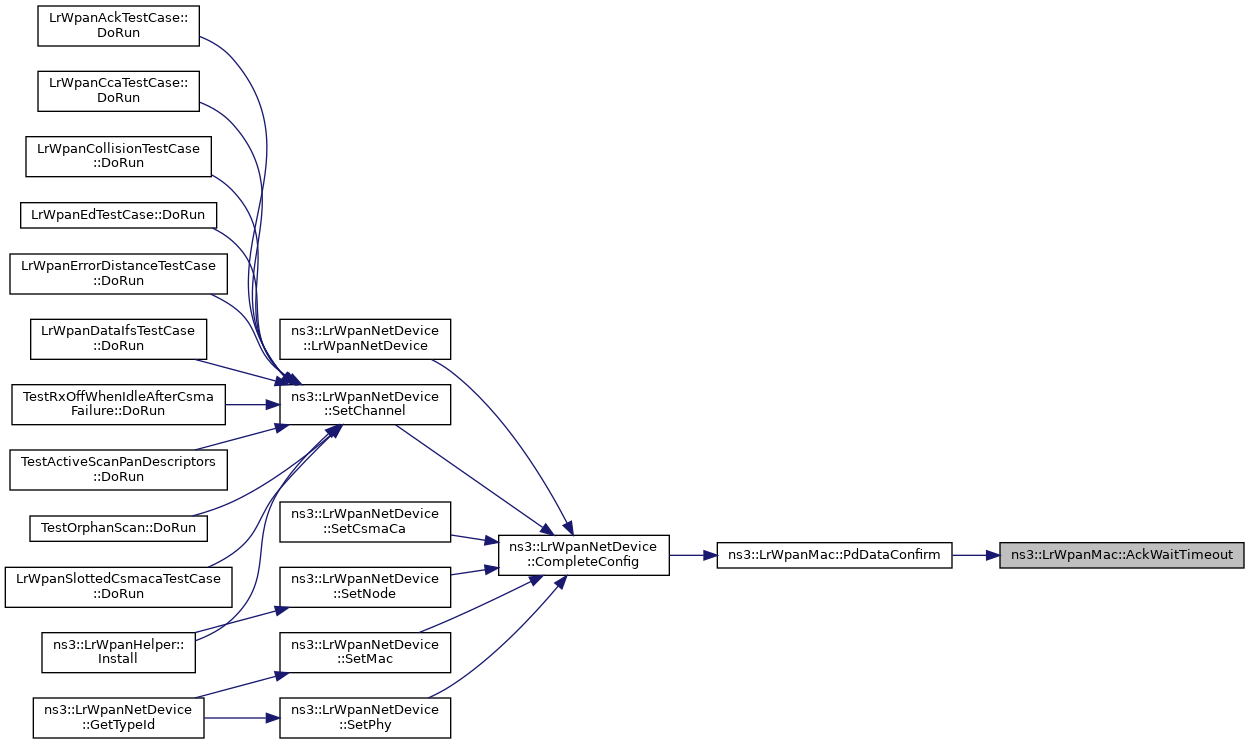

Handle an ACK timeout with a packet retransmission, if there are retransmission left, or a packet drop.
Definition at line 2601 of file lr-wpan-mac.cc.
References ns3::MAC_CSMA, ns3::MAC_IDLE, NS_LOG_FUNCTION, PrepareRetransmission(), and SetLrWpanMacState().
Referenced by PdDataConfirm().

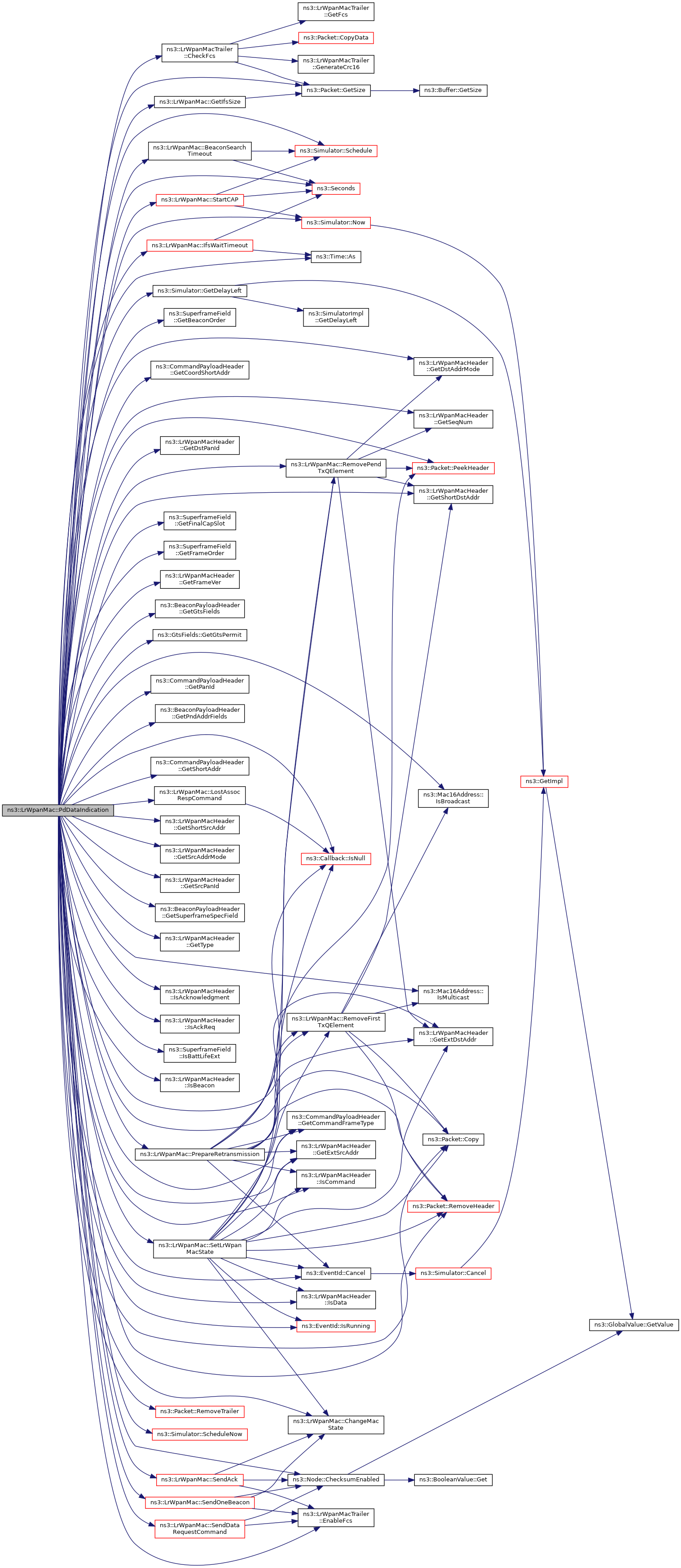

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Called after the end of an INCOMING superframe to start the moment a device waits for a new incoming beacon.
Definition at line 1672 of file lr-wpan-mac.cc.
References ns3::BEACON, and m_incSuperframeStatus.
Referenced by StartInactivePeriod().

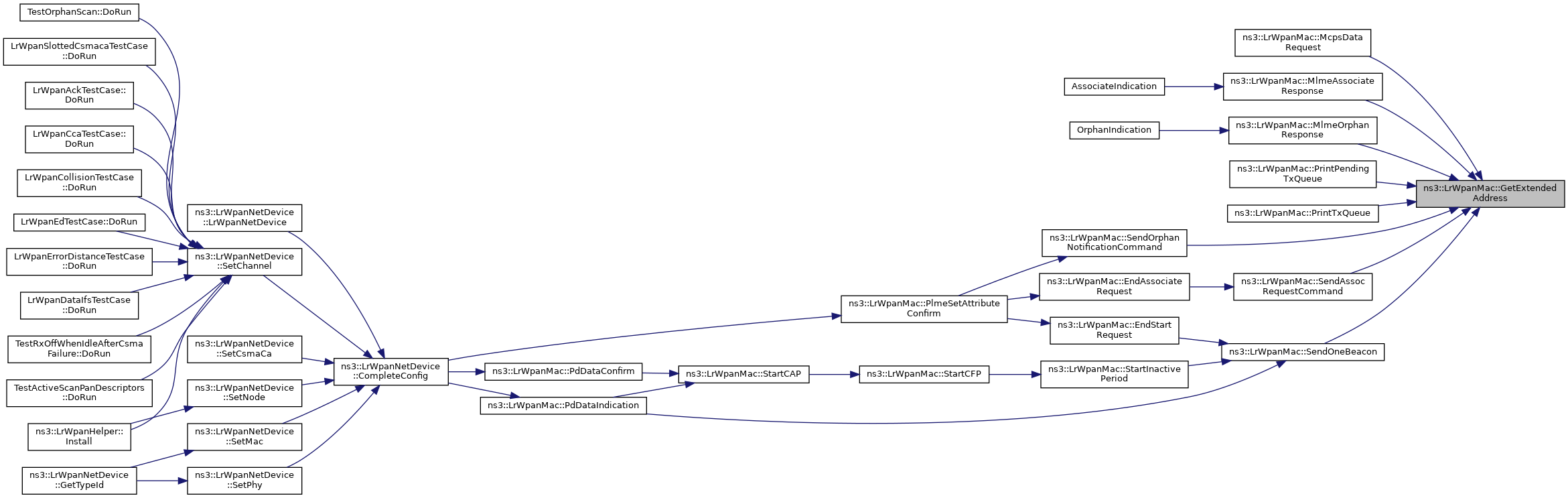

Here is the caller graph for this function:
|
private |
Called if the device is unable to locate a beacon in the time set by MLME-SYNC.request.
Definition at line 1684 of file lr-wpan-mac.cc.
References ns3::lrwpan::aBaseSuperframeDuration, ns3::lrwpan::aMaxLostBeacons, ns3::BEACON_LOSS, m_beaconTrackingOn, m_incomingBeaconOrder, ns3::MlmeSyncLossIndicationParams::m_lossReason, m_macPanId, ns3::LrWpanMacBase::m_mlmeSyncLossIndicationCallback, m_numLostBeacons, ns3::MlmeSyncLossIndicationParams::m_panId, m_phy, m_trackingEvent, ns3::Simulator::Schedule(), and ns3::Seconds().
Referenced by MlmeSyncRequest(), and PdDataIndication().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |

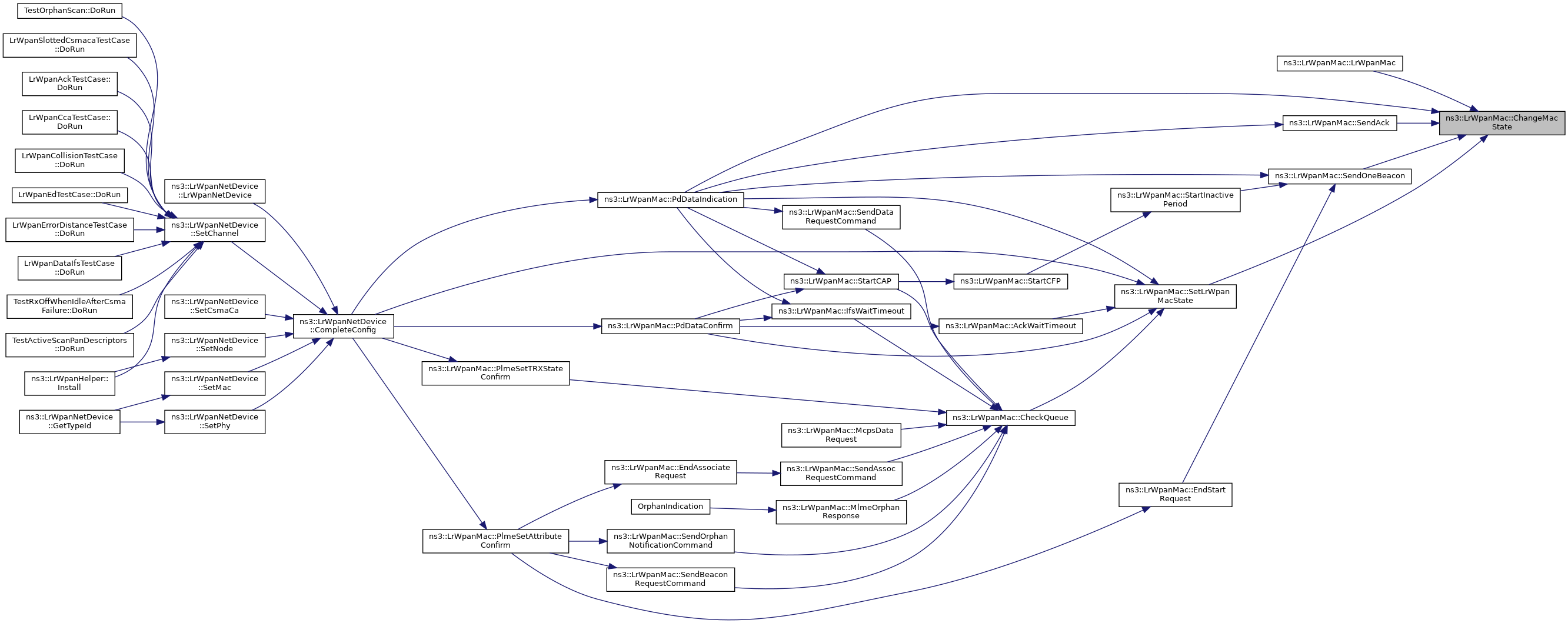

Change the current MAC state to the given new state.
| newState | the new state |
Definition at line 3762 of file lr-wpan-mac.cc.
References m_lrWpanMacState, m_macStateLogger, and NS_LOG_LOGIC.
Referenced by LrWpanMac(), PdDataIndication(), SendAck(), SendOneBeacon(), and SetLrWpanMacState().
Here is the caller graph for this function:
|
private |
Check the transmission queue.
If there are packets in the transmission queue and the MAC is idle, pick the first one and initiate a packet transmission.
Definition at line 1715 of file lr-wpan-mac.cc.
References ns3::CAP, ns3::EventId::IsRunning(), m_coor, m_csmaCa, m_ifsEvent, m_incSuperframeStatus, m_lrWpanMacState, m_outSuperframeStatus, m_setMacState, m_txPkt, m_txQueue, ns3::MAC_CSMA, ns3::MAC_IDLE, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SetLrWpanMacState().
Referenced by IfsWaitTimeout(), McpsDataRequest(), MlmeOrphanResponse(), PlmeSetTRXStateConfirm(), SendAssocRequestCommand(), SendBeaconRequestCommand(), SendDataRequestCommand(), SendOrphanNotificationCommand(), and StartCAP().

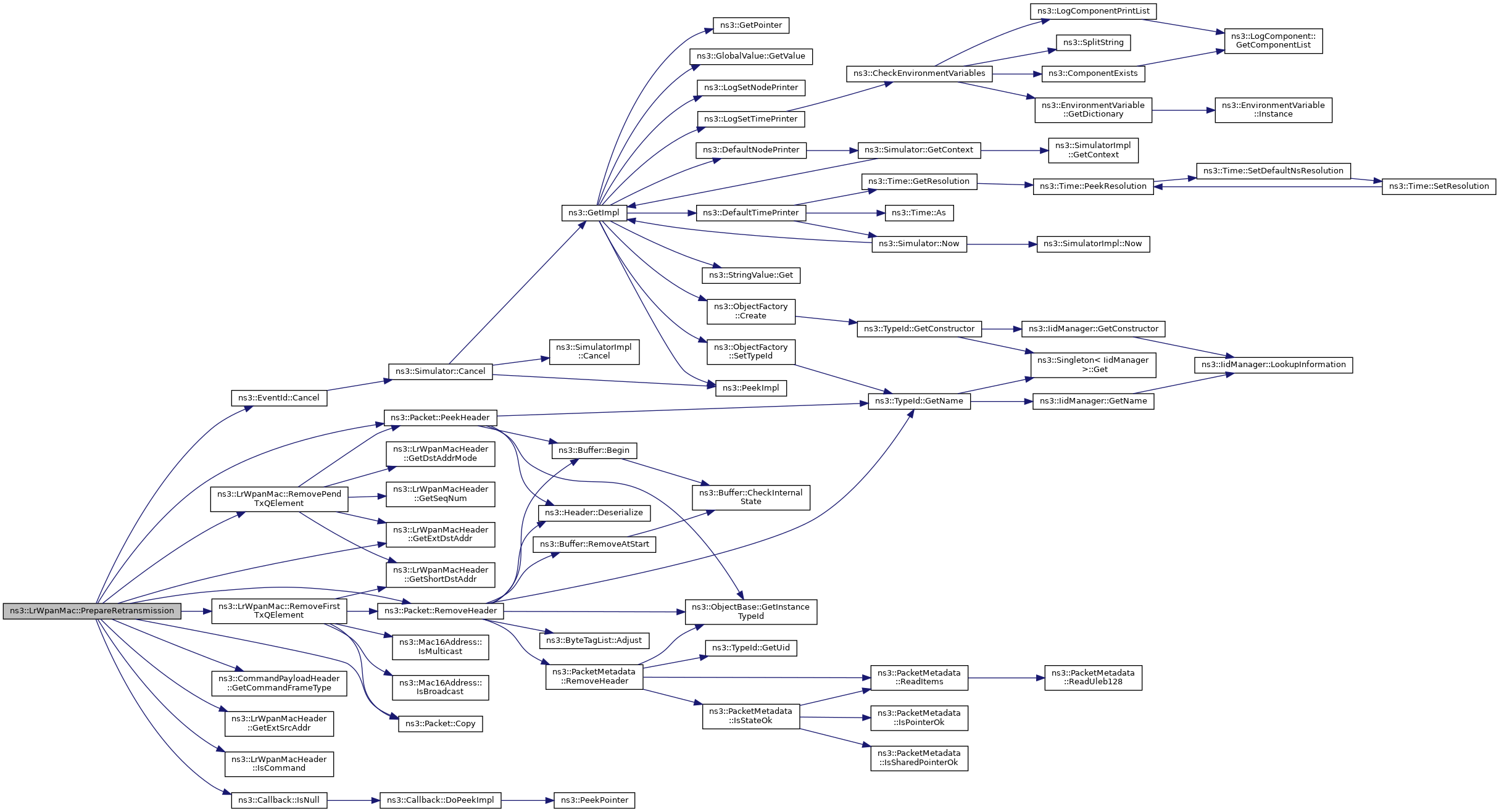

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Extracts a packet from pending transactions list (Indirect transmissions).
| dst | The extended address used an index to obtain an element from the pending transaction list. |
| entry | The dequeued element from the pending transaction list. |
Definition at line 2823 of file lr-wpan-mac.cc.
References m_indTxQueue, m_macIndTxDequeueTrace, and PurgeInd().
Referenced by SendAssocResponseCommand().

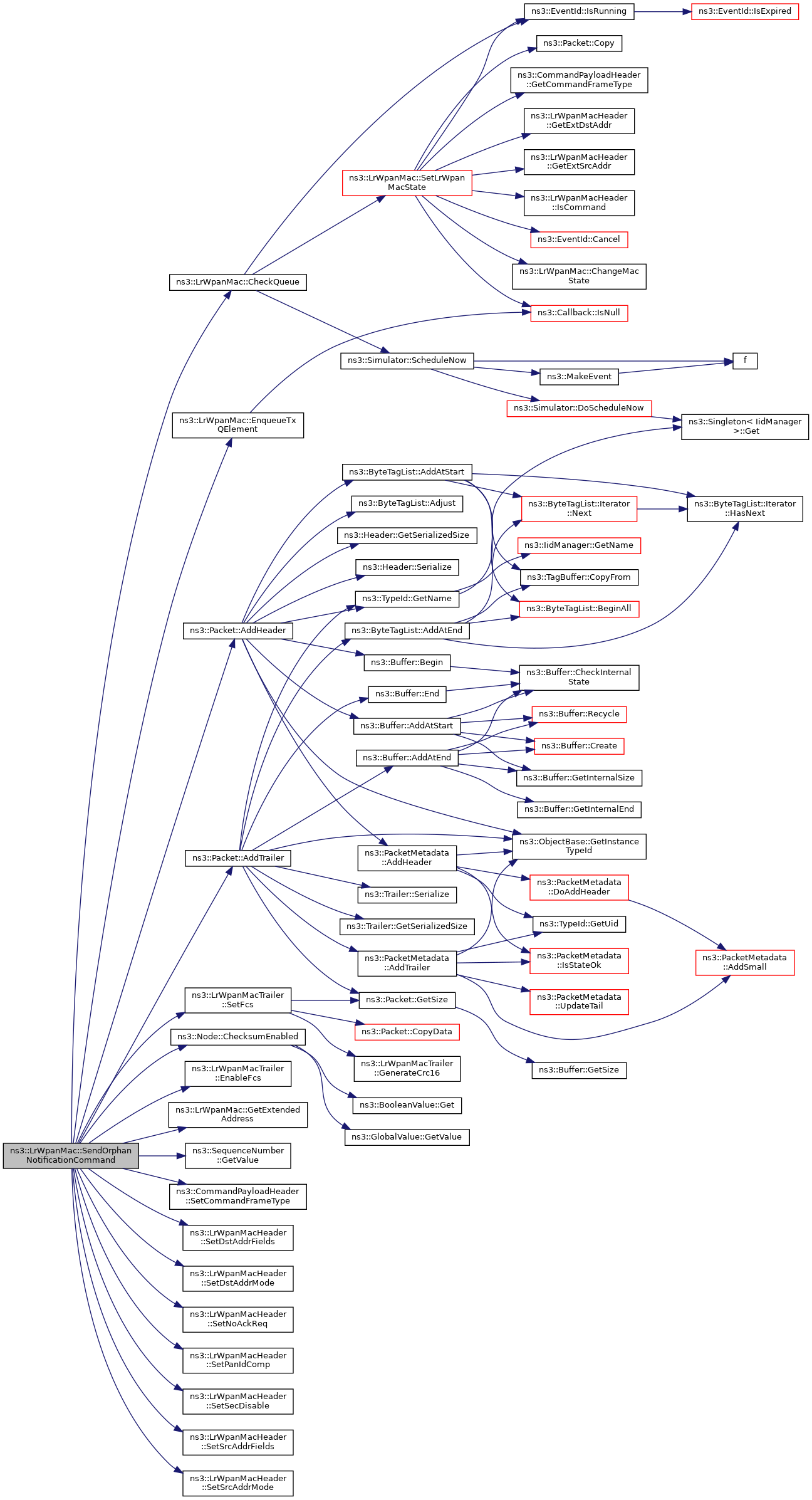

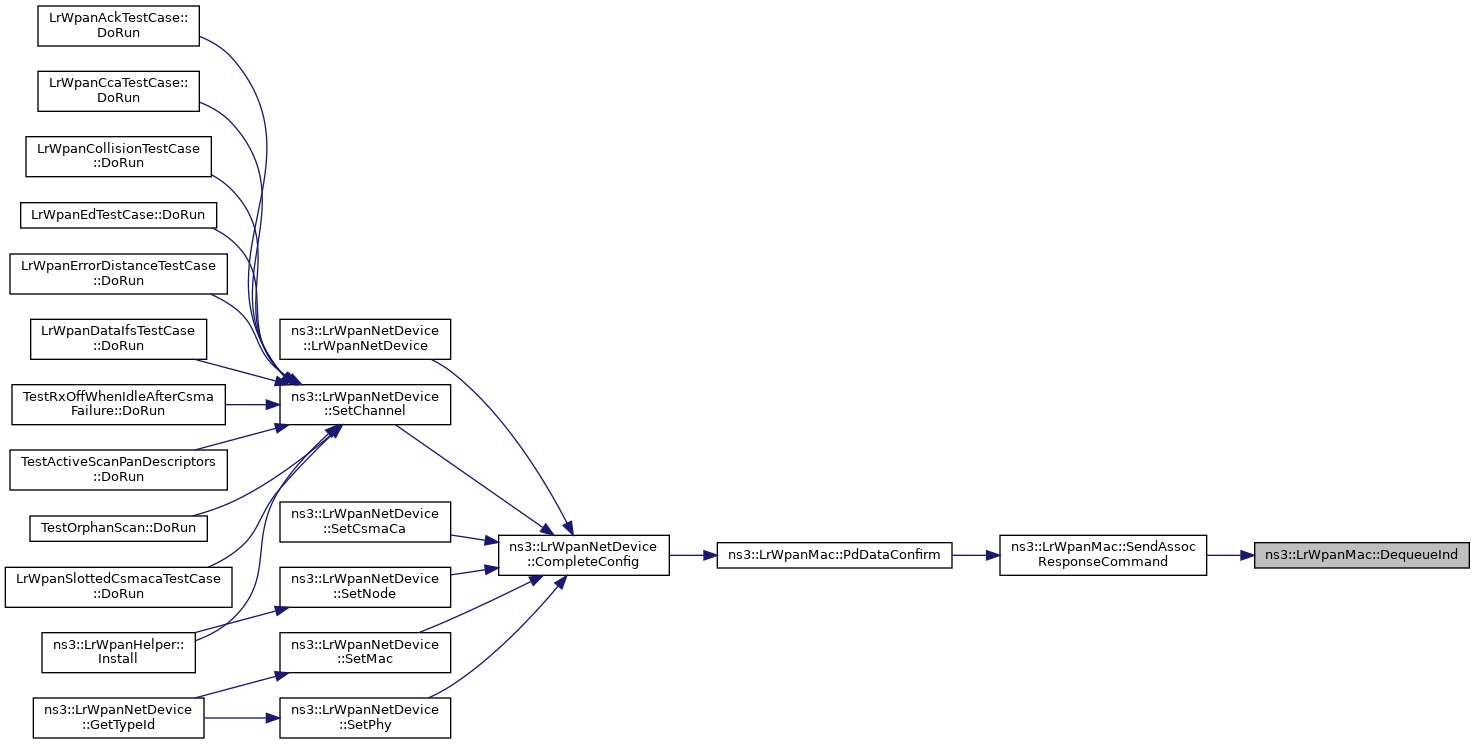

Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprotectedvirtual |
Destructor implementation.
This method is called by Dispose() or by the Object's destructor, whichever comes first.
Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.
It is safe to call GetObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 283 of file lr-wpan-mac.cc.
References ns3::EventId::Cancel(), ns3::Object::DoDispose(), m_beaconEvent, m_csmaCa, m_energyDetectList, m_indTxQueue, ns3::LrWpanMacBase::m_mcpsDataConfirmCallback, ns3::LrWpanMacBase::m_mcpsDataIndicationCallback, ns3::LrWpanMacBase::m_mlmeAssociateConfirmCallback, ns3::LrWpanMacBase::m_mlmeAssociateIndicationCallback, ns3::LrWpanMacBase::m_mlmeBeaconNotifyIndicationCallback, ns3::LrWpanMacBase::m_mlmeCommStatusIndicationCallback, ns3::LrWpanMacBase::m_mlmeOrphanIndicationCallback, ns3::LrWpanMacBase::m_mlmePollConfirmCallback, ns3::LrWpanMacBase::m_mlmeScanConfirmCallback, ns3::LrWpanMacBase::m_mlmeStartConfirmCallback, ns3::LrWpanMacBase::m_mlmeSyncLossIndicationCallback, m_panDescriptorList, m_phy, m_scanEnergyEvent, m_scanEvent, m_scanOrphanEvent, m_txPkt, m_txQueue, and m_unscannedChannels.

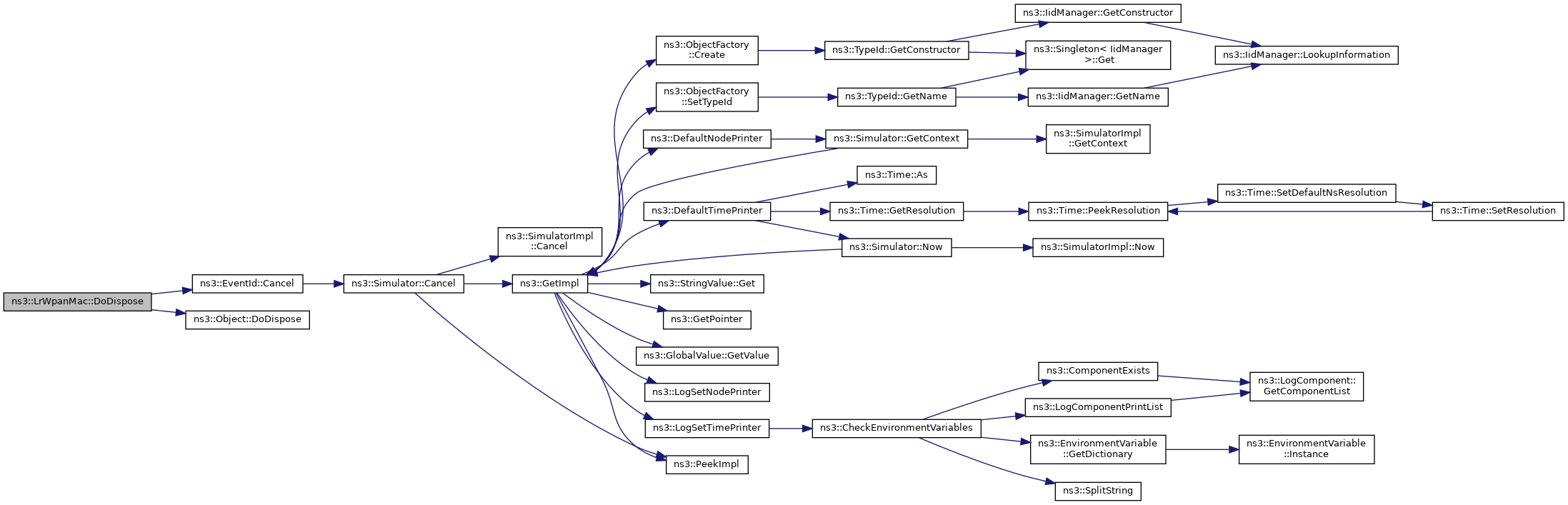

Here is the call graph for this function:
|
overrideprotectedvirtual |
Initialize() implementation.
This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.
Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.
Reimplemented from ns3::Object.
Definition at line 268 of file lr-wpan-mac.cc.
References ns3::Object::DoInitialize(), ns3::IEEE_802_15_4_PHY_RX_ON, ns3::IEEE_802_15_4_PHY_TRX_OFF, m_macRxOnWhenIdle, and m_phy.

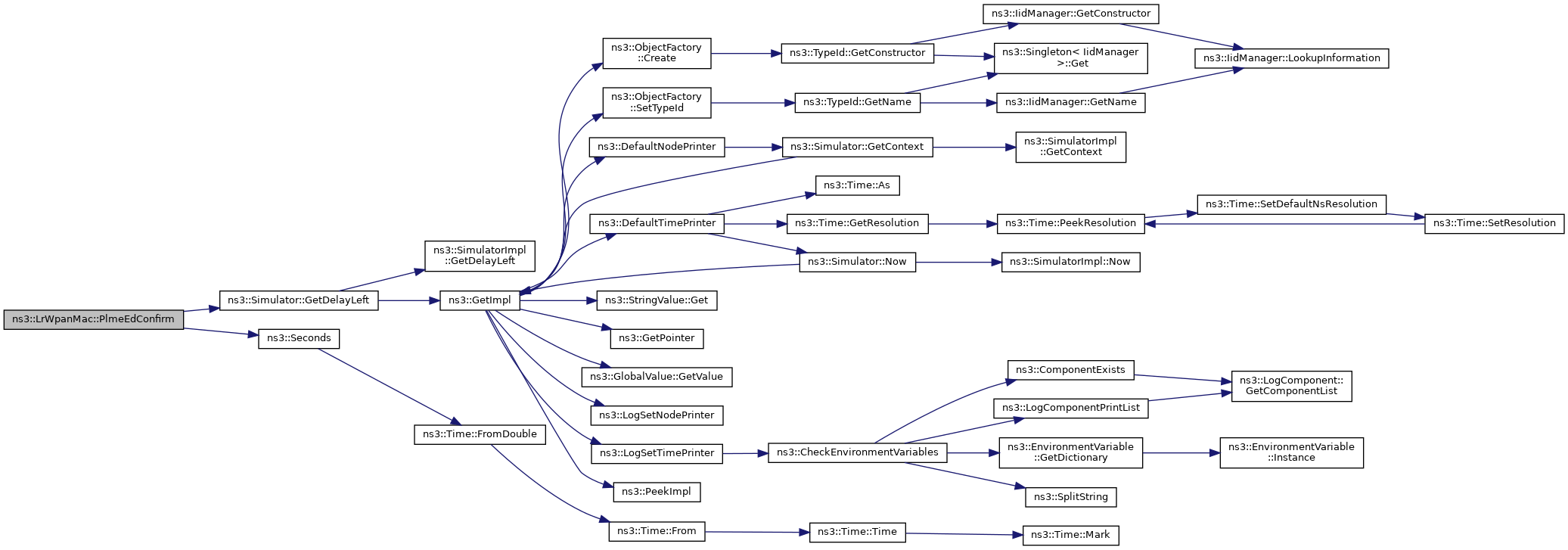

Here is the call graph for this function:
|
private |
Called to end an MLME-ASSOCIATE.request after changing the page and channel number.
Definition at line 738 of file lr-wpan-mac.cc.
References m_associateParams, ns3::MlmeAssociateRequestParams::m_coordAddrMode, ns3::MlmeAssociateRequestParams::m_coordExtAddr, ns3::MlmeAssociateRequestParams::m_coordPanId, ns3::MlmeAssociateRequestParams::m_coordShortAddr, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macPanId, m_pendPrimitive, ns3::MLME_NONE, SendAssocRequestCommand(), and ns3::SHORT_ADDR.
Referenced by PlmeSetAttributeConfirm().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Called at the end of one ED channel scan.
Definition at line 1478 of file lr-wpan-mac.cc.
References ns3::Callback< R, UArgs >::IsNull(), m_channelScanIndex, ns3::MlmeScanConfirmParams::m_chPage, m_energyDetectList, ns3::MlmeScanConfirmParams::m_energyDetList, m_macPanId, m_macPanIdScan, m_maxEnergyLevel, ns3::LrWpanMacBase::m_mlmeScanConfirmCallback, m_pendPrimitive, m_phy, ns3::MlmeScanConfirmParams::m_resultListSize, ns3::MlmeScanRequestParams::m_scanChannels, m_scanParams, ns3::MlmeScanRequestParams::m_scanType, ns3::MlmeScanConfirmParams::m_scanType, ns3::MlmeScanConfirmParams::m_status, ns3::MLME_NONE, NS_LOG_FUNCTION, ns3::phyCurrentChannel, and ns3::SUCCESS.

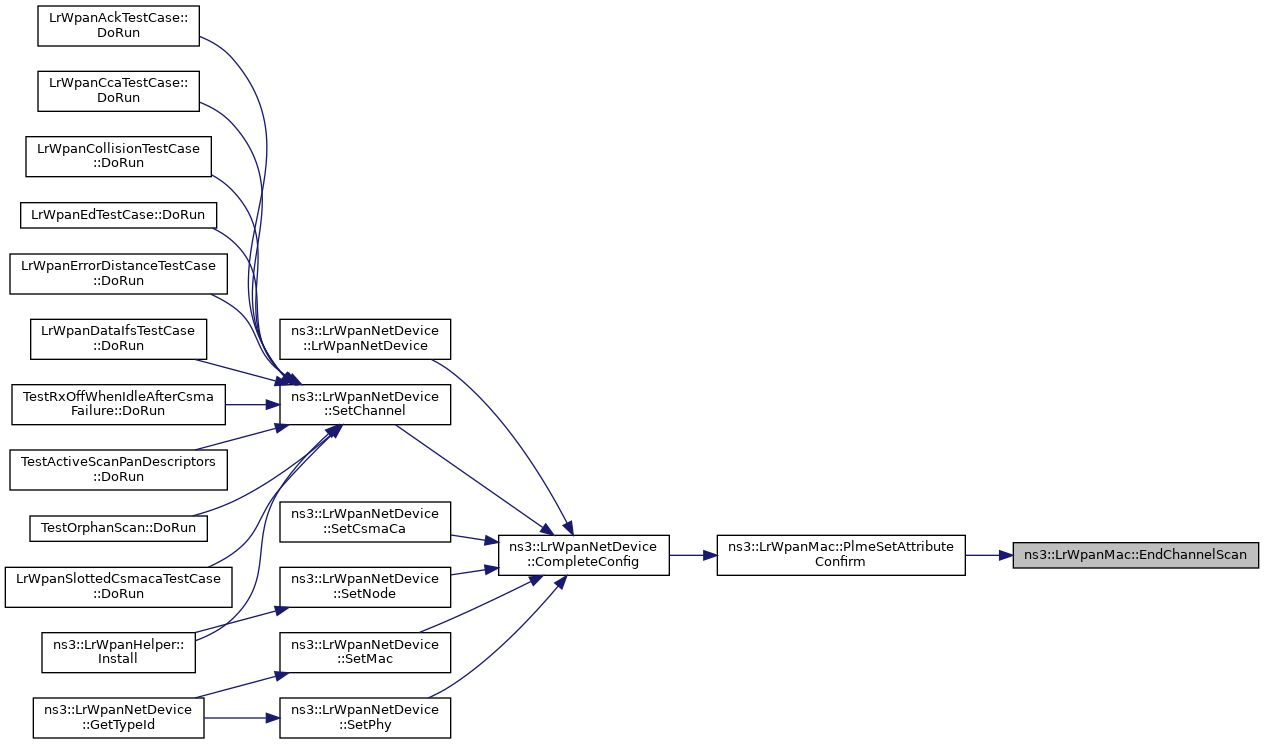

Referenced by PlmeSetAttributeConfirm().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Called at the end of the current channel scan (Active or Passive) for a given duration.
Definition at line 1385 of file lr-wpan-mac.cc.
References ns3::Callback< R, UArgs >::IsNull(), m_channelScanIndex, ns3::MlmeScanRequestParams::m_chPage, ns3::MlmeScanConfirmParams::m_chPage, ns3::MlmeScanConfirmParams::m_energyDetList, m_macAutoRequest, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macPanId, m_macPanIdScan, ns3::LrWpanMacBase::m_mlmeScanConfirmCallback, ns3::MlmeScanConfirmParams::m_panDescList, m_panDescriptorList, m_pendPrimitive, m_phy, ns3::MlmeScanConfirmParams::m_resultListSize, ns3::MlmeScanRequestParams::m_scanChannels, m_scanParams, ns3::MlmeScanRequestParams::m_scanType, ns3::MlmeScanConfirmParams::m_scanType, m_shortAddress, ns3::MlmeScanConfirmParams::m_status, ns3::MlmeScanConfirmParams::m_unscannedCh, m_unscannedChannels, ns3::MLME_NONE, ns3::MLMESCAN_ACTIVE, ns3::MLMESCAN_ORPHAN, ns3::MLMESCAN_PASSIVE, ns3::NO_BEACON, NS_LOG_ERROR, NS_LOG_FUNCTION, ns3::phyCurrentChannel, and ns3::SUCCESS.
Referenced by PlmeSetAttributeConfirm().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |

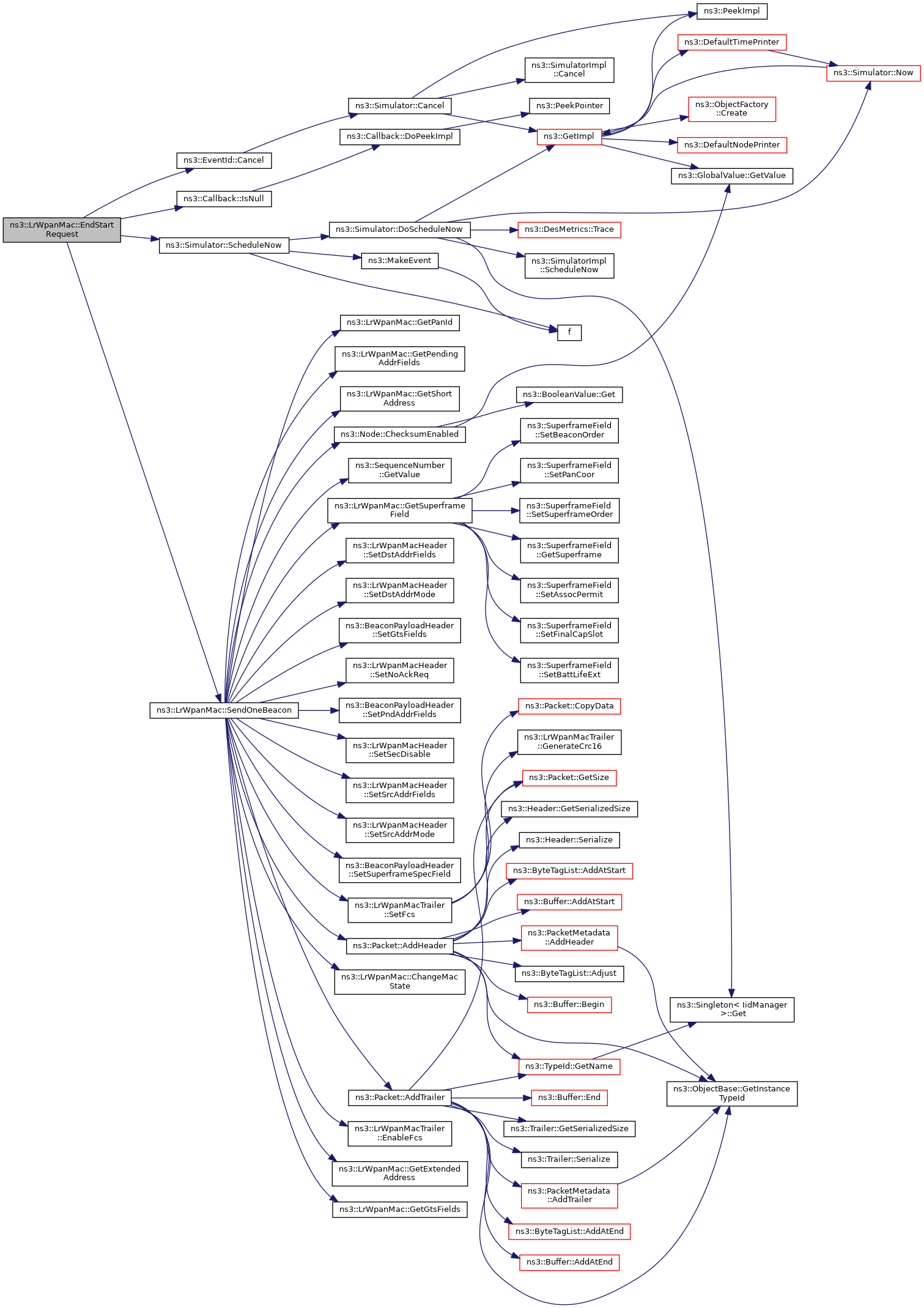

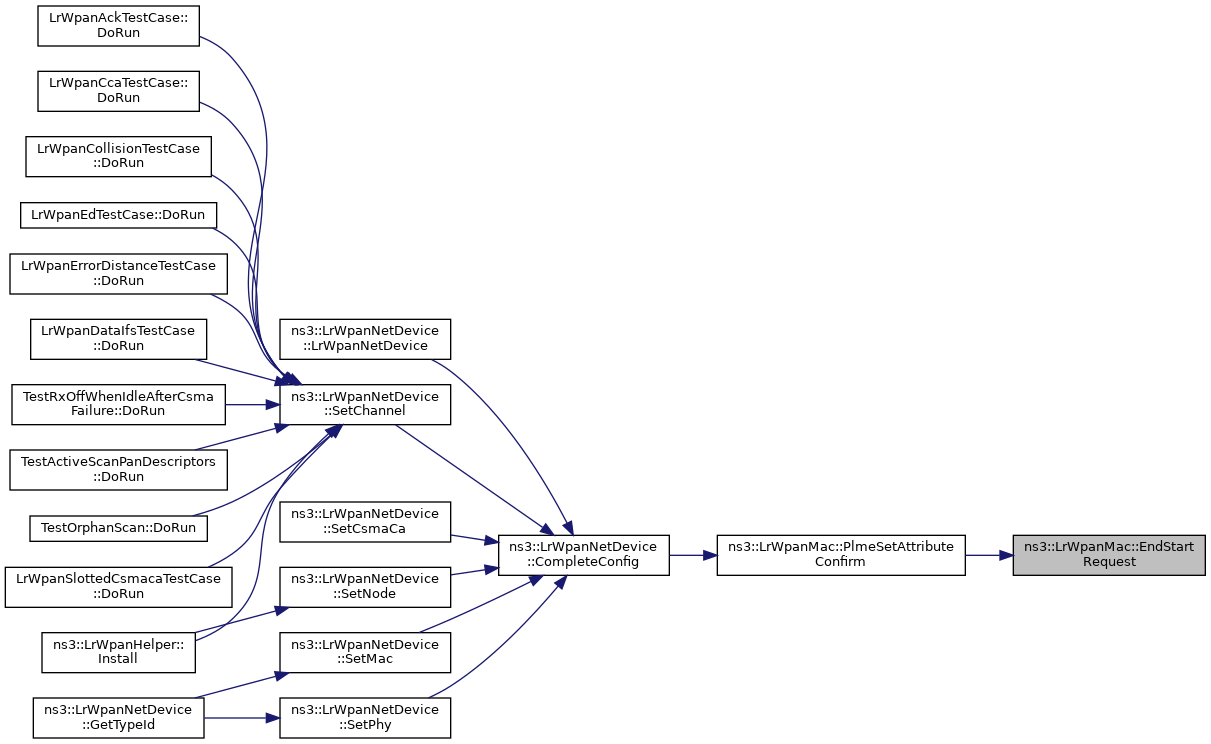

Called to end a MLME-START.request after changing the page and channel number.
Definition at line 1304 of file lr-wpan-mac.cc.
References ns3::lrwpan::aBaseSuperframeDuration, ns3::EventId::Cancel(), ns3::IEEE_802_15_4_PHY_RX_ON, ns3::Callback< R, UArgs >::IsNull(), ns3::MlmeStartRequestParams::m_battLifeExt, ns3::MlmeStartRequestParams::m_bcnOrd, m_beaconEvent, m_beaconInterval, m_capEvent, m_cfpEvent, m_coor, ns3::MlmeStartRequestParams::m_coorRealgn, m_csmaCa, m_fnlCapSlot, m_incCapEvent, m_incCfpEvent, m_macBeaconOrder, m_macPanId, m_macSuperframeOrder, ns3::LrWpanMacBase::m_mlmeStartConfirmCallback, ns3::MlmeStartRequestParams::m_panCoor, m_panCoor, ns3::MlmeStartRequestParams::m_PanId, m_pendPrimitive, m_phy, m_scanEnergyEvent, m_scanEvent, m_scanOrphanEvent, ns3::MlmeStartRequestParams::m_sfrmOrd, m_startParams, ns3::MlmeStartConfirmParams::m_status, m_superframeDuration, m_trackingEvent, ns3::MLME_NONE, NS_ASSERT, NS_LOG_ERROR, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), SendOneBeacon(), and ns3::SUCCESS.
Referenced by PlmeSetAttributeConfirm().
Here is the call graph for this function: Here is the caller graph for this function:Adds a packet to the pending transactions list (Indirect transmissions).
| p | The packet added to pending transaction list. |
Definition at line 2757 of file lr-wpan-mac.cc.
References ns3::lrwpan::aBaseSuperframeDuration, ns3::EXT_ADDR, ns3::LrWpanMacHeader::EXTADDR, ns3::LrWpanMacHeader::GetDstAddrMode(), ns3::LrWpanMacHeader::GetExtDstAddr(), ns3::LrWpanMacHeader::GetExtSrcAddr(), ns3::LrWpanMacHeader::GetSeqNum(), ns3::LrWpanMacHeader::GetShortDstAddr(), ns3::Callback< R, UArgs >::IsNull(), ns3::MlmeCommStatusIndicationParams::m_dstAddrMode, ns3::MlmeCommStatusIndicationParams::m_dstExtAddr, m_indTxQueue, m_macBeaconOrder, m_macIndTxDropTrace, m_macIndTxEnqueueTrace, m_macPanId, m_macTransactionPersistenceTime, m_maxIndTxQueueSize, ns3::LrWpanMacBase::m_mlmeCommStatusIndicationCallback, ns3::MlmeCommStatusIndicationParams::m_panId, m_phy, ns3::MlmeCommStatusIndicationParams::m_srcAddrMode, ns3::MlmeCommStatusIndicationParams::m_srcExtAddr, ns3::MlmeCommStatusIndicationParams::m_status, ns3::Simulator::Now(), NS_ASSERT, ns3::Packet::PeekHeader(), PurgeInd(), ns3::Seconds(), ns3::SHORT_ADDR, and ns3::TRANSACTION_OVERFLOW.
Referenced by MlmeAssociateResponse().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Add an element to the transmission queue.
| txQElement | The element added to the Tx Queue. |
Definition at line 2555 of file lr-wpan-mac.cc.
References ns3::Callback< R, UArgs >::IsNull(), m_macTxDropTrace, m_macTxEnqueueTrace, m_maxTxQueueSize, ns3::LrWpanMacBase::m_mcpsDataConfirmCallback, ns3::McpsDataConfirmParams::m_msduHandle, ns3::McpsDataConfirmParams::m_status, m_txQueue, NS_LOG_DEBUG, and ns3::TRANSACTION_OVERFLOW.
Referenced by McpsDataRequest(), MlmeOrphanResponse(), SendAssocRequestCommand(), SendBeaconRequestCommand(), SendDataRequestCommand(), and SendOrphanNotificationCommand().

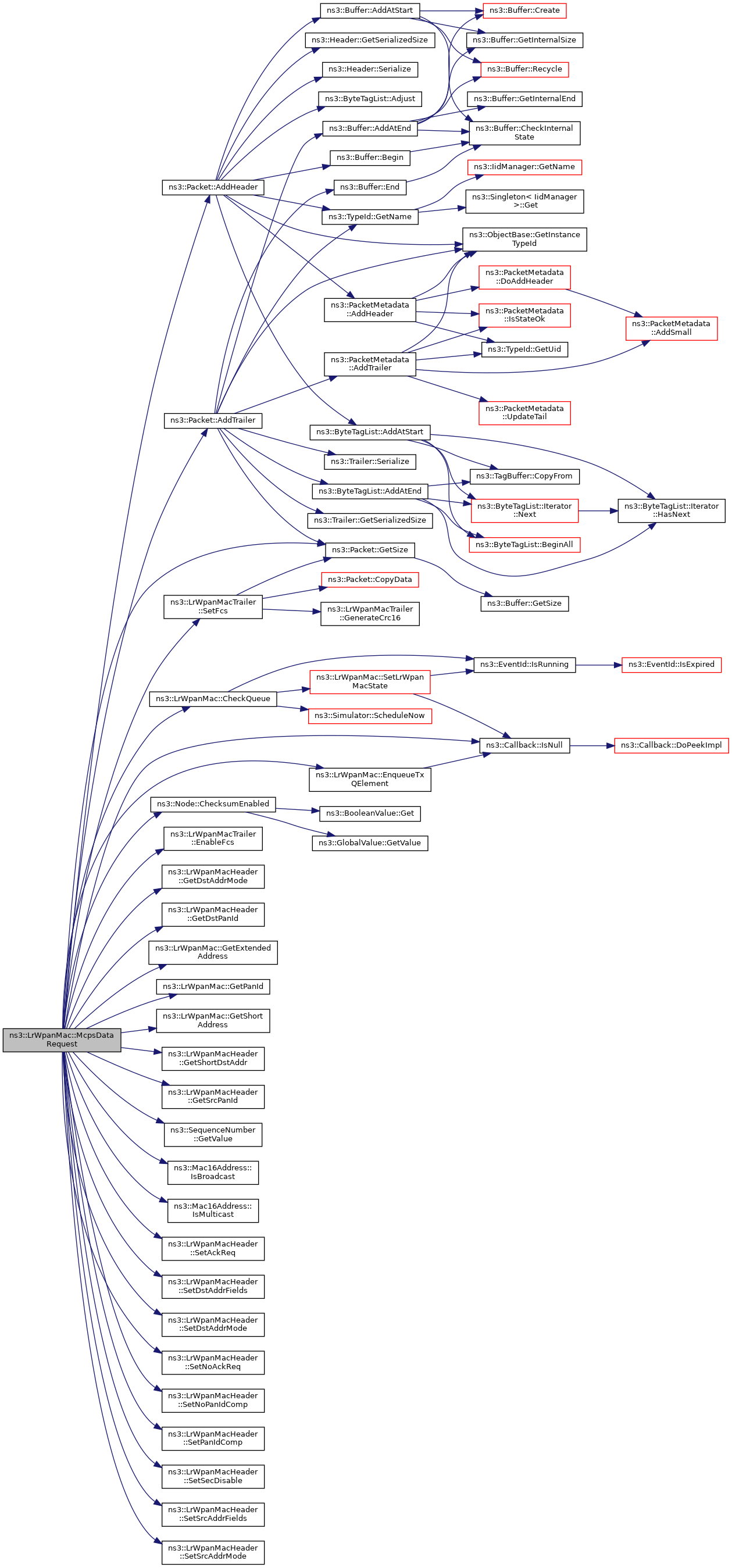

Here is the call graph for this function: Here is the caller graph for this function:| Mac64Address ns3::LrWpanMac::GetCoordExtAddress | ( | ) | const |
Get the coordinator extended address currently associated to this device.
Definition at line 3750 of file lr-wpan-mac.cc.
References m_macCoordExtendedAddress.
| Mac16Address ns3::LrWpanMac::GetCoordShortAddress | ( | ) | const |
Get the coordinator short address currently associated to this device.
Definition at line 3744 of file lr-wpan-mac.cc.
References m_macCoordShortAddress.
| Mac64Address ns3::LrWpanMac::GetExtendedAddress | ( | ) | const |
Get the extended address of this MAC.
Definition at line 377 of file lr-wpan-mac.cc.
References m_selfExt, and NS_LOG_FUNCTION.
Referenced by McpsDataRequest(), MlmeAssociateResponse(), MlmeOrphanResponse(), PrintPendingTxQueue(), PrintTxQueue(), SendAssocRequestCommand(), SendOneBeacon(), and SendOrphanNotificationCommand().
Here is the caller graph for this function:
|
private |
Constructs the Guaranteed Time Slots (GTS) Fields from local information.
The GTS Fields are part of the beacon frame.
Definition at line 1766 of file lr-wpan-mac.cc.
Referenced by SendOneBeacon().
Here is the caller graph for this function:| uint32_t ns3::LrWpanMac::GetIfsSize | ( | ) |
Get the size of the Interframe Space according to MPDU size (m_txPkt).
Definition at line 3820 of file lr-wpan-mac.cc.
References ns3::lrwpan::aMaxSIFSFrameSize, ns3::Packet::GetSize(), m_macLIFSPeriod, m_macSIFSPeriod, m_txPkt, and NS_ASSERT.
Referenced by PdDataConfirm(), and PdDataIndication().
Here is the call graph for this function: Here is the caller graph for this function:| uint64_t ns3::LrWpanMac::GetMacAckWaitDuration | ( | ) | const |
Get the macAckWaitDuration attribute value.
Definition at line 3771 of file lr-wpan-mac.cc.
References ns3::lrwpan::aTurnaroundTime, ns3::lrwpan::aUnitBackoffPeriod, and m_phy.
Referenced by PdDataConfirm().
Here is the caller graph for this function:| uint8_t ns3::LrWpanMac::GetMacMaxFrameRetries | ( | ) | const |
Get the macMaxFrameRetries attribute value.
Definition at line 3778 of file lr-wpan-mac.cc.
References m_macMaxFrameRetries.
| uint16_t ns3::LrWpanMac::GetPanId | ( | ) | const |
Get the PAN id used by this MAC.
Definition at line 3738 of file lr-wpan-mac.cc.
References m_macPanId.
Referenced by McpsDataRequest(), and SendOneBeacon().
Here is the caller graph for this function:
|
private |
Constructs Pending Address Fields from the local information, the Pending Address Fields are part of the beacon frame.
Definition at line 1776 of file lr-wpan-mac.cc.
Referenced by SendOneBeacon().
Here is the caller graph for this function:Get the underlying PHY of the MAC.
Definition at line 1797 of file lr-wpan-mac.cc.
References m_phy.
| bool ns3::LrWpanMac::GetRxOnWhenIdle | ( | ) | const |
Check if the receiver will be enabled when the MAC is idle.
Definition at line 331 of file lr-wpan-mac.cc.
References m_macRxOnWhenIdle.
| Mac16Address ns3::LrWpanMac::GetShortAddress | ( | ) | const |
Get the short address of this MAC.
Definition at line 370 of file lr-wpan-mac.cc.
References m_shortAddress, and NS_LOG_FUNCTION.
Referenced by McpsDataRequest(), MlmeOrphanResponse(), MlmeStartRequest(), PdDataConfirm(), PrintPendingTxQueue(), PrintTxQueue(), and SendOneBeacon().
Here is the caller graph for this function:
|
private |
Constructs a Superframe specification field from the local information, the superframe Specification field is necessary to create a beacon frame.
Definition at line 1738 of file lr-wpan-mac.cc.
References ns3::SuperframeField::GetSuperframe(), m_csmaCa, m_fnlCapSlot, m_macAssociationPermit, m_macBeaconOrder, m_macSuperframeOrder, m_panCoor, ns3::SuperframeField::SetAssocPermit(), ns3::SuperframeField::SetBattLifeExt(), ns3::SuperframeField::SetBeaconOrder(), ns3::SuperframeField::SetFinalCapSlot(), ns3::SuperframeField::SetPanCoor(), and ns3::SuperframeField::SetSuperframeOrder().
Referenced by SendOneBeacon().
Here is the call graph for this function: Here is the caller graph for this function:| uint64_t ns3::LrWpanMac::GetTxPacketSymbols | ( | ) |
Obtain the number of symbols in the packet which is currently being sent by the MAC layer.
Definition at line 3847 of file lr-wpan-mac.cc.
References ns3::Packet::GetSize(), m_phy, m_txPkt, and NS_ASSERT.
Here is the call graph for this function:
|
static |
Get the type ID.
Definition at line 91 of file lr-wpan-mac.cc.
References m_incSuperframeStatus, m_lrWpanMacState, m_macIfsEndTrace, m_macIndTxDequeueTrace, m_macIndTxDropTrace, m_macIndTxEnqueueTrace, m_macPanId, m_macPromiscRxTrace, m_macRxDropTrace, m_macRxTrace, m_macStateLogger, m_macTxDequeueTrace, m_macTxDropTrace, m_macTxEnqueueTrace, m_macTxOkTrace, m_macTxTrace, m_outSuperframeStatus, m_promiscSnifferTrace, m_sentPktTrace, m_snifferTrace, ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().
Here is the call graph for this function:
|
private |
After a successful transmission of a frame (beacon, data) or an ack frame reception, the mac layer wait an Interframe Space (IFS) time and triggers this function to continue with the MAC flow.
| ifsTime | IFS time |
Definition at line 2619 of file lr-wpan-mac.cc.
References ns3::Time::As(), CheckQueue(), m_macIfsEndTrace, m_macLIFSPeriod, m_macSIFSPeriod, m_phy, NS_LOG_DEBUG, ns3::Time::S, and ns3::Seconds().
Referenced by PdDataConfirm(), and PdDataIndication().
Here is the call graph for this function: Here is the caller graph for this function:| bool ns3::LrWpanMac::isCoordDest | ( | ) |
Check if the packet destination is its coordinator.
Definition at line 3796 of file lr-wpan-mac.cc.
References ns3::LrWpanMacHeader::GetExtDstAddr(), ns3::LrWpanMacHeader::GetShortDstAddr(), m_coor, m_macCoordExtendedAddress, m_macCoordShortAddress, m_txPkt, NS_ASSERT, NS_LOG_DEBUG, and ns3::Packet::PeekHeader().
Here is the call graph for this function:| bool ns3::LrWpanMac::isTxAckReq | ( | ) |
Check if the packet to transmit requires acknowledgment.
Definition at line 3856 of file lr-wpan-mac.cc.
References ns3::LrWpanMacHeader::IsAckReq(), m_txPkt, NS_ASSERT, and ns3::Packet::PeekHeader().

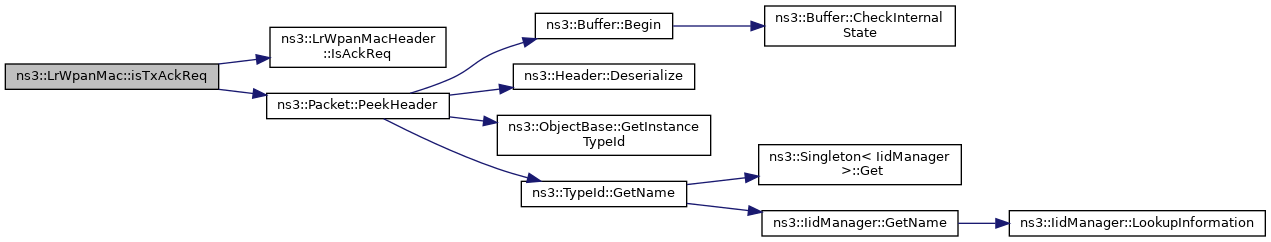

Here is the call graph for this function:
|
private |
Called after m_assocRespCmdWaitTime timeout while waiting for an association response command.
Definition at line 1287 of file lr-wpan-mac.cc.
References ns3::Callback< R, UArgs >::IsNull(), ns3::MlmeAssociateConfirmParams::m_assocShortAddr, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macPanId, ns3::LrWpanMacBase::m_mlmeAssociateConfirmCallback, ns3::MlmeAssociateConfirmParams::m_status, and ns3::NO_DATA.
Referenced by PdDataIndication().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
IEEE 802.15.4-2006, section 7.1.1.1 MCPS-DATA.request Request to transfer a MSDU.
| params | the request parameters |
| p | the packet to be transmitted |
Implements ns3::LrWpanMacBase.
Definition at line 384 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::ADDR_MODE_RESERVED, ns3::Packet::AddTrailer(), ns3::lrwpan::aMaxPhyPacketSize, ns3::lrwpan::aMinMPDUOverhead, CheckQueue(), ns3::Node::ChecksumEnabled(), ns3::LrWpanMacTrailer::EnableFcs(), EnqueueTxQElement(), ns3::EXT_ADDR, ns3::FRAME_TOO_LONG, ns3::LrWpanMacHeader::GetDstAddrMode(), ns3::LrWpanMacHeader::GetDstPanId(), GetExtendedAddress(), GetPanId(), GetShortAddress(), ns3::LrWpanMacHeader::GetShortDstAddr(), ns3::Packet::GetSize(), ns3::LrWpanMacHeader::GetSrcPanId(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::INVALID_ADDRESS, ns3::Mac16Address::IsBroadcast(), ns3::Mac16Address::IsMulticast(), ns3::Callback< R, UArgs >::IsNull(), ns3::LrWpanMacHeader::LRWPAN_MAC_DATA, m_coor, m_macDsn, ns3::LrWpanMacBase::m_mcpsDataConfirmCallback, ns3::McpsDataConfirmParams::m_msduHandle, ns3::McpsDataConfirmParams::m_status, ns3::NO_PANID_ADDR, NS_ABORT_MSG, NS_ASSERT, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::params, ns3::LrWpanMacHeader::SetAckReq(), ns3::LrWpanMacHeader::SetDstAddrFields(), ns3::LrWpanMacHeader::SetDstAddrMode(), ns3::LrWpanMacTrailer::SetFcs(), ns3::LrWpanMacHeader::SetNoAckReq(), ns3::LrWpanMacHeader::SetNoPanIdComp(), ns3::LrWpanMacHeader::SetPanIdComp(), ns3::LrWpanMacHeader::SetSecDisable(), ns3::LrWpanMacHeader::SetSrcAddrFields(), ns3::LrWpanMacHeader::SetSrcAddrMode(), ns3::SHORT_ADDR, ns3::TX_OPTION_ACK, ns3::TX_OPTION_GTS, and ns3::TX_OPTION_INDIRECT.
Here is the call graph for this function:
|
overridevirtual |
IEEE 802.15.4-2011, section 6.2.2.1 MLME-ASSOCIATE.request Request primitive used by a device to request an association with a coordinator.
| params | the request parameters |
Implements ns3::LrWpanMacBase.
Definition at line 683 of file lr-wpan-mac.cc.
References ns3::EXT_ADDR, ns3::INVALID_PARAMETER, ns3::Callback< R, UArgs >::IsNull(), m_associateParams, ns3::MlmeAssociateConfirmParams::m_assocShortAddr, ns3::LrWpanMacBase::m_mlmeAssociateConfirmCallback, m_pendPrimitive, m_phy, ns3::MlmeAssociateConfirmParams::m_status, ns3::MLME_ASSOC_REQ, ns3::MLME_NONE, NS_LOG_ERROR, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, ns3::phyCurrentPage, and ns3::SHORT_ADDR.
Referenced by ScanConfirm().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
IEEE 802.15.4-2011, section 6.2.2.3 MLME-ASSOCIATE.response Primitive used to initiate a response to an MLME-ASSOCIATE.indication primitive.
| params | the associate response parameters |
Implements ns3::LrWpanMacBase.
Definition at line 758 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), ns3::CommandPayloadHeader::ASSOCIATION_RESP, ns3::Node::ChecksumEnabled(), ns3::LrWpanMacTrailer::EnableFcs(), EnqueueInd(), ns3::LrWpanMacHeader::EXTADDR, GetExtendedAddress(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::LrWpanMacHeader::LRWPAN_MAC_COMMAND, m_macDsn, m_macPanId, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, ns3::LrWpanMacHeader::SetAckReq(), ns3::CommandPayloadHeader::SetAssociationStatus(), ns3::LrWpanMacHeader::SetDstAddrFields(), ns3::LrWpanMacHeader::SetDstAddrMode(), ns3::LrWpanMacTrailer::SetFcs(), ns3::LrWpanMacHeader::SetPanIdComp(), ns3::LrWpanMacHeader::SetSecDisable(), ns3::CommandPayloadHeader::SetShortAddr(), ns3::LrWpanMacHeader::SetSrcAddrFields(), and ns3::LrWpanMacHeader::SetSrcAddrMode().
Referenced by AssociateIndication().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
IEEE 802.15.4-2011, section 6.2.5.1 MLME-GET.request Request information about a given PIB attribute.
| id | the attribute identifier |
Implements ns3::LrWpanMacBase.
Definition at line 962 of file lr-wpan-mac.cc.
References ns3::Callback< R, UArgs >::IsNull(), m_macBeaconPayload, m_macBeaconPayloadLength, m_macPanId, ns3::LrWpanMacBase::m_mlmeGetConfirmCallback, m_phy, m_selfExt, m_shortAddress, ns3::macBeaconPayload, ns3::macBeaconPayloadLength, ns3::macExtendedAddress, ns3::macPanId, ns3::macShortAddress, ns3::pCurrentChannel, ns3::pCurrentPage, ns3::SUCCESS, and ns3::UNSUPPORTED_ATTRIBUTE.
Here is the call graph for this function:
|
overridevirtual |
IEEE 802.15.4-2011, section 6.2.7.2 MLME-ORPHAN.response Primitive used to initiatte a response to an MLME-ORPHAN.indication primitive.
| params | the orphan response parameters |
Implements ns3::LrWpanMacBase.
Definition at line 803 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), CheckQueue(), ns3::Node::ChecksumEnabled(), ns3::CommandPayloadHeader::COOR_REALIGN, ns3::LrWpanMacTrailer::EnableFcs(), EnqueueTxQElement(), ns3::LrWpanMacHeader::EXTADDR, GetExtendedAddress(), GetShortAddress(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::LrWpanMacHeader::LRWPAN_MAC_COMMAND, m_macDsn, m_macPanId, m_phy, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, ns3::LrWpanMacHeader::SetAckReq(), ns3::CommandPayloadHeader::SetChannel(), ns3::CommandPayloadHeader::SetCoordShortAddr(), ns3::LrWpanMacHeader::SetDstAddrFields(), ns3::LrWpanMacHeader::SetDstAddrMode(), ns3::LrWpanMacTrailer::SetFcs(), ns3::LrWpanMacHeader::SetFrameVer(), ns3::CommandPayloadHeader::SetPage(), ns3::CommandPayloadHeader::SetPanId(), ns3::LrWpanMacHeader::SetPanIdComp(), ns3::LrWpanMacHeader::SetSecDisable(), ns3::CommandPayloadHeader::SetShortAddr(), ns3::LrWpanMacHeader::SetSrcAddrFields(), and ns3::LrWpanMacHeader::SetSrcAddrMode().
Referenced by OrphanIndication().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
IEEE 802.15.4-2011, section 6.2.14.2 MLME-POLL.request Prompts the device to request data from the coordinator.
| params | the request parameters |
Implements ns3::LrWpanMacBase.
Definition at line 903 of file lr-wpan-mac.cc.
References ns3::CommandPayloadHeader::DATA_REQ, ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::LrWpanMacHeader::LRWPAN_MAC_COMMAND, m_macBsn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.
Here is the call graph for this function:
|
overridevirtual |
IEEE 802.15.4-2011, section 6.2.10.1 MLME-SCAN.request Request primitive used to initiate a channel scan over a given list of channels.
| params | the scan request parameters |
Implements ns3::LrWpanMacBase.
Definition at line 623 of file lr-wpan-mac.cc.
References ns3::EventId::Cancel(), ns3::INVALID_PARAMETER, ns3::Callback< R, UArgs >::IsNull(), ns3::EventId::IsRunning(), m_capEvent, m_cfpEvent, m_channelScanIndex, ns3::MlmeScanConfirmParams::m_chPage, m_csmaCa, m_energyDetectList, m_incCapEvent, m_incCfpEvent, m_macPanId, m_macPanIdScan, ns3::LrWpanMacBase::m_mlmeScanConfirmCallback, m_panDescriptorList, m_pendPrimitive, m_phy, m_scanEnergyEvent, m_scanEvent, m_scanOrphanEvent, m_scanParams, ns3::MlmeScanConfirmParams::m_scanType, ns3::MlmeScanConfirmParams::m_status, m_trackingEvent, m_unscannedChannels, ns3::MLME_SCAN_REQ, ns3::MLMESCAN_ORPHAN, NS_LOG_ERROR, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, ns3::phyCurrentPage, and ns3::SCAN_IN_PROGRESS.
Here is the call graph for this function:
|
overridevirtual |
IEEE 802.15.4-2011, section 6.2.11.1 MLME-SET.request Attempts to write the given value to the indicated PIB attribute.
| id | the attributed identifier |
| attribute | the attribute value |
Implements ns3::LrWpanMacBase.
Definition at line 918 of file lr-wpan-mac.cc.
References ns3::lrwpan::aMaxBeaconPayloadLength, ns3::MlmeSetConfirmParams::id, ns3::INVALID_PARAMETER, ns3::Callback< R, UArgs >::IsNull(), m_macBeaconPayload, m_macBeaconPayloadLength, m_macPanId, ns3::LrWpanMacBase::m_mlmeSetConfirmCallback, m_shortAddress, ns3::MlmeSetConfirmParams::m_status, ns3::macBeaconPayload, ns3::macBeaconPayloadLength, ns3::macExtendedAddress, ns3::macPanId, ns3::macShortAddress, ns3::READ_ONLY, ns3::SUCCESS, and ns3::UNSUPPORTED_ATTRIBUTE.
Here is the call graph for this function:
|
overridevirtual |
IEEE 802.15.4-2006, section 7.1.14.1 MLME-START.request Request to allow a PAN coordinator to initiate a new PAN or beginning a new superframe configuration.
| params | the request parameters |
Implements ns3::LrWpanMacBase.
Definition at line 584 of file lr-wpan-mac.cc.
References ns3::FFD, GetShortAddress(), ns3::INVALID_PARAMETER, ns3::Callback< R, UArgs >::IsNull(), m_deviceCapability, ns3::MlmeStartRequestParams::m_logChPage, ns3::LrWpanMacBase::m_mlmeStartConfirmCallback, m_pendPrimitive, m_phy, m_startParams, ns3::MlmeStartConfirmParams::m_status, ns3::MLME_START_REQ, ns3::NO_SHORT_ADDRESS, NS_ASSERT, NS_LOG_ERROR, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, and ns3::phyCurrentPage.
Here is the call graph for this function:
|
overridevirtual |
IEEE 802.15.4-2011, section 6.2.13.1 MLME-SYNC.request Request to synchronize with the coordinator by acquiring and, if specified, tracking beacons.
| params | the request parameters |
Implements ns3::LrWpanMacBase.
Definition at line 863 of file lr-wpan-mac.cc.
References ns3::lrwpan::aBaseSuperframeDuration, BeaconSearchTimeout(), ns3::EventId::Cancel(), ns3::IEEE_802_15_4_PHY_RX_ON, ns3::EventId::IsRunning(), m_beaconTrackingOn, m_incomingBeaconOrder, m_macPanId, m_numLostBeacons, m_phy, m_trackingEvent, NS_ASSERT, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, ns3::phyCurrentChannel, ns3::Simulator::Schedule(), and ns3::Seconds().
Here is the call graph for this function:| void ns3::LrWpanMac::PdDataConfirm | ( | LrWpanPhyEnumeration | status | ) |
IEEE 802.15.4-2006 section 6.2.1.2 Confirm the end of transmission of an MPDU to MAC.
| status | to report to MAC PHY PD-DATA.confirm status |
Definition at line 2994 of file lr-wpan-mac.cc.
References ns3::ACCESS_DENIED, AckWaitTimeout(), ns3::Time::As(), ns3::CommandPayloadHeader::ASSOCIATION_REQ, ns3::CommandPayloadHeader::ASSOCIATION_RESP, ns3::EventId::Cancel(), ns3::MlmeAssociateIndicationParams::capabilityInfo, ns3::CommandPayloadHeader::COOR_REALIGN, ns3::Packet::Copy(), ns3::CommandPayloadHeader::DATA_REQ, ns3::FRAME_TOO_LONG, ns3::FULL_CAPACITY, ns3::CommandPayloadHeader::GetAssociationStatus(), ns3::CommandPayloadHeader::GetCapabilityField(), ns3::CommandPayloadHeader::GetCommandFrameType(), ns3::LrWpanMacHeader::GetDstAddrMode(), ns3::LrWpanMacHeader::GetExtDstAddr(), ns3::LrWpanMacHeader::GetExtSrcAddr(), GetIfsSize(), GetMacAckWaitDuration(), ns3::CommandPayloadHeader::GetShortAddr(), GetShortAddress(), ns3::LrWpanMacHeader::GetShortDstAddr(), ns3::LrWpanMacHeader::GetShortSrcAddr(), ns3::Packet::GetSize(), ns3::LrWpanMacHeader::GetSrcAddrMode(), ns3::LrWpanMacHeader::GetSrcPanId(), ns3::IEEE_802_15_4_PHY_SUCCESS, ns3::IEEE_802_15_4_PHY_UNSPECIFIED, IfsWaitTimeout(), ns3::LrWpanMacHeader::IsAcknowledgment(), ns3::LrWpanMacHeader::IsAckReq(), ns3::LrWpanMacHeader::IsBeacon(), ns3::LrWpanMacHeader::IsCommand(), ns3::EventId::IsExpired(), ns3::Callback< R, UArgs >::IsNull(), ns3::Time::IsZero(), ns3::MlmeAssociateIndicationParams::lqi, m_ackWaitTimeout, ns3::MlmeAssociateConfirmParams::m_assocShortAddr, m_capEvent, m_csmaCa, ns3::MlmeCommStatusIndicationParams::m_dstAddrMode, ns3::MlmeCommStatusIndicationParams::m_dstExtAddr, ns3::MlmeCommStatusIndicationParams::m_dstShortAddr, ns3::MlmeAssociateIndicationParams::m_extDevAddr, m_ifsEvent, m_incCapEvent, m_incCfpEvent, m_incomingBeaconOrder, m_incomingSuperframeOrder, m_lastRxFrameLqi, m_lrWpanMacState, m_macBeaconTxTime, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macPanId, m_macTxDropTrace, m_macTxOkTrace, ns3::LrWpanMacBase::m_mcpsDataConfirmCallback, ns3::LrWpanMacBase::m_mlmeAssociateConfirmCallback, ns3::LrWpanMacBase::m_mlmeAssociateIndicationCallback, ns3::LrWpanMacBase::m_mlmeCommStatusIndicationCallback, ns3::LrWpanMacBase::m_mlmeStartConfirmCallback, ns3::McpsDataConfirmParams::m_msduHandle, ns3::MlmeCommStatusIndicationParams::m_panId, m_phy, m_rxPkt, m_setMacState, ns3::MlmeCommStatusIndicationParams::m_srcAddrMode, ns3::MlmeCommStatusIndicationParams::m_srcExtAddr, ns3::MlmeCommStatusIndicationParams::m_srcShortAddr, ns3::McpsDataConfirmParams::m_status, ns3::MlmeCommStatusIndicationParams::m_status, ns3::MlmeStartConfirmParams::m_status, ns3::MlmeAssociateConfirmParams::m_status, m_txPkt, m_txQueue, ns3::MAC_ACK_PENDING, ns3::MAC_IDLE, ns3::MAC_SENDING, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, ns3::OUTGOING, ns3::Packet::PeekHeader(), RemoveFirstTxQElement(), ns3::Packet::RemoveHeader(), ns3::Time::S, ns3::Simulator::Schedule(), ns3::Simulator::ScheduleNow(), ns3::Seconds(), SendAssocResponseCommand(), SetLrWpanMacState(), SetShortAddress(), StartCAP(), and ns3::SUCCESS.
Referenced by ns3::LrWpanNetDevice::CompleteConfig().
Here is the call graph for this function: Here is the caller graph for this function:IEEE 802.15.4-2006 section 6.2.1.3 PD-DATA.indication Indicates the transfer of an MPDU from PHY to MAC (receiving)
| psduLength | number of bytes in the PSDU |
| p | the packet to be transmitted |
| lqi | Link quality (LQI) value measured during reception of the PPDU |
Definition at line 1803 of file lr-wpan-mac.cc.
References ns3::lrwpan::aBaseSuperframeDuration, ns3::Time::As(), ns3::CommandPayloadHeader::ASSOCIATION_REQ, ns3::CommandPayloadHeader::ASSOCIATION_RESP, ns3::lrwpan::aTurnaroundTime, ns3::CommandPayloadHeader::BEACON_REQ, BeaconSearchTimeout(), ns3::EventId::Cancel(), ChangeMacState(), ns3::LrWpanMacTrailer::CheckFcs(), ns3::Node::ChecksumEnabled(), ns3::CommandPayloadHeader::COOR_REALIGN, ns3::Packet::Copy(), ns3::CommandPayloadHeader::DATA_REQ, ns3::LrWpanMacTrailer::EnableFcs(), ns3::EXT_ADDR, ns3::LrWpanMacHeader::EXTADDR, ns3::SuperframeField::GetBeaconOrder(), ns3::CommandPayloadHeader::GetCommandFrameType(), ns3::CommandPayloadHeader::GetCoordShortAddr(), ns3::Simulator::GetDelayLeft(), ns3::LrWpanMacHeader::GetDstAddrMode(), ns3::LrWpanMacHeader::GetDstPanId(), ns3::LrWpanMacHeader::GetExtDstAddr(), ns3::LrWpanMacHeader::GetExtSrcAddr(), ns3::SuperframeField::GetFinalCapSlot(), ns3::SuperframeField::GetFrameOrder(), ns3::LrWpanMacHeader::GetFrameVer(), ns3::BeaconPayloadHeader::GetGtsFields(), ns3::GtsFields::GetGtsPermit(), GetIfsSize(), ns3::CommandPayloadHeader::GetPanId(), ns3::BeaconPayloadHeader::GetPndAddrFields(), ns3::LrWpanMacHeader::GetSeqNum(), ns3::CommandPayloadHeader::GetShortAddr(), ns3::LrWpanMacHeader::GetShortDstAddr(), ns3::LrWpanMacHeader::GetShortSrcAddr(), ns3::Packet::GetSize(), ns3::LrWpanMacHeader::GetSrcAddrMode(), ns3::LrWpanMacHeader::GetSrcPanId(), ns3::BeaconPayloadHeader::GetSuperframeSpecField(), ns3::LrWpanMacHeader::GetType(), IfsWaitTimeout(), ns3::INCOMING, ns3::LrWpanMacHeader::IsAcknowledgment(), ns3::LrWpanMacHeader::IsAckReq(), ns3::SuperframeField::IsBattLifeExt(), ns3::LrWpanMacHeader::IsBeacon(), ns3::Mac16Address::IsBroadcast(), ns3::LrWpanMacHeader::IsCommand(), ns3::LrWpanMacHeader::IsData(), ns3::Mac16Address::IsMulticast(), ns3::Callback< R, UArgs >::IsNull(), ns3::EventId::IsRunning(), LostAssocRespCommand(), ns3::LrWpanMacHeader::LRWPAN_MAC_RESERVED, m_ackWaitTimeout, m_assocResCmdWaitTimeout, m_assocRespCmdWaitTime, m_beaconTrackingOn, ns3::MlmeBeaconNotifyIndicationParams::m_bsn, m_capEvent, m_channelScanIndex, ns3::MlmeScanRequestParams::m_chPage, ns3::MlmeScanConfirmParams::m_chPage, m_coor, ns3::PanDescriptor::m_coorAddrMode, ns3::PanDescriptor::m_coorExtAddr, ns3::PanDescriptor::m_coorPanId, ns3::PanDescriptor::m_coorShortAddr, m_csmaCa, ns3::MlmeCommStatusIndicationParams::m_dstAddrMode, ns3::MlmeCommStatusIndicationParams::m_dstExtAddr, ns3::PanDescriptor::m_gtsPermit, m_ifsEvent, m_incCapEvent, m_incomingBeaconInterval, m_incomingBeaconOrder, m_incomingFnlCapSlot, m_incomingSuperframeDuration, m_incomingSuperframeOrder, m_lastRxFrameLqi, ns3::PanDescriptor::m_linkQuality, ns3::PanDescriptor::m_logCh, ns3::PanDescriptor::m_logChPage, m_lrWpanMacState, m_macAssociationPermit, m_macAutoRequest, m_macBeaconRxTime, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macPanId, m_macPanIdScan, m_macPromiscRxTrace, m_macPromiscuousMode, m_macResponseWaitTime, m_macRxDropTrace, m_macRxTrace, m_macTxOkTrace, ns3::LrWpanMacBase::m_mcpsDataConfirmCallback, ns3::LrWpanMacBase::m_mcpsDataIndicationCallback, ns3::LrWpanMacBase::m_mlmeBeaconNotifyIndicationCallback, ns3::LrWpanMacBase::m_mlmeCommStatusIndicationCallback, ns3::LrWpanMacBase::m_mlmeOrphanIndicationCallback, ns3::LrWpanMacBase::m_mlmePollConfirmCallback, ns3::LrWpanMacBase::m_mlmeScanConfirmCallback, ns3::McpsDataConfirmParams::m_msduHandle, m_numLostBeacons, ns3::MlmeOrphanIndicationParams::m_orphanAddr, ns3::MlmeBeaconNotifyIndicationParams::m_panDescriptor, m_panDescriptorList, ns3::MlmeCommStatusIndicationParams::m_panId, m_pendPrimitive, m_phy, m_promiscSnifferTrace, m_respWaitTimeout, m_rxBeaconSymbols, m_rxPkt, m_scanEnergyEvent, m_scanEvent, m_scanOrphanEvent, m_scanParams, ns3::MlmeScanRequestParams::m_scanType, ns3::MlmeScanConfirmParams::m_scanType, ns3::MlmeBeaconNotifyIndicationParams::m_sdu, ns3::MlmeBeaconNotifyIndicationParams::m_sduLength, m_selfExt, m_setMacState, m_shortAddress, ns3::MlmeCommStatusIndicationParams::m_srcAddrMode, ns3::MlmeCommStatusIndicationParams::m_srcExtAddr, ns3::McpsDataConfirmParams::m_status, ns3::MlmeCommStatusIndicationParams::m_status, ns3::MlmeScanConfirmParams::m_status, ns3::MlmePollConfirmParams::m_status, ns3::PanDescriptor::m_superframeSpec, ns3::PanDescriptor::m_timeStamp, m_trackingEvent, m_txPkt, m_txQueue, ns3::MAC_ACK_PENDING, ns3::MAC_CSMA, ns3::MAC_IDLE, ns3::MLME_NONE, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, ns3::CommandPayloadHeader::ORPHAN_NOTIF, two-ray-to-three-gpp-ch-calibration::params, ns3::Packet::PeekHeader(), PrepareRetransmission(), RemoveFirstTxQElement(), ns3::Packet::RemoveHeader(), RemovePendTxQElement(), ns3::Packet::RemoveTrailer(), ns3::Time::S, ns3::Simulator::Schedule(), ns3::Simulator::ScheduleNow(), ns3::Seconds(), SendAck(), SendDataRequestCommand(), SendOneBeacon(), SetLrWpanMacState(), ns3::SHORT_ADDR, StartCAP(), and ns3::SUCCESS.
Referenced by ns3::LrWpanNetDevice::CompleteConfig().

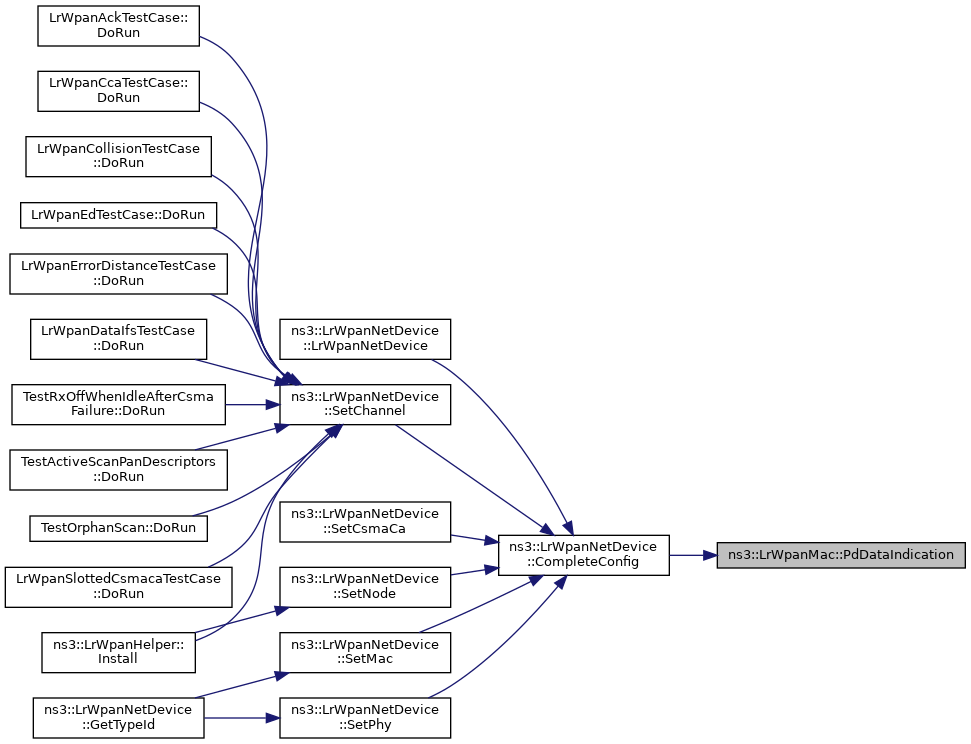

Here is the call graph for this function: Here is the caller graph for this function:| void ns3::LrWpanMac::PlmeCcaConfirm | ( | LrWpanPhyEnumeration | status | ) |
IEEE 802.15.4-2006 section 6.2.2.2 PLME-CCA.confirm status.
| status | TRX_OFF, BUSY or IDLE |
Definition at line 3241 of file lr-wpan-mac.cc.
References m_csmaCa, and NS_LOG_FUNCTION.
| void ns3::LrWpanMac::PlmeEdConfirm | ( | LrWpanPhyEnumeration | status, |
| uint8_t | energyLevel | ||
| ) |
IEEE 802.15.4-2006 section 6.2.2.4 PLME-ED.confirm status and energy level.
| status | SUCCESS, TRX_OFF or TX_ON |
| energyLevel | 0x00-0xff ED level for the channel |
Definition at line 3249 of file lr-wpan-mac.cc.
References ns3::Simulator::GetDelayLeft(), m_maxEnergyLevel, m_phy, m_scanEnergyEvent, NS_LOG_FUNCTION, and ns3::Seconds().
Referenced by ns3::LrWpanNetDevice::CompleteConfig().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::LrWpanMac::PlmeGetAttributeConfirm | ( | LrWpanPhyEnumeration | status, |
| LrWpanPibAttributeIdentifier | id, | ||
| Ptr< LrWpanPhyPibAttributes > | attribute | ||
| ) |
IEEE 802.15.4-2006 section 6.2.2.6 PLME-GET.confirm Get attributes per definition from Table 23 in section 6.4.2.
| status | SUCCESS or UNSUPPORTED_ATTRIBUTE |
| id | the attributed identifier |
| attribute | the attribute value |
Definition at line 3266 of file lr-wpan-mac.cc.
References NS_LOG_FUNCTION.
Referenced by ns3::LrWpanNetDevice::CompleteConfig().

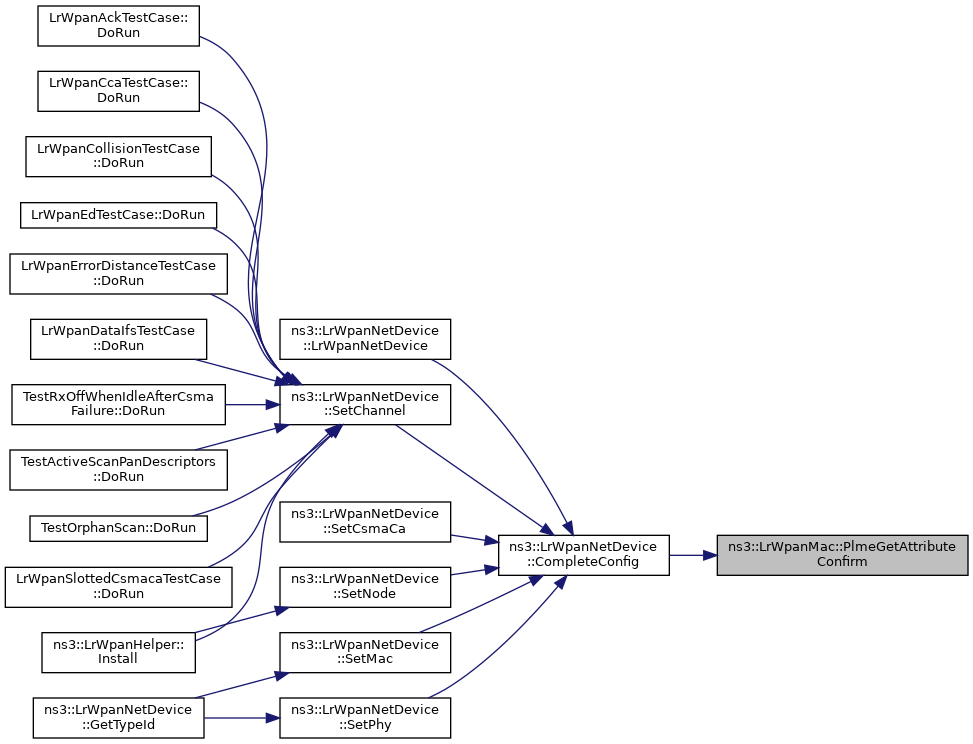

Here is the caller graph for this function:| void ns3::LrWpanMac::PlmeSetAttributeConfirm | ( | LrWpanPhyEnumeration | status, |
| LrWpanPibAttributeIdentifier | id | ||
| ) |
IEEE 802.15.4-2006 section 6.2.2.10 PLME-SET.confirm Set attributes per definition from Table 23 in section 6.4.2.
| status | SUCCESS, UNSUPPORTED_ATTRIBUTE, INVALID_PARAMETER, or READ_ONLY |
| id | the attributed identifier |
Definition at line 3325 of file lr-wpan-mac.cc.
References ns3::lrwpan::aBaseSuperframeDuration, ns3::EventId::Cancel(), EndAssociateRequest(), EndChannelEnergyScan(), EndChannelScan(), EndStartRequest(), ns3::IEEE_802_15_4_PHY_RX_ON, ns3::IEEE_802_15_4_PHY_SUCCESS, ns3::INVALID_PARAMETER, ns3::Callback< R, UArgs >::IsNull(), m_associateParams, ns3::MlmeAssociateConfirmParams::m_assocShortAddr, m_channelScanIndex, ns3::MlmeAssociateRequestParams::m_chNum, ns3::MlmeScanRequestParams::m_chPage, ns3::MlmeScanConfirmParams::m_chPage, m_csmaCa, m_incCapEvent, m_incCfpEvent, m_incomingBeaconOrder, m_incomingSuperframeOrder, ns3::MlmeStartRequestParams::m_logCh, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macPanId, m_macResponseWaitTime, m_maxEnergyLevel, ns3::LrWpanMacBase::m_mlmeAssociateConfirmCallback, ns3::LrWpanMacBase::m_mlmeScanConfirmCallback, ns3::LrWpanMacBase::m_mlmeStartConfirmCallback, m_pendPrimitive, m_phy, ns3::MlmeScanRequestParams::m_scanChannels, ns3::MlmeScanRequestParams::m_scanDuration, m_scanEnergyEvent, m_scanEvent, m_scanOrphanEvent, m_scanParams, ns3::MlmeScanRequestParams::m_scanType, ns3::MlmeScanConfirmParams::m_scanType, m_startParams, ns3::MlmeStartConfirmParams::m_status, ns3::MlmeScanConfirmParams::m_status, ns3::MlmeAssociateConfirmParams::m_status, ns3::MLME_ASSOC_REQ, ns3::MLME_SCAN_REQ, ns3::MLME_START_REQ, ns3::MLMESCAN_ACTIVE, ns3::MLMESCAN_ED, ns3::MLMESCAN_ORPHAN, ns3::MLMESCAN_PASSIVE, NS_LOG_ERROR, NS_LOG_FUNCTION, ns3::phyCurrentChannel, ns3::phyCurrentPage, ns3::Simulator::Schedule(), ns3::Seconds(), SendBeaconRequestCommand(), and SendOrphanNotificationCommand().
Referenced by ns3::LrWpanNetDevice::CompleteConfig().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::LrWpanMac::PlmeSetTRXStateConfirm | ( | LrWpanPhyEnumeration | status | ) |
IEEE 802.15.4-2006 section 6.2.2.8 PLME-SET-TRX-STATE.confirm Set PHY state.
| status | in RX_ON,TRX_OFF,FORCE_TRX_OFF,TX_ON |
Definition at line 3274 of file lr-wpan-mac.cc.
References CheckQueue(), ns3::Packet::GetSize(), ns3::IEEE_802_15_4_PHY_RX_ON, ns3::IEEE_802_15_4_PHY_SUCCESS, ns3::IEEE_802_15_4_PHY_TRX_OFF, ns3::IEEE_802_15_4_PHY_TX_ON, ns3::EventId::IsRunning(), m_csmaCa, m_lrWpanMacState, m_macTxTrace, m_phy, m_promiscSnifferTrace, m_scanEnergyEvent, m_snifferTrace, m_txPkt, ns3::MAC_ACK_PENDING, ns3::MAC_CSMA, ns3::MAC_IDLE, ns3::MAC_SENDING, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.
Referenced by ns3::LrWpanNetDevice::CompleteConfig().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Check for remaining retransmissions for the packet currently being sent.
Drop the packet, if there are no retransmissions left.
Definition at line 2645 of file lr-wpan-mac.cc.
References ns3::CommandPayloadHeader::ASSOCIATION_REQ, ns3::CommandPayloadHeader::ASSOCIATION_RESP, ns3::EventId::Cancel(), ns3::Packet::Copy(), ns3::CommandPayloadHeader::DATA_REQ, ns3::LrWpanMacHeader::EXTADDR, ns3::CommandPayloadHeader::GetCommandFrameType(), ns3::LrWpanMacHeader::GetExtDstAddr(), ns3::LrWpanMacHeader::GetExtSrcAddr(), ns3::LrWpanMacHeader::IsCommand(), ns3::Callback< R, UArgs >::IsNull(), ns3::MlmeAssociateConfirmParams::m_assocShortAddr, m_csmaCa, ns3::MlmeCommStatusIndicationParams::m_dstAddrMode, ns3::MlmeCommStatusIndicationParams::m_dstExtAddr, m_incCapEvent, m_incCfpEvent, m_incomingBeaconOrder, m_incomingSuperframeOrder, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macMaxFrameRetries, m_macPanId, m_macTxDropTrace, ns3::LrWpanMacBase::m_mcpsDataConfirmCallback, ns3::LrWpanMacBase::m_mlmeAssociateConfirmCallback, ns3::LrWpanMacBase::m_mlmeCommStatusIndicationCallback, ns3::LrWpanMacBase::m_mlmePollConfirmCallback, ns3::McpsDataConfirmParams::m_msduHandle, m_numCsmacaRetry, ns3::MlmeCommStatusIndicationParams::m_panId, m_retransmission, ns3::MlmeCommStatusIndicationParams::m_srcAddrMode, ns3::MlmeCommStatusIndicationParams::m_srcExtAddr, ns3::McpsDataConfirmParams::m_status, ns3::MlmeCommStatusIndicationParams::m_status, ns3::MlmeAssociateConfirmParams::m_status, ns3::MlmePollConfirmParams::m_status, m_txPkt, m_txQueue, ns3::NO_ACK, NS_LOG_FUNCTION, ns3::Packet::PeekHeader(), RemoveFirstTxQElement(), ns3::Packet::RemoveHeader(), and RemovePendTxQElement().
Referenced by AckWaitTimeout(), and PdDataIndication().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::LrWpanMac::PrintPendingTxQueue | ( | std::ostream & | os | ) | const |
Print the Pending transaction list.
| os | The reference to the output stream used by this print function. |
Definition at line 2887 of file lr-wpan-mac.cc.
References ns3::Time::As(), GetExtendedAddress(), GetShortAddress(), ns3::LrWpanMacHeader::IsCommand(), ns3::LrWpanMacHeader::IsData(), m_indTxQueue, ns3::Simulator::Now(), and ns3::Time::S.
Here is the call graph for this function:| void ns3::LrWpanMac::PrintTransmitQueueSize | ( | ) |
Print the number of elements in the packet transmit queue.
Definition at line 3784 of file lr-wpan-mac.cc.
References m_txQueue, and NS_LOG_DEBUG.
| void ns3::LrWpanMac::PrintTxQueue | ( | std::ostream & | os | ) | const |
Print the Transmit Queue.
| os | The reference to the output stream used by this print function. |
Definition at line 2922 of file lr-wpan-mac.cc.
References ns3::Time::As(), ns3::LrWpanMacHeader::GetDstPanId(), ns3::LrWpanMacHeader::GetExtDstAddr(), GetExtendedAddress(), ns3::LrWpanMacHeader::GetSeqNum(), GetShortAddress(), ns3::LrWpanMacHeader::GetShortDstAddr(), ns3::LrWpanMacHeader::IsCommand(), ns3::LrWpanMacHeader::IsData(), m_txQueue, ns3::Simulator::Now(), and ns3::Time::S.
Here is the call graph for this function:
|
private |
Purge expired transactions from the pending transactions list.
Definition at line 2841 of file lr-wpan-mac.cc.
References ns3::LrWpanMacHeader::EXTADDR, ns3::LrWpanMacHeader::GetExtDstAddr(), ns3::LrWpanMacHeader::GetExtSrcAddr(), ns3::LrWpanMacHeader::IsCommand(), ns3::LrWpanMacHeader::IsData(), ns3::Callback< R, UArgs >::IsNull(), ns3::MlmeCommStatusIndicationParams::m_dstAddrMode, ns3::MlmeCommStatusIndicationParams::m_dstExtAddr, m_indTxQueue, m_macIndTxDropTrace, m_macPanId, ns3::LrWpanMacBase::m_mcpsDataConfirmCallback, ns3::LrWpanMacBase::m_mlmeCommStatusIndicationCallback, ns3::MlmeCommStatusIndicationParams::m_panId, ns3::MlmeCommStatusIndicationParams::m_srcAddrMode, ns3::MlmeCommStatusIndicationParams::m_srcExtAddr, ns3::McpsDataConfirmParams::m_status, ns3::MlmeCommStatusIndicationParams::m_status, ns3::Simulator::Now(), and ns3::TRANSACTION_EXPIRED.
Referenced by DequeueInd(), and EnqueueInd().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Remove the tip of the transmission queue, including clean up related to the last packet transmission.
Definition at line 2577 of file lr-wpan-mac.cc.
References ns3::Packet::Copy(), ns3::LrWpanMacHeader::GetShortDstAddr(), ns3::Mac16Address::IsBroadcast(), ns3::Mac16Address::IsMulticast(), m_csmaCa, m_macTxDequeueTrace, m_numCsmacaRetry, m_retransmission, m_sentPktTrace, m_txPkt, m_txQueue, and ns3::Packet::RemoveHeader().
Referenced by PdDataConfirm(), PdDataIndication(), PrepareRetransmission(), and SetLrWpanMacState().

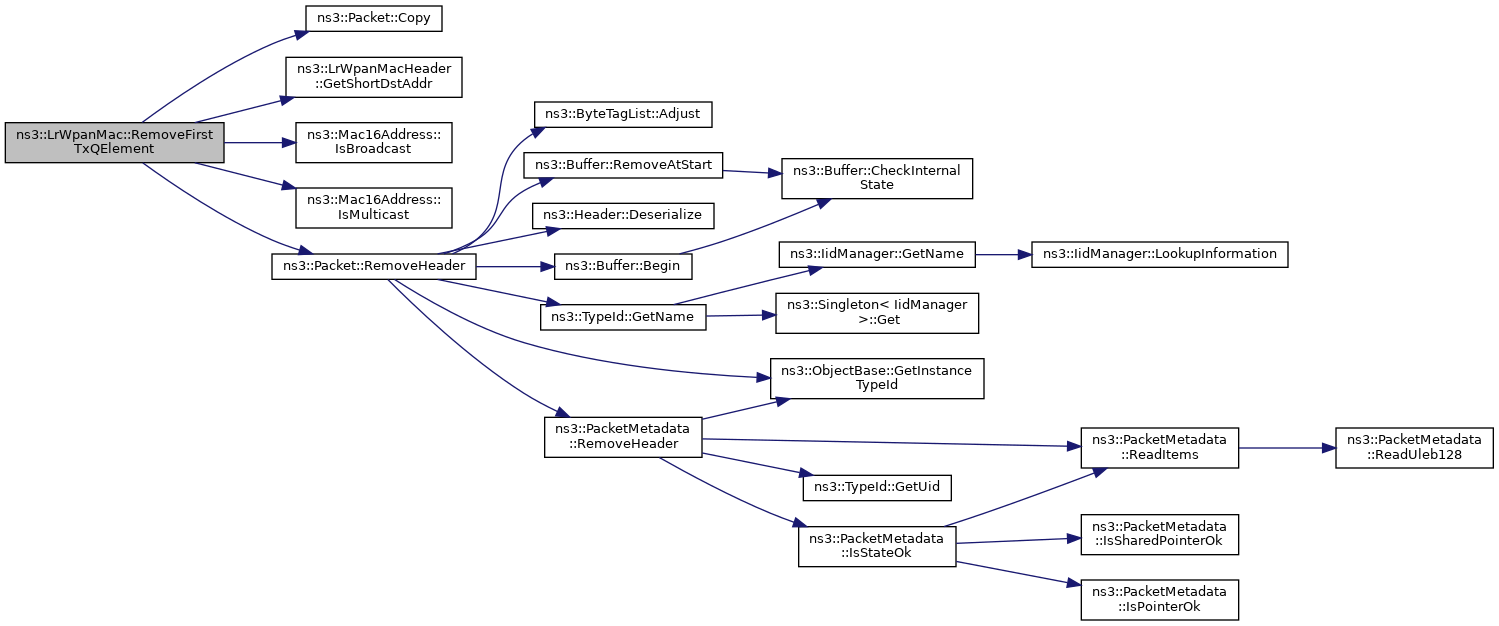

Here is the call graph for this function: Here is the caller graph for this function:Remove an element from the pending transaction list.
| p | The packet to be removed from the pending transaction list. |
Definition at line 2961 of file lr-wpan-mac.cc.
References ns3::EXT_ADDR, ns3::LrWpanMacHeader::GetDstAddrMode(), ns3::LrWpanMacHeader::GetExtDstAddr(), ns3::LrWpanMacHeader::GetSeqNum(), ns3::LrWpanMacHeader::GetShortDstAddr(), m_indTxQueue, m_macIndTxDequeueTrace, ns3::Packet::PeekHeader(), and ns3::SHORT_ADDR.
Referenced by PdDataIndication(), PrepareRetransmission(), and SetLrWpanMacState().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Send an acknowledgment packet for the given sequence number.
| seqno | the sequence number for the ACK |
Definition at line 2526 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), ChangeMacState(), ns3::Node::ChecksumEnabled(), ns3::LrWpanMacTrailer::EnableFcs(), ns3::IEEE_802_15_4_PHY_TX_ON, ns3::LrWpanMacHeader::LRWPAN_MAC_ACKNOWLEDGMENT, m_lrWpanMacState, m_phy, m_txPkt, ns3::MAC_IDLE, ns3::MAC_SENDING, NS_ASSERT, NS_LOG_FUNCTION, and ns3::LrWpanMacTrailer::SetFcs().
Referenced by PdDataIndication().

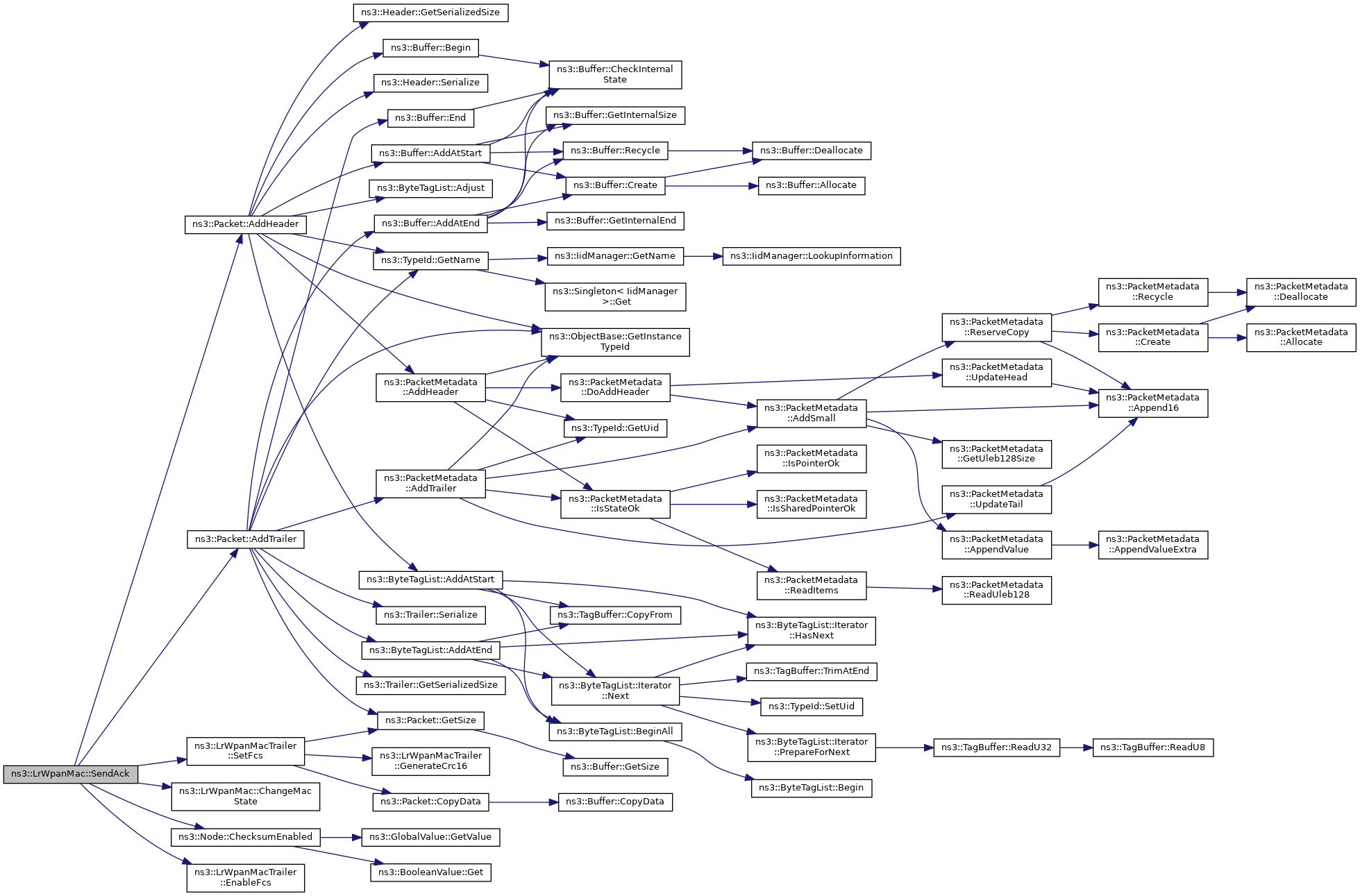

Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Called to send an associate request command.
Definition at line 1154 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), ns3::CommandPayloadHeader::ASSOCIATION_REQ, CheckQueue(), ns3::Node::ChecksumEnabled(), ns3::LrWpanMacTrailer::EnableFcs(), EnqueueTxQElement(), ns3::LrWpanMacHeader::EXTADDR, GetExtendedAddress(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::LrWpanMacHeader::LRWPAN_MAC_COMMAND, m_associateParams, ns3::MlmeAssociateRequestParams::m_capabilityInfo, ns3::MlmeAssociateRequestParams::m_coordAddrMode, ns3::MlmeAssociateRequestParams::m_coordExtAddr, ns3::MlmeAssociateRequestParams::m_coordPanId, ns3::MlmeAssociateRequestParams::m_coordShortAddr, m_macDsn, NS_LOG_FUNCTION, ns3::LrWpanMacHeader::SetAckReq(), ns3::CommandPayloadHeader::SetCapabilityField(), ns3::LrWpanMacHeader::SetDstAddrFields(), ns3::LrWpanMacHeader::SetDstAddrMode(), ns3::LrWpanMacTrailer::SetFcs(), ns3::LrWpanMacHeader::SetSecDisable(), ns3::LrWpanMacHeader::SetSrcAddrFields(), ns3::LrWpanMacHeader::SetSrcAddrMode(), ns3::SHORT_ADDR, and ns3::LrWpanMacHeader::SHORTADDR.
Referenced by EndAssociateRequest().

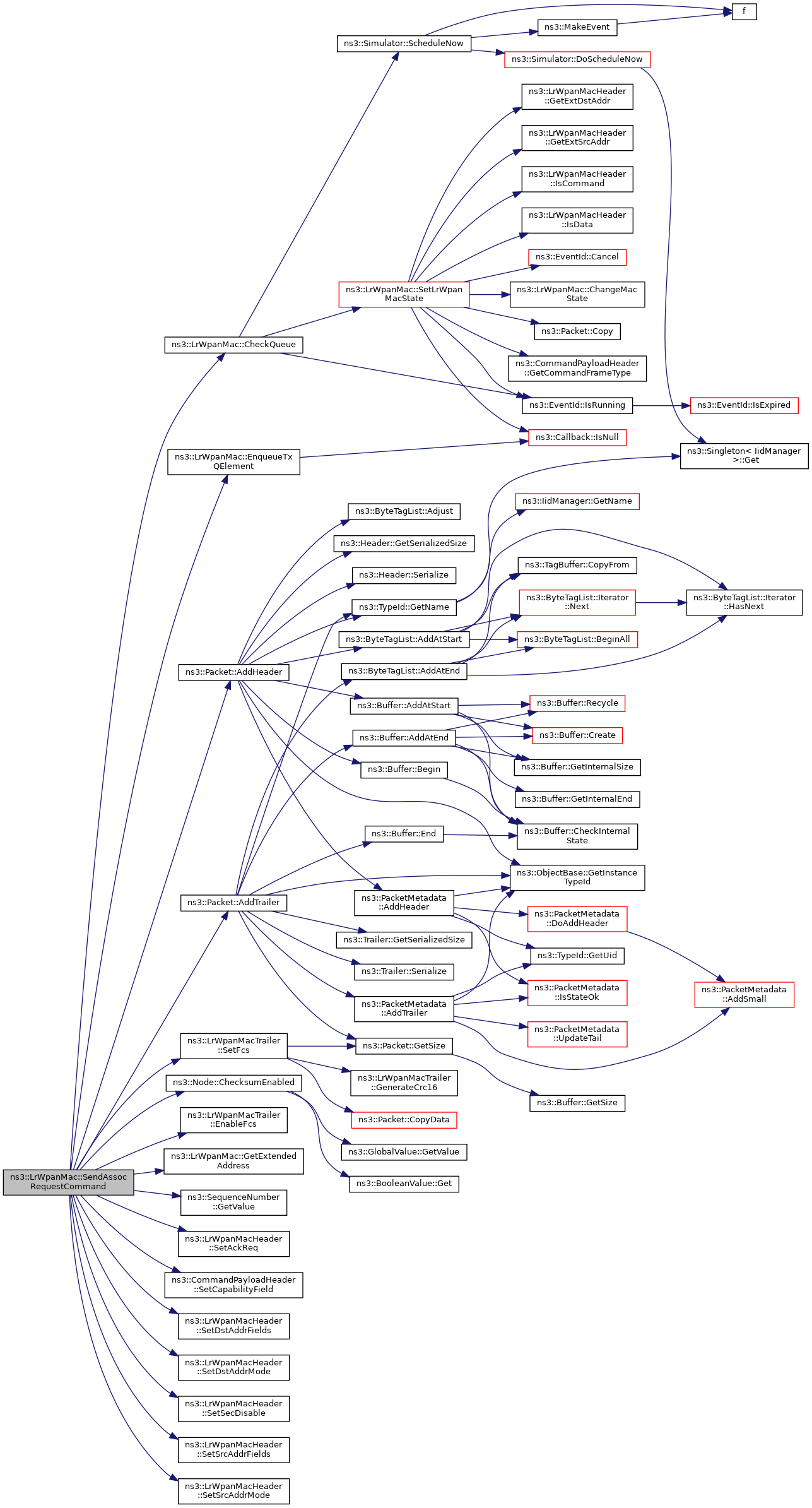

Here is the call graph for this function: Here is the caller graph for this function:Called to send an associate response command.
| rxDataReqPkt | The received data request pkt that instigated the Association response command. |
Definition at line 1262 of file lr-wpan-mac.cc.
References ns3::CommandPayloadHeader::DATA_REQ, DequeueInd(), ns3::CommandPayloadHeader::GetCommandFrameType(), ns3::LrWpanMacHeader::GetExtSrcAddr(), m_txQueue, NS_ASSERT, NS_LOG_DEBUG, and ns3::Packet::RemoveHeader().
Referenced by PdDataConfirm().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Called to send a beacon request command.
Definition at line 1071 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), ns3::CommandPayloadHeader::BEACON_REQ, CheckQueue(), ns3::Node::ChecksumEnabled(), ns3::LrWpanMacTrailer::EnableFcs(), EnqueueTxQElement(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::LrWpanMacHeader::LRWPAN_MAC_COMMAND, m_macDsn, ns3::LrWpanMacHeader::NOADDR, NS_LOG_FUNCTION, ns3::CommandPayloadHeader::SetCommandFrameType(), ns3::LrWpanMacHeader::SetDstAddrFields(), ns3::LrWpanMacHeader::SetDstAddrMode(), ns3::LrWpanMacTrailer::SetFcs(), ns3::LrWpanMacHeader::SetNoAckReq(), ns3::LrWpanMacHeader::SetNoPanIdComp(), ns3::LrWpanMacHeader::SetSecDisable(), ns3::LrWpanMacHeader::SetSrcAddrMode(), and ns3::LrWpanMacHeader::SHORTADDR.
Referenced by PlmeSetAttributeConfirm().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Used to send a data request command (i.e.
Request the coordinator to send the association response)
Definition at line 1203 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), CheckQueue(), ns3::Node::ChecksumEnabled(), ns3::CommandPayloadHeader::DATA_REQ, ns3::LrWpanMacTrailer::EnableFcs(), EnqueueTxQElement(), ns3::LrWpanMacHeader::EXTADDR, ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::LrWpanMacHeader::LRWPAN_MAC_COMMAND, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macDsn, m_macPanId, m_selfExt, NS_LOG_FUNCTION, ns3::LrWpanMacHeader::SetAckReq(), ns3::LrWpanMacHeader::SetDstAddrFields(), ns3::LrWpanMacHeader::SetDstAddrMode(), ns3::LrWpanMacTrailer::SetFcs(), ns3::LrWpanMacHeader::SetSecDisable(), ns3::LrWpanMacHeader::SetSrcAddrFields(), ns3::LrWpanMacHeader::SetSrcAddrMode(), and ns3::LrWpanMacHeader::SHORTADDR.
Referenced by PdDataIndication().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Called to send a single beacon frame.
Definition at line 1002 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), ns3::BEACON, ChangeMacState(), ns3::Node::ChecksumEnabled(), ns3::LrWpanMacTrailer::EnableFcs(), ns3::LrWpanMacHeader::EXTADDR, GetExtendedAddress(), GetGtsFields(), GetPanId(), GetPendingAddrFields(), GetShortAddress(), GetSuperframeField(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::IEEE_802_15_4_PHY_TX_ON, ns3::LrWpanMacHeader::LRWPAN_MAC_BEACON, m_csmaCa, m_lrWpanMacState, m_macBeaconPayload, m_macBsn, m_outSuperframeStatus, m_phy, m_superframeDuration, m_txPkt, ns3::MAC_IDLE, ns3::MAC_SENDING, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::LrWpanMacHeader::SetDstAddrFields(), ns3::LrWpanMacHeader::SetDstAddrMode(), ns3::LrWpanMacTrailer::SetFcs(), ns3::BeaconPayloadHeader::SetGtsFields(), ns3::LrWpanMacHeader::SetNoAckReq(), ns3::BeaconPayloadHeader::SetPndAddrFields(), ns3::LrWpanMacHeader::SetSecDisable(), ns3::LrWpanMacHeader::SetSrcAddrFields(), ns3::LrWpanMacHeader::SetSrcAddrMode(), ns3::BeaconPayloadHeader::SetSuperframeSpecField(), and ns3::LrWpanMacHeader::SHORTADDR.
Referenced by EndStartRequest(), PdDataIndication(), and StartInactivePeriod().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Called to send a orphan notification command.
This is used by an associated device that has lost synchronization with its coordinator. As described in IEEE 802.15.4-2011 (Section 5.3.6)
Definition at line 1113 of file lr-wpan-mac.cc.
References ns3::Packet::AddHeader(), ns3::Packet::AddTrailer(), CheckQueue(), ns3::Node::ChecksumEnabled(), ns3::LrWpanMacTrailer::EnableFcs(), EnqueueTxQElement(), ns3::LrWpanMacHeader::EXTADDR, GetExtendedAddress(), ns3::SequenceNumber< NUMERIC_TYPE, SIGNED_TYPE >::GetValue(), ns3::LrWpanMacHeader::LRWPAN_MAC_COMMAND, m_macDsn, ns3::CommandPayloadHeader::ORPHAN_NOTIF, ns3::CommandPayloadHeader::SetCommandFrameType(), ns3::LrWpanMacHeader::SetDstAddrFields(), ns3::LrWpanMacHeader::SetDstAddrMode(), ns3::LrWpanMacTrailer::SetFcs(), ns3::LrWpanMacHeader::SetNoAckReq(), ns3::LrWpanMacHeader::SetPanIdComp(), ns3::LrWpanMacHeader::SetSecDisable(), ns3::LrWpanMacHeader::SetSrcAddrFields(), ns3::LrWpanMacHeader::SetSrcAddrMode(), and ns3::LrWpanMacHeader::SHORTADDR.
Referenced by PlmeSetAttributeConfirm().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::LrWpanMac::SetAssociatedCoor | ( | Mac16Address | mac | ) |
Check if the packet destination is its coordinator.
| mac | The coordinator short MAC Address |
Definition at line 3835 of file lr-wpan-mac.cc.
References m_macCoordShortAddress, and third::mac.
| void ns3::LrWpanMac::SetAssociatedCoor | ( | Mac64Address | mac | ) |
Check if the packet destination is its coordinator.
| mac | The coordinator extended MAC Address |
Definition at line 3841 of file lr-wpan-mac.cc.
References m_macCoordExtendedAddress, and third::mac.
| void ns3::LrWpanMac::SetCsmaCa | ( | Ptr< LrWpanCsmaCa > | csmaCa | ) |
Set the CSMA/CA implementation to be used by the MAC.
| csmaCa | the CSMA/CA implementation |
Definition at line 1785 of file lr-wpan-mac.cc.
References m_csmaCa.
| void ns3::LrWpanMac::SetExtendedAddress | ( | Mac64Address | address | ) |
Set the extended address of this MAC.
| address | the new address |
Definition at line 363 of file lr-wpan-mac.cc.
References first::address, m_selfExt, and NS_LOG_FUNCTION.
| void ns3::LrWpanMac::SetIndTxQMaxSize | ( | uint32_t | queueSize | ) |
Set the max size of the indirect transmit queue (Pending Transaction list)
| queueSize | The indirect transmit queue size. |
Definition at line 3732 of file lr-wpan-mac.cc.
References m_maxIndTxQueueSize, and queueSize.
| void ns3::LrWpanMac::SetLrWpanMacState | ( | LrWpanMacState | macState | ) |
CSMA-CA algorithm calls back the MAC after executing channel assessment.
| macState | indicate BUSY or IDLE channel condition |
Definition at line 3537 of file lr-wpan-mac.cc.
References ns3::CommandPayloadHeader::ASSOCIATION_REQ, ns3::CommandPayloadHeader::ASSOCIATION_RESP, ns3::CommandPayloadHeader::BEACON_REQ, ns3::EventId::Cancel(), ChangeMacState(), ns3::CHANNEL_ACCESS_FAILURE, ns3::CHANNEL_IDLE, ns3::CommandPayloadHeader::COOR_REALIGN, ns3::Packet::Copy(), ns3::CommandPayloadHeader::DATA_REQ, ns3::LrWpanMacHeader::EXTADDR, ns3::CommandPayloadHeader::GetCommandFrameType(), ns3::LrWpanMacHeader::GetExtDstAddr(), ns3::LrWpanMacHeader::GetExtSrcAddr(), ns3::IEEE_802_15_4_PHY_RX_ON, ns3::IEEE_802_15_4_PHY_TRX_OFF, ns3::IEEE_802_15_4_PHY_TX_ON, ns3::LrWpanMacHeader::IsCommand(), ns3::LrWpanMacHeader::IsData(), ns3::Callback< R, UArgs >::IsNull(), ns3::EventId::IsRunning(), ns3::MlmeAssociateConfirmParams::m_assocShortAddr, m_csmaCa, ns3::MlmeCommStatusIndicationParams::m_dstAddrMode, ns3::MlmeCommStatusIndicationParams::m_dstExtAddr, m_incCapEvent, m_incCfpEvent, m_incomingBeaconOrder, m_incomingSuperframeOrder, m_lrWpanMacState, m_macCoordExtendedAddress, m_macCoordShortAddress, m_macPanId, m_macRxOnWhenIdle, m_macTxDropTrace, ns3::LrWpanMacBase::m_mcpsDataConfirmCallback, ns3::LrWpanMacBase::m_mlmeAssociateConfirmCallback, ns3::LrWpanMacBase::m_mlmeCommStatusIndicationCallback, ns3::LrWpanMacBase::m_mlmePollConfirmCallback, ns3::McpsDataConfirmParams::m_msduHandle, m_numCsmacaRetry, ns3::MlmeCommStatusIndicationParams::m_panId, m_phy, m_retransmission, m_scanEvent, m_scanOrphanEvent, ns3::MlmeCommStatusIndicationParams::m_srcAddrMode, ns3::MlmeCommStatusIndicationParams::m_srcExtAddr, ns3::McpsDataConfirmParams::m_status, ns3::MlmeCommStatusIndicationParams::m_status, ns3::MlmeAssociateConfirmParams::m_status, ns3::MlmePollConfirmParams::m_status, m_txPkt, m_txQueue, m_unscannedChannels, ns3::MAC_ACK_PENDING, ns3::MAC_CSMA, ns3::MAC_CSMA_DEFERRED, ns3::MAC_IDLE, ns3::MAC_SENDING, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::CommandPayloadHeader::ORPHAN_NOTIF, RemoveFirstTxQElement(), ns3::Packet::RemoveHeader(), and RemovePendTxQElement().
Referenced by AckWaitTimeout(), CheckQueue(), ns3::LrWpanNetDevice::CompleteConfig(), PdDataConfirm(), and PdDataIndication().
Here is the call graph for this function: Here is the caller graph for this function:| void ns3::LrWpanMac::SetMacMaxFrameRetries | ( | uint8_t | retries | ) |
Set the macMaxFrameRetries attribute value.
| retries | the maximum number of retries |
Definition at line 3790 of file lr-wpan-mac.cc.
References m_macMaxFrameRetries.
| void ns3::LrWpanMac::SetPanId | ( | uint16_t | panId | ) |
Set the PAN id used by this MAC.
| panId | the new PAN id. |
Definition at line 3756 of file lr-wpan-mac.cc.
References m_macPanId.
Set the underlying PHY for the MAC.
| phy | the PHY |
Definition at line 1791 of file lr-wpan-mac.cc.
References m_phy, and third::phy.
| void ns3::LrWpanMac::SetRxOnWhenIdle | ( | bool | rxOnWhenIdle | ) |
Set if the receiver should be enabled when the MAC is idle.
| rxOnWhenIdle | set to true to enable the receiver during idle periods |
Definition at line 337 of file lr-wpan-mac.cc.

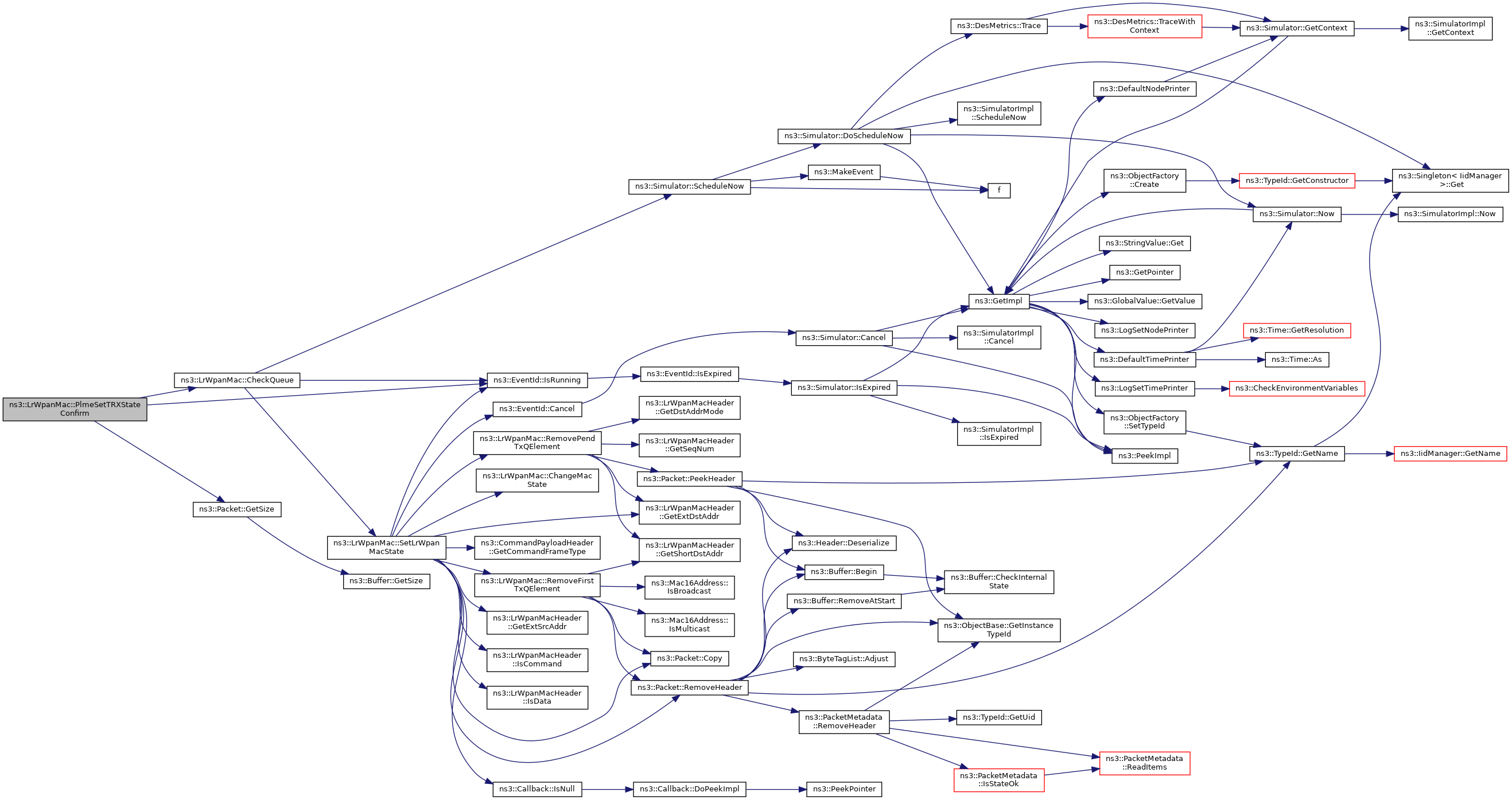

References ns3::IEEE_802_15_4_PHY_RX_ON, ns3::IEEE_802_15_4_PHY_TRX_OFF, m_lrWpanMacState, m_macRxOnWhenIdle, m_phy, ns3::MAC_IDLE, and NS_LOG_FUNCTION.
| void ns3::LrWpanMac::SetShortAddress | ( | Mac16Address | address | ) |
Set the short address of this MAC.
| address | the new address |
Definition at line 356 of file lr-wpan-mac.cc.
References first::address, m_shortAddress, and NS_LOG_FUNCTION.
Referenced by PdDataConfirm().
Here is the caller graph for this function:| void ns3::LrWpanMac::SetTxQMaxSize | ( | uint32_t | queueSize | ) |
Set the max size of the transmit queue.
| queueSize | The transmit queue size. |
Definition at line 3726 of file lr-wpan-mac.cc.
References m_maxTxQueueSize, and queueSize.
|
private |
Called to begin the Contention Access Period (CAP) in a beacon-enabled mode.
| superframeType | The incoming or outgoing superframe reference |
Definition at line 1535 of file lr-wpan-mac.cc.
References ns3::CAP, CheckQueue(), ns3::INCOMING, m_capEvent, m_fnlCapSlot, m_incomingFnlCapSlot, m_incomingSuperframeDuration, m_incSuperframeStatus, m_macBeaconRxTime, m_macBeaconTxTime, m_outSuperframeStatus, m_phy, m_superframeDuration, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::OUTGOING, ns3::Time::S, ns3::Simulator::Schedule(), ns3::Seconds(), and StartCFP().
Referenced by PdDataConfirm(), and PdDataIndication().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Called to begin the Contention Free Period (CFP) in a beacon-enabled mode.
| superframeType | The incoming or outgoing superframe reference |
Definition at line 1583 of file lr-wpan-mac.cc.
References ns3::CFP, ns3::INCOMING, m_cfpEvent, m_fnlCapSlot, m_incCfpEvent, m_incomingFnlCapSlot, m_incomingSuperframeDuration, m_incSuperframeStatus, m_outSuperframeStatus, m_phy, m_superframeDuration, NS_LOG_DEBUG, ns3::OUTGOING, ns3::Time::S, ns3::Simulator::Schedule(), ns3::Seconds(), and StartInactivePeriod().
Referenced by StartCAP().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Start the Inactive Period in a beacon-enabled mode.
| superframeType | The incoming or outgoing superframe reference |
Definition at line 1633 of file lr-wpan-mac.cc.
References ns3::Time::As(), AwaitBeacon(), ns3::INACTIVE, ns3::INCOMING, m_beaconEvent, m_beaconInterval, m_incomingBeaconInterval, m_incomingSuperframeDuration, m_incSuperframeStatus, m_outSuperframeStatus, m_phy, m_superframeDuration, NS_LOG_DEBUG, ns3::Time::S, ns3::Simulator::Schedule(), ns3::Seconds(), and SendOneBeacon().
Referenced by StartCFP().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Scheduler event for the ACK timeout of the currently transmitted data packet.
Definition at line 1258 of file lr-wpan-mac.h.
Referenced by PdDataConfirm(), and PdDataIndication().
|
private |
The parameters used during a MLME-ASSOCIATE.request.
These parameters are stored here while PLME-SET operations (set channel page, set channel number) take place.
Definition at line 1225 of file lr-wpan-mac.h.
Referenced by EndAssociateRequest(), MlmeAssociateRequest(), PlmeSetAttributeConfirm(), and SendAssocRequestCommand().
|
private |
Scheduler event for the lost of a association response command frame.
Definition at line 1268 of file lr-wpan-mac.h.
Referenced by PdDataIndication().
| uint64_t ns3::LrWpanMac::m_assocRespCmdWaitTime |
The maximum wait time for an association response command after the reception of data request command ACK during the association process.
Not explicitly listed by the standard but its use is required for a device to react to the lost of the association response (failure of the association: NO_DATA)
Definition at line 406 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), and PdDataIndication().
|
private |
Scheduler event for generation of one beacon.
Definition at line 1283 of file lr-wpan-mac.h.
Referenced by DoDispose(), EndStartRequest(), and StartInactivePeriod().
| uint32_t ns3::LrWpanMac::m_beaconInterval |
Indication of the Interval used by the coordinator to transmit beacon frames expressed in symbols.
Definition at line 598 of file lr-wpan-mac.h.
Referenced by EndStartRequest(), and StartInactivePeriod().
| bool ns3::LrWpanMac::m_beaconTrackingOn |
Indication of whether the current device is tracking incoming beacons.
Definition at line 626 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), BeaconSearchTimeout(), MlmeSyncRequest(), and PdDataIndication().
|
private |
Scheduler event for the end of the outgoing superframe CAP.
Definition at line 1288 of file lr-wpan-mac.h.
Referenced by EndStartRequest(), MlmeScanRequest(), PdDataConfirm(), PdDataIndication(), and StartCAP().
|
private |
Scheduler event for the end of the outgoing superframe CFP.
Definition at line 1293 of file lr-wpan-mac.h.
Referenced by EndStartRequest(), MlmeScanRequest(), and StartCFP().
|
private |
The channel list index used to obtain the current scanned channel.
Definition at line 1230 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndChannelEnergyScan(), EndChannelScan(), MlmeScanRequest(), PdDataIndication(), and PlmeSetAttributeConfirm().
| bool ns3::LrWpanMac::m_coor |
Indicates if the current device is a coordinator type.
Definition at line 592 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), CheckQueue(), EndStartRequest(), isCoordDest(), McpsDataRequest(), and PdDataIndication().
|
private |
The CSMA/CA implementation used by this MAC.
Definition at line 1132 of file lr-wpan-mac.h.
Referenced by CheckQueue(), DoDispose(), EndStartRequest(), GetSuperframeField(), MlmeScanRequest(), PdDataConfirm(), PdDataIndication(), PlmeCcaConfirm(), PlmeSetAttributeConfirm(), PlmeSetTRXStateConfirm(), PrepareRetransmission(), RemoveFirstTxQElement(), SendOneBeacon(), SetCsmaCa(), and SetLrWpanMacState().
| uint8_t ns3::LrWpanMac::m_deviceCapability |
Indication of current device capability (FFD or RFD)
Definition at line 621 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), and MlmeStartRequest().
|
private |
The list of energy measurements, one for each channel searched during an ED scan.
Definition at line 1202 of file lr-wpan-mac.h.
Referenced by DoDispose(), EndChannelEnergyScan(), and MlmeScanRequest().
| uint8_t ns3::LrWpanMac::m_fnlCapSlot |
Indication of the Slot where the CAP portion of the OUTGOING Superframe ends.
Definition at line 466 of file lr-wpan-mac.h.
Referenced by EndStartRequest(), GetSuperframeField(), StartCAP(), and StartCFP().
| uint32_t ns3::LrWpanMac::m_ifs |
The value of the necessary InterFrame Space after the transmission of a packet.
Definition at line 582 of file lr-wpan-mac.h.
Referenced by LrWpanMac().
|
private |
Scheduler event for Interframe spacing wait time.
Definition at line 1278 of file lr-wpan-mac.h.
Referenced by CheckQueue(), PdDataConfirm(), and PdDataIndication().
|
private |
Scheduler event for the end of the incoming superframe CAP.
Definition at line 1298 of file lr-wpan-mac.h.
Referenced by EndStartRequest(), MlmeScanRequest(), PdDataConfirm(), PdDataIndication(), PlmeSetAttributeConfirm(), PrepareRetransmission(), and SetLrWpanMacState().
|
private |
Scheduler event for the end of the incoming superframe CFP.
Definition at line 1303 of file lr-wpan-mac.h.
Referenced by EndStartRequest(), MlmeScanRequest(), PdDataConfirm(), PlmeSetAttributeConfirm(), PrepareRetransmission(), SetLrWpanMacState(), and StartCFP().
| uint32_t ns3::LrWpanMac::m_incomingBeaconInterval |
Indication of the interval a node should receive a superframe expressed in symbols.
Definition at line 610 of file lr-wpan-mac.h.
Referenced by PdDataIndication(), and StartInactivePeriod().
| uint8_t ns3::LrWpanMac::m_incomingBeaconOrder |
The beaconOrder value of the INCOMING frame.
Used by all devices that have a parent. Specification of how often the parent coordinator transmits its beacon. 0 - 15 with 15 means the parent is not currently transmitting beacons.
Definition at line 473 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), BeaconSearchTimeout(), MlmeSyncRequest(), PdDataConfirm(), PdDataIndication(), PlmeSetAttributeConfirm(), PrepareRetransmission(), and SetLrWpanMacState().
| uint8_t ns3::LrWpanMac::m_incomingFnlCapSlot |
Indication of the Slot where the CAP portion of the INCOMING Superframe ends.
Definition at line 486 of file lr-wpan-mac.h.
Referenced by PdDataIndication(), StartCAP(), and StartCFP().
| uint32_t ns3::LrWpanMac::m_incomingSuperframeDuration |
Indication of the superframe duration in symbols (e.g.
1 symbol = 4 bits in a 250kbps O-QPSK PHY)
Definition at line 616 of file lr-wpan-mac.h.
Referenced by PdDataIndication(), StartCAP(), StartCFP(), and StartInactivePeriod().
| uint8_t ns3::LrWpanMac::m_incomingSuperframeOrder |
Used by all devices that have a parent.
The length of the active portion of the INCOMING superframe, including the beacon frame. 0 - 15 with 15 meaning the superframe will not be active after the beacon.
Definition at line 481 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), PdDataConfirm(), PdDataIndication(), PlmeSetAttributeConfirm(), PrepareRetransmission(), and SetLrWpanMacState().
|
private |
The current period of the incoming superframe.
Definition at line 1142 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), AwaitBeacon(), CheckQueue(), GetTypeId(), StartCAP(), StartCFP(), and StartInactivePeriod().
|
private |
The indirect transmit queue used by the MAC pending messages (The pending transaction list).
Definition at line 1181 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), DequeueInd(), DoDispose(), EnqueueInd(), PrintPendingTxQueue(), PurgeInd(), and RemovePendTxQElement().
|
private |
Keep track of the last received frame Link Quality Indicator.
Definition at line 1252 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), PdDataConfirm(), and PdDataIndication().
|
private |
The current state of the MAC layer.
Definition at line 1137 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), ChangeMacState(), CheckQueue(), GetTypeId(), PdDataConfirm(), PdDataIndication(), PlmeSetTRXStateConfirm(), SendAck(), SendOneBeacon(), SetLrWpanMacState(), and SetRxOnWhenIdle().
| bool ns3::LrWpanMac::m_macAssociationPermit |
Indication of whether a coordinator is currently allowing association.
A value of TRUE indicates that the association is permitted. See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 563 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), GetSuperframeField(), and PdDataIndication().
| bool ns3::LrWpanMac::m_macAutoRequest |
Indication of whether a device automatically sends data request command if its address is listed in the beacon frame.
TRUE = request command automatically is sent. This command also affects the generation of MLME-BEACON-NOTIFY.indication (6.2.4.1) See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 572 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndChannelScan(), and PdDataIndication().
| uint8_t ns3::LrWpanMac::m_macBeaconOrder |
Used by a PAN coordinator or coordinator.
Defines how often the coordinator transmits its beacon (outgoing superframe). Range 0 - 15 with 15 meaning no beacons are being sent. See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 436 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndStartRequest(), EnqueueInd(), and GetSuperframeField().
The contents of the beacon payload.
This value is set directly by the MLME-SET primitive. See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 525 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), MlmeGetRequest(), MlmeSetRequest(), and SendOneBeacon().
| uint32_t ns3::LrWpanMac::m_macBeaconPayloadLength |
The length, in octets, of the beacon payload.
See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 531 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), MlmeGetRequest(), and MlmeSetRequest().
| Time ns3::LrWpanMac::m_macBeaconRxTime |
The time that the device received its last bit of the beacon frame.
It does not indicate the start of the Active Period in the Incoming superframe. Not explicitly listed by the standard but its use is implied. Its purpose is somehow similar to m_macBeaconTxTime
Definition at line 391 of file lr-wpan-mac.h.
Referenced by PdDataIndication(), and StartCAP().
| Time ns3::LrWpanMac::m_macBeaconTxTime |
The time that the device transmitted its last beacon frame.
It also indicates the start of the Active Period in the Outgoing superframe. See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 383 of file lr-wpan-mac.h.
Referenced by PdDataConfirm(), and StartCAP().
| SequenceNumber8 ns3::LrWpanMac::m_macBsn |
Sequence number added to transmitted beacon frame, 00-ff.
See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 518 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), MlmePollRequest(), and SendOneBeacon().
| Mac64Address ns3::LrWpanMac::m_macCoordExtendedAddress |
The extended address of the coordinator through which the device is associated.
See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 422 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndAssociateRequest(), EndChannelScan(), GetCoordExtAddress(), isCoordDest(), LostAssocRespCommand(), PdDataConfirm(), PdDataIndication(), PlmeSetAttributeConfirm(), PrepareRetransmission(), SendDataRequestCommand(), SetAssociatedCoor(), and SetLrWpanMacState().
| Mac16Address ns3::LrWpanMac::m_macCoordShortAddress |
The short address of the coordinator through which the device is associated.
0xFFFF indicates this value is unknown. 0xFFFE indicates the coordinator is only using its extended address. See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 415 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndAssociateRequest(), EndChannelScan(), GetCoordShortAddress(), isCoordDest(), LostAssocRespCommand(), PdDataConfirm(), PdDataIndication(), PlmeSetAttributeConfirm(), PrepareRetransmission(), SendDataRequestCommand(), SetAssociatedCoor(), and SetLrWpanMacState().
| SequenceNumber8 ns3::LrWpanMac::m_macDsn |
Sequence number added to transmitted data or MAC command frame, 00-ff.
See IEEE 802.15.4-2006, section 7.4.2, Table 86.
Definition at line 512 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), McpsDataRequest(), MlmeAssociateResponse(), MlmeOrphanResponse(), SendAssocRequestCommand(), SendBeaconRequestCommand(), SendDataRequestCommand(), and SendOrphanNotificationCommand().
|
private |
The trace source is fired at the end of any Interframe Space (IFS).
Definition at line 969 of file lr-wpan-mac.h.
Referenced by GetTypeId(), and IfsWaitTimeout().
|
private |
The trace source fired when packets are dequeued from the L3/l2 indirect transmission queue (Pending transaction list).
Definition at line 1013 of file lr-wpan-mac.h.
Referenced by DequeueInd(), GetTypeId(), and RemovePendTxQElement().
|
private |
The trace source fired when packets are dropped due to indirect Tx queue overflows or expiration.
Definition at line 1045 of file lr-wpan-mac.h.
Referenced by EnqueueInd(), GetTypeId(), and PurgeInd().
|
private |
The trace source fired when packets come into the "top" of the device at the L3/L2 transition, when being queued for indirect transmission (pending transaction list).
Definition at line 1005 of file lr-wpan-mac.h.
Referenced by EnqueueInd(), and GetTypeId().
| uint32_t ns3::LrWpanMac::m_macLIFSPeriod |
The minimum time forming a Long InterFrame Spacing (LIFS) period.
See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 550 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), GetIfsSize(), and IfsWaitTimeout().
| uint8_t ns3::LrWpanMac::m_macMaxFrameRetries |
The maximum number of retries allowed after a transmission failure.
See IEEE 802.15.4-2006, section 7.4.2, Table 86.
Definition at line 537 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), GetMacMaxFrameRetries(), PrepareRetransmission(), and SetMacMaxFrameRetries().
| uint16_t ns3::LrWpanMac::m_macPanId |
16 bits id of PAN on which this device is operating.
0xffff means not associated. See IEEE 802.15.4-2006, section 7.4.2, Table 86.
Definition at line 500 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), BeaconSearchTimeout(), EndAssociateRequest(), EndChannelEnergyScan(), EndChannelScan(), EndStartRequest(), EnqueueInd(), GetPanId(), GetTypeId(), LostAssocRespCommand(), MlmeAssociateResponse(), MlmeGetRequest(), MlmeOrphanResponse(), MlmeScanRequest(), MlmeSetRequest(), MlmeSyncRequest(), PdDataConfirm(), PdDataIndication(), PlmeSetAttributeConfirm(), PrepareRetransmission(), PurgeInd(), SendDataRequestCommand(), SetLrWpanMacState(), and SetPanId().
| uint16_t ns3::LrWpanMac::m_macPanIdScan |
Temporally stores the value of the current m_macPanId when a MLME-SCAN.request is performed.
See IEEE 802.15.4-2011, section 5.1.2.1.2.
Definition at line 506 of file lr-wpan-mac.h.
Referenced by EndChannelEnergyScan(), EndChannelScan(), MlmeScanRequest(), and PdDataIndication().
|
private |
The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).
This is a promiscuous trace.
Definition at line 1054 of file lr-wpan-mac.h.
Referenced by GetTypeId(), and PdDataIndication().
| bool ns3::LrWpanMac::m_macPromiscuousMode |
Indicates if MAC sublayer is in receive all mode.
True mean accept all frames from PHY. See IEEE 802.15.4-2006, section 7.4.2, Table 86.
Definition at line 493 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), and PdDataIndication().
| uint64_t ns3::LrWpanMac::m_macResponseWaitTime |
The maximum time, in multiples of aBaseSuperframeDuration, a device shall wait for a response command frame to be available following a request command frame.
Definition at line 398 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), PdDataIndication(), and PlmeSetAttributeConfirm().
|
private |
The trace source fired for packets successfully received by the device but dropped before being forwarded up to higher layers (at the L2/L3 transition).
Definition at line 1072 of file lr-wpan-mac.h.
Referenced by GetTypeId(), and PdDataIndication().
| bool ns3::LrWpanMac::m_macRxOnWhenIdle |
Indication of whether the MAC sublayer is to enable its receiver during idle periods.
See IEEE 802.15.4-2006, section 7.4.2, Table 86.
Definition at line 544 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), DoInitialize(), GetRxOnWhenIdle(), SetLrWpanMacState(), and SetRxOnWhenIdle().
|
private |
The trace source fired for packets successfully received by the device immediately before being forwarded up to higher layers (at the L2/L3 transition).
This is a non-promiscuous trace.
Definition at line 1063 of file lr-wpan-mac.h.
Referenced by GetTypeId(), and PdDataIndication().
| uint32_t ns3::LrWpanMac::m_macSIFSPeriod |
The minimum time forming a Short InterFrame Spacing (SIFS) period.
See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 556 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), GetIfsSize(), and IfsWaitTimeout().
|
private |
A trace source that fires when the LrWpanMac changes states.
Parameters are the old mac state and the new mac state.
MacStateValue TracedValue. Definition at line 1122 of file lr-wpan-mac.h.
Referenced by ChangeMacState(), and GetTypeId().
| uint8_t ns3::LrWpanMac::m_macSuperframeOrder |
Used by a PAN coordinator or coordinator.
The length of the active portion of the outgoing superframe, including the beacon frame. 0 - 15 with 15 means the superframe will not be active after the beacon. See IEEE 802.15.4-2011, section 6.4.2, Table 52.
Definition at line 444 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndStartRequest(), and GetSuperframeField().
| uint64_t ns3::LrWpanMac::m_macSyncSymbolOffset |
Symbol boundary is same as m_macBeaconTxTime.
See IEEE 802.15.4-2006, section 7.4.2, Table 86.
Definition at line 428 of file lr-wpan-mac.h.
| uint16_t ns3::LrWpanMac::m_macTransactionPersistenceTime |
The maximum time (in UNIT periods) that a transaction is stored by a coordinator and indicated in its beacon.
This value establish the expiration time of the packets stored in the pending transaction list (indirect transmissions). 1 Unit Period: Beacon-enabled = aBaseSuperframeDuration * 2^BO Non-beacon enabled = aBaseSuperframeDuration See IEEE 802.15.4-2006, section 7.4.2, Table 86.
Definition at line 455 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), and EnqueueInd().
|
private |
The trace source fired when packets are dequeued from the L3/l2 transmission queue.
Definition at line 997 of file lr-wpan-mac.h.
Referenced by GetTypeId(), and RemoveFirstTxQElement().
|
private |
The trace source fired when packets are dropped due to missing ACKs or because of transmission failures in L1.
Definition at line 1037 of file lr-wpan-mac.h.
Referenced by EnqueueTxQElement(), GetTypeId(), PdDataConfirm(), PrepareRetransmission(), and SetLrWpanMacState().
|
private |
The trace source fired when packets come into the "top" of the device at the L3/L2 transition, when being queued for transmission.
Definition at line 989 of file lr-wpan-mac.h.
Referenced by EnqueueTxQElement(), and GetTypeId().
|
private |
The trace source fired when packets where successfully transmitted, that is an acknowledgment was received, if requested, or the packet was successfully sent by L1, if no ACK was requested.
Definition at line 1029 of file lr-wpan-mac.h.
Referenced by GetTypeId(), PdDataConfirm(), and PdDataIndication().
|
private |
The trace source fired when packets are being sent down to L1.
Definition at line 1020 of file lr-wpan-mac.h.
Referenced by GetTypeId(), and PlmeSetTRXStateConfirm().
| uint8_t ns3::LrWpanMac::m_maxEnergyLevel |
The maximum energy level detected during ED scan on the current channel.
Definition at line 577 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndChannelEnergyScan(), PlmeEdConfirm(), and PlmeSetAttributeConfirm().
|
private |
The maximum size of the indirect transmit queue (The pending transaction list).
Definition at line 1191 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EnqueueInd(), and SetIndTxQMaxSize().
|
private |
The maximum size of the transmit queue.
Definition at line 1186 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EnqueueTxQElement(), and SetTxQMaxSize().
|
private |
The number of CSMA/CA retries used for sending the current packet.
Definition at line 1247 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), PrepareRetransmission(), RemoveFirstTxQElement(), and SetLrWpanMacState().
| uint8_t ns3::LrWpanMac::m_numLostBeacons |
The number of consecutive loss beacons in a beacon tracking operation.
Definition at line 631 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), BeaconSearchTimeout(), MlmeSyncRequest(), and PdDataIndication().
|
private |
The current period of the outgoing superframe.
Definition at line 1147 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), CheckQueue(), GetTypeId(), SendOneBeacon(), StartCAP(), StartCFP(), and StartInactivePeriod().
| bool ns3::LrWpanMac::m_panCoor |
Indication of whether the current device is the PAN coordinator.
Definition at line 587 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndStartRequest(), and GetSuperframeField().
|
private |
The list of PAN descriptors accumulated during channel scans, used to select a PAN to associate.
Definition at line 1197 of file lr-wpan-mac.h.
Referenced by DoDispose(), EndChannelScan(), MlmeScanRequest(), and PdDataIndication().
|
private |
Indicates the pending primitive when PLME.SET operation (page or channel switch) is called from within another MLME primitive (e.g.
Association, Scan, Sync, Start).
Definition at line 1236 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndAssociateRequest(), EndChannelEnergyScan(), EndChannelScan(), EndStartRequest(), MlmeAssociateRequest(), MlmeScanRequest(), MlmeStartRequest(), PdDataIndication(), and PlmeSetAttributeConfirm().
The PHY associated with this MAC.
Definition at line 1127 of file lr-wpan-mac.h.
Referenced by BeaconSearchTimeout(), DoDispose(), DoInitialize(), EndChannelEnergyScan(), EndChannelScan(), EndStartRequest(), EnqueueInd(), GetMacAckWaitDuration(), GetPhy(), GetTxPacketSymbols(), IfsWaitTimeout(), MlmeAssociateRequest(), MlmeGetRequest(), MlmeOrphanResponse(), MlmeScanRequest(), MlmeStartRequest(), MlmeSyncRequest(), PdDataConfirm(), PdDataIndication(), PlmeEdConfirm(), PlmeSetAttributeConfirm(), PlmeSetTRXStateConfirm(), SendAck(), SendOneBeacon(), SetLrWpanMacState(), SetPhy(), SetRxOnWhenIdle(), StartCAP(), StartCFP(), and StartInactivePeriod().
|
private |
A trace source that emulates a promiscuous mode protocol sniffer connected to the device.
This trace source fire on packets destined for any host just like your average everyday packet sniffer.
On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.
On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.
Definition at line 1112 of file lr-wpan-mac.h.
Referenced by GetTypeId(), PdDataIndication(), and PlmeSetTRXStateConfirm().
|
private |
Scheduler event for a response to a request command frame.
Definition at line 1263 of file lr-wpan-mac.h.
Referenced by PdDataIndication().
|
private |
The number of already used retransmission for the currently transmitted packet.
Definition at line 1242 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), PrepareRetransmission(), RemoveFirstTxQElement(), and SetLrWpanMacState().
| uint64_t ns3::LrWpanMac::m_rxBeaconSymbols |
The total size of the received beacon in symbols.
Its value is used to calculate the end CAP time of the incoming superframe.
Definition at line 461 of file lr-wpan-mac.h.
Referenced by PdDataIndication().
The command request packet received.
Briefly stored to proceed with operations that take place after ACK messages.
Definition at line 1158 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), PdDataConfirm(), and PdDataIndication().
|
private |
Scheduler event for the end of a ED channel scan.
Definition at line 1323 of file lr-wpan-mac.h.
Referenced by DoDispose(), EndStartRequest(), MlmeScanRequest(), PdDataIndication(), PlmeEdConfirm(), PlmeSetAttributeConfirm(), and PlmeSetTRXStateConfirm().
|
private |
Scheduler event for the end of an ACTIVE or PASSIVE channel scan.
Definition at line 1313 of file lr-wpan-mac.h.
Referenced by DoDispose(), EndStartRequest(), MlmeScanRequest(), PdDataIndication(), PlmeSetAttributeConfirm(), and SetLrWpanMacState().
|
private |
Scheduler event for the end of an ORPHAN channel scan.
Definition at line 1318 of file lr-wpan-mac.h.
Referenced by DoDispose(), EndStartRequest(), MlmeScanRequest(), PdDataIndication(), PlmeSetAttributeConfirm(), and SetLrWpanMacState().
|
private |
The parameters used during a MLME-SCAN.request.
These parameters are stored here while PLME-SET (set channel page, set channel number) and other operations take place.
Definition at line 1213 of file lr-wpan-mac.h.
Referenced by EndChannelEnergyScan(), EndChannelScan(), MlmeScanRequest(), PdDataIndication(), and PlmeSetAttributeConfirm().
|
private |
The extended 64 address (IEEE EUI-64) used by this MAC.
Definition at line 1170 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), GetExtendedAddress(), MlmeGetRequest(), PdDataIndication(), SendDataRequestCommand(), and SetExtendedAddress().
|
private |
The trace source fired when packets are considered as successfully sent or the transmission has been given up.
Only non-broadcast packets are traced.
The data should represent: packet, number of retries, total number of csma backoffs
Definition at line 981 of file lr-wpan-mac.h.
Referenced by GetTypeId(), and RemoveFirstTxQElement().
|
private |
Scheduler event for a deferred MAC state change.
Definition at line 1273 of file lr-wpan-mac.h.
Referenced by CheckQueue(), PdDataConfirm(), and PdDataIndication().
|
private |
The short address (16 bit address) used by this MAC.
If supported, the short address must be assigned to the device by the coordinator during the association process.
Definition at line 1165 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), EndChannelScan(), GetShortAddress(), MlmeGetRequest(), MlmeSetRequest(), PdDataIndication(), and SetShortAddress().
|
private |
A trace source that emulates a non-promiscuous protocol sniffer connected to the device.
Unlike your average everyday sniffer, this trace source will not fire on PACKET_OTHERHOST events.
On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.
On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.
Definition at line 1092 of file lr-wpan-mac.h.
Referenced by GetTypeId(), and PlmeSetTRXStateConfirm().
|
private |
The parameters used during a MLME-START.request.
These parameters are stored here while PLME-SET operations (set channel page, set channel number) take place.
Definition at line 1219 of file lr-wpan-mac.h.
Referenced by EndStartRequest(), MlmeStartRequest(), and PlmeSetAttributeConfirm().
| uint32_t ns3::LrWpanMac::m_superframeDuration |
Indication of the superframe duration in symbols.
(e.g. 1 symbol = 4 bits in a 250kbps O-QPSK PHY)
Definition at line 604 of file lr-wpan-mac.h.
Referenced by EndStartRequest(), SendOneBeacon(), StartCAP(), StartCFP(), and StartInactivePeriod().
|
private |
Scheduler event to track the incoming beacons.
Definition at line 1308 of file lr-wpan-mac.h.
Referenced by BeaconSearchTimeout(), EndStartRequest(), MlmeScanRequest(), MlmeSyncRequest(), and PdDataIndication().
The packet which is currently being sent by the MAC layer.
Definition at line 1152 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), CheckQueue(), DoDispose(), GetIfsSize(), GetTxPacketSymbols(), isCoordDest(), isTxAckReq(), PdDataConfirm(), PdDataIndication(), PlmeSetTRXStateConfirm(), PrepareRetransmission(), RemoveFirstTxQElement(), SendAck(), SendOneBeacon(), and SetLrWpanMacState().
|
private |
The transmit queue used by the MAC.
Definition at line 1175 of file lr-wpan-mac.h.
Referenced by LrWpanMac(), CheckQueue(), DoDispose(), EnqueueTxQElement(), PdDataConfirm(), PdDataIndication(), PrepareRetransmission(), PrintTransmitQueueSize(), PrintTxQueue(), RemoveFirstTxQElement(), SendAssocResponseCommand(), and SetLrWpanMacState().
|
private |
The list of unscanned channels during a scan operation.
Definition at line 1207 of file lr-wpan-mac.h.
Referenced by DoDispose(), EndChannelScan(), MlmeScanRequest(), and SetLrWpanMacState().
1.9.1
