Implements the SCHED SAP and CSCHED SAP for a Time Domain Token Bank Fair Queue scheduler. More...

#include "tdtbfq-ff-mac-scheduler.h"

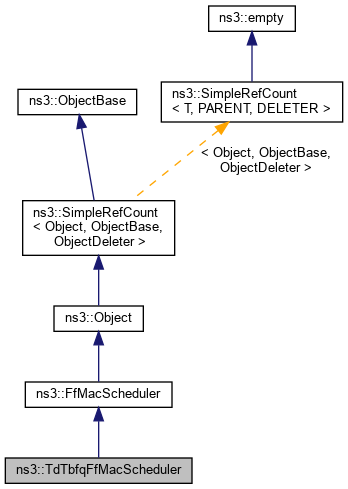

Inheritance diagram for ns3::TdTbfqFfMacScheduler:

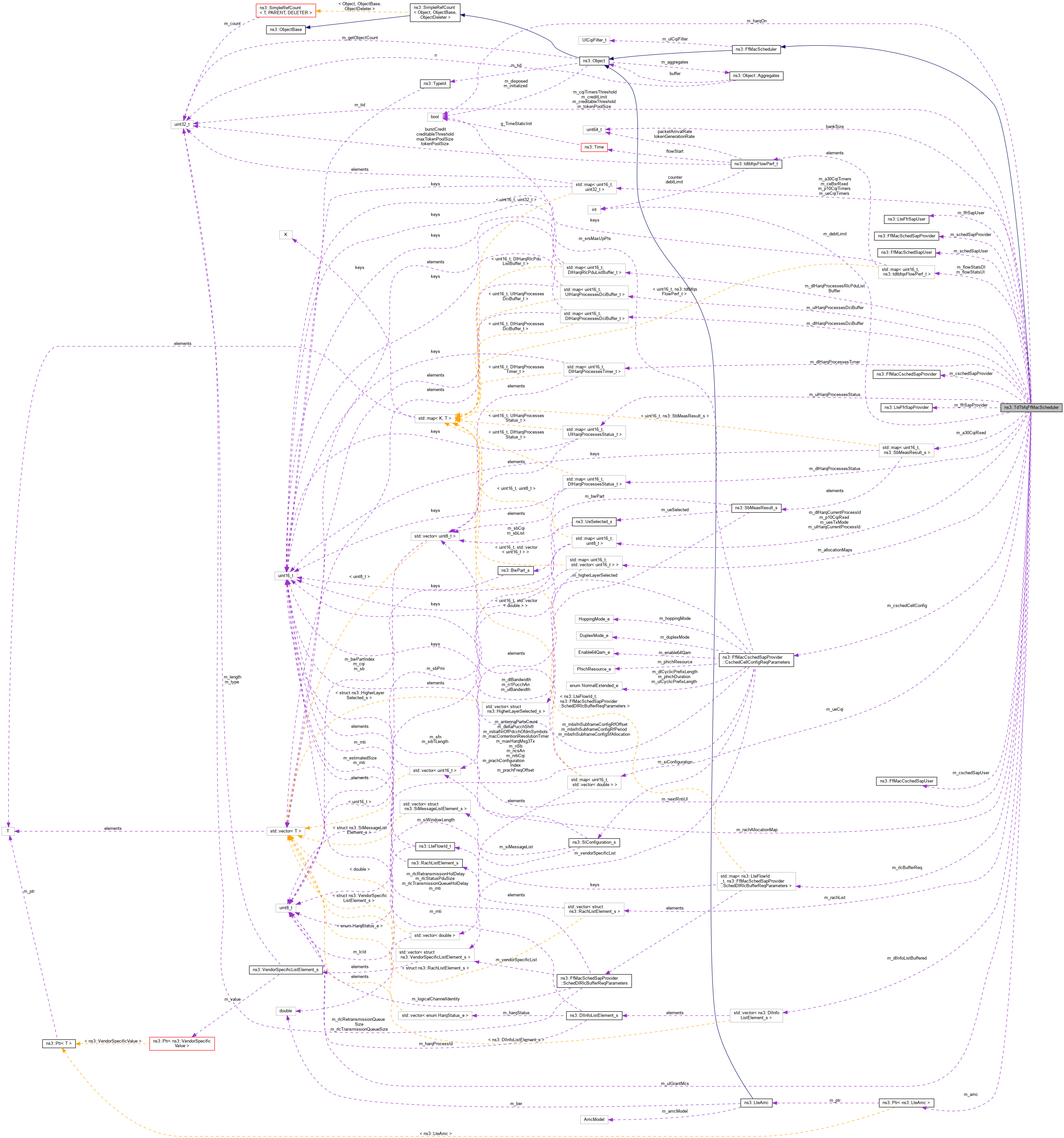

Collaboration diagram for ns3::TdTbfqFfMacScheduler:

Public Member Functions
	TdTbfqFfMacScheduler ()
	Constructor. More...

virtual	~TdTbfqFfMacScheduler ()
	Destructor. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual FfMacCschedSapProvider *	GetFfMacCschedSapProvider ()

virtual FfMacSchedSapProvider *	GetFfMacSchedSapProvider ()

virtual LteFfrSapUser *	GetLteFfrSapUser ()

virtual void	SetFfMacCschedSapUser (FfMacCschedSapUser *s)
	set the user part of the FfMacCschedSap that this Scheduler will interact with. More...

virtual void	SetFfMacSchedSapUser (FfMacSchedSapUser *s)
	set the user part of the FfMacSchedSap that this Scheduler will interact with. More...

virtual void	SetLteFfrSapProvider (LteFfrSapProvider *s)
	Set the Provider part of the LteFfrSap that this Scheduler will interact with. More...

void	TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode)
	Transmission mde configuration update function. More...

Public Member Functions inherited from ns3::FfMacScheduler
	FfMacScheduler ()
	constructor More...

virtual	~FfMacScheduler ()
	destructor More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

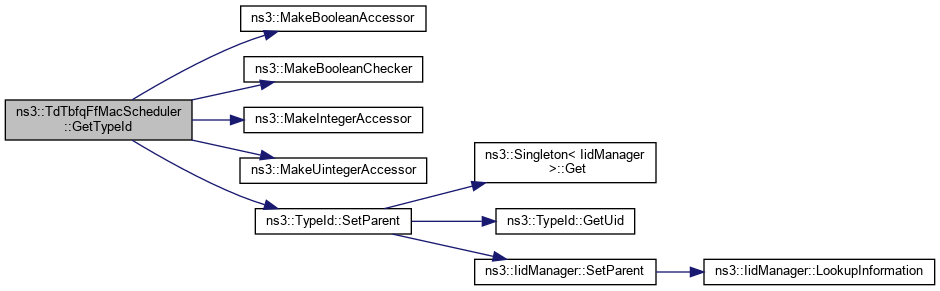

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::FfMacScheduler
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoCschedCellConfigReq (const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &params)
	CSched cell config request. More...

void	DoCschedLcConfigReq (const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &params)
	CSched LC config request. More...

void	DoCschedLcReleaseReq (const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &params)
	CSched LC release request. More...

void	DoCschedUeConfigReq (const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &params)
	CSched UE config request. More...

void	DoCschedUeReleaseReq (const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &params)
	CSched UE release request. More...

void	DoSchedDlCqiInfoReq (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)
	Sched DL CQI info request. More...

void	DoSchedDlMacBufferReq (const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &params)
	Sched DL MAC buffer request. More...

void	DoSchedDlPagingBufferReq (const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &params)
	Sched DL paging buffer request. More...

void	DoSchedDlRachInfoReq (const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &params)
	Sched DL RACH info request. More...

void	DoSchedDlRlcBufferReq (const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &params)
	Sched DL RLC buffer request. More...

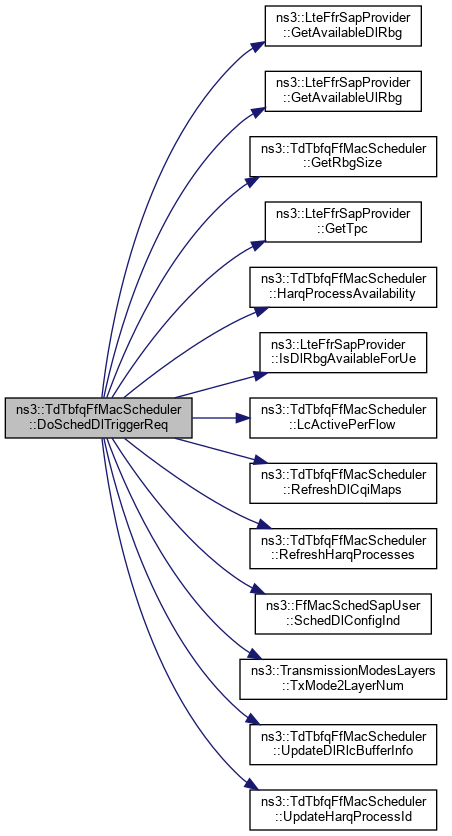

void	DoSchedDlTriggerReq (const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &params)
	Sched DL trigger request. More...

void	DoSchedUlCqiInfoReq (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)
	Sched UL CQI info request. More...

void	DoSchedUlMacCtrlInfoReq (const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &params)
	Sched UL MAC control info request. More...

void	DoSchedUlNoiseInterferenceReq (const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &params)
	Sched UL noise interference request. More...

void	DoSchedUlSrInfoReq (const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &params)
	Sched UL SR info request. More...

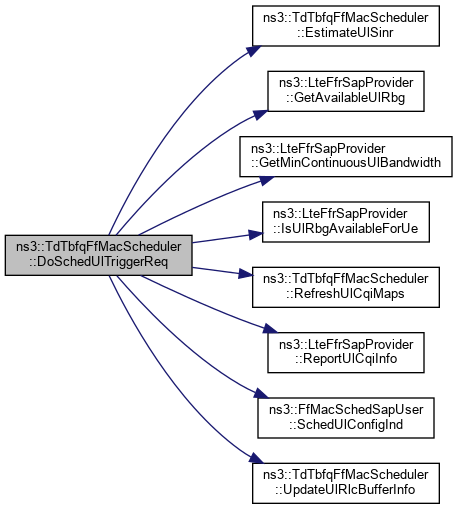

void	DoSchedUlTriggerReq (const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &params)
	Sched UL trigger request. More...

double	EstimateUlSinr (uint16_t rnti, uint16_t rb)
	Estimate UL SINR function. More...

int	GetRbgSize (int dlbandwidth)
	Get RBG size. More...

uint8_t	HarqProcessAvailability (uint16_t rnti)
	Return the availability of free process for the RNTI specified. More...

unsigned int	LcActivePerFlow (uint16_t rnti)
	LC active flow size. More...

void	RefreshDlCqiMaps (void)
	Refresh DL CQI maps function. More...

void	RefreshHarqProcesses ()
	Refresh HARQ processes according to the timers. More...

void	RefreshUlCqiMaps (void)
	Refresh UL CQI maps function. More...

void	UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size)
	Update DL RLC buffer info function. More...

uint8_t	UpdateHarqProcessId (uint16_t rnti)
	Update and return a new process Id for the RNTI specified. More...

void	UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size)
	Update UL RLC buffer info function. More...

Private Attributes
uint64_t	bankSize
	the number of bytes in token bank More...

std::map< uint16_t, SbMeasResult_s >	m_a30CqiRxed
	Map of UE's DL CQI A30 received. More...

std::map< uint16_t, uint32_t >	m_a30CqiTimers
	Map of UE's timers on DL CQI A30 received. More...

std::map< uint16_t, std::vector< uint16_t > >	m_allocationMaps
	Map of previous allocated UE per RBG (used to retrieve info from UL-CQI) More...

Ptr< LteAmc >	m_amc
	AMC. More...

std::map< uint16_t, uint32_t >	m_ceBsrRxed
	Map of UE's buffer status reports received. More...

uint32_t	m_cqiTimersThreshold

uint32_t	m_creditableThreshold
	threshold of flow credit More...

uint32_t	m_creditLimit
	flow credit limit (byte) More...

FfMacCschedSapProvider::CschedCellConfigReqParameters	m_cschedCellConfig
	CSched cell config. More...

FfMacCschedSapProvider *	m_cschedSapProvider
	CSched SAP provider. More...

FfMacCschedSapUser *	m_cschedSapUser
	CSched SAP user. More...

int	m_debtLimit
	flow debt limit (byte) More...

std::map< uint16_t, uint8_t >	m_dlHarqCurrentProcessId
	DL HARQ current process ID. More...

std::map< uint16_t, DlHarqProcessesDciBuffer_t >	m_dlHarqProcessesDciBuffer
	DL HARQ process DCI buffer. More...

std::map< uint16_t, DlHarqRlcPduListBuffer_t >	m_dlHarqProcessesRlcPduListBuffer
	DL HARQ process RLC PDU list buffer. More...

std::map< uint16_t, DlHarqProcessesStatus_t >	m_dlHarqProcessesStatus
	DL HARQ process status. More...

std::map< uint16_t, DlHarqProcessesTimer_t >	m_dlHarqProcessesTimer
	DL HARQ process timer. More...

std::vector< DlInfoListElement_s >	m_dlInfoListBuffered
	HARQ retx buffered. More...

LteFfrSapProvider *	m_ffrSapProvider
	FFR SAP provider. More...

LteFfrSapUser *	m_ffrSapUser
	FFR SAP user. More...

std::map< uint16_t, tdtbfqsFlowPerf_t >	m_flowStatsDl
	Map of UE statistics (per RNTI basis) in downlink. More...

std::map< uint16_t, tdtbfqsFlowPerf_t >	m_flowStatsUl
	Map of UE statistics (per RNTI basis) More...

bool	m_harqOn
	m_harqOn when false inhibit the HARQ mechanisms (by default active) More...

uint16_t	m_nextRntiUl
	RNTI of the next user to be served next scheduling in UL. More...

std::map< uint16_t, uint8_t >	m_p10CqiRxed
	Map of UE's DL CQI P01 received. More...

std::map< uint16_t, uint32_t >	m_p10CqiTimers
	Map of UE's timers on DL CQI P01 received. More...

std::vector< uint16_t >	m_rachAllocationMap
	RACH allocation map. More...

std::vector< struct RachListElement_s >	m_rachList
	RACH list. More...

std::map< LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters >	m_rlcBufferReq
	Vectors of UE's LC info. More...

FfMacSchedSapProvider *	m_schedSapProvider
	Sched SAP provider. More...

FfMacSchedSapUser *	m_schedSapUser
	A=Sched SAP user. More...

uint32_t	m_tokenPoolSize
	maximum size of token pool (byte) More...

std::map< uint16_t, std::vector< double > >	m_ueCqi
	Map of UEs' UL-CQI per RBG. More...

std::map< uint16_t, uint32_t >	m_ueCqiTimers
	Map of UEs' timers on UL-CQI per RBG. More...

std::map< uint16_t, uint8_t >	m_uesTxMode
	txMode of the UEs More...

uint8_t	m_ulGrantMcs
	MCS for UL grant (default 0) More...

std::map< uint16_t, uint8_t >	m_ulHarqCurrentProcessId
	UL HARQ current process ID. More...

std::map< uint16_t, UlHarqProcessesDciBuffer_t >	m_ulHarqProcessesDciBuffer
	UL HARQ process DCI buffer. More...

std::map< uint16_t, UlHarqProcessesStatus_t >	m_ulHarqProcessesStatus
	UL HARQ process status. More...

Friends
class	MemberCschedSapProvider< TdTbfqFfMacScheduler >
	allow MemberCschedSapProvider<TdTbfqFfMacScheduler> class friend access More...

class	MemberSchedSapProvider< TdTbfqFfMacScheduler >
	allow MemberSchedSapProvider<TdTbfqFfMacScheduler> class friend access More...

Additional Inherited Members
Public Types inherited from ns3::FfMacScheduler
enum	UlCqiFilter_t { SRS_UL_CQI , PUSCH_UL_CQI }
	The type of UL CQI to be filtered (ALL means accept all the CQI, where a new CQI of any type overwrite the old one, even of another type) More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::FfMacScheduler
UlCqiFilter_t	m_ulCqiFilter
	UL CQI filter. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implements the SCHED SAP and CSCHED SAP for a Time Domain Token Bank Fair Queue scheduler.

This class implements the interface defined by the FfMacScheduler abstract class

Config Paths

ns3::TdTbfqFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]/FfMacScheduler/$ns3::TdTbfqFfMacScheduler"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/ComponentCarrierMap/[i]/FfMacScheduler/$ns3::TdTbfqFfMacScheduler"

Attributes

CqiTimerThreshold: The number of TTIs a CQI is valid (default 1000 - 1 sec.)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1000
- Flags: construct write read
DebtLimit: Flow debt limit (default -625000 bytes)
- Set with class: ns3::IntegerValue
- Underlying type: int32_t -2147483648:2147483647
- Initial value: -625000
- Flags: construct write read
CreditLimit: Flow credit limit (default 625000 bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 625000
- Flags: construct write read
TokenPoolSize: The maximum value of flow token pool (default 1 bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read
CreditableThreshold: Threshold of flow credit (default 0 bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
HarqEnabled: Activate/Deactivate the HARQ [by default is active].
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
UlGrantMcs: The MCS of the UL grant, must be [0..15] (default 0)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::FfMacScheduler

UlCqiFilter: The filter to apply on UL CQIs received
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: SRS_UL_CQI
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 1368 bytes (on a 64-bit architecture).

Definition at line 79 of file tdtbfq-ff-mac-scheduler.h.

Constructor & Destructor Documentation

◆ TdTbfqFfMacScheduler()

ns3::TdTbfqFfMacScheduler::TdTbfqFfMacScheduler ( )

Constructor.

Creates the MAC Scheduler interface implementation

Definition at line 52 of file tdtbfq-ff-mac-scheduler.cc.

References m_amc, m_cschedSapProvider, m_ffrSapProvider, m_ffrSapUser, m_schedSapProvider, MemberCschedSapProvider< TdTbfqFfMacScheduler >, and MemberSchedSapProvider< TdTbfqFfMacScheduler >.

◆ ~TdTbfqFfMacScheduler()

ns3::TdTbfqFfMacScheduler::~TdTbfqFfMacScheduler ( )

virtual

Destructor.

Definition at line 65 of file tdtbfq-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ DoCschedCellConfigReq()

void ns3::TdTbfqFfMacScheduler::DoCschedCellConfigReq ( const struct FfMacCschedSapProvider::CschedCellConfigReqParameters & params )

private

CSched cell config request.

Parameters

params FfMacCschedSapProvider::CschedCellConfigReqParameters

Definition at line 172 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, m_rachAllocationMap, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::SUCCESS.

Here is the call graph for this function:

◆ DoCschedLcConfigReq()

void ns3::TdTbfqFfMacScheduler::DoCschedLcConfigReq ( const struct FfMacCschedSapProvider::CschedLcConfigReqParameters & params )

private

CSched LC config request.

Parameters

params FfMacCschedSapProvider::CschedLcConfigReqParameters

Definition at line 224 of file tdtbfq-ff-mac-scheduler.cc.

Here is the call graph for this function:

◆ DoCschedLcReleaseReq()

void ns3::TdTbfqFfMacScheduler::DoCschedLcReleaseReq ( const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters & params )

private

CSched LC release request.

Parameters

params FfMacCschedSapProvider::CschedLcReleaseReqParameters

Definition at line 276 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_rnti, and NS_LOG_FUNCTION.

◆ DoCschedUeConfigReq()

void ns3::TdTbfqFfMacScheduler::DoCschedUeConfigReq ( const struct FfMacCschedSapProvider::CschedUeConfigReqParameters & params )

private

CSched UE config request.

Parameters

params FfMacCschedSapProvider::CschedUeConfigReqParameters

Definition at line 185 of file tdtbfq-ff-mac-scheduler.cc.

References m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

◆ DoCschedUeReleaseReq()

void ns3::TdTbfqFfMacScheduler::DoCschedUeReleaseReq ( const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters & params )

private

CSched UE release request.

Parameters

params FfMacCschedSapProvider::CschedUeReleaseReqParameters

Definition at line 301 of file tdtbfq-ff-mac-scheduler.cc.

References m_ceBsrRxed, m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_flowStatsDl, m_flowStatsUl, m_nextRntiUl, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedUeReleaseReqParameters::m_rnti, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

◆ DoDispose()

void ns3::TdTbfqFfMacScheduler::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::FfMacScheduler.

Definition at line 71 of file tdtbfq-ff-mac-scheduler.cc.

References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_ffrSapUser, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

◆ DoSchedDlCqiInfoReq()

void ns3::TdTbfqFfMacScheduler::DoSchedDlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters & params )

private

Sched DL CQI info request.

Parameters

params FfMacSchedSapProvider::SchedDlCqiInfoReqParameters

Definition at line 1284 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, ns3::FfMacSchedSapProvider::SchedDlCqiInfoReqParameters::m_cqiList, m_cqiTimersThreshold, m_ffrSapProvider, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::CqiListElement_s::P10, and ns3::LteFfrSapProvider::ReportDlCqiInfo().

Here is the call graph for this function:

◆ DoSchedDlMacBufferReq()

void ns3::TdTbfqFfMacScheduler::DoSchedDlMacBufferReq ( const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters & params )

private

Sched DL MAC buffer request.

Parameters

params FfMacSchedSapProvider::SchedDlMacBufferReqParameters

Definition at line 374 of file tdtbfq-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ DoSchedDlPagingBufferReq()

void ns3::TdTbfqFfMacScheduler::DoSchedDlPagingBufferReq ( const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters & params )

private

Sched DL paging buffer request.

Parameters

params FfMacSchedSapProvider::SchedDlPagingBufferReqParameters

Definition at line 366 of file tdtbfq-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ DoSchedDlRachInfoReq()

void ns3::TdTbfqFfMacScheduler::DoSchedDlRachInfoReq ( const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters & params )

private

Sched DL RACH info request.

Parameters

params FfMacSchedSapProvider::SchedDlRachInfoReqParameters

Definition at line 1274 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRachInfoReqParameters::m_rachList, m_rachList, and NS_LOG_FUNCTION.

◆ DoSchedDlRlcBufferReq()

void ns3::TdTbfqFfMacScheduler::DoSchedDlRlcBufferReq ( const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters & params )

private

Sched DL RLC buffer request.

Parameters

params FfMacSchedSapProvider::SchedDlRlcBufferReqParameters

Definition at line 342 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rnti, and NS_LOG_FUNCTION.

◆ DoSchedDlTriggerReq()

void ns3::TdTbfqFfMacScheduler::DoSchedDlTriggerReq ( const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters & params )

private

Sched DL trigger request.

Parameters

params FfMacSchedSapProvider::SchedDlTriggerReqParameters

Todo:: check correct value according the DCIs txed

Definition at line 527 of file tdtbfq-ff-mac-scheduler.cc.

Here is the call graph for this function:

◆ DoSchedUlCqiInfoReq()

void ns3::TdTbfqFfMacScheduler::DoSchedUlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters & params )

private

Sched UL CQI info request.

Parameters

params FfMacSchedSapProvider::SchedUlCqiInfoReqParameters

Definition at line 1821 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_sfnSf, ns3::UlCqi_s::m_sinr, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, ns3::FfMacScheduler::m_ulCqiFilter, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList, NO_SINR, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.

Here is the call graph for this function:

◆ DoSchedUlMacCtrlInfoReq()

void ns3::TdTbfqFfMacScheduler::DoSchedUlMacCtrlInfoReq ( const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters & params )

private

Sched UL MAC control info request.

Parameters

params FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters

Definition at line 1777 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, ns3::FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters::m_macCeList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ DoSchedUlNoiseInterferenceReq()

void ns3::TdTbfqFfMacScheduler::DoSchedUlNoiseInterferenceReq ( const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters & params )

private

Sched UL noise interference request.

Parameters

params FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters

Definition at line 1763 of file tdtbfq-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

◆ DoSchedUlSrInfoReq()

void ns3::TdTbfqFfMacScheduler::DoSchedUlSrInfoReq ( const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters & params )

private

Sched UL SR info request.

Parameters

params FfMacSchedSapProvider::SchedUlSrInfoReqParameters

Definition at line 1770 of file tdtbfq-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

◆ DoSchedUlTriggerReq()

void ns3::TdTbfqFfMacScheduler::DoSchedUlTriggerReq ( const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters & params )

private

Sched UL trigger request.

Parameters

params FfMacSchedSapProvider::SchedUlTriggerReqParameters

Definition at line 1377 of file tdtbfq-ff-mac-scheduler.cc.

Here is the call graph for this function:

◆ EstimateUlSinr()

double ns3::TdTbfqFfMacScheduler::EstimateUlSinr	(	uint16_t	rnti,
		uint16_t	rb
	)

private

Estimate UL SINR function.

Parameters

rnti	the RNTI
rb	the RB

Returns: the SINR

Definition at line 1346 of file tdtbfq-ff-mac-scheduler.cc.

References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and NO_SINR.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

◆ GetFfMacCschedSapProvider()

FfMacCschedSapProvider * ns3::TdTbfqFfMacScheduler::GetFfMacCschedSapProvider ( )

virtual

Returns: the Provider part of the FfMacCschedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 148 of file tdtbfq-ff-mac-scheduler.cc.

References m_cschedSapProvider.

◆ GetFfMacSchedSapProvider()

FfMacSchedSapProvider * ns3::TdTbfqFfMacScheduler::GetFfMacSchedSapProvider ( )

virtual

Returns: the Provider part of the FfMacSchedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 154 of file tdtbfq-ff-mac-scheduler.cc.

References m_schedSapProvider.

◆ GetLteFfrSapUser()

LteFfrSapUser * ns3::TdTbfqFfMacScheduler::GetLteFfrSapUser ( )

virtual

Returns: the User part of the LteFfrSap provided by the FfrAlgorithm

Implements ns3::FfMacScheduler.

Definition at line 166 of file tdtbfq-ff-mac-scheduler.cc.

References m_ffrSapUser.

◆ GetRbgSize()

int ns3::TdTbfqFfMacScheduler::GetRbgSize ( int dlbandwidth )

private

Get RBG size.

Parameters

dlbandwidth he DL bandwidth

Returns: the RBG size

Definition at line 382 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::TdTbfqType0AllocationRbg.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::TdTbfqFfMacScheduler::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 87 of file tdtbfq-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_creditableThreshold, m_creditLimit, m_debtLimit, m_harqOn, m_tokenPoolSize, m_ulGrantMcs, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeIntegerAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HarqProcessAvailability()

uint8_t ns3::TdTbfqFfMacScheduler::HarqProcessAvailability ( uint16_t rnti )

private

Return the availability of free process for the RNTI specified.

Parameters

rnti	the RNTI of the UE to be updated

Returns: the process id value

Definition at line 420 of file tdtbfq-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ LcActivePerFlow()

unsigned int ns3::TdTbfqFfMacScheduler::LcActivePerFlow ( uint16_t rnti )

private

LC active flow size.

Parameters

rnti the RNTI

Returns: the LC active flow

Definition at line 397 of file tdtbfq-ff-mac-scheduler.cc.

References m_rlcBufferReq.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ RefreshDlCqiMaps()

void ns3::TdTbfqFfMacScheduler::RefreshDlCqiMaps ( void )

private

Refresh DL CQI maps function.

Definition at line 1967 of file tdtbfq-ff-mac-scheduler.cc.

References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ RefreshHarqProcesses()

void ns3::TdTbfqFfMacScheduler::RefreshHarqProcesses ( )

private

Refresh HARQ processes according to the timers.

Definition at line 494 of file tdtbfq-ff-mac-scheduler.cc.

References HARQ_DL_TIMEOUT, HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ RefreshUlCqiMaps()

void ns3::TdTbfqFfMacScheduler::RefreshUlCqiMaps ( void )

private

Refresh UL CQI maps function.

Definition at line 2020 of file tdtbfq-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

◆ SetFfMacCschedSapUser()

void ns3::TdTbfqFfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser * s )

virtual

set the user part of the FfMacCschedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 136 of file tdtbfq-ff-mac-scheduler.cc.

References m_cschedSapUser.

◆ SetFfMacSchedSapUser()

void ns3::TdTbfqFfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser * s )

virtual

set the user part of the FfMacSchedSap that this Scheduler will interact with.

Normally this part of the SAP is exported by the MAC.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 142 of file tdtbfq-ff-mac-scheduler.cc.

References m_schedSapUser.

◆ SetLteFfrSapProvider()

void ns3::TdTbfqFfMacScheduler::SetLteFfrSapProvider ( LteFfrSapProvider * s )

virtual

Set the Provider part of the LteFfrSap that this Scheduler will interact with.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 160 of file tdtbfq-ff-mac-scheduler.cc.

References m_ffrSapProvider.

◆ TransmissionModeConfigurationUpdate()

void ns3::TdTbfqFfMacScheduler::TransmissionModeConfigurationUpdate	(	uint16_t	rnti,
		uint8_t	txMode
	)

Transmission mde configuration update function.

Parameters

rnti	the RNTI
txMode	the transmission mode

Definition at line 2127 of file tdtbfq-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_rnti, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_transmissionMode, and NS_LOG_FUNCTION.

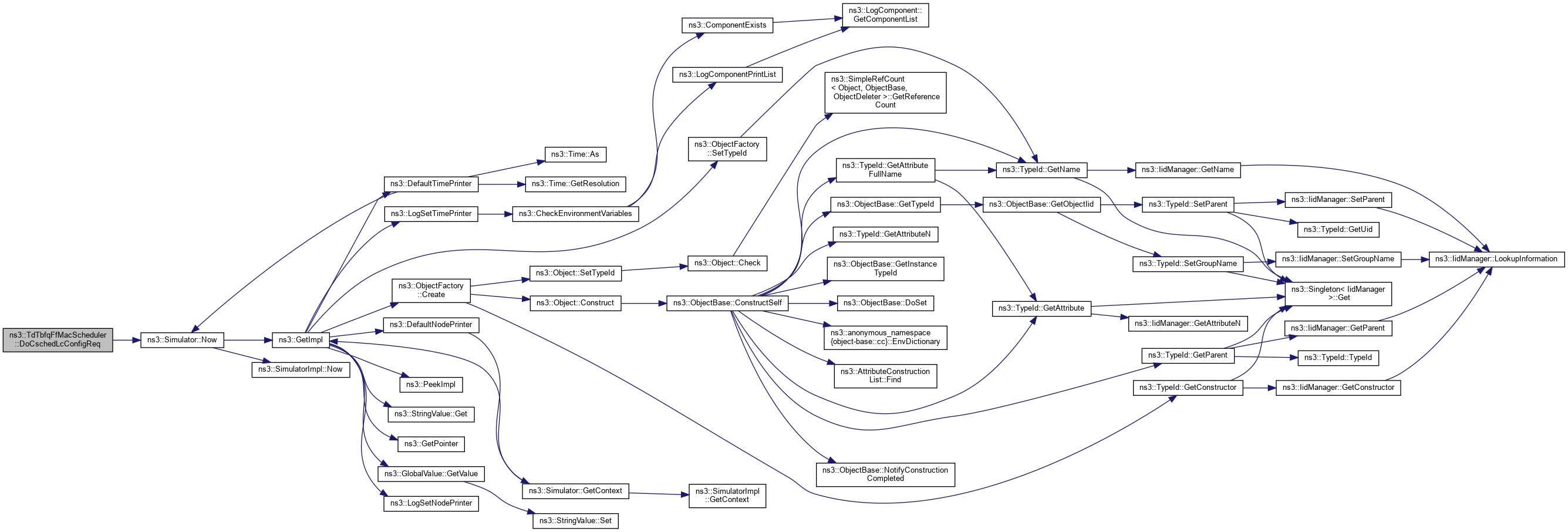

Here is the call graph for this function:

◆ UpdateDlRlcBufferInfo()

void ns3::TdTbfqFfMacScheduler::UpdateDlRlcBufferInfo	(	uint16_t	rnti,
		uint8_t	lcid,
		uint16_t	size
	)

private

Update DL RLC buffer info function.

Parameters

rnti	the RNTI
lcid	the LCID
size	the size

Definition at line 2050 of file tdtbfq-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ UpdateHarqProcessId()

uint8_t ns3::TdTbfqFfMacScheduler::UpdateHarqProcessId ( uint16_t rnti )

private

Update and return a new process Id for the RNTI specified.

Parameters

rnti	the RNTI of the UE to be updated

Returns: the process id value

Definition at line 453 of file tdtbfq-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

◆ UpdateUlRlcBufferInfo()

void ns3::TdTbfqFfMacScheduler::UpdateUlRlcBufferInfo	(	uint16_t	rnti,
		uint16_t	size
	)

private

Update UL RLC buffer info function.

Parameters

rnti	the RNTI
size	the size

Definition at line 2102 of file tdtbfq-ff-mac-scheduler.cc.

References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ MemberCschedSapProvider< TdTbfqFfMacScheduler >

friend class MemberCschedSapProvider< TdTbfqFfMacScheduler >

friend

allow MemberCschedSapProvider<TdTbfqFfMacScheduler> class friend access

Definition at line 110 of file tdtbfq-ff-mac-scheduler.h.

Referenced by TdTbfqFfMacScheduler().

◆ MemberSchedSapProvider< TdTbfqFfMacScheduler >

friend class MemberSchedSapProvider< TdTbfqFfMacScheduler >

friend

allow MemberSchedSapProvider<TdTbfqFfMacScheduler> class friend access

Definition at line 110 of file tdtbfq-ff-mac-scheduler.h.

Referenced by TdTbfqFfMacScheduler().

Member Data Documentation

◆ bankSize

uint64_t ns3::TdTbfqFfMacScheduler::bankSize

private

the number of bytes in token bank

Definition at line 371 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq().

◆ m_a30CqiRxed

std::map<uint16_t,SbMeasResult_s> ns3::TdTbfqFfMacScheduler::m_a30CqiRxed

private

Map of UE's DL CQI A30 received.

Definition at line 325 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

◆ m_a30CqiTimers

std::map<uint16_t,uint32_t> ns3::TdTbfqFfMacScheduler::m_a30CqiTimers

private

Map of UE's timers on DL CQI A30 received.

Definition at line 329 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

◆ m_allocationMaps

std::map<uint16_t, std::vector <uint16_t> > ns3::TdTbfqFfMacScheduler::m_allocationMaps

private

Map of previous allocated UE per RBG (used to retrieve info from UL-CQI)

Definition at line 335 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

◆ m_amc

Ptr<LteAmc> ns3::TdTbfqFfMacScheduler::m_amc

private

AMC.

Definition at line 294 of file tdtbfq-ff-mac-scheduler.h.

Referenced by TdTbfqFfMacScheduler(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

◆ m_ceBsrRxed

std::map<uint16_t,uint32_t> ns3::TdTbfqFfMacScheduler::m_ceBsrRxed

private

Map of UE's buffer status reports received.

Definition at line 349 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().

◆ m_cqiTimersThreshold

uint32_t ns3::TdTbfqFfMacScheduler::m_cqiTimersThreshold

private

of TTIs for which a CQI can be considered valid

Definition at line 367 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().

◆ m_creditableThreshold

uint32_t ns3::TdTbfqFfMacScheduler::m_creditableThreshold

private

threshold of flow credit

Definition at line 379 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and GetTypeId().

◆ m_creditLimit

uint32_t ns3::TdTbfqFfMacScheduler::m_creditLimit

private

flow credit limit (byte)

Definition at line 375 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and GetTypeId().

◆ m_cschedCellConfig

FfMacCschedSapProvider::CschedCellConfigReqParameters ns3::TdTbfqFfMacScheduler::m_cschedCellConfig

private

CSched cell config.

Definition at line 362 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and EstimateUlSinr().

◆ m_cschedSapProvider

FfMacCschedSapProvider* ns3::TdTbfqFfMacScheduler::m_cschedSapProvider

private

CSched SAP provider.

Definition at line 354 of file tdtbfq-ff-mac-scheduler.h.

Referenced by TdTbfqFfMacScheduler(), DoDispose(), and GetFfMacCschedSapProvider().

◆ m_cschedSapUser

FfMacCschedSapUser* ns3::TdTbfqFfMacScheduler::m_cschedSapUser

private

CSched SAP user.

Definition at line 352 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().

◆ m_debtLimit

int ns3::TdTbfqFfMacScheduler::m_debtLimit

private

flow debt limit (byte)

Definition at line 373 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and GetTypeId().

◆ m_dlHarqCurrentProcessId

std::map<uint16_t, uint8_t> ns3::TdTbfqFfMacScheduler::m_dlHarqCurrentProcessId

private

DL HARQ current process ID.

Definition at line 386 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().

◆ m_dlHarqProcessesDciBuffer

std::map<uint16_t, DlHarqProcessesDciBuffer_t> ns3::TdTbfqFfMacScheduler::m_dlHarqProcessesDciBuffer

private

DL HARQ process DCI buffer.

Definition at line 392 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

◆ m_dlHarqProcessesRlcPduListBuffer

std::map<uint16_t, DlHarqRlcPduListBuffer_t> ns3::TdTbfqFfMacScheduler::m_dlHarqProcessesRlcPduListBuffer

private

DL HARQ process RLC PDU list buffer.

Definition at line 393 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

◆ m_dlHarqProcessesStatus

std::map<uint16_t, DlHarqProcessesStatus_t> ns3::TdTbfqFfMacScheduler::m_dlHarqProcessesStatus

private

DL HARQ process status.

Definition at line 390 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoSchedDlTriggerReq(), HarqProcessAvailability(), RefreshHarqProcesses(), and UpdateHarqProcessId().

◆ m_dlHarqProcessesTimer

std::map<uint16_t, DlHarqProcessesTimer_t> ns3::TdTbfqFfMacScheduler::m_dlHarqProcessesTimer

private

DL HARQ process timer.

Definition at line 391 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().

◆ m_dlInfoListBuffered

std::vector<DlInfoListElement_s> ns3::TdTbfqFfMacScheduler::m_dlInfoListBuffered

private

HARQ retx buffered.

Definition at line 394 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoDispose(), and DoSchedDlTriggerReq().

◆ m_ffrSapProvider

LteFfrSapProvider* ns3::TdTbfqFfMacScheduler::m_ffrSapProvider

private

FFR SAP provider.

Definition at line 359 of file tdtbfq-ff-mac-scheduler.h.

Referenced by TdTbfqFfMacScheduler(), DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetLteFfrSapProvider().

◆ m_ffrSapUser

LteFfrSapUser* ns3::TdTbfqFfMacScheduler::m_ffrSapUser

private

FFR SAP user.

Definition at line 358 of file tdtbfq-ff-mac-scheduler.h.

Referenced by TdTbfqFfMacScheduler(), DoDispose(), and GetLteFfrSapUser().

◆ m_flowStatsDl

std::map<uint16_t, tdtbfqsFlowPerf_t> ns3::TdTbfqFfMacScheduler::m_flowStatsDl

private

Map of UE statistics (per RNTI basis) in downlink.

Definition at line 305 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

◆ m_flowStatsUl

std::map<uint16_t, tdtbfqsFlowPerf_t> ns3::TdTbfqFfMacScheduler::m_flowStatsUl

private

Map of UE statistics (per RNTI basis)

Definition at line 310 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and DoCschedUeReleaseReq().

◆ m_harqOn

bool ns3::TdTbfqFfMacScheduler::m_harqOn

private

m_harqOn when false inhibit the HARQ mechanisms (by default active)

Definition at line 385 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().

◆ m_nextRntiUl

uint16_t ns3::TdTbfqFfMacScheduler::m_nextRntiUl

private

RNTI of the next user to be served next scheduling in UL.

Definition at line 365 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().

◆ m_p10CqiRxed

std::map<uint16_t,uint8_t> ns3::TdTbfqFfMacScheduler::m_p10CqiRxed

private

Map of UE's DL CQI P01 received.

Definition at line 316 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

◆ m_p10CqiTimers

std::map<uint16_t,uint32_t> ns3::TdTbfqFfMacScheduler::m_p10CqiTimers

private

Map of UE's timers on DL CQI P01 received.

Definition at line 320 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

◆ m_rachAllocationMap

std::vector<uint16_t> ns3::TdTbfqFfMacScheduler::m_rachAllocationMap

private

RACH allocation map.

Definition at line 406 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

◆ m_rachList

std::vector<struct RachListElement_s> ns3::TdTbfqFfMacScheduler::m_rachList

private

RACH list.

Definition at line 405 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().

◆ m_rlcBufferReq

std::map<LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters> ns3::TdTbfqFfMacScheduler::m_rlcBufferReq

private

Vectors of UE's LC info.

Definition at line 299 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedLcReleaseReq(), DoCschedUeReleaseReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), LcActivePerFlow(), and UpdateDlRlcBufferInfo().

◆ m_schedSapProvider

FfMacSchedSapProvider* ns3::TdTbfqFfMacScheduler::m_schedSapProvider

private

Sched SAP provider.

Definition at line 355 of file tdtbfq-ff-mac-scheduler.h.

Referenced by TdTbfqFfMacScheduler(), DoDispose(), and GetFfMacSchedSapProvider().

◆ m_schedSapUser

FfMacSchedSapUser* ns3::TdTbfqFfMacScheduler::m_schedSapUser

private

A=Sched SAP user.

Definition at line 353 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().

◆ m_tokenPoolSize

uint32_t ns3::TdTbfqFfMacScheduler::m_tokenPoolSize

private

maximum size of token pool (byte)

Definition at line 377 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and GetTypeId().

◆ m_ueCqi

std::map<uint16_t, std::vector <double> > ns3::TdTbfqFfMacScheduler::m_ueCqi

private

Map of UEs' UL-CQI per RBG.

Definition at line 340 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().

◆ m_ueCqiTimers

std::map<uint16_t, uint32_t> ns3::TdTbfqFfMacScheduler::m_ueCqiTimers

private

Map of UEs' timers on UL-CQI per RBG.

Definition at line 344 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().

◆ m_uesTxMode

std::map<uint16_t,uint8_t> ns3::TdTbfqFfMacScheduler::m_uesTxMode

private

txMode of the UEs

Definition at line 369 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

◆ m_ulGrantMcs

uint8_t ns3::TdTbfqFfMacScheduler::m_ulGrantMcs

private

MCS for UL grant (default 0)

Definition at line 407 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

◆ m_ulHarqCurrentProcessId

std::map<uint16_t, uint8_t> ns3::TdTbfqFfMacScheduler::m_ulHarqCurrentProcessId

private

UL HARQ current process ID.

Definition at line 396 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

◆ m_ulHarqProcessesDciBuffer

std::map<uint16_t, UlHarqProcessesDciBuffer_t> ns3::TdTbfqFfMacScheduler::m_ulHarqProcessesDciBuffer

private

UL HARQ process DCI buffer.

Definition at line 401 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

◆ m_ulHarqProcessesStatus

std::map<uint16_t, UlHarqProcessesStatus_t> ns3::TdTbfqFfMacScheduler::m_ulHarqProcessesStatus

private

UL HARQ process status.

Definition at line 400 of file tdtbfq-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().

The documentation for this class was generated from the following files:

src/lte/model/tdtbfq-ff-mac-scheduler.h
src/lte/model/tdtbfq-ff-mac-scheduler.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::FfMacScheduler

Constructor & Destructor Documentation

◆ TdTbfqFfMacScheduler()

◆ ~TdTbfqFfMacScheduler()

Member Function Documentation

◆ DoCschedCellConfigReq()

◆ DoCschedLcConfigReq()

◆ DoCschedLcReleaseReq()

◆ DoCschedUeConfigReq()

◆ DoCschedUeReleaseReq()

◆ DoDispose()

◆ DoSchedDlCqiInfoReq()

◆ DoSchedDlMacBufferReq()

◆ DoSchedDlPagingBufferReq()

◆ DoSchedDlRachInfoReq()

◆ DoSchedDlRlcBufferReq()

◆ DoSchedDlTriggerReq()

◆ DoSchedUlCqiInfoReq()

◆ DoSchedUlMacCtrlInfoReq()

◆ DoSchedUlNoiseInterferenceReq()

◆ DoSchedUlSrInfoReq()

◆ DoSchedUlTriggerReq()

◆ EstimateUlSinr()

◆ GetFfMacCschedSapProvider()

◆ GetFfMacSchedSapProvider()

◆ GetLteFfrSapUser()

◆ GetRbgSize()

◆ GetTypeId()

◆ HarqProcessAvailability()

◆ LcActivePerFlow()

◆ RefreshDlCqiMaps()

◆ RefreshHarqProcesses()

◆ RefreshUlCqiMaps()

◆ SetFfMacCschedSapUser()

◆ SetFfMacSchedSapUser()

◆ SetLteFfrSapProvider()

◆ TransmissionModeConfigurationUpdate()

◆ UpdateDlRlcBufferInfo()

◆ UpdateHarqProcessId()

◆ UpdateUlRlcBufferInfo()

Friends And Related Function Documentation

◆ MemberCschedSapProvider< TdTbfqFfMacScheduler >

◆ MemberSchedSapProvider< TdTbfqFfMacScheduler >

Member Data Documentation

◆ bankSize

◆ m_a30CqiRxed

◆ m_a30CqiTimers

◆ m_allocationMaps

◆ m_amc

◆ m_ceBsrRxed

◆ m_cqiTimersThreshold

of TTIs for which a CQI can be considered valid

◆ m_creditableThreshold

◆ m_creditLimit

◆ m_cschedCellConfig

◆ m_cschedSapProvider

◆ m_cschedSapUser

◆ m_debtLimit

◆ m_dlHarqCurrentProcessId

◆ m_dlHarqProcessesDciBuffer

◆ m_dlHarqProcessesRlcPduListBuffer

◆ m_dlHarqProcessesStatus

◆ m_dlHarqProcessesTimer

◆ m_dlInfoListBuffered

◆ m_ffrSapProvider

◆ m_ffrSapUser

◆ m_flowStatsDl

◆ m_flowStatsUl

◆ m_harqOn

◆ m_nextRntiUl

◆ m_p10CqiRxed
