Creation and configuration of LTE entities. More...

#include "lte-helper.h"

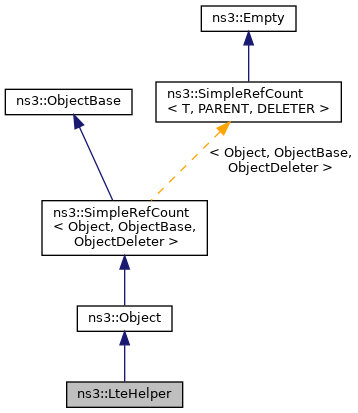

Inheritance diagram for ns3::LteHelper:

Collaboration diagram for ns3::LteHelper:

Public Member Functions
	LteHelper ()

	~LteHelper () override

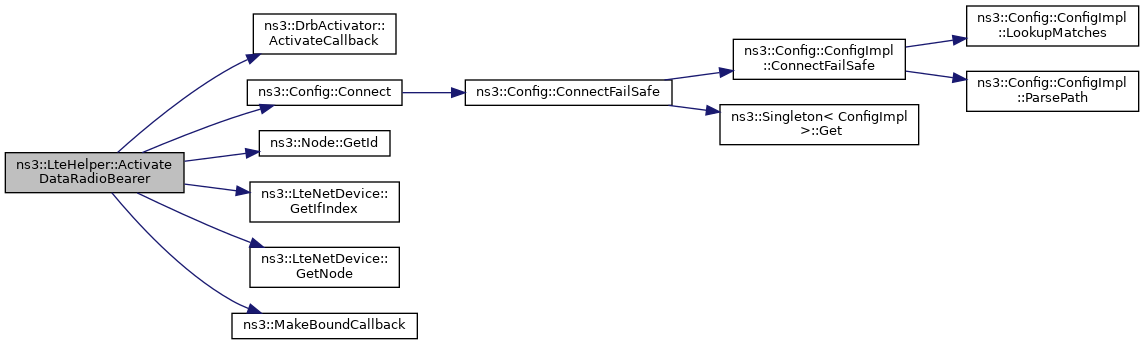

void	ActivateDataRadioBearer (NetDeviceContainer ueDevices, EpsBearer bearer)
	Activate a Data Radio Bearer on a given UE devices (for LTE-only simulation). More...

void	ActivateDataRadioBearer (Ptr< NetDevice > ueDevice, EpsBearer bearer)
	Activate a Data Radio Bearer on a UE device (for LTE-only simulation). More...

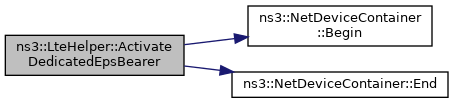

uint8_t	ActivateDedicatedEpsBearer (NetDeviceContainer ueDevices, EpsBearer bearer, Ptr< EpcTft > tft)
	Activate a dedicated EPS bearer on a given set of UE devices. More...

uint8_t	ActivateDedicatedEpsBearer (Ptr< NetDevice > ueDevice, EpsBearer bearer, Ptr< EpcTft > tft)
	Activate a dedicated EPS bearer on a given UE device. More...

void	AddX2Interface (NodeContainer enbNodes)
	Create an X2 interface between all the eNBs in a given set. More...

void	AddX2Interface (Ptr< Node > enbNode1, Ptr< Node > enbNode2)
	Create an X2 interface between two eNBs. More...

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used. More...

void	Attach (NetDeviceContainer ueDevices)
	Enables automatic attachment of a set of UE devices to a suitable cell using Idle mode initial cell selection procedure. More...

void	Attach (NetDeviceContainer ueDevices, Ptr< NetDevice > enbDevice)
	Manual attachment of a set of UE devices to the network via a given eNodeB. More...

void	Attach (Ptr< NetDevice > ueDevice)
	Enables automatic attachment of a UE device to a suitable cell using Idle mode initial cell selection procedure. More...

void	Attach (Ptr< NetDevice > ueDevice, Ptr< NetDevice > enbDevice, uint8_t componentCarrierId=0)
	Manual attachment of a UE device to the network via a given eNodeB. More...

void	AttachToClosestEnb (NetDeviceContainer ueDevices, NetDeviceContainer enbDevices)
	Manual attachment of a set of UE devices to the network via the closest eNodeB (with respect to distance) among those in the set. More...

void	AttachToClosestEnb (Ptr< NetDevice > ueDevice, NetDeviceContainer enbDevices)
	Manual attachment of a UE device to the network via the closest eNodeB (with respect to distance) among those in the set. More...

void	DeActivateDedicatedEpsBearer (Ptr< NetDevice > ueDevice, Ptr< NetDevice > enbDevice, uint8_t bearerId)
	Manually trigger dedicated bearer de-activation at specific simulation time. More...

void	DoDispose () override
	Destructor implementation. More...

void	EnableDlMacTraces ()
	Enable trace sinks for DL MAC layer. More...

void	EnableDlPhyTraces ()
	Enable trace sinks for DL PHY layer. More...

void	EnableDlRxPhyTraces ()
	Enable trace sinks for DL reception PHY layer. More...

void	EnableDlTxPhyTraces ()
	Enable trace sinks for DL transmission PHY layer. More...

void	EnableLogComponents ()
	Enables full-blown logging for major components of the LENA architecture. More...

void	EnableMacTraces ()
	Enable trace sinks for MAC layer. More...

void	EnablePdcpTraces ()
	Enable trace sinks for PDCP layer. More...

void	EnablePhyTraces ()
	Enable trace sinks for PHY layer. More...

void	EnableRlcTraces ()
	Enable trace sinks for RLC layer. More...

void	EnableTraces ()
	Enables trace sinks for PHY, MAC, RLC and PDCP. More...

void	EnableUlMacTraces ()
	Enable trace sinks for UL MAC layer. More...

void	EnableUlPhyTraces ()
	Enable trace sinks for UL PHY layer. More...

void	EnableUlRxPhyTraces ()
	Enable trace sinks for UL reception PHY layer. More...

void	EnableUlTxPhyTraces ()
	Enable trace sinks for UL transmission PHY layer. More...

Ptr< SpectrumChannel >	GetDownlinkSpectrumChannel () const

std::string	GetEnbComponentCarrierManagerType () const

std::string	GetFfrAlgorithmType () const

std::string	GetHandoverAlgorithmType () const

Ptr< RadioBearerStatsCalculator >	GetPdcpStats ()

Ptr< RadioBearerStatsCalculator >	GetRlcStats ()

std::string	GetSchedulerType () const

std::string	GetUeComponentCarrierManagerType () const

Ptr< SpectrumChannel >	GetUplinkSpectrumChannel () const

void	HandoverRequest (Time hoTime, Ptr< NetDevice > ueDev, Ptr< NetDevice > sourceEnbDev, Ptr< NetDevice > targetEnbDev)
	Manually trigger an X2-based handover. More...

void	HandoverRequest (Time hoTime, Ptr< NetDevice > ueDev, Ptr< NetDevice > sourceEnbDev, uint16_t targetCellId)
	Manually trigger an X2-based handover. More...

NetDeviceContainer	InstallEnbDevice (NodeContainer c)
	Create a set of eNodeB devices. More...

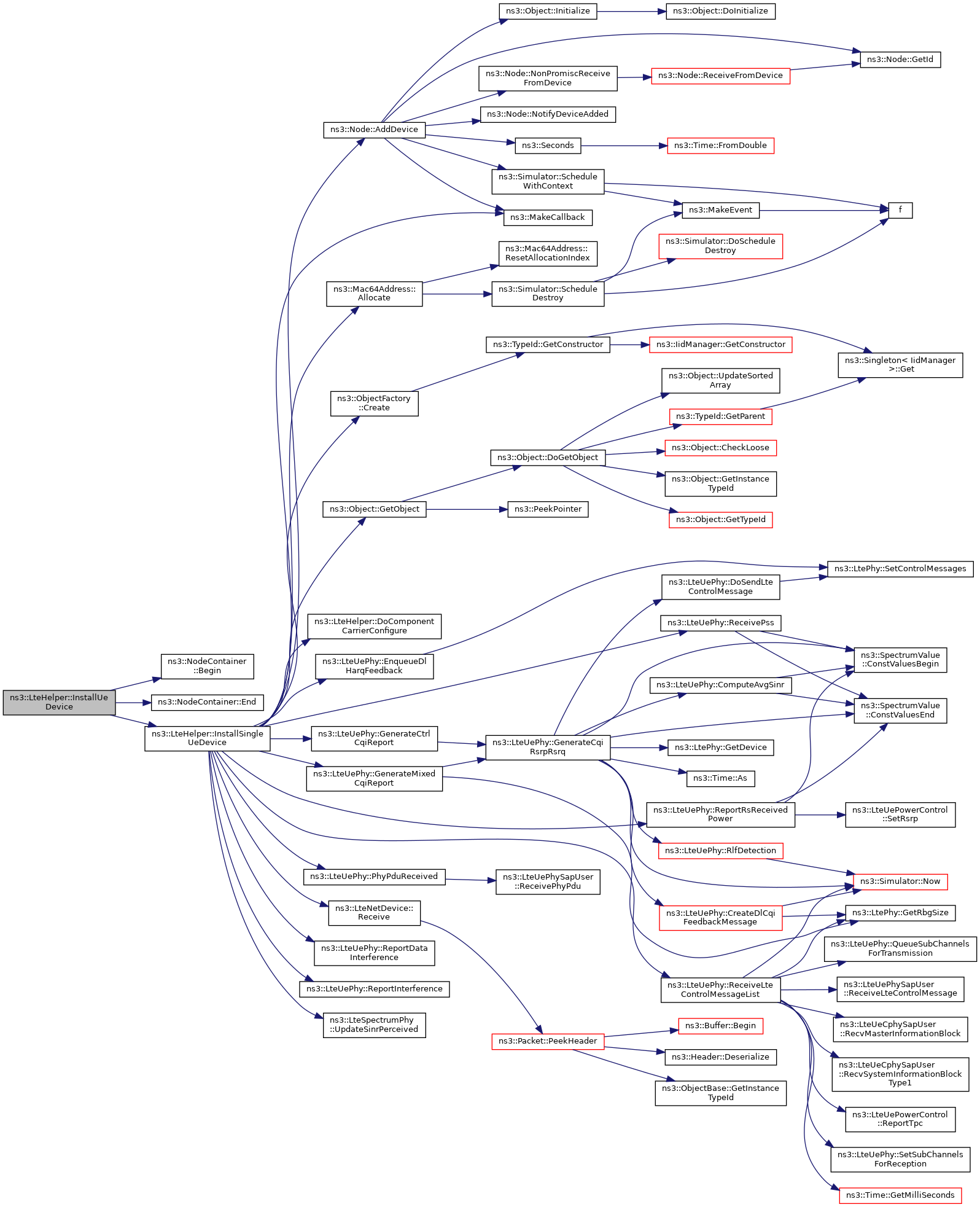

NetDeviceContainer	InstallUeDevice (NodeContainer c)
	Create a set of UE devices. More...

void	SetEnbAntennaModelAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the eNodeB antenna model to be created. More...

void	SetEnbAntennaModelType (std::string type)
	Set the type of antenna model to be used by eNodeB devices. More...

void	SetEnbComponentCarrierManagerAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the enb component carrier manager to be created. More...

void	SetEnbComponentCarrierManagerType (std::string type)
	Set the type of carrier component algorithm to be used by eNodeB devices. More...

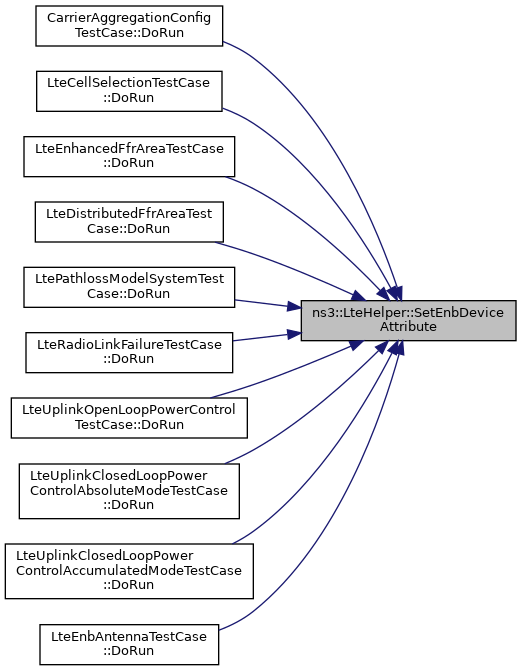

void	SetEnbDeviceAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the eNodeB devices (LteEnbNetDevice) to be created. More...

void	SetEpcHelper (Ptr< EpcHelper > h)
	Set the EpcHelper to be used to setup the EPC network in conjunction with the setup of the LTE radio access network. More...

void	SetFadingModel (std::string type)
	Set the type of fading model to be used in both DL and UL. More...

void	SetFadingModelAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the fading model to be created (both DL and UL). More...

void	SetFfrAlgorithmAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the FFR algorithm to be created. More...

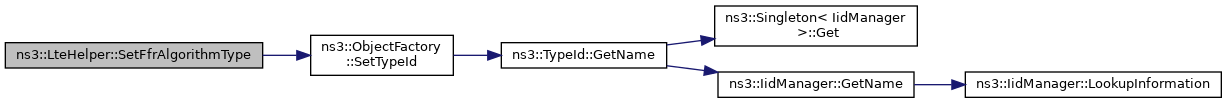

void	SetFfrAlgorithmType (std::string type)
	Set the type of FFR algorithm to be used by eNodeB devices. More...

void	SetHandoverAlgorithmAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the handover algorithm to be created. More...

void	SetHandoverAlgorithmType (std::string type)
	Set the type of handover algorithm to be used by eNodeB devices. More...

void	SetPathlossModelAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the path loss models to be created. More...

void	SetPathlossModelType (TypeId type)
	Set the type of path loss model to be used for both DL and UL channels. More...

void	SetSchedulerAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the scheduler to be created. More...

void	SetSchedulerType (std::string type)
	Set the type of scheduler to be used by eNodeB devices. More...

void	SetSpectrumChannelAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the spectrum channel to be created (both DL and UL). More...

void	SetSpectrumChannelType (std::string type)
	Set the type of spectrum channel to be used in both DL and UL. More...

void	SetUeAntennaModelAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the UE antenna model to be created. More...

void	SetUeAntennaModelType (std::string type)
	Set the type of antenna model to be used by UE devices. More...

void	SetUeComponentCarrierManagerAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the ue component carrier manager to be created. More...

void	SetUeComponentCarrierManagerType (std::string type)
	Set the type of Component Carrier Manager to be used by Ue devices. More...

void	SetUeDeviceAttribute (std::string n, const AttributeValue &v)
	Set an attribute for the UE devices (LteUeNetDevice) to be created. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions

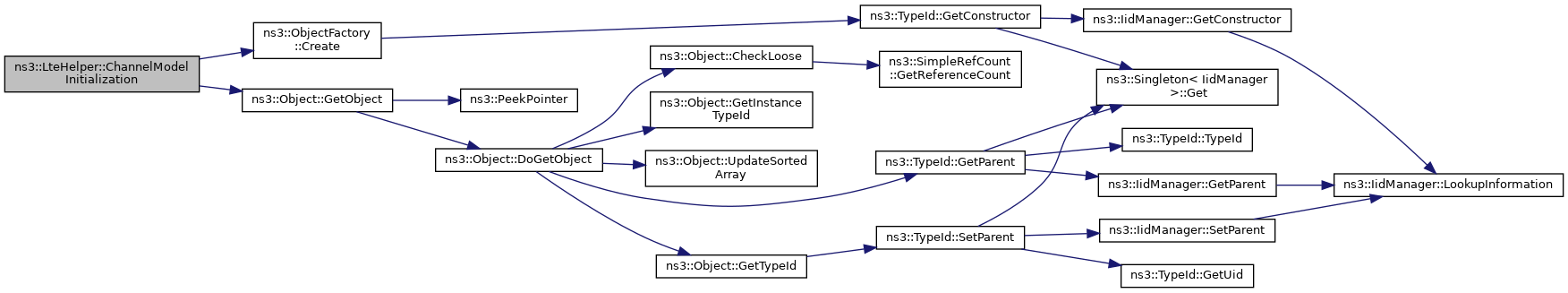

void	ChannelModelInitialization ()
	Function that performs a channel model initialization of all component carriers. More...

void	DoComponentCarrierConfigure (uint32_t ulEarfcn, uint32_t dlEarfcn, uint16_t ulbw, uint16_t dlbw)
	Configure the component carriers. More...

void	DoDeActivateDedicatedEpsBearer (Ptr< NetDevice > ueDevice, Ptr< NetDevice > enbDevice, uint8_t bearerId)
	The actual function to trigger a manual bearer de-activation. More...

void	DoHandoverRequest (Ptr< NetDevice > ueDev, Ptr< NetDevice > sourceEnbDev, uint16_t targetCellId)
	The actual function to trigger a manual handover. More...

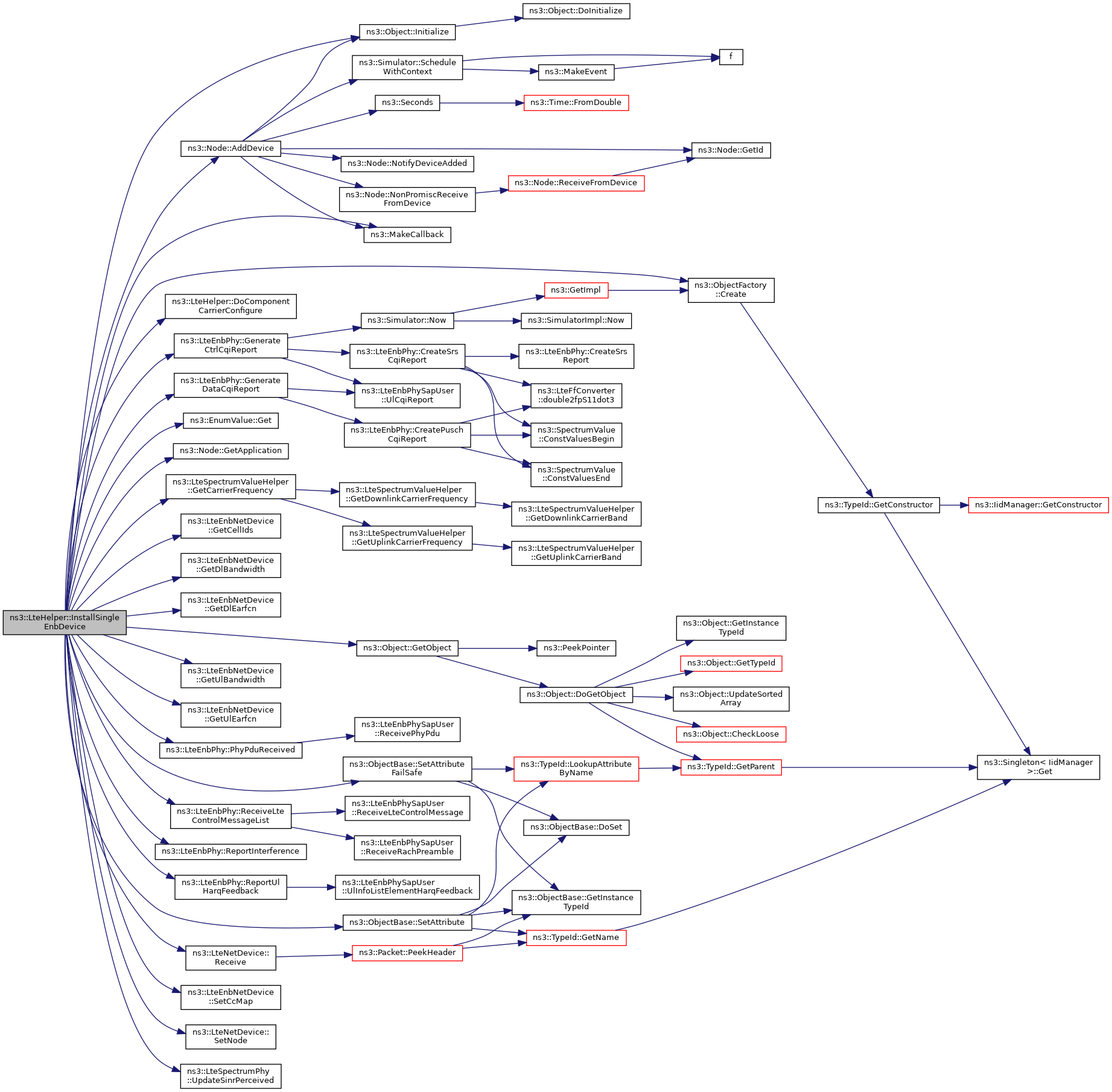

Ptr< NetDevice >	InstallSingleEnbDevice (Ptr< Node > n)
	Create an eNodeB device (LteEnbNetDevice) on the given node. More...

Ptr< NetDevice >	InstallSingleUeDevice (Ptr< Node > n)
	Create a UE device (LteUeNetDevice) on the given node. More...

Private Attributes
uint16_t	m_cellIdCounter
	Keep track of the number of cell ID allocated. More...

ObjectFactory	m_channelFactory
	Factory of both the downlink and uplink LTE channels. More...

std::map< uint8_t, ComponentCarrier >	m_componentCarrierPhyParams
	This contains all the information about each component carrier. More...

Ptr< SpectrumChannel >	m_downlinkChannel
	This function create the component carrier based on provided configuration parameters. More...

Ptr< Object >	m_downlinkPathlossModel
	The path loss model used in the downlink channel. More...

ObjectFactory	m_enbAntennaModelFactory
	Factory of antenna object for eNodeB. More...

ObjectFactory	m_enbComponentCarrierManagerFactory
	Factory of enb component carrier manager object. More...

ObjectFactory	m_enbNetDeviceFactory
	Factory of LteEnbNetDevice objects. More...

Ptr< EpcHelper >	m_epcHelper
	Helper which provides implementation of core network. More...

Ptr< SpectrumPropagationLossModel >	m_fadingModel
	The fading model used in both the downlink and uplink channels. More...

ObjectFactory	m_fadingModelFactory
	Factory of fading model object for both the downlink and uplink channels. More...

std::string	m_fadingModelType
	Name of fading model type, e.g., "ns3::TraceFadingLossModel". More...

bool	m_fadingStreamsAssigned
	True if a random variable stream number has been assigned for the fading model. More...

ObjectFactory	m_ffrAlgorithmFactory
	Factory of FFR (frequency reuse) algorithm object. More...

ObjectFactory	m_handoverAlgorithmFactory
	Factory of handover algorithm object. More...

uint64_t	m_imsiCounter
	Keep track of the number of IMSI allocated. More...

bool	m_isAnrEnabled
	The `AnrEnabled` attribute. More...

Ptr< MacStatsCalculator >	m_macStats
	Container of MAC layer statistics. More...

uint16_t	m_noOfCcs
	Number of component carriers that will be installed by default at eNodeB and UE devices. More...

ObjectFactory	m_pathlossModelFactory
	Factory of path loss model object. More...

Ptr< RadioBearerStatsCalculator >	m_pdcpStats
	Container of PDCP layer statistics. More...

Ptr< PhyRxStatsCalculator >	m_phyRxStats
	Container of PHY layer statistics related to reception. More...

Ptr< PhyStatsCalculator >	m_phyStats
	Container of PHY layer statistics. More...

Ptr< PhyTxStatsCalculator >	m_phyTxStats
	Container of PHY layer statistics related to transmission. More...

RadioBearerStatsConnector	m_radioBearerStatsConnector
	Connects RLC and PDCP statistics containers to appropriate trace sources. More...

Ptr< RadioBearerStatsCalculator >	m_rlcStats
	Container of RLC layer statistics. More...

ObjectFactory	m_schedulerFactory
	Factory of MAC scheduler object. More...

ObjectFactory	m_ueAntennaModelFactory
	Factory of antenna object for UE. More...

ObjectFactory	m_ueComponentCarrierManagerFactory
	Factory of ue component carrier manager object. More...

ObjectFactory	m_ueNetDeviceFactory
	Factory for LteUeNetDevice objects. More...

Ptr< SpectrumChannel >	m_uplinkChannel
	The uplink LTE channel used in the simulation. More...

Ptr< Object >	m_uplinkPathlossModel
	The path loss model used in the uplink channel. More...

bool	m_useCa
	The `UseCa` attribute. More...

bool	m_useIdealRrc
	The `UseIdealRrc` attribute. More...

bool	m_usePdschForCqiGeneration
	The `UsePdschForCqiGeneration` attribute. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Creation and configuration of LTE entities.

One LteHelper instance is typically enough for an LTE simulation. To create it:

Ptr<LteHelper> lteHelper = CreateObject<LteHelper> ();

The general responsibility of the helper is to create various LTE objects and arrange them together to make the whole LTE system. The overall arrangement would look like the following:

Downlink spectrum channel
- Path loss model
- Fading model
Uplink spectrum channel
- Path loss model
- Fading model
eNodeB node(s)
- Mobility model
- eNodeB device(s)
  - Antenna model
  - eNodeB PHY (includes spectrum PHY, interference model, HARQ model)
  - eNodeB MAC
  - eNodeB RRC (includes RRC protocol)
  - Scheduler
  - Handover algorithm
  - FFR (frequency reuse) algorithm
  - ANR (automatic neighbour relation)
  - CCM (Carrier Component Manager)
- EPC related models (EPC application, Internet stack, X2 interface)
UE node(s)
- Mobility model
- UE device(s)
  - Antenna model
  - UE PHY (includes spectrum PHY, interference model, HARQ model)
  - UE MAC
  - UE RRC (includes RRC protocol)
  - NAS
EPC helper
Various statistics calculator objects

Spetrum channels are created automatically: one for DL, and one for UL. eNodeB devices are created by calling InstallEnbDevice(), while UE devices are created by calling InstallUeDevice(). EPC helper can be set by using SetEpcHelper().

Definition at line 102 of file lte-helper.h.

Constructor & Destructor Documentation

◆ LteHelper()

ns3::LteHelper::LteHelper ( )

Definition at line 80 of file lte-helper.cc.

References ns3::IsotropicAntennaModel::GetTypeId(), ns3::LteEnbNetDevice::GetTypeId(), ns3::LteUeNetDevice::GetTypeId(), ns3::MultiModelSpectrumChannel::GetTypeId(), m_channelFactory, m_enbAntennaModelFactory, m_enbNetDeviceFactory, m_ueAntennaModelFactory, m_ueNetDeviceFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

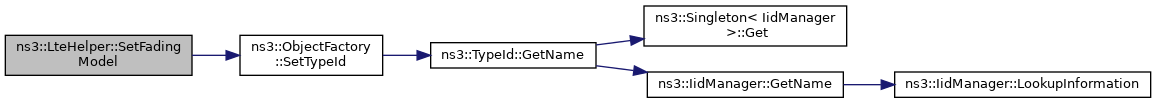

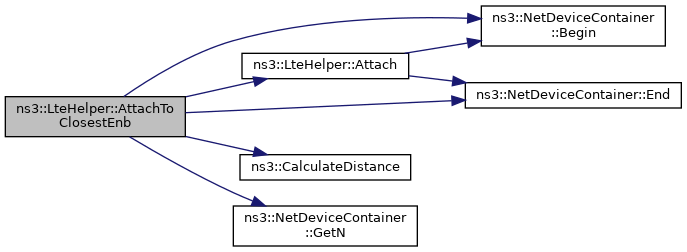

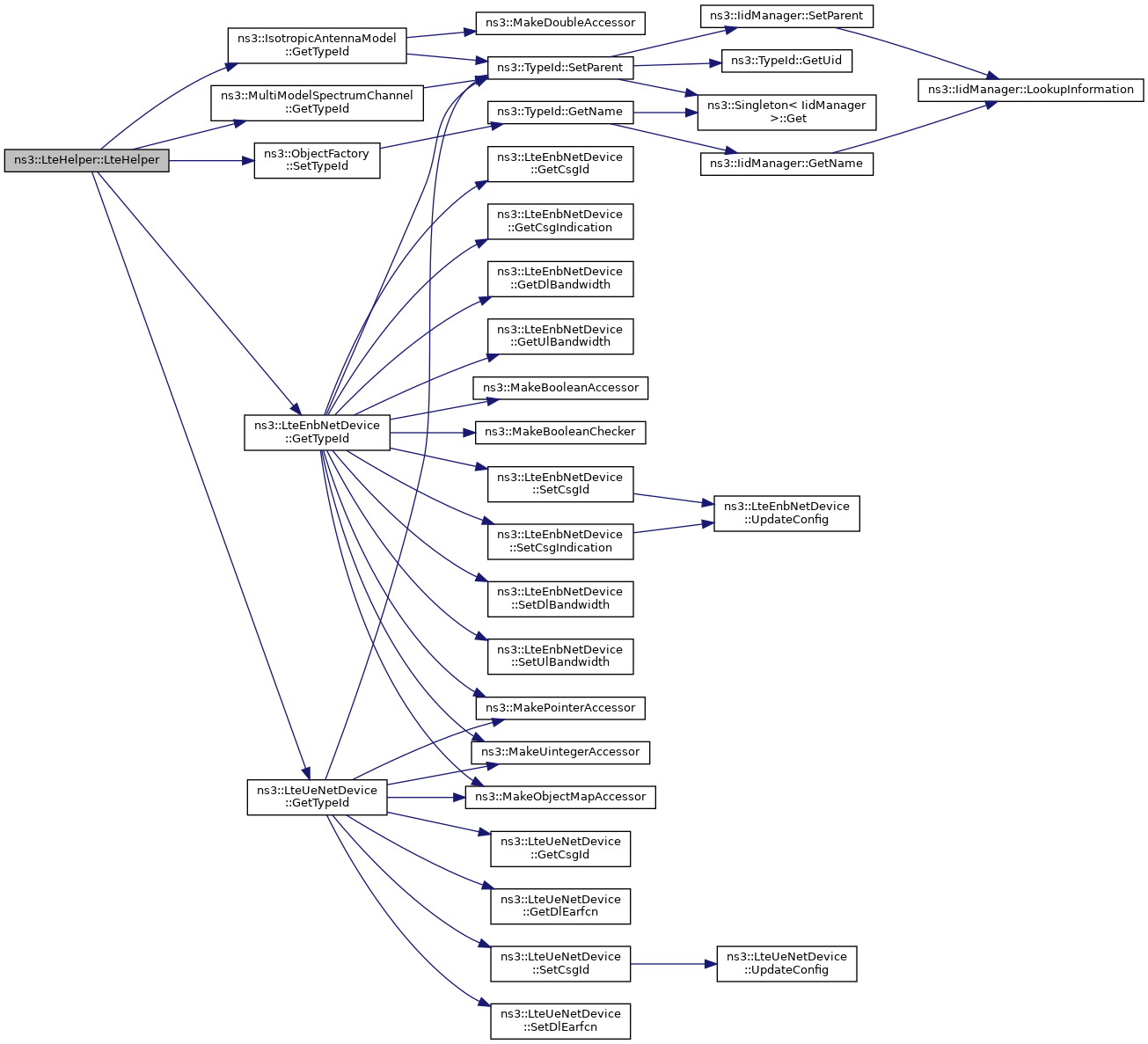

Here is the call graph for this function:

◆ ~LteHelper()

ns3::LteHelper::~LteHelper ( )

override

Definition at line 105 of file lte-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ActivateDataRadioBearer() [1/2]

void ns3::LteHelper::ActivateDataRadioBearer	(	NetDeviceContainer	ueDevices,
		EpsBearer	bearer
	)

Activate a Data Radio Bearer on a given UE devices (for LTE-only simulation).

Parameters

ueDevices	the set of UE devices
bearer	the characteristics of the bearer to be activated

Definition at line 1436 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ActivateDataRadioBearer() [2/2]

void ns3::LteHelper::ActivateDataRadioBearer	(	Ptr< NetDevice >	ueDevice,
		EpsBearer	bearer
	)

Activate a Data Radio Bearer on a UE device (for LTE-only simulation).

This method will schedule the actual activation the bearer so that it happens after the UE got connected.

Parameters

ueDevice	the UE device
bearer	the characteristics of the bearer to be activated

Definition at line 1293 of file lte-helper.cc.

References ns3::DrbActivator::ActivateCallback(), ns3::Config::Connect(), ns3::Node::GetId(), ns3::LteNetDevice::GetIfIndex(), ns3::LteNetDevice::GetNode(), m_epcHelper, ns3::MakeBoundCallback(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ActivateDedicatedEpsBearer() [1/2]

uint8_t ns3::LteHelper::ActivateDedicatedEpsBearer	(	NetDeviceContainer	ueDevices,
		EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

Activate a dedicated EPS bearer on a given set of UE devices.

Parameters

ueDevices	the set of UE devices
bearer	the characteristics of the bearer to be activated
tft	the Traffic Flow Template that identifies the traffic to go on this bearer

Returns: bearer ID

Definition at line 1154 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ActivateDedicatedEpsBearer() [2/2]

uint8_t ns3::LteHelper::ActivateDedicatedEpsBearer	(	Ptr< NetDevice >	ueDevice,
		EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

Activate a dedicated EPS bearer on a given UE device.

Parameters

ueDevice	the UE device
bearer	the characteristics of the bearer to be activated
tft	the Traffic Flow Template that identifies the traffic to go on this bearer.

Returns: bearer ID

Definition at line 1168 of file lte-helper.cc.

References m_epcHelper, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ AddX2Interface() [1/2]

void ns3::LteHelper::AddX2Interface ( NodeContainer enbNodes )

Create an X2 interface between all the eNBs in a given set.

Parameters

enbNodes the set of eNB nodes

Definition at line 1313 of file lte-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), m_epcHelper, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by LteDistributedFfrAreaTestCase::DoRun(), LteUeMeasurementsHandoverTestCase::DoRun(), LteHandoverTargetTestCase::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), and LteX2HandoverTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddX2Interface() [2/2]

void ns3::LteHelper::AddX2Interface	(	Ptr< Node >	enbNode1,
		Ptr< Node >	enbNode2
	)

Create an X2 interface between two eNBs.

Parameters

enbNode1	one eNB of the X2 interface
enbNode2	the other eNB of the X2 interface

Definition at line 1329 of file lte-helper.cc.

References m_epcHelper, NS_LOG_FUNCTION, and NS_LOG_INFO.

◆ AssignStreams()

int64_t ns3::LteHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used.

The InstallEnbDevice() or InstallUeDevice method should have previously been called by the user on the given devices.

If TraceFadingLossModel has been set as the fading model type, this method will also assign a stream number to it, if none has been assigned before.

If an EPC has been configured, streams will be assigned on the EPC nodes as well via EpcHelper::AssignStreams ().

Parameters

c	NetDeviceContainer of the set of net devices for which the LteNetDevice should be modified to use a fixed stream
stream	first stream index to use

Returns: the number of stream indices (possibly zero) that have been assigned

Definition at line 1567 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), ns3::LteEnbNetDevice::GetCcMap(), m_epcHelper, m_fadingModel, and m_fadingStreamsAssigned.

Referenced by CarrierAggregationConfigTestCase::DoRun(), LteCellSelectionTestCase::DoRun(), ns3::LenaDeactivateBearerTestCase::DoRun(), LenaDataPhyErrorModelTestCase::DoRun(), LenaDlCtrlPhyErrorModelTestCase::DoRun(), LteRadioLinkFailureTestCase::DoRun(), LteRrcConnectionEstablishmentTestCase::DoRun(), LteRrcConnectionEstablishmentErrorTestCase::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), and LteX2HandoverTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Attach() [1/4]

void ns3::LteHelper::Attach ( NetDeviceContainer ueDevices )

Enables automatic attachment of a set of UE devices to a suitable cell using Idle mode initial cell selection procedure.

Parameters

ueDevices the set of UE devices to be attached

By calling this, the UE will start the initial cell selection procedure at the beginning of simulation. In addition, the function also instructs each UE to immediately enter CONNECTED mode and activates the default EPS bearer.

If this function is called when the UE is in a situation where entering CONNECTED mode is not possible (e.g. before the simulation begin), then the UE will attempt to connect at the earliest possible time (e.g. after it camps to a suitable cell).

Note that this function can only be used in EPC-enabled simulation.

Definition at line 1039 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Attach() [2/4]

void ns3::LteHelper::Attach	(	NetDeviceContainer	ueDevices,
		Ptr< NetDevice >	enbDevice
	)

Manual attachment of a set of UE devices to the network via a given eNodeB.

Parameters

ueDevices	the set of UE devices to be attached
enbDevice	the destination eNodeB device

In addition, the function also instructs each UE to immediately enter CONNECTED mode and activates the default EPS bearer.

The function can be used in both LTE-only and EPC-enabled simulations. Note that this function will disable Idle mode initial cell selection procedure.

Definition at line 1081 of file lte-helper.cc.

References Attach(), ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Attach() [3/4]

void ns3::LteHelper::Attach ( Ptr< NetDevice > ueDevice )

Enables automatic attachment of a UE device to a suitable cell using Idle mode initial cell selection procedure.

Parameters

ueDevice the UE device to be attached

By calling this, the UE will start the initial cell selection procedure at the beginning of simulation. In addition, the function also instructs the UE to immediately enter CONNECTED mode and activates the default EPS bearer.

If this function is called when the UE is in a situation where entering CONNECTED mode is not possible (e.g. before the simulation begin), then the UE will attempt to connect at the earliest possible time (e.g. after it camps to a suitable cell).

Note that this function can only be used in EPC-enabled simulation.

Definition at line 1049 of file lte-helper.cc.

References ns3::EpcTft::Default(), m_epcHelper, ns3::EpsBearer::NGBR_VIDEO_TCP_DEFAULT, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Attach() [4/4]

void ns3::LteHelper::Attach	(	Ptr< NetDevice >	ueDevice,
		Ptr< NetDevice >	enbDevice,
		uint8_t	componentCarrierId = `0`
	)

Manual attachment of a UE device to the network via a given eNodeB.

Parameters

ueDevice	the UE device to be attached
enbDevice	the destination eNodeB device
componentCarrierId	the destination eNodeB component carrier

In addition, the function also instructs the UE to immediately enter CONNECTED mode and activates the default EPS bearer.

The function can be used in both LTE-only and EPC-enabled simulations. Note that this function will disable Idle mode initial cell selection procedure.

Definition at line 1091 of file lte-helper.cc.

References ns3::EpcTft::Default(), m_epcHelper, ns3::EpsBearer::NGBR_VIDEO_TCP_DEFAULT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ AttachToClosestEnb() [1/2]

void ns3::LteHelper::AttachToClosestEnb	(	NetDeviceContainer	ueDevices,
		NetDeviceContainer	enbDevices
	)

Manual attachment of a set of UE devices to the network via the closest eNodeB (with respect to distance) among those in the set.

Parameters

ueDevices	the set of UE devices to be attached
enbDevices	the set of eNodeB devices to be considered

This function finds among the eNodeB set the closest eNodeB for each UE, and then invokes manual attachment between the pair.

Users are encouraged to use automatic attachment (Idle mode cell selection) instead of this function.

See also: LteHelper::Attach(NetDeviceContainer ueDevices);

Definition at line 1122 of file lte-helper.cc.

References ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), and NS_LOG_FUNCTION.

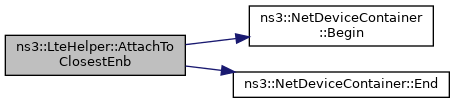

Here is the call graph for this function:

◆ AttachToClosestEnb() [2/2]

void ns3::LteHelper::AttachToClosestEnb	(	Ptr< NetDevice >	ueDevice,
		NetDeviceContainer	enbDevices
	)

Manual attachment of a UE device to the network via the closest eNodeB (with respect to distance) among those in the set.

Parameters

ueDevice	the UE device to be attached
enbDevices	the set of eNodeB devices to be considered

This function finds among the eNodeB set the closest eNodeB for the UE, and then invokes manual attachment between the pair.

Users are encouraged to use automatic attachment (Idle mode cell selection) instead of this function.

See also: LteHelper::Attach(Ptr<NetDevice> ueDevice);

Definition at line 1132 of file lte-helper.cc.

References Attach(), ns3::NetDeviceContainer::Begin(), ns3::CalculateDistance(), ns3::NetDeviceContainer::End(), ns3::NetDeviceContainer::GetN(), NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ChannelModelInitialization()

void ns3::LteHelper::ChannelModelInitialization ( )

private

Function that performs a channel model initialization of all component carriers.

Definition at line 230 of file lte-helper.cc.

References ns3::ObjectFactory::Create(), ns3::Object::GetObject(), m_channelFactory, m_downlinkChannel, m_downlinkPathlossModel, m_fadingModel, m_fadingModelFactory, m_fadingModelType, m_noOfCcs, m_pathlossModelFactory, m_uplinkChannel, m_uplinkPathlossModel, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeActivateDedicatedEpsBearer()

void ns3::LteHelper::DeActivateDedicatedEpsBearer	(	Ptr< NetDevice >	ueDevice,
		Ptr< NetDevice >	enbDevice,
		uint8_t	bearerId
	)

Manually trigger dedicated bearer de-activation at specific simulation time.

Parameters

ueDevice	the UE on which dedicated bearer to be de-activated must be of the type LteUeNetDevice
enbDevice	eNB, must be of the type LteEnbNetDevice
bearerId	Bearer Identity which is to be de-activated

Warning: Requires the use of EPC mode. See SetEpcHelper() method.

Definition at line 1387 of file lte-helper.cc.

References DoDeActivateDedicatedEpsBearer(), m_epcHelper, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::LenaDeactivateBearerTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoComponentCarrierConfigure()

void ns3::LteHelper::DoComponentCarrierConfigure	(	uint32_t	ulEarfcn,
		uint32_t	dlEarfcn,
		uint16_t	ulbw,
		uint16_t	dlbw
	)

private

Configure the component carriers.

Parameters

ulEarfcn	uplink EARFCN
dlEarfcn	downlink EARFCN
ulbw	uplink bandwidth for each CC
dlbw	downlink bandwidth for each CC

Definition at line 1417 of file lte-helper.cc.

References m_componentCarrierPhyParams, m_noOfCcs, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by InstallSingleEnbDevice(), and InstallSingleUeDevice().

Here is the caller graph for this function:

◆ DoDeActivateDedicatedEpsBearer()

void ns3::LteHelper::DoDeActivateDedicatedEpsBearer	(	Ptr< NetDevice >	ueDevice,
		Ptr< NetDevice >	enbDevice,
		uint8_t	bearerId
	)

private

The actual function to trigger a manual bearer de-activation.

Parameters

ueDevice	the UE on which bearer to be de-activated must be of the type LteUeNetDevice
enbDevice	eNB, must be of the type LteEnbNetDevice
bearerId	Bearer Identity which is to be de-activated

This method is normally scheduled by DeActivateDedicatedEpsBearer() to run at a specific time when a manual bearer de-activation is desired by the simulation user.

Definition at line 1401 of file lte-helper.cc.

References NS_LOG_FUNCTION.

Referenced by DeActivateDedicatedEpsBearer().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::LteHelper::DoDispose ( void )

overridevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 208 of file lte-helper.cc.

References ns3::Object::DoDispose(), m_componentCarrierPhyParams, m_downlinkChannel, m_uplinkChannel, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoHandoverRequest()

void ns3::LteHelper::DoHandoverRequest	(	Ptr< NetDevice >	ueDev,
		Ptr< NetDevice >	sourceEnbDev,
		uint16_t	targetCellId
	)

private

The actual function to trigger a manual handover.

Parameters

ueDev	the UE that hands off, must be of the type LteUeNetDevice
sourceEnbDev	source eNB, must be of the type LteEnbNetDevice (originally the UE is attached to this eNB)
targetCellId	target CellId (the UE primary component carrier will be connected to this cell after the handover)

This method is normally scheduled by HandoverRequest() to run at a specific time where a manual handover is desired by the simulation user.

Definition at line 1375 of file lte-helper.cc.

References NS_LOG_FUNCTION.

Referenced by HandoverRequest().

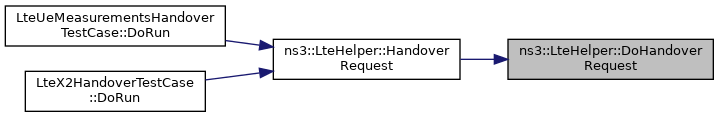

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::LteHelper::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 94 of file lte-helper.cc.

References ChannelModelInitialization(), ns3::Object::DoInitialize(), m_macStats, m_phyRxStats, m_phyStats, m_phyTxStats, and NS_LOG_FUNCTION.

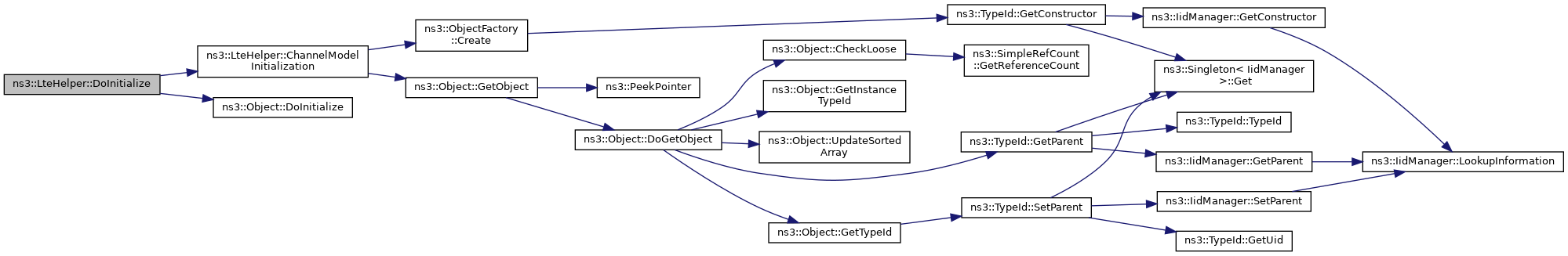

Here is the call graph for this function:

◆ EnableDlMacTraces()

void ns3::LteHelper::EnableDlMacTraces ( )

Enable trace sinks for DL MAC layer.

Definition at line 1666 of file lte-helper.cc.

References ns3::Config::Connect(), ns3::MacStatsCalculator::DlSchedulingCallback(), m_macStats, ns3::MakeBoundCallback(), and NS_LOG_FUNCTION_NOARGS.

Referenced by EnableMacTraces().

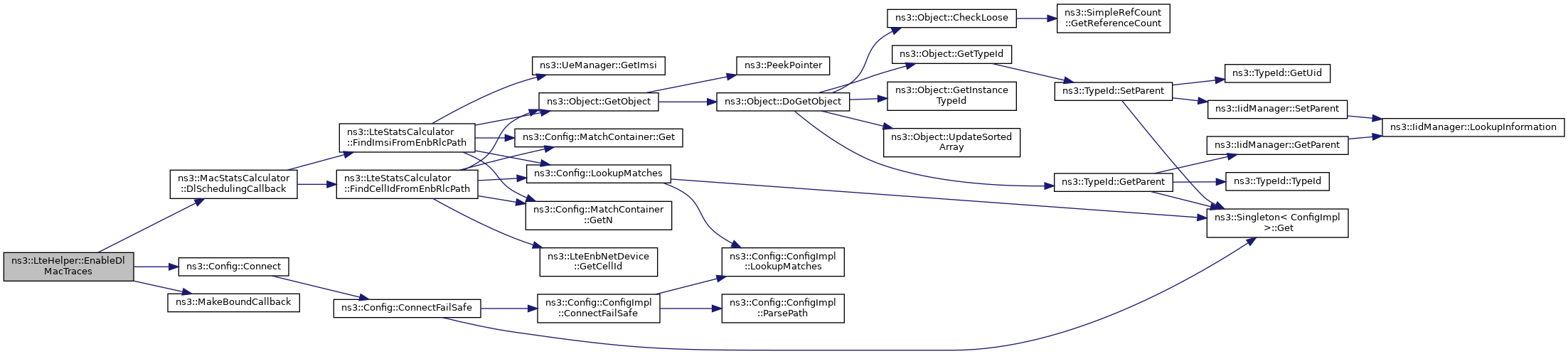

Here is the call graph for this function:

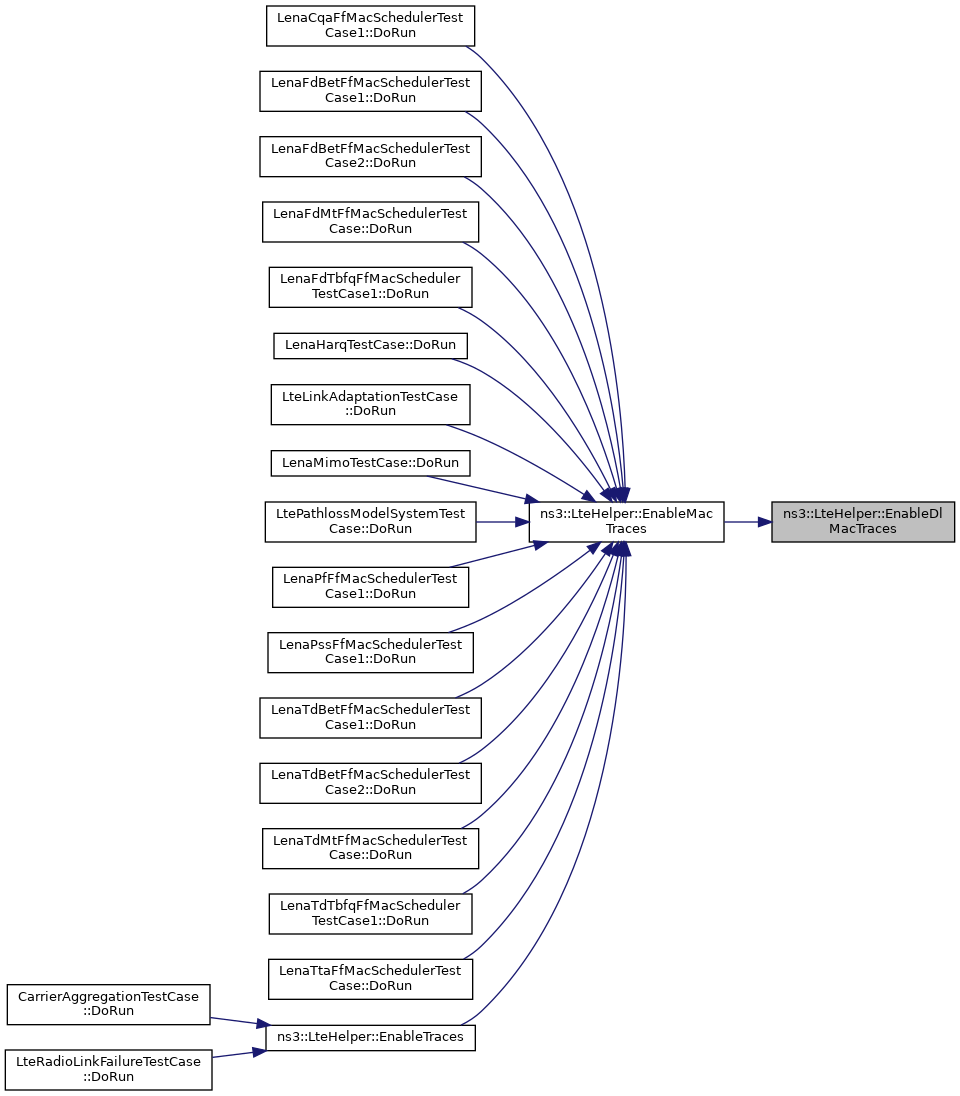

Here is the caller graph for this function:

◆ EnableDlPhyTraces()

void ns3::LteHelper::EnableDlPhyTraces ( )

Enable trace sinks for DL PHY layer.

Definition at line 1682 of file lte-helper.cc.

References ns3::Config::Connect(), m_phyStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION_NOARGS, and ns3::PhyStatsCalculator::ReportCurrentCellRsrpSinrCallback().

Referenced by EnablePhyTraces().

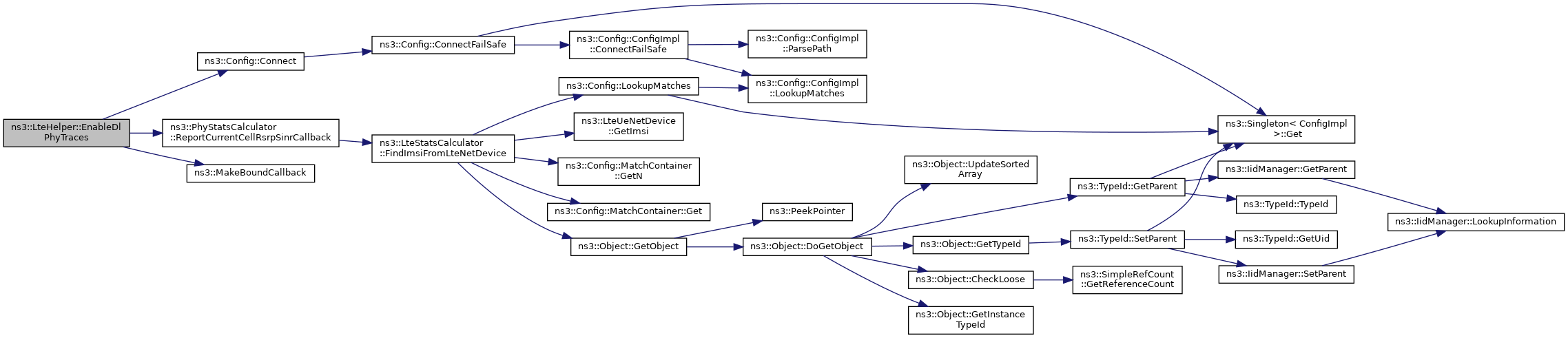

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableDlRxPhyTraces()

void ns3::LteHelper::EnableDlRxPhyTraces ( )

Enable trace sinks for DL reception PHY layer.

Definition at line 1643 of file lte-helper.cc.

References ns3::Config::Connect(), ns3::PhyRxStatsCalculator::DlPhyReceptionCallback(), m_phyRxStats, and ns3::MakeBoundCallback().

Referenced by EnablePhyTraces().

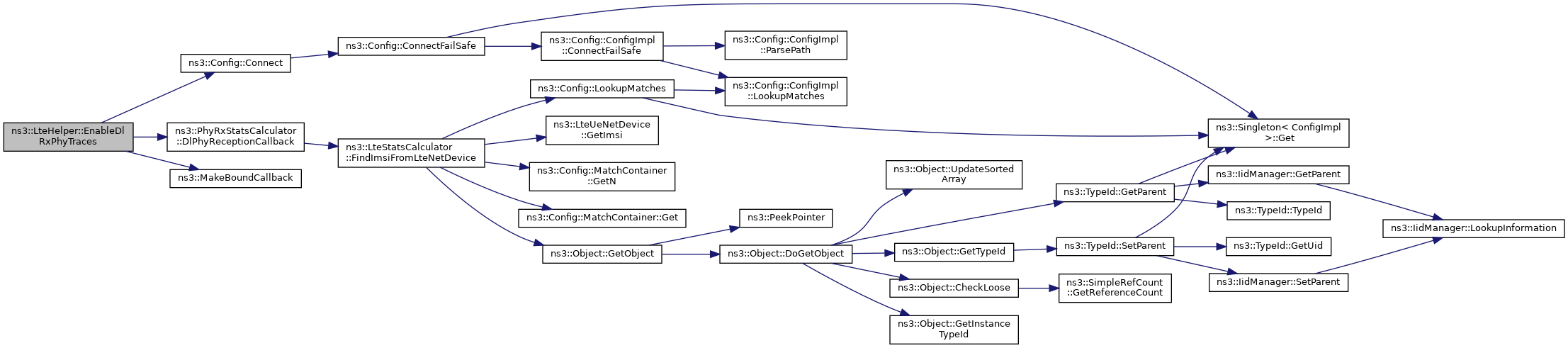

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableDlTxPhyTraces()

void ns3::LteHelper::EnableDlTxPhyTraces ( )

Enable trace sinks for DL transmission PHY layer.

Definition at line 1627 of file lte-helper.cc.

References ns3::Config::Connect(), ns3::PhyTxStatsCalculator::DlPhyTransmissionCallback(), m_phyTxStats, and ns3::MakeBoundCallback().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableLogComponents()

void ns3::LteHelper::EnableLogComponents ( )

Enables full-blown logging for major components of the LENA architecture.

Definition at line 1446 of file lte-helper.cc.

References ns3::LOG_LEVEL_ALL, ns3::LOG_PREFIX_FUNC, ns3::LOG_PREFIX_NODE, ns3::LOG_PREFIX_TIME, ns3::LogComponentEnable(), and ns3::LogComponentEnableAll().

Here is the call graph for this function:

◆ EnableMacTraces()

void ns3::LteHelper::EnableMacTraces ( )

Enable trace sinks for MAC layer.

Definition at line 1659 of file lte-helper.cc.

References EnableDlMacTraces(), and EnableUlMacTraces().

Here is the call graph for this function:

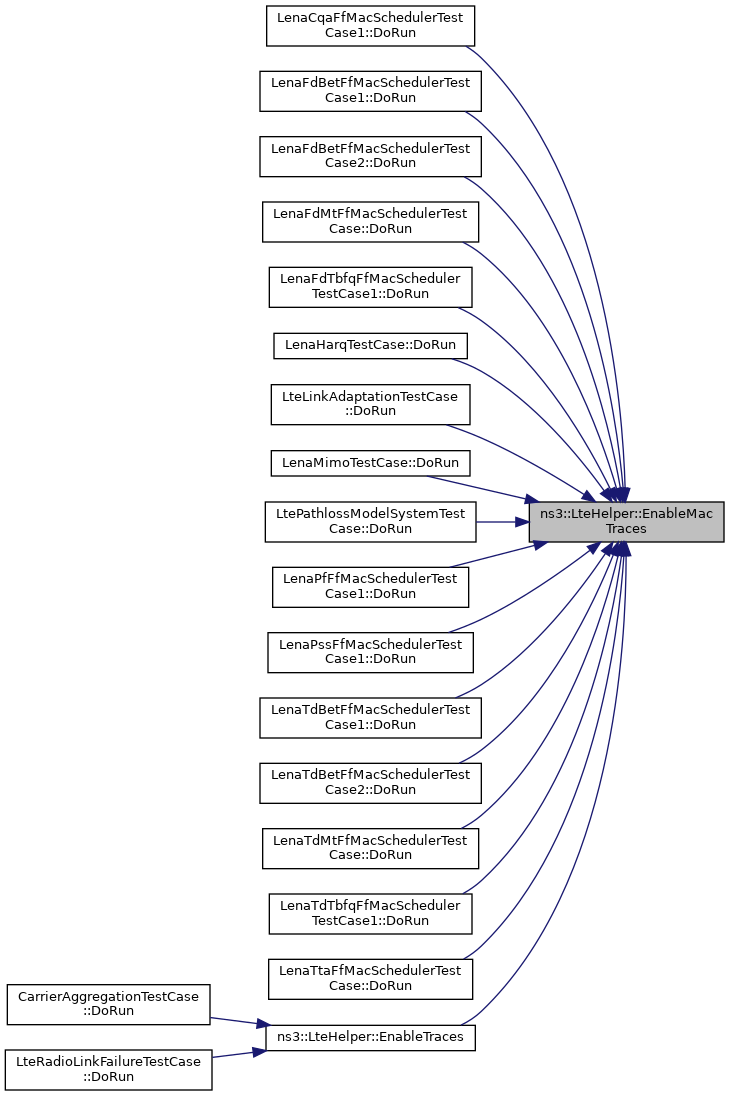

Here is the caller graph for this function:

◆ EnablePdcpTraces()

void ns3::LteHelper::EnablePdcpTraces ( )

Enable trace sinks for PDCP layer.

Definition at line 1707 of file lte-helper.cc.

References ns3::RadioBearerStatsConnector::EnablePdcpStats(), m_pdcpStats, m_radioBearerStatsConnector, and NS_ASSERT_MSG.

Referenced by LteEpcE2eDataTestCase::DoRun(), and EnableTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnablePhyTraces()

void ns3::LteHelper::EnablePhyTraces ( )

Enable trace sinks for PHY layer.

Definition at line 1616 of file lte-helper.cc.

References EnableDlPhyTraces(), EnableDlRxPhyTraces(), EnableDlTxPhyTraces(), EnableUlPhyTraces(), EnableUlRxPhyTraces(), and EnableUlTxPhyTraces().

Referenced by EnableTraces().

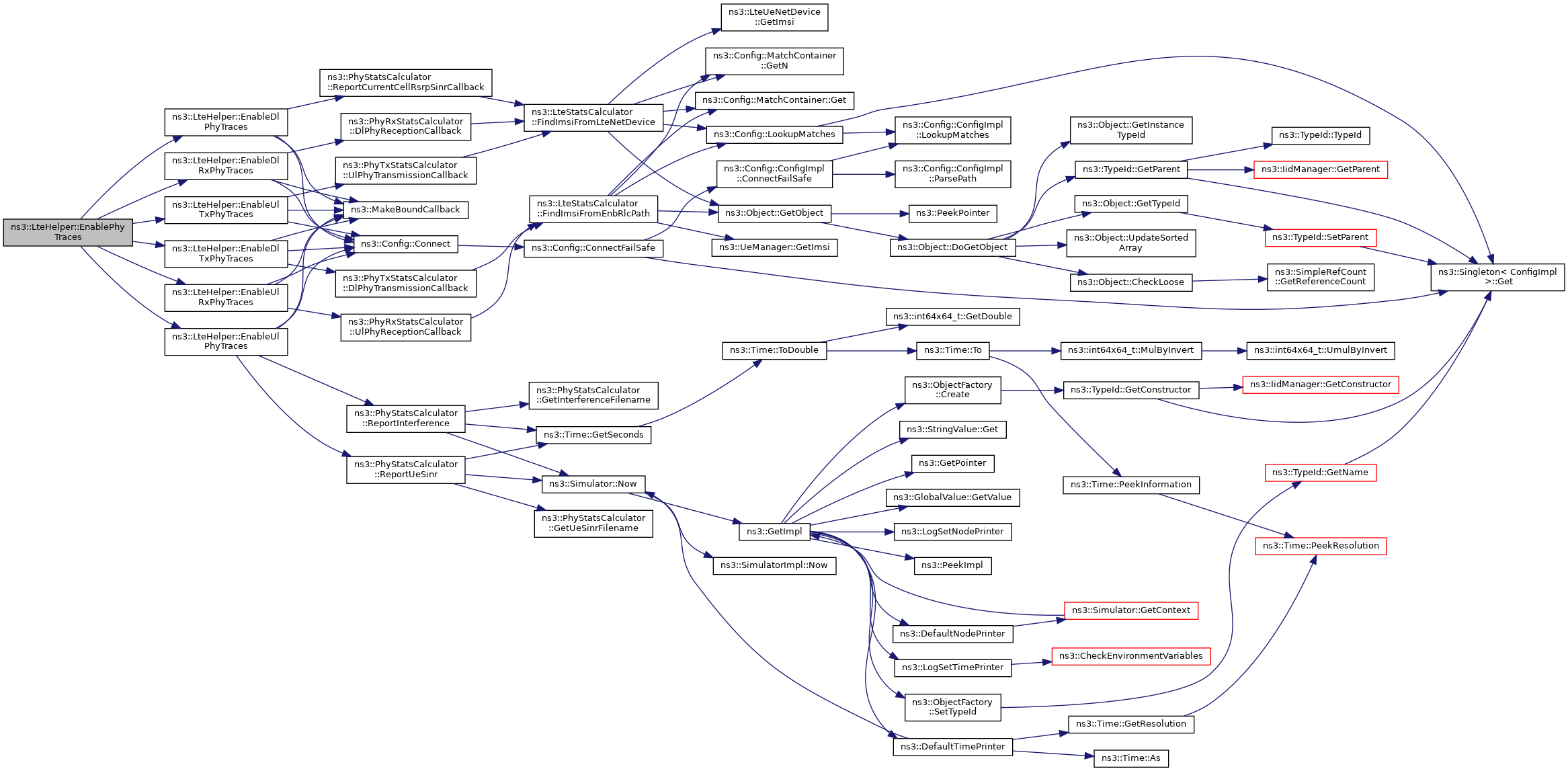

Here is the call graph for this function:

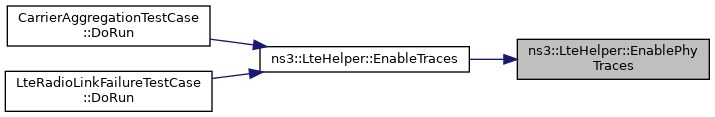

Here is the caller graph for this function:

◆ EnableRlcTraces()

void ns3::LteHelper::EnableRlcTraces ( )

Enable trace sinks for RLC layer.

Definition at line 1558 of file lte-helper.cc.

References ns3::RadioBearerStatsConnector::EnableRlcStats(), m_radioBearerStatsConnector, m_rlcStats, and NS_ASSERT_MSG.

Referenced by LenaCqaFfMacSchedulerTestCase1::DoRun(), LenaCqaFfMacSchedulerTestCase2::DoRun(), ns3::LenaDeactivateBearerTestCase::DoRun(), LenaFdBetFfMacSchedulerTestCase1::DoRun(), LenaFdBetFfMacSchedulerTestCase2::DoRun(), LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaFdTbfqFfMacSchedulerTestCase1::DoRun(), LenaFdTbfqFfMacSchedulerTestCase2::DoRun(), LenaHarqTestCase::DoRun(), LteLinkAdaptationTestCase::DoRun(), LenaMimoTestCase::DoRun(), LtePathlossModelSystemTestCase::DoRun(), LenaPfFfMacSchedulerTestCase1::DoRun(), LenaPfFfMacSchedulerTestCase2::DoRun(), LenaDataPhyErrorModelTestCase::DoRun(), LenaDlCtrlPhyErrorModelTestCase::DoRun(), LenaPssFfMacSchedulerTestCase1::DoRun(), LenaPssFfMacSchedulerTestCase2::DoRun(), LenaRrFfMacSchedulerTestCase::DoRun(), LenaTdBetFfMacSchedulerTestCase1::DoRun(), LenaTdBetFfMacSchedulerTestCase2::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), LenaTdTbfqFfMacSchedulerTestCase1::DoRun(), LenaTdTbfqFfMacSchedulerTestCase2::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), and EnableTraces().

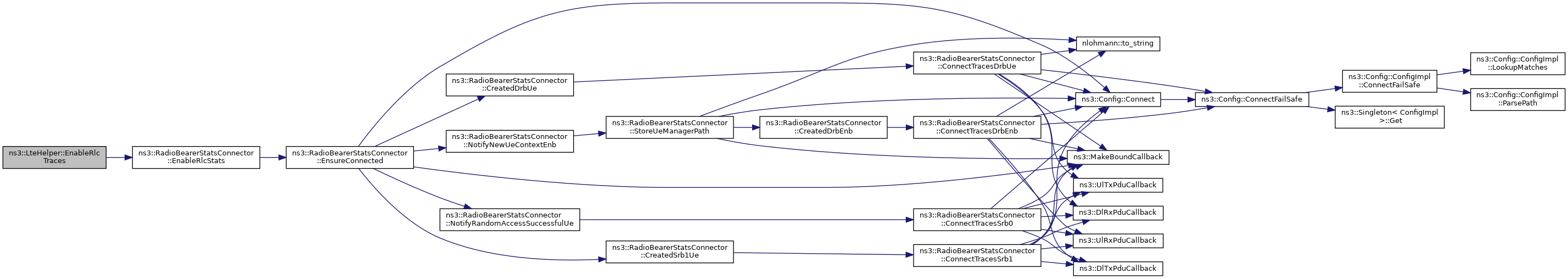

Here is the call graph for this function:

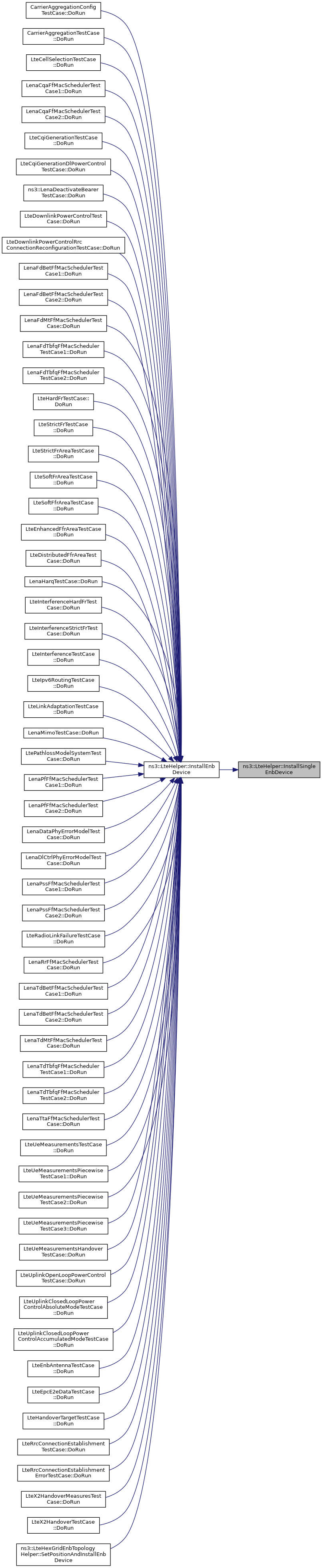

Here is the caller graph for this function:

◆ EnableTraces()

void ns3::LteHelper::EnableTraces ( )

Enables trace sinks for PHY, MAC, RLC and PDCP.

To make sure all nodes are traced, traces should be enabled once all UEs and eNodeBs are in place and connected, just before starting the simulation.

Definition at line 1549 of file lte-helper.cc.

References EnableMacTraces(), EnablePdcpTraces(), EnablePhyTraces(), and EnableRlcTraces().

Referenced by CarrierAggregationTestCase::DoRun(), and LteRadioLinkFailureTestCase::DoRun().

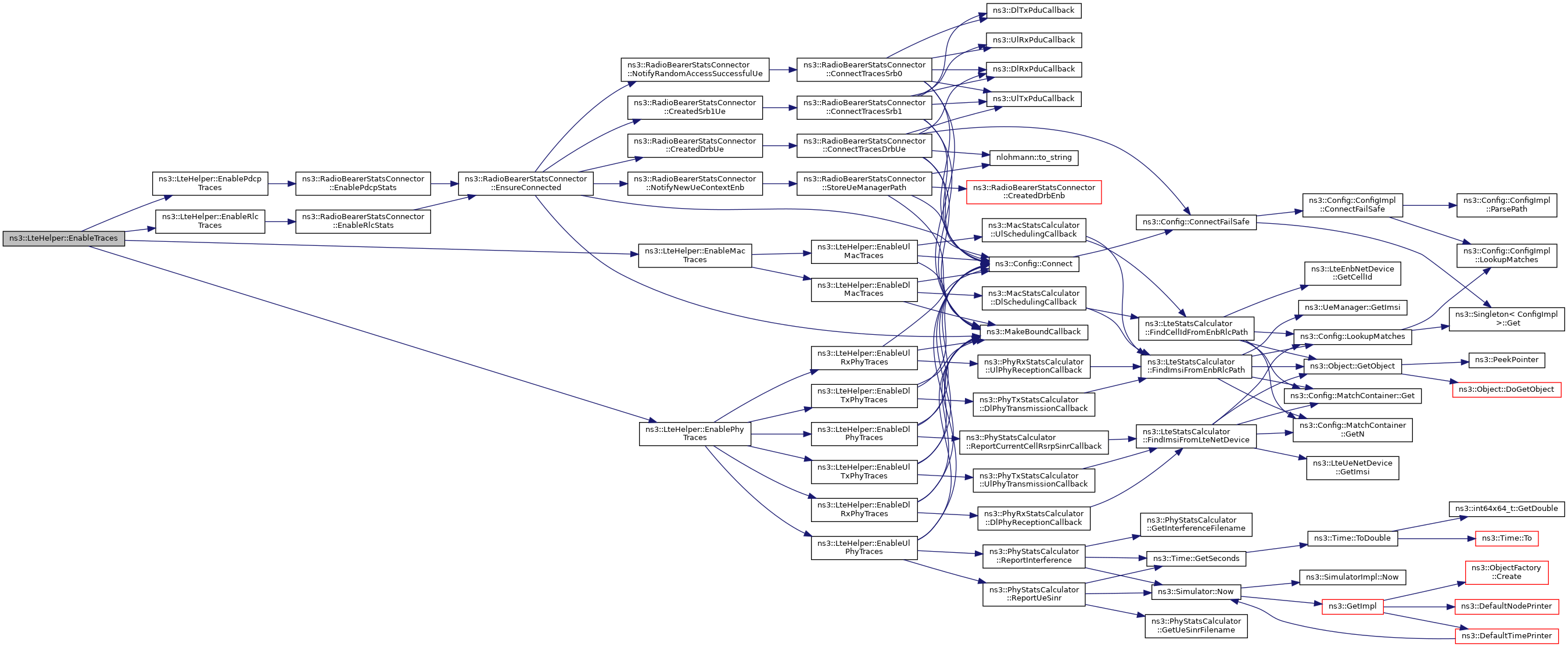

Here is the call graph for this function:

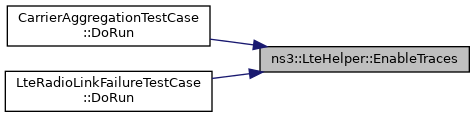

Here is the caller graph for this function:

◆ EnableUlMacTraces()

void ns3::LteHelper::EnableUlMacTraces ( )

Enable trace sinks for UL MAC layer.

Definition at line 1674 of file lte-helper.cc.

References ns3::Config::Connect(), m_macStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION_NOARGS, and ns3::MacStatsCalculator::UlSchedulingCallback().

Referenced by EnableMacTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableUlPhyTraces()

void ns3::LteHelper::EnableUlPhyTraces ( )

Enable trace sinks for UL PHY layer.

Definition at line 1691 of file lte-helper.cc.

References ns3::Config::Connect(), m_phyStats, ns3::MakeBoundCallback(), NS_LOG_FUNCTION_NOARGS, ns3::PhyStatsCalculator::ReportInterference(), and ns3::PhyStatsCalculator::ReportUeSinr().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableUlRxPhyTraces()

void ns3::LteHelper::EnableUlRxPhyTraces ( )

Enable trace sinks for UL reception PHY layer.

Definition at line 1651 of file lte-helper.cc.

References ns3::Config::Connect(), m_phyRxStats, ns3::MakeBoundCallback(), and ns3::PhyRxStatsCalculator::UlPhyReceptionCallback().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EnableUlTxPhyTraces()

void ns3::LteHelper::EnableUlTxPhyTraces ( )

Enable trace sinks for UL transmission PHY layer.

Definition at line 1635 of file lte-helper.cc.

References ns3::Config::Connect(), m_phyTxStats, ns3::MakeBoundCallback(), and ns3::PhyTxStatsCalculator::UlPhyTransmissionCallback().

Referenced by EnablePhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDownlinkSpectrumChannel()

Ptr< SpectrumChannel > ns3::LteHelper::GetDownlinkSpectrumChannel ( ) const

Returns: a pointer to the SpectrumChannel instance used for the downlink

Definition at line 224 of file lte-helper.cc.

References m_downlinkChannel.

◆ GetEnbComponentCarrierManagerType()

std::string ns3::LteHelper::GetEnbComponentCarrierManagerType ( ) const

Returns: the carrier enb component carrier manager type

Definition at line 355 of file lte-helper.cc.

References ns3::TypeId::GetName(), ns3::ObjectFactory::GetTypeId(), and m_enbComponentCarrierManagerFactory.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetFfrAlgorithmType()

std::string ns3::LteHelper::GetFfrAlgorithmType ( ) const

Returns: the FFR algorithm type

Definition at line 313 of file lte-helper.cc.

References ns3::TypeId::GetName(), ns3::ObjectFactory::GetTypeId(), and m_ffrAlgorithmFactory.

Referenced by GetTypeId().

Here is the call graph for this function:

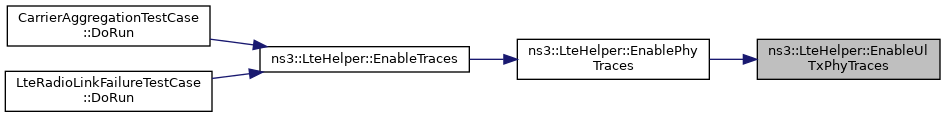

Here is the caller graph for this function:

◆ GetHandoverAlgorithmType()

std::string ns3::LteHelper::GetHandoverAlgorithmType ( ) const

Returns: the handover algorithm type

Definition at line 334 of file lte-helper.cc.

References ns3::TypeId::GetName(), ns3::ObjectFactory::GetTypeId(), and m_handoverAlgorithmFactory.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPdcpStats()

Ptr< RadioBearerStatsCalculator > ns3::LteHelper::GetPdcpStats ( )

Returns: the PDCP stats calculator object

Definition at line 1716 of file lte-helper.cc.

References m_pdcpStats.

Referenced by LteEpcE2eDataTestCase::DoRun().

Here is the caller graph for this function:

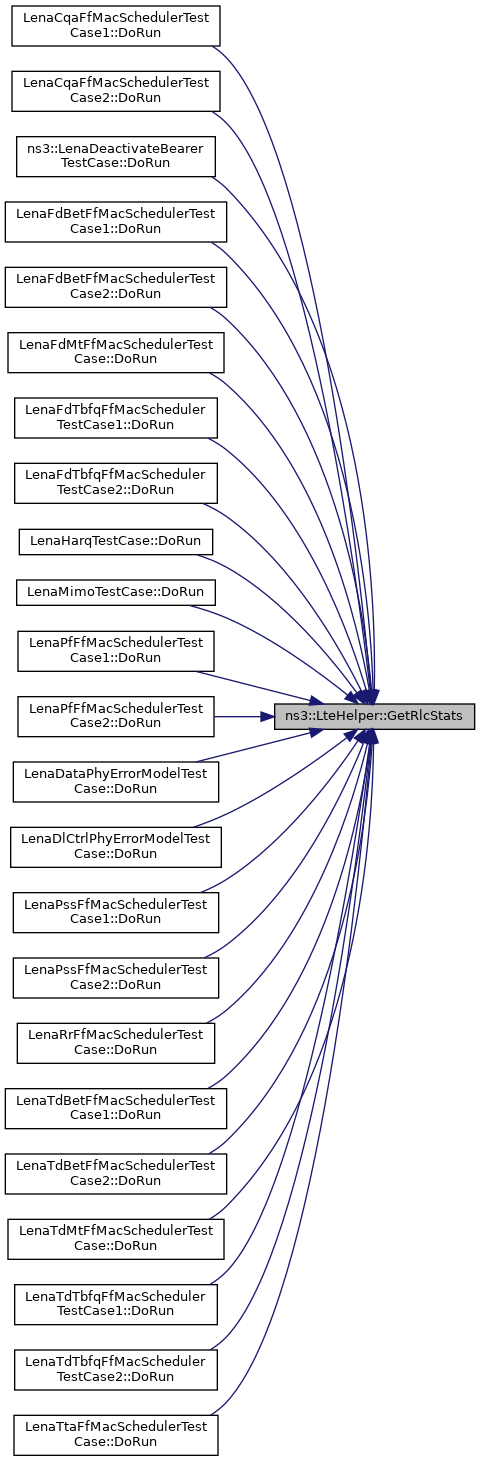

◆ GetRlcStats()

Ptr< RadioBearerStatsCalculator > ns3::LteHelper::GetRlcStats ( )

Returns: the RLC stats calculator object

Definition at line 1701 of file lte-helper.cc.

References m_rlcStats.

Here is the caller graph for this function:

◆ GetSchedulerType()

std::string ns3::LteHelper::GetSchedulerType ( ) const

Returns: the scheduler type

Definition at line 300 of file lte-helper.cc.

References ns3::TypeId::GetName(), ns3::ObjectFactory::GetTypeId(), and m_schedulerFactory.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

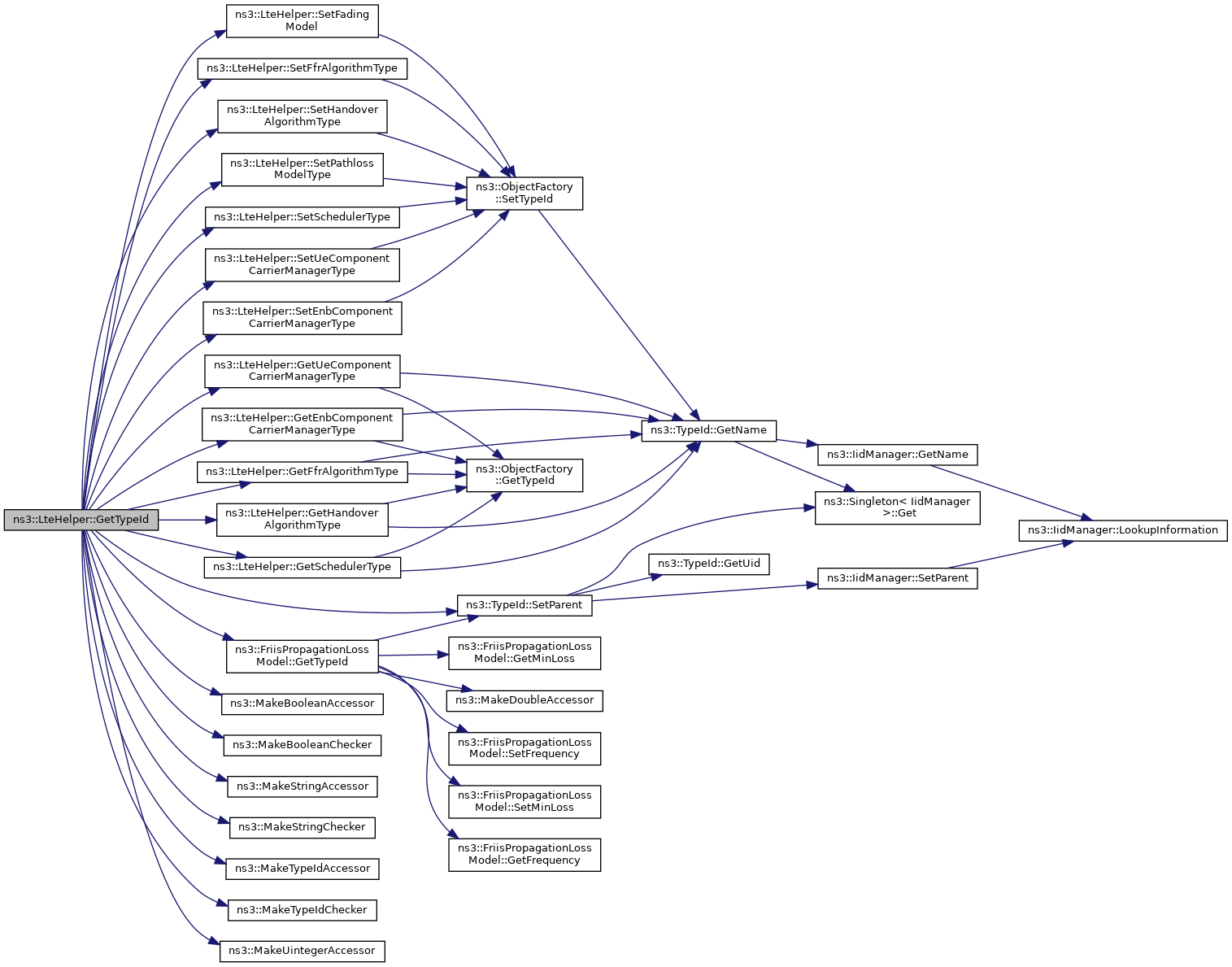

◆ GetTypeId()

TypeId ns3::LteHelper::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 111 of file lte-helper.cc.

References GetEnbComponentCarrierManagerType(), GetFfrAlgorithmType(), GetHandoverAlgorithmType(), GetSchedulerType(), ns3::FriisPropagationLossModel::GetTypeId(), GetUeComponentCarrierManagerType(), m_isAnrEnabled, m_noOfCcs, m_useCa, m_useIdealRrc, m_usePdschForCqiGeneration, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), ns3::MakeTypeIdAccessor(), ns3::MakeTypeIdChecker(), ns3::MakeUintegerAccessor(), ns3::MAX_NO_CC, ns3::MIN_NO_CC, SetEnbComponentCarrierManagerType(), SetFadingModel(), SetFfrAlgorithmType(), SetHandoverAlgorithmType(), ns3::TypeId::SetParent(), SetPathlossModelType(), SetSchedulerType(), and SetUeComponentCarrierManagerType().

Here is the call graph for this function:

◆ GetUeComponentCarrierManagerType()

std::string ns3::LteHelper::GetUeComponentCarrierManagerType ( ) const

Returns: the carrier ue component carrier manager type

Definition at line 376 of file lte-helper.cc.

References ns3::TypeId::GetName(), ns3::ObjectFactory::GetTypeId(), and m_ueComponentCarrierManagerFactory.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUplinkSpectrumChannel()

Ptr< SpectrumChannel > ns3::LteHelper::GetUplinkSpectrumChannel ( ) const

Returns: a pointer to the SpectrumChannel instance used for the uplink

Definition at line 218 of file lte-helper.cc.

References m_uplinkChannel.

◆ HandoverRequest() [1/2]

void ns3::LteHelper::HandoverRequest	(	Time	hoTime,
		Ptr< NetDevice >	ueDev,
		Ptr< NetDevice >	sourceEnbDev,
		Ptr< NetDevice >	targetEnbDev
	)

Manually trigger an X2-based handover.

Parameters

hoTime	when the handover shall be initiated
ueDev	the UE that hands off, must be of the type LteUeNetDevice
sourceEnbDev	source eNB, must be of the type LteEnbNetDevice (originally the UE is attached to this eNB)
targetEnbDev	target eNB, must be of the type LteEnbNetDevice (the UE would be connected to this eNB after the handover)

Warning: Requires the use of EPC mode. See SetEpcHelper() method

Definition at line 1338 of file lte-helper.cc.

References DoHandoverRequest(), m_epcHelper, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by LteUeMeasurementsHandoverTestCase::DoRun(), and LteX2HandoverTestCase::DoRun().

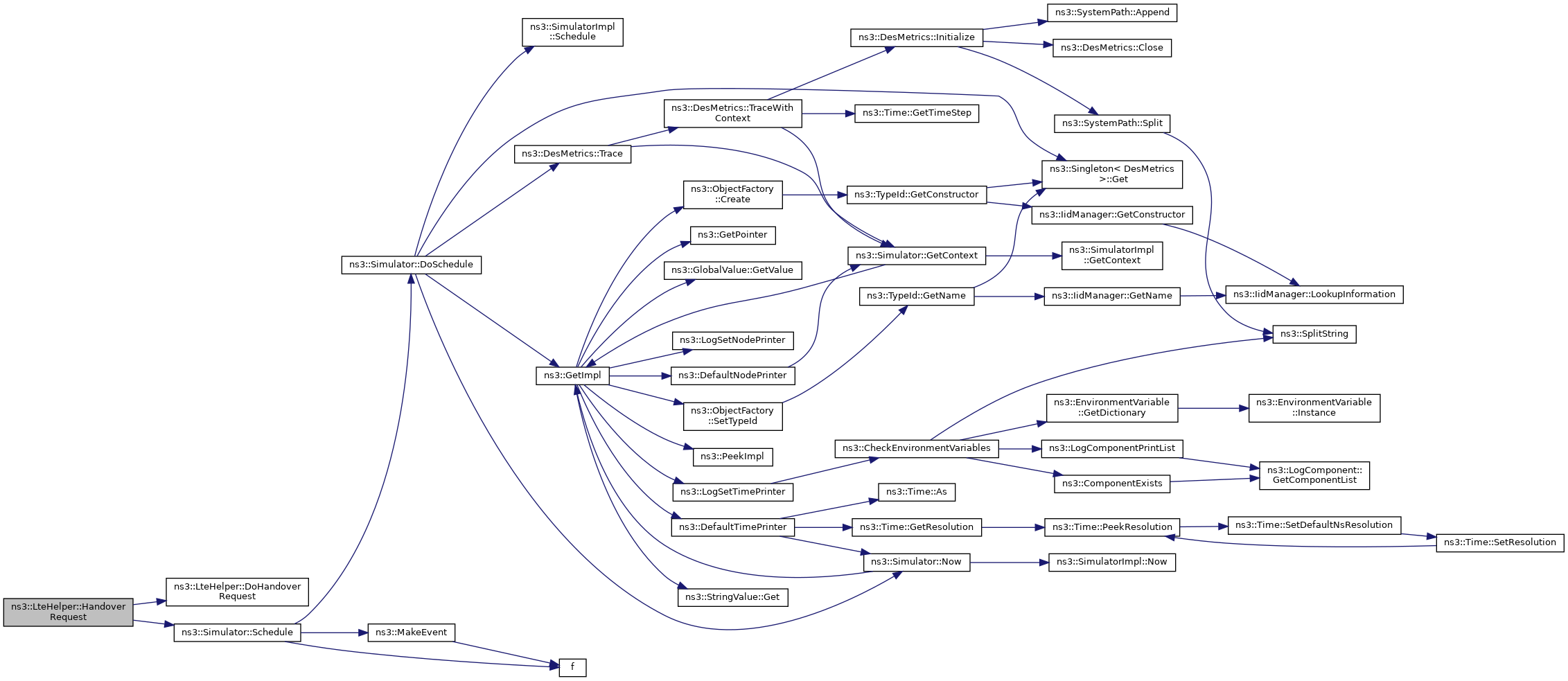

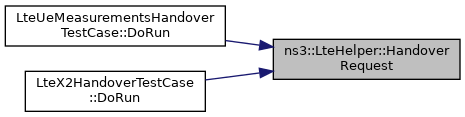

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandoverRequest() [2/2]

void ns3::LteHelper::HandoverRequest	(	Time	hoTime,
		Ptr< NetDevice >	ueDev,
		Ptr< NetDevice >	sourceEnbDev,
		uint16_t	targetCellId
	)

Manually trigger an X2-based handover.

Parameters

hoTime	when the handover shall be initiated
ueDev	the UE that hands off, must be of the type LteUeNetDevice
sourceEnbDev	source eNB, must be of the type LteEnbNetDevice (originally the UE is attached to this eNB)
targetCellId	target CellId (the UE primary component carrier will be connected to this cell after the handover)

Warning: Requires the use of EPC mode. See SetEpcHelper() method

Definition at line 1357 of file lte-helper.cc.

References DoHandoverRequest(), m_epcHelper, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ InstallEnbDevice()

NetDeviceContainer ns3::LteHelper::InstallEnbDevice ( NodeContainer c )

Create a set of eNodeB devices.

Parameters

c	the node container where the devices are to be installed

Returns: the NetDeviceContainer with the newly created devices

Definition at line 485 of file lte-helper.cc.

References ns3::NodeContainer::Begin(), first::devices, ns3::NodeContainer::End(), ns3::Object::Initialize(), InstallSingleEnbDevice(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallSingleEnbDevice()

Ptr< NetDevice > ns3::LteHelper::InstallSingleEnbDevice ( Ptr< Node > n )

private

Create an eNodeB device (LteEnbNetDevice) on the given node.

Parameters

n	the node where the device is to be installed

Returns: pointer to the created device

Definition at line 514 of file lte-helper.cc.

References ns3::Node::AddDevice(), ns3::ObjectFactory::Create(), DoComponentCarrierConfigure(), ns3::LteEnbPhy::GenerateCtrlCqiReport(), ns3::LteEnbPhy::GenerateDataCqiReport(), ns3::EnumValue< T >::Get(), ns3::Node::GetApplication(), ns3::LteSpectrumValueHelper::GetCarrierFrequency(), ns3::LteEnbNetDevice::GetCellIds(), ns3::LteEnbNetDevice::GetDlBandwidth(), ns3::LteEnbNetDevice::GetDlEarfcn(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetUlBandwidth(), ns3::LteEnbNetDevice::GetUlEarfcn(), ns3::Object::Initialize(), m_cellIdCounter, m_componentCarrierPhyParams, m_downlinkChannel, m_downlinkPathlossModel, m_enbAntennaModelFactory, m_enbComponentCarrierManagerFactory, m_enbNetDeviceFactory, m_epcHelper, m_ffrAlgorithmFactory, m_handoverAlgorithmFactory, m_isAnrEnabled, m_noOfCcs, m_schedulerFactory, m_uplinkChannel, m_uplinkPathlossModel, m_useCa, m_useIdealRrc, third::mac, ns3::MakeCallback(), NS_ABORT_MSG_IF, NS_ASSERT, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, NS_LOG_WARN, third::phy, ns3::LteEnbPhy::PhyPduReceived(), ns3::LteNetDevice::Receive(), ns3::LteEnbPhy::ReceiveLteControlMessageList(), ns3::LteEnbPhy::ReportInterference(), ns3::LteEnbPhy::ReportUlHarqFeedback(), ns3::LteEnbRrc::RLC_SM_ALWAYS, ns3::LteEnbRrc::RLC_UM_ALWAYS, ns3::ObjectBase::SetAttribute(), ns3::ObjectBase::SetAttributeFailSafe(), ns3::LteEnbNetDevice::SetCcMap(), ns3::LteNetDevice::SetNode(), and ns3::LteSpectrumPhy::UpdateSinrPerceived().

Referenced by InstallEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallSingleUeDevice()

Ptr< NetDevice > ns3::LteHelper::InstallSingleUeDevice ( Ptr< Node > n )

private

Create a UE device (LteUeNetDevice) on the given node.

Parameters

n	the node where the device is to be installed

Returns: pointer to the created device

Definition at line 832 of file lte-helper.cc.

References ns3::Node::AddDevice(), ns3::Mac64Address::Allocate(), ns3::ObjectFactory::Create(), DoComponentCarrierConfigure(), ns3::LteUePhy::EnqueueDlHarqFeedback(), ns3::LteUePhy::GenerateCtrlCqiReport(), ns3::LteUePhy::GenerateMixedCqiReport(), ns3::Object::GetObject(), m_componentCarrierPhyParams, m_downlinkChannel, m_epcHelper, m_imsiCounter, m_noOfCcs, m_ueAntennaModelFactory, m_ueComponentCarrierManagerFactory, m_ueNetDeviceFactory, m_uplinkChannel, m_useIdealRrc, m_usePdschForCqiGeneration, third::mac, ns3::MakeCallback(), NS_ABORT_MSG_IF, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, third::phy, ns3::LteUePhy::PhyPduReceived(), ns3::LteNetDevice::Receive(), ns3::LteUePhy::ReceiveLteControlMessageList(), ns3::LteUePhy::ReceivePss(), ns3::LteUePhy::ReportDataInterference(), ns3::LteUePhy::ReportInterference(), ns3::LteUePhy::ReportRsReceivedPower(), and ns3::LteSpectrumPhy::UpdateSinrPerceived().

Referenced by InstallUeDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InstallUeDevice()

NetDeviceContainer ns3::LteHelper::InstallUeDevice ( NodeContainer c )

Create a set of UE devices.

Parameters

c	the node container where the devices are to be installed

Returns: the NetDeviceContainer with the newly created devices

Definition at line 500 of file lte-helper.cc.

References ns3::NodeContainer::Begin(), first::devices, ns3::NodeContainer::End(), InstallSingleUeDevice(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEnbAntennaModelAttribute()

void ns3::LteHelper::SetEnbAntennaModelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the eNodeB antenna model to be created.

Parameters

n	the name of the attribute.
v	the value of the attribute

Definition at line 426 of file lte-helper.cc.

References m_enbAntennaModelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by LteEnbAntennaTestCase::DoRun(), and ns3::LteHexGridEnbTopologyHelper::SetPositionAndInstallEnbDevice().

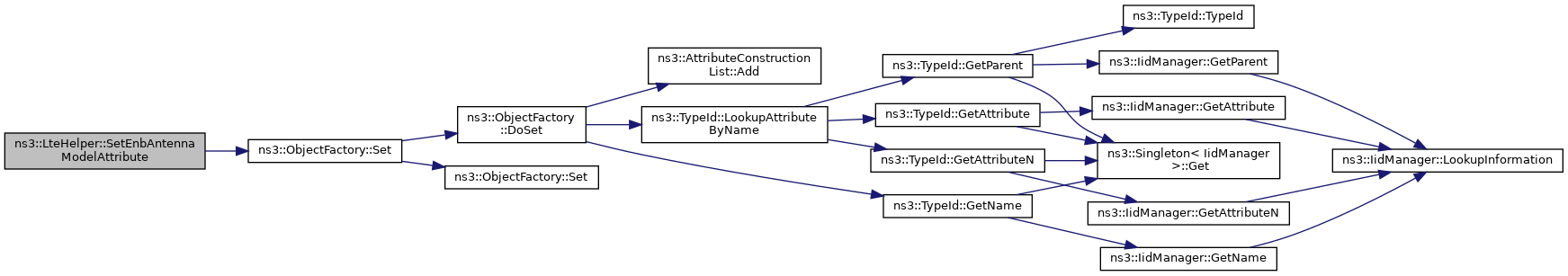

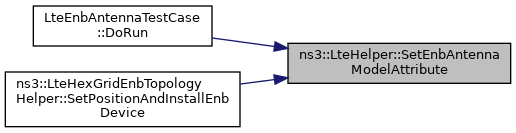

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEnbAntennaModelType()

void ns3::LteHelper::SetEnbAntennaModelType ( std::string type )

Set the type of antenna model to be used by eNodeB devices.

Parameters

type	type of antenna model, must be a type name of any class inheriting from ns3::AntennaModel, for example: "ns3::IsotropicAntennaModel"

Definition at line 419 of file lte-helper.cc.

References m_enbAntennaModelFactory, NS_LOG_FUNCTION, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by LteEnbAntennaTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEnbComponentCarrierManagerAttribute()

void ns3::LteHelper::SetEnbComponentCarrierManagerAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the enb component carrier manager to be created.

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 369 of file lte-helper.cc.

References m_enbComponentCarrierManagerFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

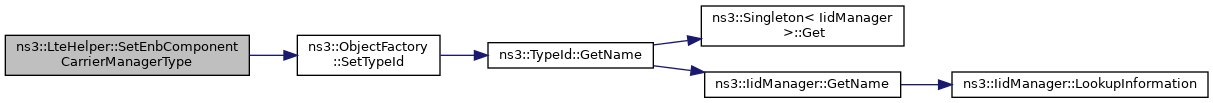

◆ SetEnbComponentCarrierManagerType()

void ns3::LteHelper::SetEnbComponentCarrierManagerType ( std::string type )

Set the type of carrier component algorithm to be used by eNodeB devices.

Parameters

type	type of carrier component manager

Definition at line 361 of file lte-helper.cc.

References m_enbComponentCarrierManagerFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEnbDeviceAttribute()

void ns3::LteHelper::SetEnbDeviceAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the eNodeB devices (LteEnbNetDevice) to be created.

Parameters

n	the name of the attribute.
v	the value of the attribute

Definition at line 412 of file lte-helper.cc.

References m_enbNetDeviceFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by CarrierAggregationConfigTestCase::DoRun(), LteCellSelectionTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), LteDistributedFfrAreaTestCase::DoRun(), LtePathlossModelSystemTestCase::DoRun(), LteRadioLinkFailureTestCase::DoRun(), LteUplinkOpenLoopPowerControlTestCase::DoRun(), LteUplinkClosedLoopPowerControlAbsoluteModeTestCase::DoRun(), LteUplinkClosedLoopPowerControlAccumulatedModeTestCase::DoRun(), and LteEnbAntennaTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetEpcHelper()

void ns3::LteHelper::SetEpcHelper ( Ptr< EpcHelper > h )

Set the EpcHelper to be used to setup the EPC network in conjunction with the setup of the LTE radio access network.

Note: if no EpcHelper is ever set, then LteHelper will default to creating an LTE-only simulation with no EPC, using LteRlcSm as the RLC model, and without supporting any IP networking. In other words, it will be a radio-level simulation involving only LTE PHY and MAC and the FF Scheduler, with a saturation traffic model for the RLC.

Parameters

h	a pointer to the EpcHelper to be used

Definition at line 285 of file lte-helper.cc.

References m_epcHelper, and NS_LOG_FUNCTION.

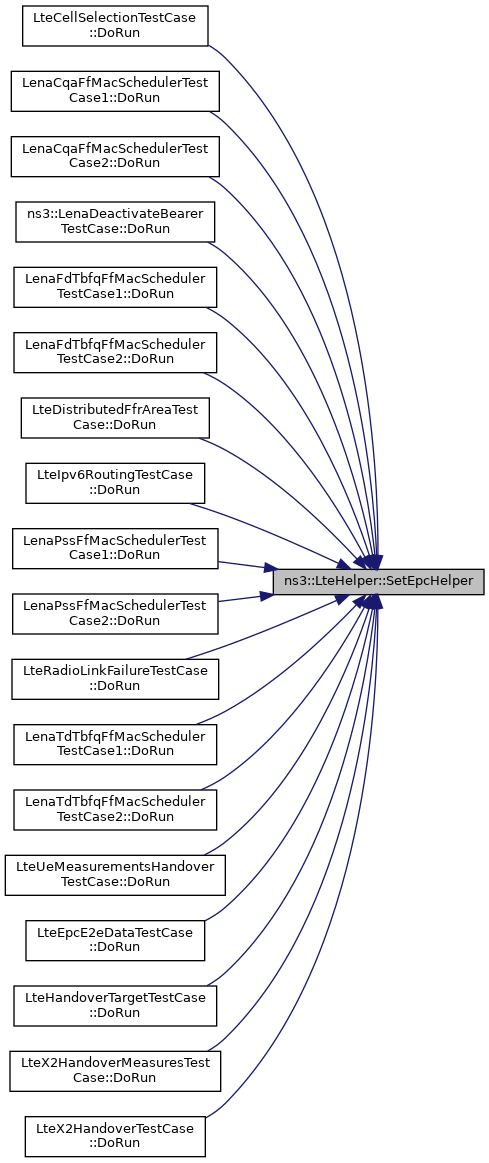

Here is the caller graph for this function:

◆ SetFadingModel()

void ns3::LteHelper::SetFadingModel ( std::string type )

Set the type of fading model to be used in both DL and UL.

Parameters

type	type of fading model, must be a type name of any class inheriting from ns3::SpectrumPropagationLossModel, for example: "ns3::TraceFadingLossModel"

Definition at line 454 of file lte-helper.cc.

References m_fadingModelFactory, m_fadingModelType, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetFadingModelAttribute()

void ns3::LteHelper::SetFadingModelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the fading model to be created (both DL and UL).

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 466 of file lte-helper.cc.

References m_fadingModelFactory, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

◆ SetFfrAlgorithmAttribute()

void ns3::LteHelper::SetFfrAlgorithmAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the FFR algorithm to be created.

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 327 of file lte-helper.cc.

References m_ffrAlgorithmFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by LteCqiGenerationTestCase::DoRun(), LteHardFrTestCase::DoRun(), LteStrictFrTestCase::DoRun(), LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), LteDistributedFfrAreaTestCase::DoRun(), LteInterferenceHardFrTestCase::DoRun(), LteInterferenceStrictFrTestCase::DoRun(), and ns3::LteHexGridEnbTopologyHelper::SetPositionAndInstallEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

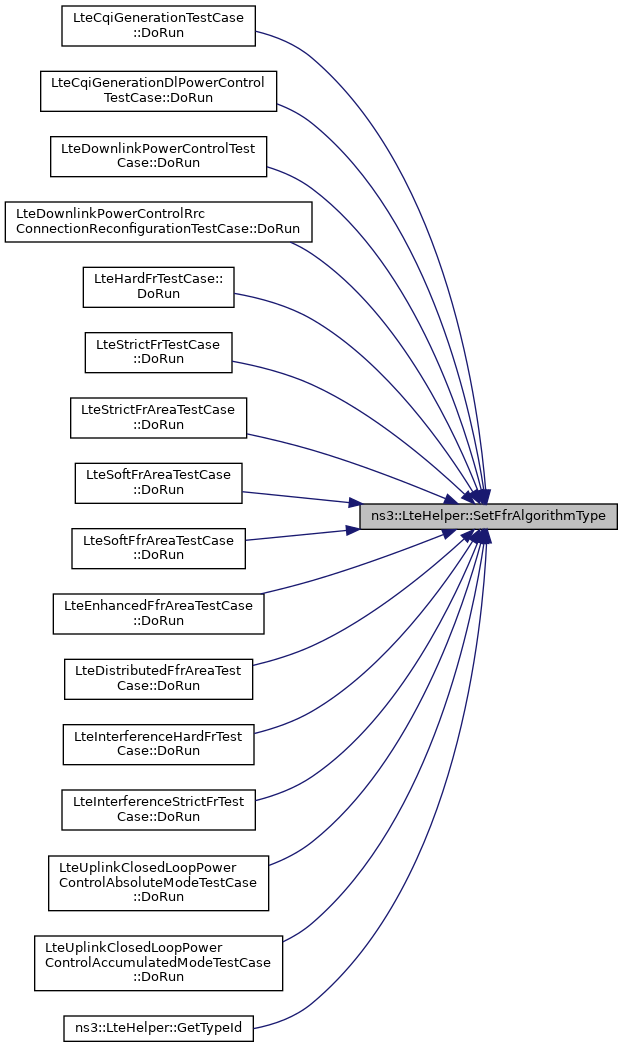

◆ SetFfrAlgorithmType()

void ns3::LteHelper::SetFfrAlgorithmType ( std::string type )

Set the type of FFR algorithm to be used by eNodeB devices.

Parameters

type	type of FFR algorithm, must be a type name of any class inheriting from ns3::LteFfrAlgorithm, for example: "ns3::LteFrNoOpAlgorithm"

Equivalent with setting the FfrAlgorithm attribute.

Definition at line 319 of file lte-helper.cc.

References m_ffrAlgorithmFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Here is the call graph for this function:

Here is the caller graph for this function:

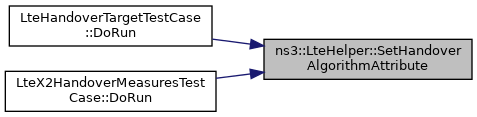

◆ SetHandoverAlgorithmAttribute()

void ns3::LteHelper::SetHandoverAlgorithmAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the handover algorithm to be created.

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 348 of file lte-helper.cc.

References m_handoverAlgorithmFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by LteHandoverTargetTestCase::DoRun(), and LteX2HandoverMeasuresTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetHandoverAlgorithmType()

void ns3::LteHelper::SetHandoverAlgorithmType ( std::string type )

Set the type of handover algorithm to be used by eNodeB devices.

Parameters

type	type of handover algorithm, must be a type name of any class inheriting from ns3::LteHandoverAlgorithm, for example: "ns3::NoOpHandoverAlgorithm"

Equivalent with setting the HandoverAlgorithm attribute.

Definition at line 340 of file lte-helper.cc.

References m_handoverAlgorithmFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by LteDistributedFfrAreaTestCase::DoRun(), LteHandoverTargetTestCase::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), LteX2HandoverTestCase::DoRun(), and GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPathlossModelAttribute()

void ns3::LteHelper::SetPathlossModelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the path loss models to be created.

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 405 of file lte-helper.cc.

References m_pathlossModelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by LenaHarqTestCase::DoRun(), LteLinkAdaptationTestCase::DoRun(), LenaMimoTestCase::DoRun(), LtePathlossModelSystemTestCase::DoRun(), LenaDataPhyErrorModelTestCase::DoRun(), LenaDlCtrlPhyErrorModelTestCase::DoRun(), LteRadioLinkFailureTestCase::DoRun(), and LteEnbAntennaTestCase::DoRun().

Here is the call graph for this function:

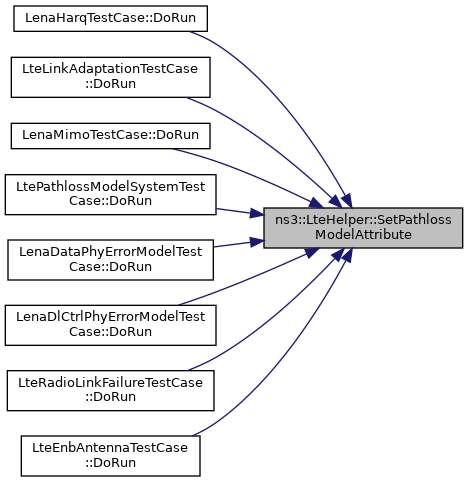

Here is the caller graph for this function:

◆ SetPathlossModelType()

void ns3::LteHelper::SetPathlossModelType ( TypeId type )

Set the type of path loss model to be used for both DL and UL channels.

Parameters

type	type of path loss model, must be a type name of any class inheriting from ns3::PropagationLossModel, for example: "ns3::FriisPropagationLossModel"

Definition at line 397 of file lte-helper.cc.

References m_pathlossModelFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by LteRadioLinkFailureTestCase::DoRun(), and GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetSchedulerAttribute()

void ns3::LteHelper::SetSchedulerAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the scheduler to be created.

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 306 of file lte-helper.cc.

References m_schedulerFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetSchedulerType()

void ns3::LteHelper::SetSchedulerType ( std::string type )

Set the type of scheduler to be used by eNodeB devices.

Parameters

type	type of scheduler, must be a type name of any class inheriting from ns3::FfMacScheduler, for example: "ns3::PfFfMacScheduler"

Equivalent with setting the Scheduler attribute.

Definition at line 292 of file lte-helper.cc.

References m_schedulerFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetSpectrumChannelAttribute()

void ns3::LteHelper::SetSpectrumChannelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the spectrum channel to be created (both DL and UL).

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 479 of file lte-helper.cc.

References m_channelFactory, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

◆ SetSpectrumChannelType()

void ns3::LteHelper::SetSpectrumChannelType ( std::string type )

Set the type of spectrum channel to be used in both DL and UL.

Parameters

type	type of spectrum channel model, must be a type name of any class inheriting from ns3::SpectrumChannel, for example: "ns3::MultiModelSpectrumChannel"

Definition at line 472 of file lte-helper.cc.

References m_channelFactory, NS_LOG_FUNCTION, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Here is the call graph for this function:

◆ SetUeAntennaModelAttribute()

void ns3::LteHelper::SetUeAntennaModelAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the UE antenna model to be created.

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 447 of file lte-helper.cc.

References m_ueAntennaModelFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

◆ SetUeAntennaModelType()

void ns3::LteHelper::SetUeAntennaModelType ( std::string type )

Set the type of antenna model to be used by UE devices.

Parameters

type	type of antenna model, must be a type name of any class inheriting from ns3::AntennaModel, for example: "ns3::IsotropicAntennaModel"

Definition at line 440 of file lte-helper.cc.

References m_ueAntennaModelFactory, NS_LOG_FUNCTION, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

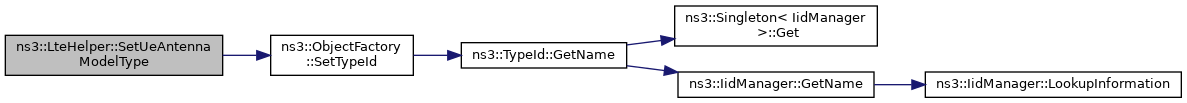

Here is the call graph for this function:

◆ SetUeComponentCarrierManagerAttribute()

void ns3::LteHelper::SetUeComponentCarrierManagerAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the ue component carrier manager to be created.

Parameters

n	the name of the attribute
v	the value of the attribute

Definition at line 390 of file lte-helper.cc.

References m_ueComponentCarrierManagerFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

◆ SetUeComponentCarrierManagerType()

void ns3::LteHelper::SetUeComponentCarrierManagerType ( std::string type )

Set the type of Component Carrier Manager to be used by Ue devices.

Parameters

type	type of UE Component Carrier Manager

Definition at line 382 of file lte-helper.cc.

References m_ueComponentCarrierManagerFactory, NS_LOG_FUNCTION, ns3::Object::ObjectFactory, ns3::ObjectFactory::SetTypeId(), and check-style-clang-format::type.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetUeDeviceAttribute()

void ns3::LteHelper::SetUeDeviceAttribute	(	std::string	n,
		const AttributeValue &	v
	)

Set an attribute for the UE devices (LteUeNetDevice) to be created.

Parameters

n	the name of the attribute.
v	the value of the attribute

Definition at line 433 of file lte-helper.cc.

References m_ueNetDeviceFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::Set().

Referenced by CarrierAggregationConfigTestCase::DoRun(), LteCellSelectionTestCase::DoRun(), and LtePathlossModelSystemTestCase::DoRun().

Here is the call graph for this function:

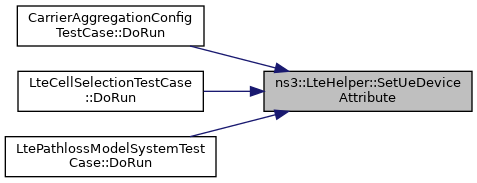

Here is the caller graph for this function:

Member Data Documentation

◆ m_cellIdCounter

uint16_t ns3::LteHelper::m_cellIdCounter

private

Keep track of the number of cell ID allocated.

Increases by one every time a new eNodeB is installed (by InstallSingleEnbDevice()). The first eNodeB will have a cell ID of 1. The maximum number of eNodeB is 65535.

Definition at line 825 of file lte-helper.h.

Referenced by InstallSingleEnbDevice().

◆ m_channelFactory

ObjectFactory ns3::LteHelper::m_channelFactory

private

Factory of both the downlink and uplink LTE channels.

Definition at line 778 of file lte-helper.h.

Referenced by LteHelper(), ChannelModelInitialization(), SetSpectrumChannelAttribute(), and SetSpectrumChannelType().

◆ m_componentCarrierPhyParams

std::map<uint8_t, ComponentCarrier> ns3::LteHelper::m_componentCarrierPhyParams

private

This contains all the information about each component carrier.

Definition at line 855 of file lte-helper.h.

Referenced by DoComponentCarrierConfigure(), DoDispose(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

◆ m_downlinkChannel

Ptr<SpectrumChannel> ns3::LteHelper::m_downlinkChannel

private

This function create the component carrier based on provided configuration parameters.

The downlink LTE channel used in the simulation.

Definition at line 749 of file lte-helper.h.

Referenced by ChannelModelInitialization(), DoDispose(), GetDownlinkSpectrumChannel(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

◆ m_downlinkPathlossModel

Ptr<Object> ns3::LteHelper::m_downlinkPathlossModel

private

The path loss model used in the downlink channel.

Definition at line 753 of file lte-helper.h.

Referenced by ChannelModelInitialization(), and InstallSingleEnbDevice().

◆ m_enbAntennaModelFactory

ObjectFactory ns3::LteHelper::m_enbAntennaModelFactory

private

Factory of antenna object for eNodeB.

Definition at line 770 of file lte-helper.h.

Referenced by LteHelper(), InstallSingleEnbDevice(), SetEnbAntennaModelAttribute(), and SetEnbAntennaModelType().

◆ m_enbComponentCarrierManagerFactory

ObjectFactory ns3::LteHelper::m_enbComponentCarrierManagerFactory

private

Factory of enb component carrier manager object.

Definition at line 764 of file lte-helper.h.

Referenced by GetEnbComponentCarrierManagerType(), InstallSingleEnbDevice(), SetEnbComponentCarrierManagerAttribute(), and SetEnbComponentCarrierManagerType().

◆ m_enbNetDeviceFactory

ObjectFactory ns3::LteHelper::m_enbNetDeviceFactory

private

Factory of LteEnbNetDevice objects.

Definition at line 768 of file lte-helper.h.

Referenced by LteHelper(), InstallSingleEnbDevice(), and SetEnbDeviceAttribute().

◆ m_epcHelper

Ptr<EpcHelper> ns3::LteHelper::m_epcHelper

private

Helper which provides implementation of core network.

Initially empty (i.e., LTE-only simulation without any core network) and then might be set using SetEpcHelper().

Definition at line 812 of file lte-helper.h.

Referenced by ActivateDataRadioBearer(), ActivateDedicatedEpsBearer(), AddX2Interface(), AssignStreams(), Attach(), DeActivateDedicatedEpsBearer(), HandoverRequest(), InstallSingleEnbDevice(), InstallSingleUeDevice(), and SetEpcHelper().

◆ m_fadingModel

Ptr<SpectrumPropagationLossModel> ns3::LteHelper::m_fadingModel

private

The fading model used in both the downlink and uplink channels.

Definition at line 785 of file lte-helper.h.

Referenced by AssignStreams(), and ChannelModelInitialization().

◆ m_fadingModelFactory

ObjectFactory ns3::LteHelper::m_fadingModelFactory

private

Factory of fading model object for both the downlink and uplink channels.

Definition at line 783 of file lte-helper.h.

Referenced by ChannelModelInitialization(), SetFadingModel(), and SetFadingModelAttribute().

◆ m_fadingModelType

std::string ns3::LteHelper::m_fadingModelType

private

Name of fading model type, e.g., "ns3::TraceFadingLossModel".

Definition at line 781 of file lte-helper.h.

Referenced by ChannelModelInitialization(), and SetFadingModel().

◆ m_fadingStreamsAssigned

bool ns3::LteHelper::m_fadingStreamsAssigned

private

True if a random variable stream number has been assigned for the fading model.

Used to prevent such assignment to be done more than once.

Definition at line 790 of file lte-helper.h.

Referenced by AssignStreams().

◆ m_ffrAlgorithmFactory

ObjectFactory ns3::LteHelper::m_ffrAlgorithmFactory

private

Factory of FFR (frequency reuse) algorithm object.

Definition at line 760 of file lte-helper.h.

Referenced by GetFfrAlgorithmType(), InstallSingleEnbDevice(), SetFfrAlgorithmAttribute(), and SetFfrAlgorithmType().

◆ m_handoverAlgorithmFactory

ObjectFactory ns3::LteHelper::m_handoverAlgorithmFactory

private

Factory of handover algorithm object.

Definition at line 762 of file lte-helper.h.

Referenced by GetHandoverAlgorithmType(), InstallSingleEnbDevice(), SetHandoverAlgorithmAttribute(), and SetHandoverAlgorithmType().

◆ m_imsiCounter

uint64_t ns3::LteHelper::m_imsiCounter

private

Keep track of the number of IMSI allocated.

Increases by one every time a new UE is installed (by InstallSingleUeDevice()). The first UE will have an IMSI of 1. The maximum number of UE is 2^64 (~4.2e9).

Definition at line 819 of file lte-helper.h.

Referenced by InstallSingleUeDevice().

◆ m_isAnrEnabled

bool ns3::LteHelper::m_isAnrEnabled

private

The AnrEnabled attribute.

Activate or deactivate Automatic Neighbour Relation function.

Definition at line 836 of file lte-helper.h.

Referenced by GetTypeId(), and InstallSingleEnbDevice().

◆ m_macStats

Ptr<MacStatsCalculator> ns3::LteHelper::m_macStats

private

Container of MAC layer statistics.

Definition at line 799 of file lte-helper.h.

Referenced by DoInitialize(), EnableDlMacTraces(), and EnableUlMacTraces().

◆ m_noOfCcs

uint16_t ns3::LteHelper::m_noOfCcs

private

Number of component carriers that will be installed by default at eNodeB and UE devices.

Definition at line 860 of file lte-helper.h.

Referenced by ChannelModelInitialization(), DoComponentCarrierConfigure(), GetTypeId(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

◆ m_pathlossModelFactory

ObjectFactory ns3::LteHelper::m_pathlossModelFactory

private

Factory of path loss model object.

Definition at line 776 of file lte-helper.h.

Referenced by ChannelModelInitialization(), SetPathlossModelAttribute(), and SetPathlossModelType().

◆ m_pdcpStats

Ptr<RadioBearerStatsCalculator> ns3::LteHelper::m_pdcpStats

private

Container of PDCP layer statistics.

Definition at line 803 of file lte-helper.h.

Referenced by EnablePdcpTraces(), and GetPdcpStats().

◆ m_phyRxStats

Ptr<PhyRxStatsCalculator> ns3::LteHelper::m_phyRxStats

private

Container of PHY layer statistics related to reception.

Definition at line 797 of file lte-helper.h.

Referenced by DoInitialize(), EnableDlRxPhyTraces(), and EnableUlRxPhyTraces().

◆ m_phyStats

Ptr<PhyStatsCalculator> ns3::LteHelper::m_phyStats

private

Container of PHY layer statistics.

Definition at line 793 of file lte-helper.h.

Referenced by DoInitialize(), EnableDlPhyTraces(), and EnableUlPhyTraces().

◆ m_phyTxStats

Ptr<PhyTxStatsCalculator> ns3::LteHelper::m_phyTxStats

private

Container of PHY layer statistics related to transmission.

Definition at line 795 of file lte-helper.h.

Referenced by DoInitialize(), EnableDlTxPhyTraces(), and EnableUlTxPhyTraces().

◆ m_radioBearerStatsConnector

RadioBearerStatsConnector ns3::LteHelper::m_radioBearerStatsConnector

private

Connects RLC and PDCP statistics containers to appropriate trace sources.

Definition at line 805 of file lte-helper.h.

Referenced by EnablePdcpTraces(), and EnableRlcTraces().

◆ m_rlcStats

Ptr<RadioBearerStatsCalculator> ns3::LteHelper::m_rlcStats

private

Container of RLC layer statistics.

Definition at line 801 of file lte-helper.h.

Referenced by EnableRlcTraces(), and GetRlcStats().

◆ m_schedulerFactory

ObjectFactory ns3::LteHelper::m_schedulerFactory

private

Factory of MAC scheduler object.

Definition at line 758 of file lte-helper.h.

Referenced by GetSchedulerType(), InstallSingleEnbDevice(), SetSchedulerAttribute(), and SetSchedulerType().

◆ m_ueAntennaModelFactory

ObjectFactory ns3::LteHelper::m_ueAntennaModelFactory

private

Factory of antenna object for UE.

Definition at line 774 of file lte-helper.h.

Referenced by LteHelper(), InstallSingleUeDevice(), SetUeAntennaModelAttribute(), and SetUeAntennaModelType().

◆ m_ueComponentCarrierManagerFactory

ObjectFactory ns3::LteHelper::m_ueComponentCarrierManagerFactory

private

Factory of ue component carrier manager object.

Definition at line 766 of file lte-helper.h.

Referenced by GetUeComponentCarrierManagerType(), InstallSingleUeDevice(), SetUeComponentCarrierManagerAttribute(), and SetUeComponentCarrierManagerType().

◆ m_ueNetDeviceFactory

ObjectFactory ns3::LteHelper::m_ueNetDeviceFactory

private

Factory for LteUeNetDevice objects.

Definition at line 772 of file lte-helper.h.

Referenced by LteHelper(), InstallSingleUeDevice(), and SetUeDeviceAttribute().

◆ m_uplinkChannel

Ptr<SpectrumChannel> ns3::LteHelper::m_uplinkChannel

private

The uplink LTE channel used in the simulation.

Definition at line 751 of file lte-helper.h.

Referenced by ChannelModelInitialization(), DoDispose(), GetUplinkSpectrumChannel(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

◆ m_uplinkPathlossModel

Ptr<Object> ns3::LteHelper::m_uplinkPathlossModel

private

The path loss model used in the uplink channel.

Definition at line 755 of file lte-helper.h.

Referenced by ChannelModelInitialization(), and InstallSingleEnbDevice().

◆ m_useCa

bool ns3::LteHelper::m_useCa

private

The UseCa attribute.

If true, Carrier Aggregation is enabled. Hence, the helper will expect a valid component carrier map If it is false, the component carrier will be created within the LteHelper this is to maintain the backwards compatibility with user script

Definition at line 850 of file lte-helper.h.

Referenced by GetTypeId(), and InstallSingleEnbDevice().

◆ m_useIdealRrc

bool ns3::LteHelper::m_useIdealRrc

private

The UseIdealRrc attribute.

If true, LteRrcProtocolIdeal will be used for RRC signaling. If false, LteRrcProtocolReal will be used.

Definition at line 831 of file lte-helper.h.

Referenced by GetTypeId(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

◆ m_usePdschForCqiGeneration

bool ns3::LteHelper::m_usePdschForCqiGeneration

private

The UsePdschForCqiGeneration attribute.

If true, DL-CQI will be calculated from PDCCH as signal and PDSCH as interference. If false, DL-CQI will be calculated from PDCCH as signal and PDCCH as interference.

Definition at line 842 of file lte-helper.h.

Referenced by GetTypeId(), and InstallSingleUeDevice().

The documentation for this class was generated from the following files:

src/lte/helper/lte-helper.h
src/lte/helper/lte-helper.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LteHelper()

◆ ~LteHelper()

Member Function Documentation

◆ ActivateDataRadioBearer() [1/2]

◆ ActivateDataRadioBearer() [2/2]

◆ ActivateDedicatedEpsBearer() [1/2]

◆ ActivateDedicatedEpsBearer() [2/2]

◆ AddX2Interface() [1/2]

◆ AddX2Interface() [2/2]

◆ AssignStreams()

◆ Attach() [1/4]

◆ Attach() [2/4]

◆ Attach() [3/4]

◆ Attach() [4/4]

◆ AttachToClosestEnb() [1/2]

◆ AttachToClosestEnb() [2/2]

◆ ChannelModelInitialization()

◆ DeActivateDedicatedEpsBearer()

◆ DoComponentCarrierConfigure()

◆ DoDeActivateDedicatedEpsBearer()

◆ DoDispose()

◆ DoHandoverRequest()

◆ DoInitialize()

◆ EnableDlMacTraces()

◆ EnableDlPhyTraces()

◆ EnableDlRxPhyTraces()

◆ EnableDlTxPhyTraces()

◆ EnableLogComponents()

◆ EnableMacTraces()

◆ EnablePdcpTraces()

◆ EnablePhyTraces()

◆ EnableRlcTraces()

◆ EnableTraces()

◆ EnableUlMacTraces()

◆ EnableUlPhyTraces()

◆ EnableUlRxPhyTraces()

◆ EnableUlTxPhyTraces()

◆ GetDownlinkSpectrumChannel()

◆ GetEnbComponentCarrierManagerType()

◆ GetFfrAlgorithmType()

◆ GetHandoverAlgorithmType()

◆ GetPdcpStats()

◆ GetRlcStats()

◆ GetSchedulerType()

◆ GetTypeId()

◆ GetUeComponentCarrierManagerType()

◆ GetUplinkSpectrumChannel()

◆ HandoverRequest() [1/2]

◆ HandoverRequest() [2/2]

◆ InstallEnbDevice()

◆ InstallSingleEnbDevice()

◆ InstallSingleUeDevice()

◆ InstallUeDevice()

◆ SetEnbAntennaModelAttribute()

◆ SetEnbAntennaModelType()

◆ SetEnbComponentCarrierManagerAttribute()

◆ SetEnbComponentCarrierManagerType()

◆ SetEnbDeviceAttribute()

◆ SetEpcHelper()

◆ SetFadingModel()

◆ SetFadingModelAttribute()

◆ SetFfrAlgorithmAttribute()

◆ SetFfrAlgorithmType()

◆ SetHandoverAlgorithmAttribute()

◆ SetHandoverAlgorithmType()

◆ SetPathlossModelAttribute()

◆ SetPathlossModelType()

◆ SetSchedulerAttribute()

◆ SetSchedulerType()

◆ SetSpectrumChannelAttribute()

◆ SetSpectrumChannelType()

◆ SetUeAntennaModelAttribute()
