Dsr Routing base. More...

#include "dsr-routing.h"

Inheritance diagram for ns3::dsr::DsrRouting:

Collaboration diagram for ns3::dsr::DsrRouting:

Public Member Functions
	DsrRouting ()
	Constructor. More...

	~DsrRouting () override
	Destructor. More...

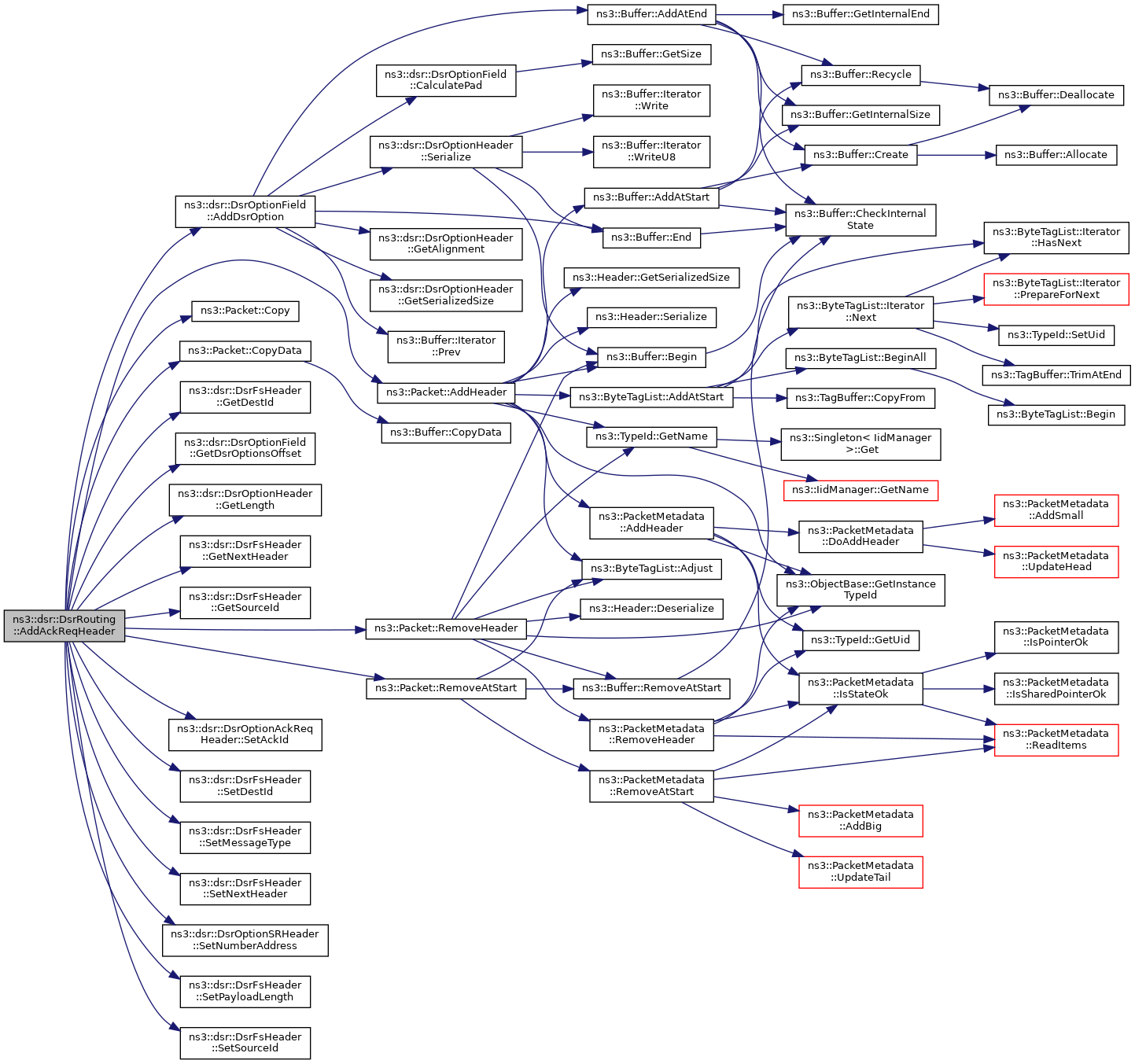

uint16_t	AddAckReqHeader (Ptr< Packet > &packet, Ipv4Address nextHop)
	This function is called to add ack request header for network acknowledgement. More...

bool	AddRoute (DsrRouteCacheEntry &rt)
	Add route cache entry if it doesn't yet exist in route cache See also DsrRouteCache::AddRoute. More...

bool	AddRoute_Link (DsrRouteCacheEntry::IP_VECTOR nodelist, Ipv4Address source)
	dd route link to cache See also DsrRouteCache::AddRoute_Link More...

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

void	CallCancelPacketTimer (uint16_t ackId, const Ipv4Header &ipv4Header, Ipv4Address realSrc, Ipv4Address realDst)
	Call the cancel packet retransmission timer function. More...

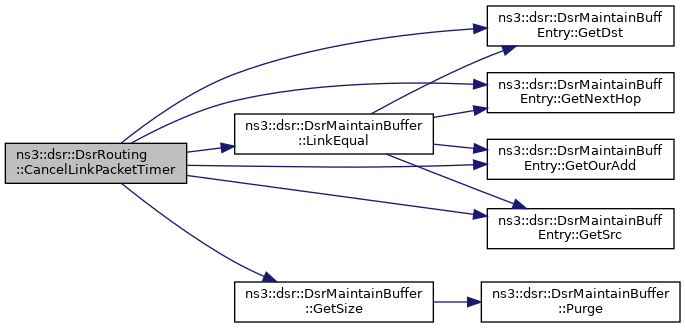

void	CancelLinkPacketTimer (DsrMaintainBuffEntry &mb)
	Cancel the link packet retransmission timer for a specific maintenance entry. More...

void	CancelNetworkPacketTimer (DsrMaintainBuffEntry &mb)
	Cancel the network packet retransmission timer for a specific maintenance entry. More...

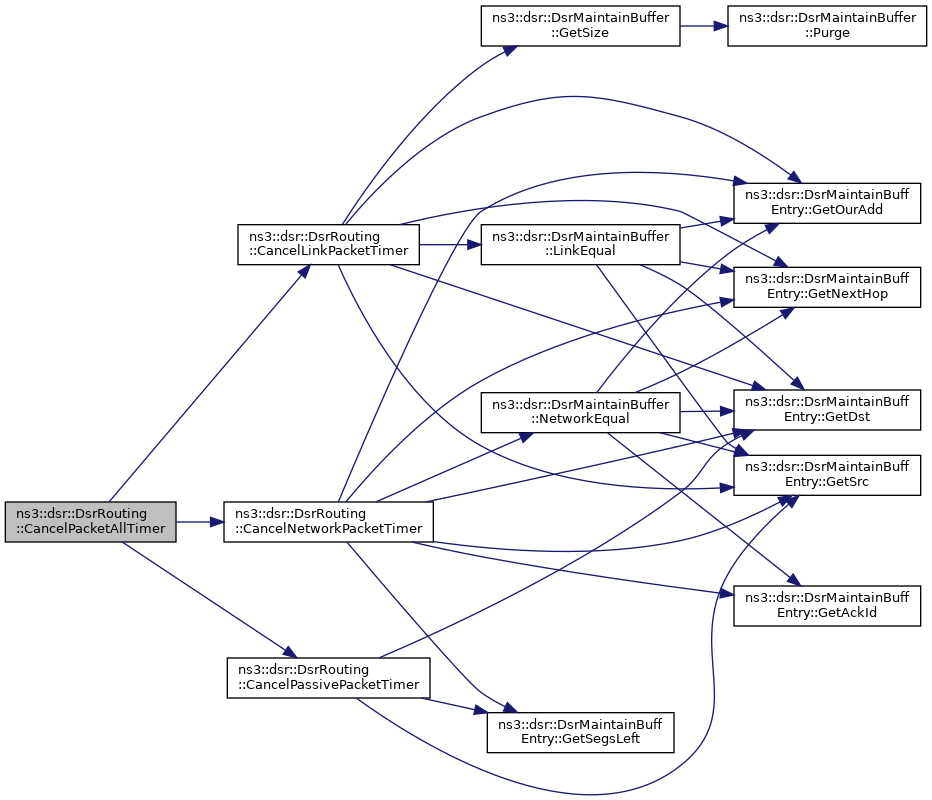

void	CancelPacketAllTimer (DsrMaintainBuffEntry &mb)
	Cancel all the packet timers. More...

void	CancelPacketTimerNextHop (Ipv4Address nextHop, uint8_t protocol)
	Cancel the packet retransmission timer for a all maintenance entries with nextHop address. More...

void	CancelPassivePacketTimer (DsrMaintainBuffEntry &mb)
	Cancel the passive packet retransmission timer for a specific maintenance entry. More...

bool	CancelPassiveTimer (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t segsLeft)
	Cancel the passive timer. More...

void	CancelRreqTimer (Ipv4Address dst, bool isRemove)
	Cancel the route request timer. More...

void	CheckSendBuffer ()
	Check the send buffer of packets with route when send buffer timer expire. More...

void	DeleteAllRoutesIncludeLink (Ipv4Address errorSrc, Ipv4Address unreachNode, Ipv4Address node)
	Delete all the routes which includes the link from next hop address that has just been notified as unreachable. More...

bool	FindSourceEntry (Ipv4Address src, Ipv4Address dst, uint16_t id)
	Find the source request entry in the route request queue, return false if not found. More...

void	ForwardErrPacket (DsrOptionRerrUnreachHeader &rerr, DsrOptionSRHeader &sourceRoute, Ipv4Address nextHop, uint8_t protocol, Ptr< Ipv4Route > route)
	This function is responsible for forwarding error packets along the route. More...

void	ForwardPacket (Ptr< const Packet > packet, DsrOptionSRHeader &sourceRoute, const Ipv4Header &ipv4Header, Ipv4Address source, Ipv4Address destination, Ipv4Address targetAddress, uint8_t protocol, Ptr< Ipv4Route > route)
	Forward the packet using the route saved in the source route option header. More...

IpL4Protocol::DownTargetCallback	GetDownTarget () const override
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

IpL4Protocol::DownTargetCallback6	GetDownTarget6 () const override
	This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

std::vector< std::string >	GetElementsFromContext (std::string context)
	Get the elements from the tracing context. More...

uint16_t	GetIDfromIP (Ipv4Address address)
	Get the node id from ip address. More...

Ipv4Address	GetIPfromID (uint16_t id)
	Get the ip address from id. More...

Ipv4Address	GetIPfromMAC (Mac48Address address)
	Get the Ip address from mac address. More...

Ptr< NetDevice >	GetNetDeviceFromContext (std::string context)
	Get the netdevice from the context. More...

Ptr< Node >	GetNode () const
	Get the node. More...

Ptr< Node >	GetNodeWithAddress (Ipv4Address ipv4Address)
	Get the node with give ip address. More...

Ptr< dsr::DsrOptions >	GetOption (int optionNumber)
	Get the option corresponding to optionNumber. More...

Ptr< dsr::DsrPassiveBuffer >	GetPassiveBuffer () const
	Get the passive buffer. More...

uint32_t	GetPriority (DsrMessageType messageType)
	Set the priority of the packet in network queue. More...

int	GetProtocolNumber () const override
	Get the dsr protocol number. More...

Ptr< dsr::DsrRreqTable >	GetRequestTable () const
	Get the request table. More...

Ptr< dsr::DsrRouteCache >	GetRouteCache () const
	Get the route cache. More...

void	IncreaseRetransTimer ()
	This function is called to increase the retransmission timer for data packet in the network queue. More...

void	Insert (Ptr< dsr::DsrOptions > option)
	Insert a new Dsr Option. More...

bool	IsLinkCache ()
	Checks if the link is cached in the route cache See also DsrRouteCache::IsLinkCache. More...

void	LinkScheduleTimerExpire (DsrMaintainBuffEntry &mb, uint8_t protocol)
	This function deals with packet retransmission timer expire using link acknowledgment. More...

bool	LookupRoute (Ipv4Address id, DsrRouteCacheEntry &rt)
	Lookup route cache entry with destination address dst See also DsrRouteCache::LookupRoute. More...

void	NetworkScheduleTimerExpire (DsrMaintainBuffEntry &mb, uint8_t protocol)
	This function deals with packet retransmission timer expire using network acknowledgment. More...

void	PacketNewRoute (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t protocol)
	When route vector corrupted, originate a new packet, normally not happening. More...

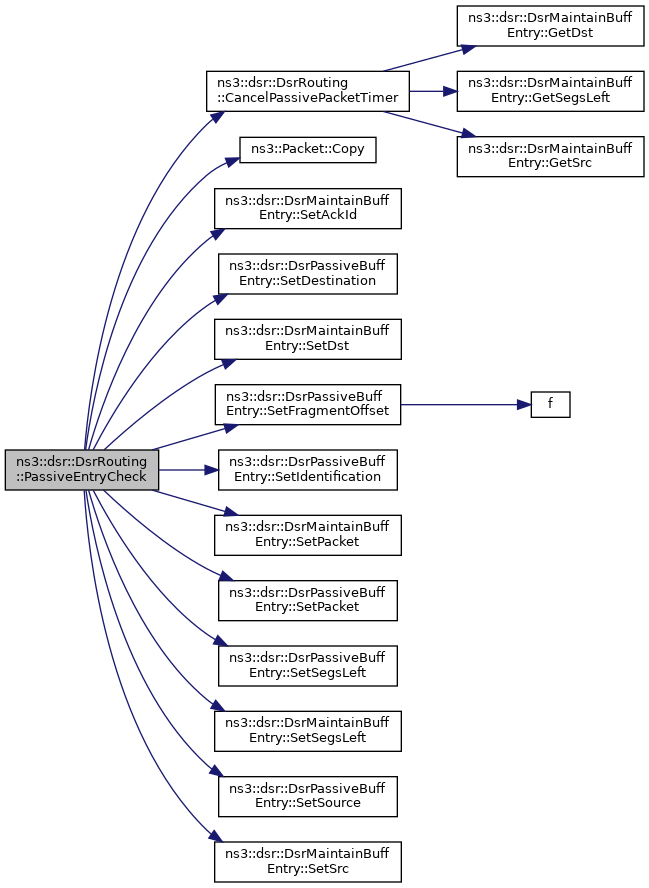

bool	PassiveEntryCheck (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t segsLeft, uint16_t fragmentOffset, uint16_t identification, bool saveEntry)
	Find the same passive entry. More...

void	PassiveScheduleTimerExpire (DsrMaintainBuffEntry &mb, uint8_t protocol)
	This function deals with packet retransmission timer expire using passive acknowledgment. More...

void	PrintVector (std::vector< Ipv4Address > &vec)
	Print the route vector. More...

void	PriorityScheduler (uint32_t priority, bool continueWithFirst)
	This function is called to schedule sending packets from the network queue by priority. More...

uint8_t	Process (Ptr< Packet > &packet, const Ipv4Header &ipv4Header, Ipv4Address dst, uint8_t *nextHeader, uint8_t protocol, bool &isDropped)
	Process method Called from Ipv4L3Protocol::Receive. More...

IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, const Ipv4Header &header, Ptr< Ipv4Interface > incomingInterface) override

IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, const Ipv6Header &header, Ptr< Ipv6Interface > incomingInterface) override

void	RouteRequestTimerExpire (Ptr< Packet > packet, std::vector< Ipv4Address > address, uint32_t requestId, uint8_t protocol)
	Handle route discovery timer. More...

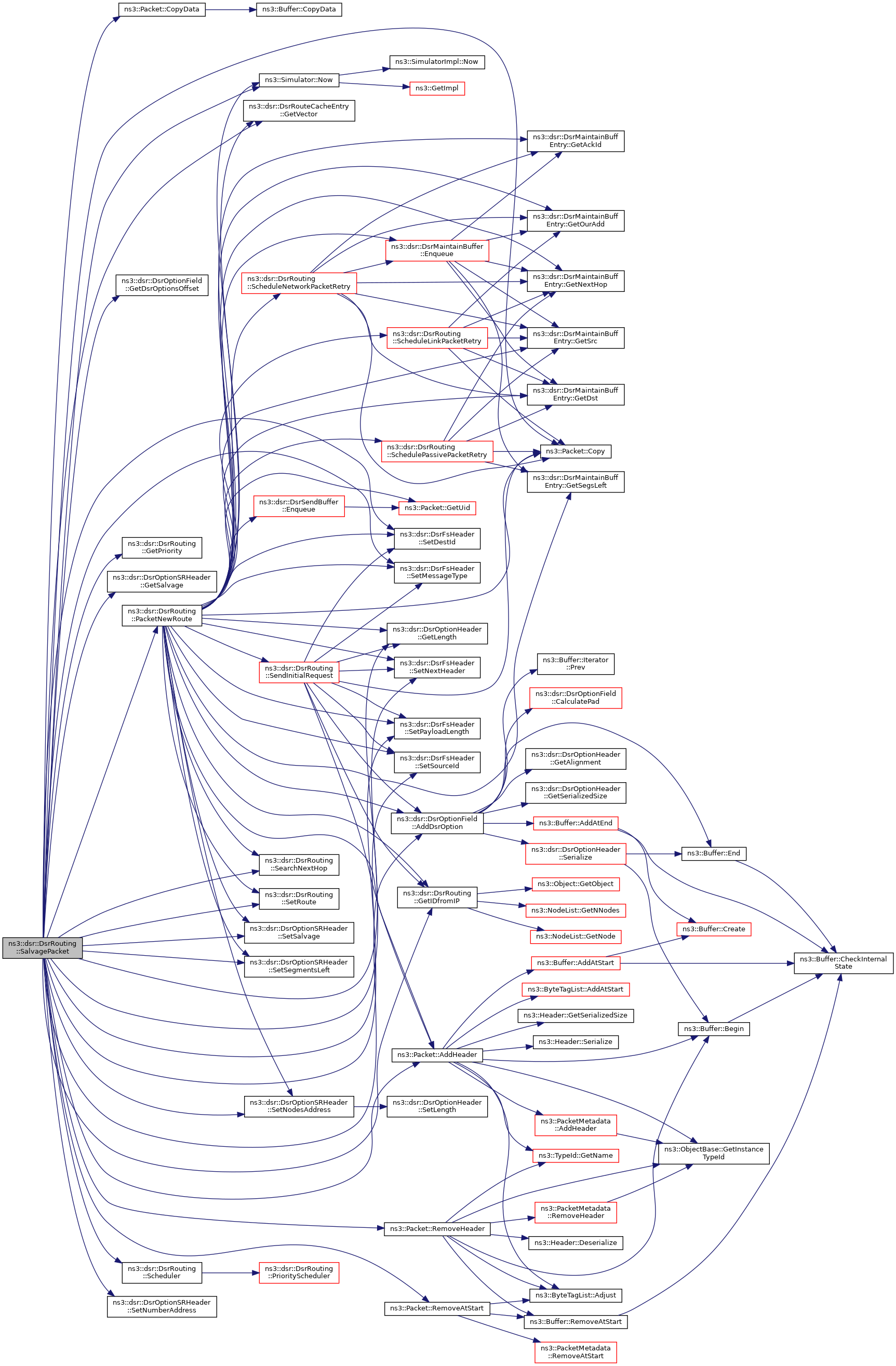

void	SalvagePacket (Ptr< const Packet > packet, Ipv4Address source, Ipv4Address dst, uint8_t protocol)
	Salvage the packet which has been transmitted for 3 times. More...

void	ScheduleCachedReply (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, Ptr< Ipv4Route > route, double hops)
	Schedule the cached reply to a random start time to avoid possible route reply storm. More...

void	ScheduleInitialReply (Ptr< Packet > packet, Ipv4Address source, Ipv4Address nextHop, Ptr< Ipv4Route > route)
	this is a generating the initial route reply from the destination address, a random delay time [0, m_broadcastJitter] is used before unicasting back the route reply packet More...

void	ScheduleInterRequest (Ptr< Packet > packet)
	Schedule the intermediate route request. More...

void	ScheduleLinkPacketRetry (DsrMaintainBuffEntry &mb, uint8_t protocol)
	Schedule the packet retransmission based on link-layer acknowledgment. More...

void	ScheduleNetworkPacketRetry (DsrMaintainBuffEntry &mb, bool isFirst, uint8_t protocol)
	Schedule the packet retransmission based on network layer acknowledgment. More...

void	SchedulePassivePacketRetry (DsrMaintainBuffEntry &mb, uint8_t protocol)
	Schedule the packet retransmission based on passive acknowledgment. More...

void	Scheduler (uint32_t priority)
	This function is called to schedule sending packets from the network queue. More...

void	ScheduleRreqRetry (Ptr< Packet > packet, std::vector< Ipv4Address > address, bool nonProp, uint32_t requestId, uint8_t protocol)
	Schedule the route request retry. More...

Ipv4Address	SearchNextHop (Ipv4Address ipv4Address, std::vector< Ipv4Address > &vec)
	Get the next hop of the route. More...

void	Send (Ptr< Packet > packet, Ipv4Address source, Ipv4Address destination, uint8_t protocol, Ptr< Ipv4Route > route)
	This function is called by higher layer protocol when sending packets. More...

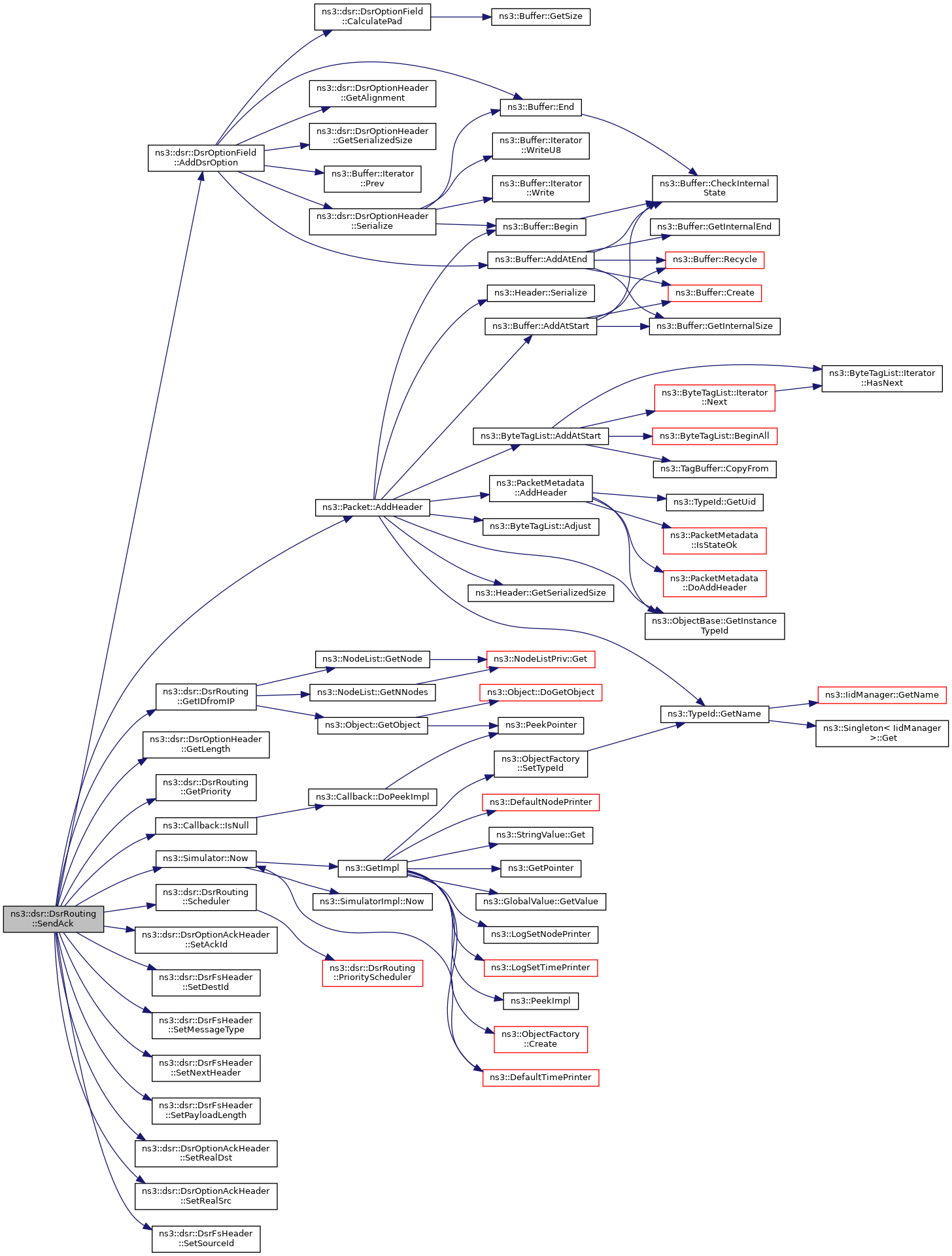

void	SendAck (uint16_t ackId, Ipv4Address destination, Ipv4Address realSrc, Ipv4Address realDst, uint8_t protocol, Ptr< Ipv4Route > route)
	Send network layer acknowledgment back to the earlier hop to notify the receipt of data packet. More...

void	SendBuffTimerExpire ()
	The send buffer timer expire. More...

void	SendErrorRequest (DsrOptionRerrUnreachHeader &rerr, uint8_t protocol)
	Send the error request packet. More...

void	SendGratuitousReply (Ipv4Address replyTo, Ipv4Address replyFrom, std::vector< Ipv4Address > &nodeList, uint8_t protocol)
	Send the gratuitous reply. More...

void	SendInitialRequest (Ipv4Address source, Ipv4Address destination, uint8_t protocol)
	Broadcast the route request packet in subnet. More...

void	SendPacket (Ptr< Packet > packet, Ipv4Address source, Ipv4Address nextHop, uint8_t protocol)
	This function is called by when really sending out the packet. More...

void	SendPacketFromBuffer (const DsrOptionSRHeader &sourceRoute, Ipv4Address nextHop, uint8_t protocol)
	This function is responsible for sending out data packets when have route, if no route found, it will cache the packet and send out route requests. More...

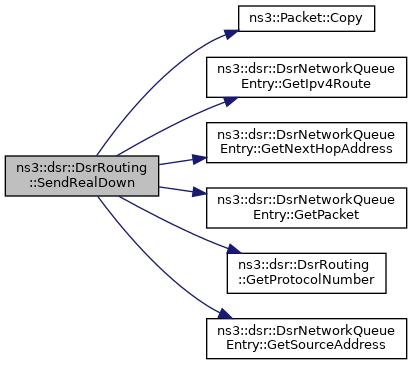

bool	SendRealDown (DsrNetworkQueueEntry &newEntry)
	This function is called to send packets down stack. More...

void	SendReply (Ptr< Packet > packet, Ipv4Address source, Ipv4Address nextHop, Ptr< Ipv4Route > route)
	Send the route reply back to the request originator with the cumulated route. More...

void	SendRequest (Ptr< Packet > packet, Ipv4Address source)
	Forward the route request if the node is not the destination. More...

void	SendUnreachError (Ipv4Address unreachNode, Ipv4Address destination, Ipv4Address originalDst, uint8_t salvage, uint8_t protocol)
	This function is responsible for sending error packets in case of break link to next hop. More...

void	SetDownTarget (IpL4Protocol::DownTargetCallback callback) override
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

void	SetDownTarget6 (IpL4Protocol::DownTargetCallback6 callback) override
	This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

void	SetNode (Ptr< Node > node)
	Set the node. More...

void	SetPassiveBuffer (Ptr< dsr::DsrPassiveBuffer > r)
	Set the node. More...

void	SetRequestTable (Ptr< dsr::DsrRreqTable > r)
	Set the node. More...

Ptr< Ipv4Route >	SetRoute (Ipv4Address nextHop, Ipv4Address srcAddress)
	Set the route to use for data packets, used by the option headers when sending data/control packets. More...

void	SetRouteCache (Ptr< dsr::DsrRouteCache > r)
	Set the route cache. More...

bool	UpdateRouteEntry (Ipv4Address dst)
	Update route cache entry if it has been recently used and successfully delivered the data packet. More...

void	UseExtends (DsrRouteCacheEntry::IP_VECTOR rt)
	Extends the lifetime of a route cache entry. More...

Public Member Functions inherited from ns3::IpL4Protocol
	~IpL4Protocol () override

virtual void	ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void	ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
	Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Attributes
static const uint8_t	PROT_NUMBER = 48
	Define the dsr protocol number. More...

Protected Member Functions
void	DoDispose () override
	Drop trace callback. More...

void	NotifyNewAggregate () override
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
TracedCallback< Ptr< const Packet > >	m_dropTrace
	The trace for drop, receive and send data packets. More...

TracedCallback< const DsrOptionSRHeader & >	m_txPacketTrace
	packet trace callback More...

Private Types
typedef std::list< Ptr< DsrOptions > >	DsrOptionList_t
	Define the list to hold DSR options. More...

Private Member Functions
bool	PromiscReceive (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, const Address &from, const Address &to, NetDevice::PacketType packetType)
	Promiscuous receive data packets destined to some other node. More...

void	SendRerrWhenBreaksLinkToNextHop (Ipv4Address nextHop, uint8_t protocol)
	Send the route error message when the link breaks to the next hop. More...

void	Start ()

Private Attributes
uint16_t	m_ackId
	The ack id assigned to each acknowledge. More...

std::vector< Ipv4Address >	m_addresses
	The bind ipv4 addresses with next hop, src, destination address in sequence. More...

std::map< NetworkKey, uint32_t >	m_addressForwardCnt
	Map network key + forward counts. More...

std::map< NetworkKey, Timer >	m_addressForwardTimer
	Map network key + forward timer. More...

std::map< Ipv4Address, Timer >	m_addressReqTimer
	Map IP address + RREQ timer. More...

Time	m_blacklistTimeout
	The black list time out. More...

Ipv4Address	m_broadcast
	The broadcast IP address. More...

uint32_t	m_broadcastJitter
	The max time to delay route request broadcast. More...

std::string	m_cacheType
	The type of route cache. More...

std::vector< Ipv4Address >	m_clearList
	The node that is clear to send packet to. More...

uint32_t	m_discoveryHopLimit
	Maximum hops to go for route request. More...

IpL4Protocol::DownTargetCallback	m_downTarget
	The callback for down layer. More...

DsrErrorBuffer	m_errorBuffer
	The error buffer to save the error messages. More...

std::vector< Ipv4Address >	m_finalRoute
	The route cache. More...

DsrGraReply	m_graReply
	The gratuitous route reply. More...

uint32_t	m_graReplyTableSize
	Set the gratuitous reply table size. More...

Time	m_gratReplyHoldoff
	The max gratuitous reply hold off time. More...

Time	m_initStability
	The initial stability value for link cache. More...

Ptr< Ipv4 >	m_ip
	The ip ptr. More...

Ptr< Ipv4L3Protocol >	m_ipv4
	Ipv4l3Protocol. More...

Ptr< Ipv4Route >	m_ipv4Route
	Ipv4 Route. More...

bool	m_linkAck
	define if we use link acknowledgement or not More...

Time	m_linkAckTimeout
	The timeout value for link acknowledge. More...

std::map< LinkKey, Timer >	m_linkAckTimer
	The timer for link acknowledgment. More...

std::map< LinkKey, uint32_t >	m_linkCnt
	Map packet key + link forward counts. More...

uint32_t	m_linkRetries

std::map< std::string, uint32_t >	m_macToNodeIdMap
	The map of mac address to node id. More...

Ipv4Address	m_mainAddress
	Our own Ip address. More...

DsrMaintainBuffer	m_maintainBuffer
	The declaration of maintain buffer. More...

uint32_t	m_maxCacheLen
	Max # of cache entries for route cache. More...

Time	m_maxCacheTime
	Max time for caching the route cache entry. More...

uint32_t	m_maxEntriesEachDst
	Max number of route entries to save for each destination. More...

uint32_t	m_maxMaintainLen
	Max # of entries for maintenance buffer. More...

Time	m_maxMaintainTime
	Time out for maintenance buffer. More...

uint32_t	m_maxMaintRexmt
	Maximum number of retransmissions of data packets. More...

Time	m_maxNetworkDelay
	Maximum network delay. More...

uint32_t	m_maxNetworkSize
	Maximum network queue size. More...

Time	m_maxRequestPeriod
	The max request period. More...

uint32_t	m_maxRreqId
	The max number of request ids for a single destination. More...

Time	m_maxRreqTime
	Max time for caching the route request entry. More...

uint8_t	m_maxSalvageCount
	Maximum # times to salvage a packet. More...

uint32_t	m_maxSendBuffLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

Time	m_minLifeTime
	The min life time. More...

DsrNetworkQueue	m_networkQueue
	The network queue. More...

Ptr< Node >	m_node
	The node ptr. More...

Time	m_nodeTraversalTime
	Time estimated for packet to travel between two nodes. More...

std::map< Ipv4Address, Timer >	m_nonPropReqTimer
	Map IP address + RREQ timer. More...

Time	m_nonpropRequestTimeout
	The non-propagation request timeout. More...

uint32_t	m_numPriorityQueues
	The number of priority queues used. More...

DsrOptionList_t	m_options
	List of DSR Options supported. More...

Time	m_passiveAckTimeout
	The timeout value for passive acknowledge. More...

std::map< PassiveKey, Timer >	m_passiveAckTimer
	The timer for passive acknowledgment. More...

Ptr< dsr::DsrPassiveBuffer >	m_passiveBuffer
	A "drop-front" queue used by the routing layer to cache route request sent. More...

std::map< PassiveKey, uint32_t >	m_passiveCnt
	Map packet key + passive forward counts. More...

uint32_t	m_passiveRetries

std::map< uint32_t, Ptr< dsr::DsrNetworkQueue > >	m_priorityQueue
	priority queues More...

uint32_t	m_requestId
	The id assigned to each route request. More...

Time	m_requestPeriod
	The base time interval between route requests. More...

uint32_t	m_requestTableIds
	The request table identifiers. More...

uint32_t	m_requestTableSize
	The max size of the request table size. More...

Time	m_retransIncr
	the increase time for retransmission timer when face network congestion More...

Ptr< dsr::DsrRouteCache >	m_routeCache
	A "drop-front" queue used by the routing layer to cache routes found. More...

std::string	m_routeSortType
	The type of route sort methods. More...

uint32_t	m_rreqRetries
	Maximum number of retransmissions of RREQ with TTL = NetDiameter to discover a route. More...

Ptr< dsr::DsrRreqTable >	m_rreqTable
	A "drop-front" queue used by the routing layer to cache route request sent. More...

DsrSendBuffer	m_sendBuffer
	The send buffer. More...

Time	m_sendBufferTimeout
	The maximum period of time that a routing protocol is allowed to buffer a packet for. More...

Time	m_sendBuffInterval
	how often to check send buffer More...

Timer	m_sendBuffTimer
	The send buffer timer. More...

uint32_t	m_sendRetries

uint32_t	m_stabilityDecrFactor
	The initial decrease factor for link cache. More...

uint32_t	m_stabilityIncrFactor
	The initial increase factor for link cache. More...

bool	m_subRoute
	Whether to save sub route or not. More...

uint32_t	m_tryLinkAcks
	Maximum number of packet transmission using link acknowledgment. More...

uint32_t	m_tryPassiveAcks
	Maximum number of packet transmission using passive acknowledgment. More...

Ptr< UniformRandomVariable >	m_uniformRandomVariable
	Provides uniform random variables. More...

Time	m_useExtends
	The use extension of the life time for link cache. More...

uint8_t	segsLeft
	The segment left value from SR header. More...

Additional Inherited Members
Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr< Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr< Ipv4Route > >	DownTargetCallback
	callback to send packets over IPv4 More...

typedef Callback< void, Ptr< Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr< Ipv6Route > >	DownTargetCallback6
	callback to send packets over IPv6 More...

enum	RxStatus { RX_OK , RX_CSUM_FAILED , RX_ENDPOINT_CLOSED , RX_ENDPOINT_UNREACH }
	Rx status codes. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Dsr Routing base.

Definition at line 97 of file dsr-routing.h.

Member Typedef Documentation

◆ DsrOptionList_t

typedef std::list<Ptr<DsrOptions> > ns3::dsr::DsrRouting::DsrOptionList_t

private

Define the list to hold DSR options.

Definition at line 784 of file dsr-routing.h.

Constructor & Destructor Documentation

◆ DsrRouting()

ns3::dsr::DsrRouting::DsrRouting ( )

Constructor.

Definition at line 364 of file dsr-routing.cc.

References Insert(), m_sendBuffTimer, m_uniformRandomVariable, NS_LOG_FUNCTION_NOARGS, ns3::Timer::Schedule(), ns3::Seconds(), SendBuffTimerExpire(), and ns3::Timer::SetFunction().

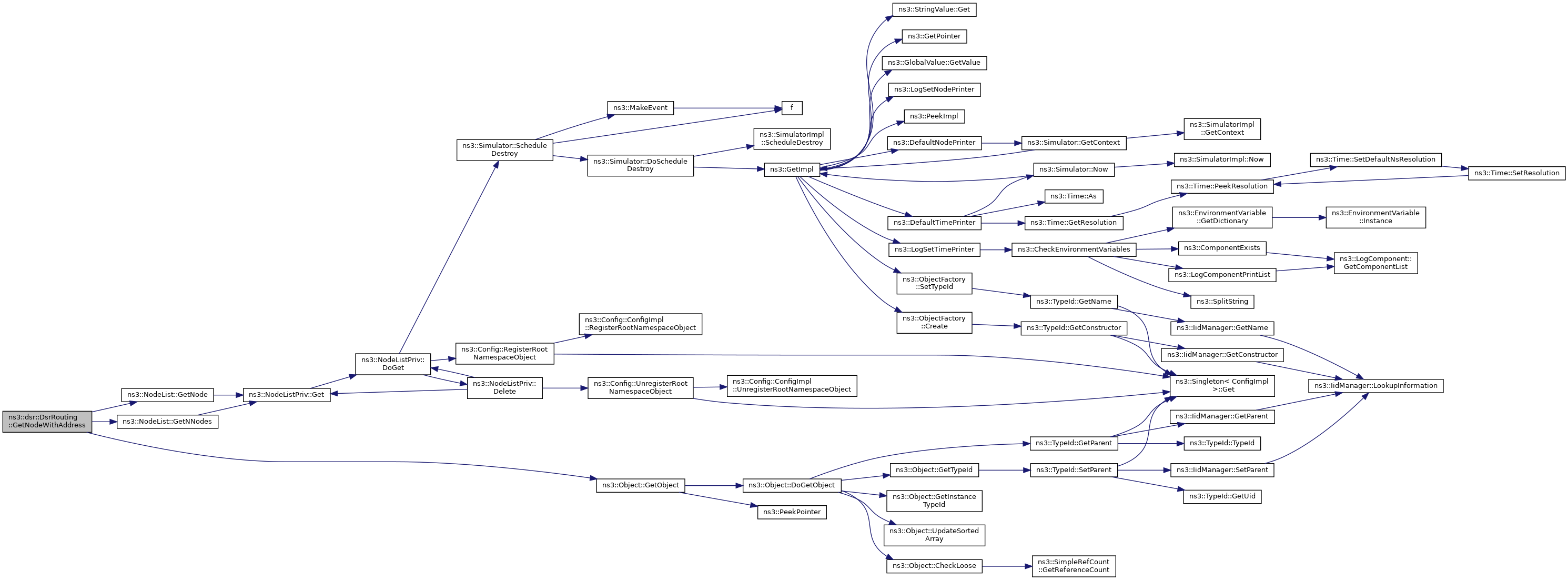

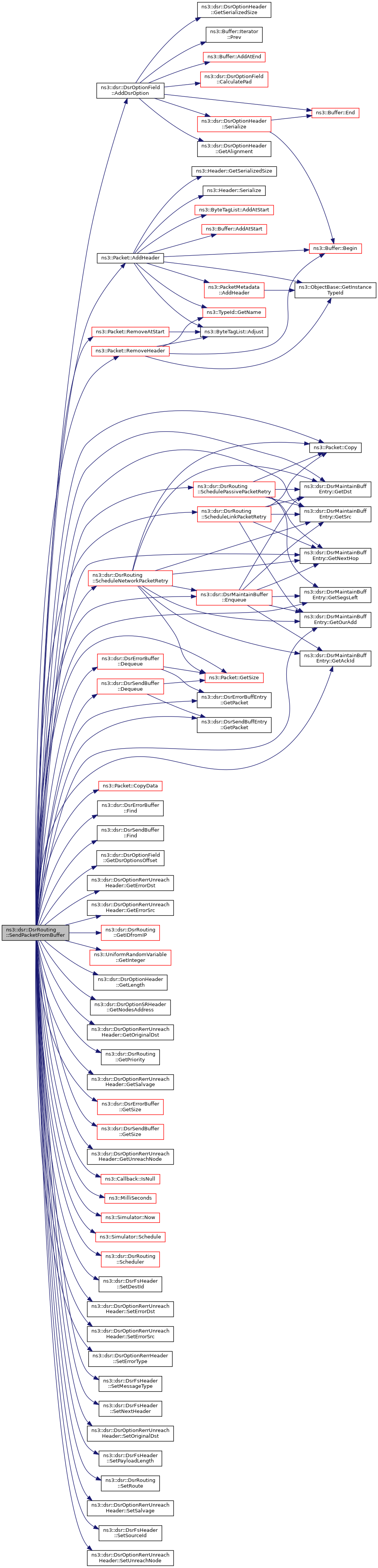

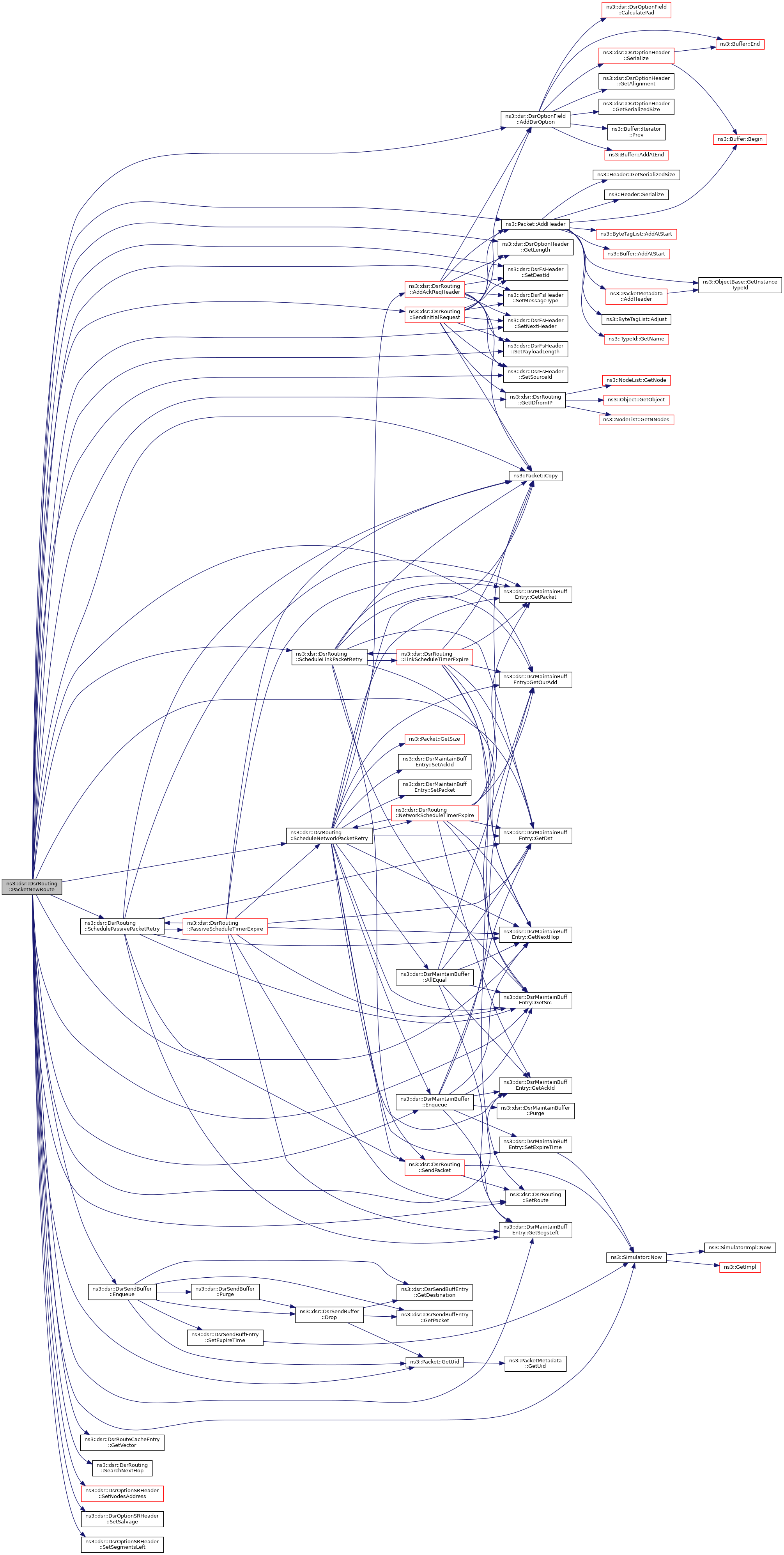

Here is the call graph for this function:

◆ ~DsrRouting()

ns3::dsr::DsrRouting::~DsrRouting ( )

override

Destructor.

Definition at line 400 of file dsr-routing.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ AddAckReqHeader()

uint16_t ns3::dsr::DsrRouting::AddAckReqHeader	(	Ptr< Packet > &	packet,
		Ipv4Address	nextHop
	)

This function is called to add ack request header for network acknowledgement.

Parameters

packet	for ack req
nextHop	IP address of the next hop

Returns: ack ID

Definition at line 1685 of file dsr-routing.cc.

Referenced by ScheduleNetworkPacketRetry().

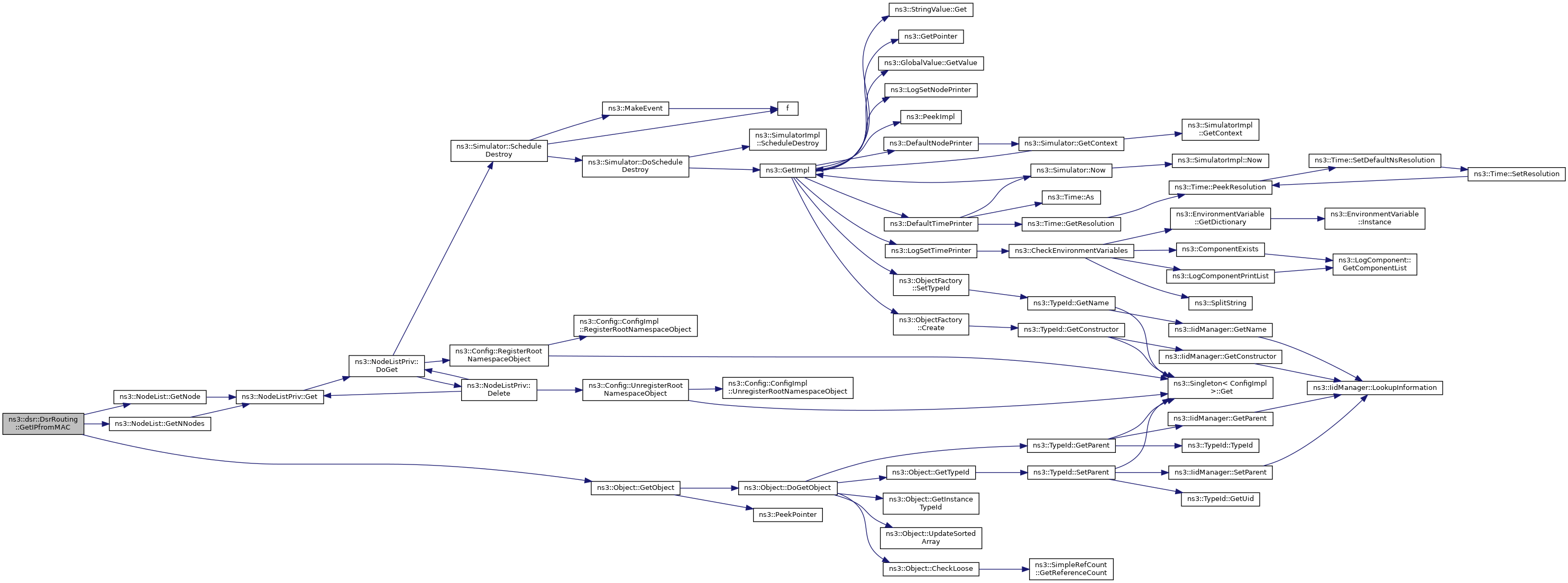

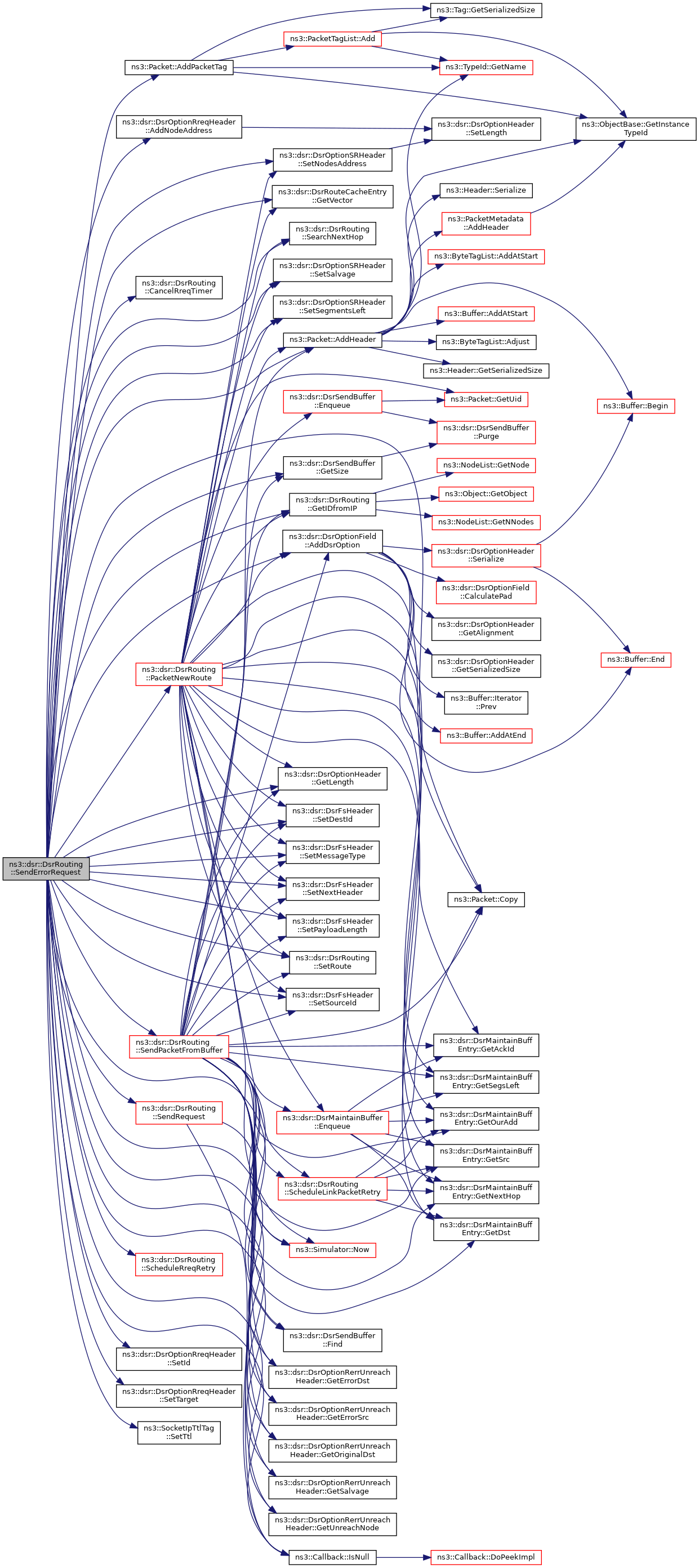

Here is the call graph for this function:

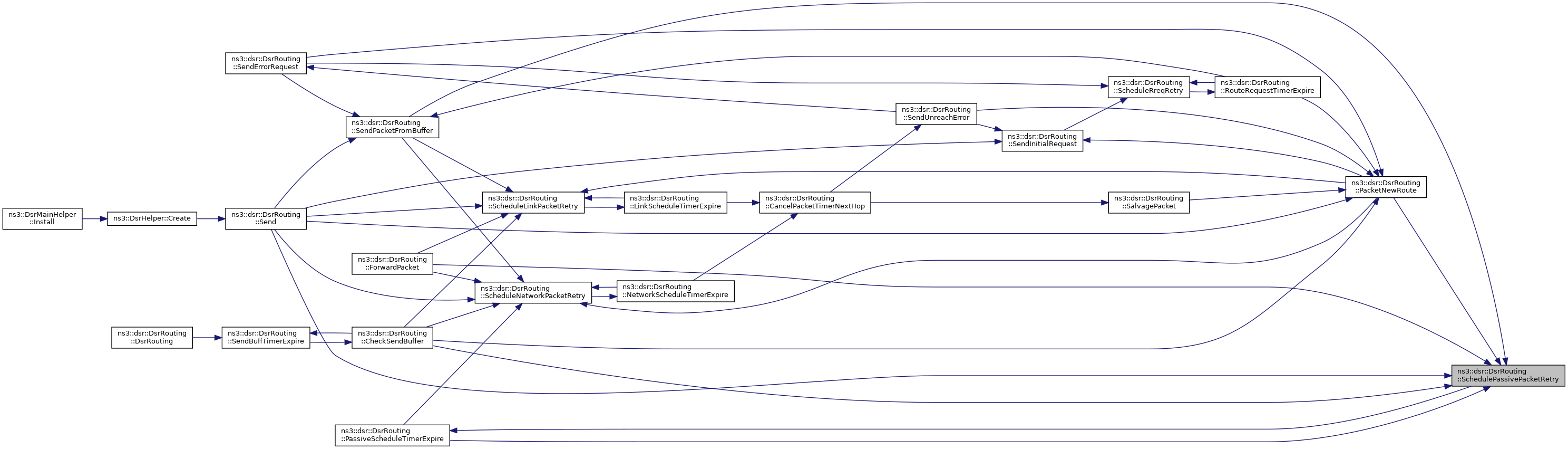

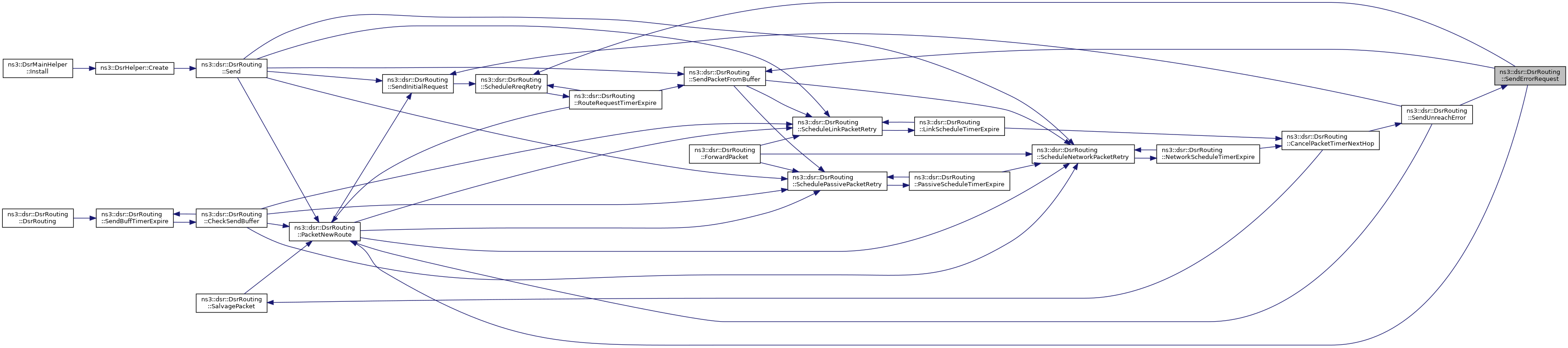

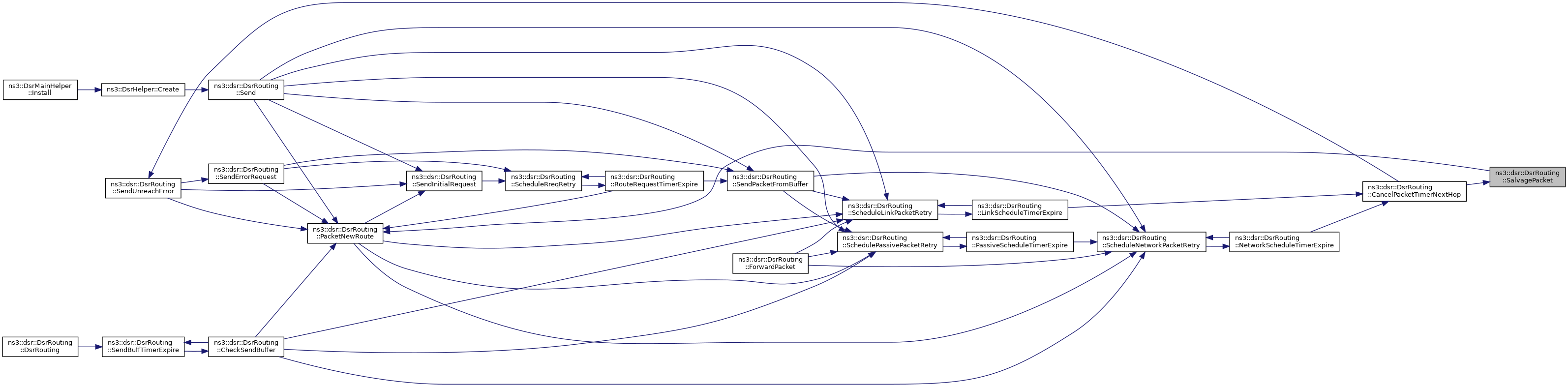

Here is the caller graph for this function:

◆ AddRoute()

bool ns3::dsr::DsrRouting::AddRoute ( DsrRouteCacheEntry & rt )

Add route cache entry if it doesn't yet exist in route cache See also DsrRouteCache::AddRoute.

Parameters

rt	route cache entry

Returns: true on success

Definition at line 689 of file dsr-routing.cc.

References ns3::dsr::DsrErrorBuffer::DropPacketForErrLink(), ns3::dsr::DsrRouteCacheEntry::GetVector(), m_errorBuffer, m_mainAddress, m_routeCache, and SearchNextHop().

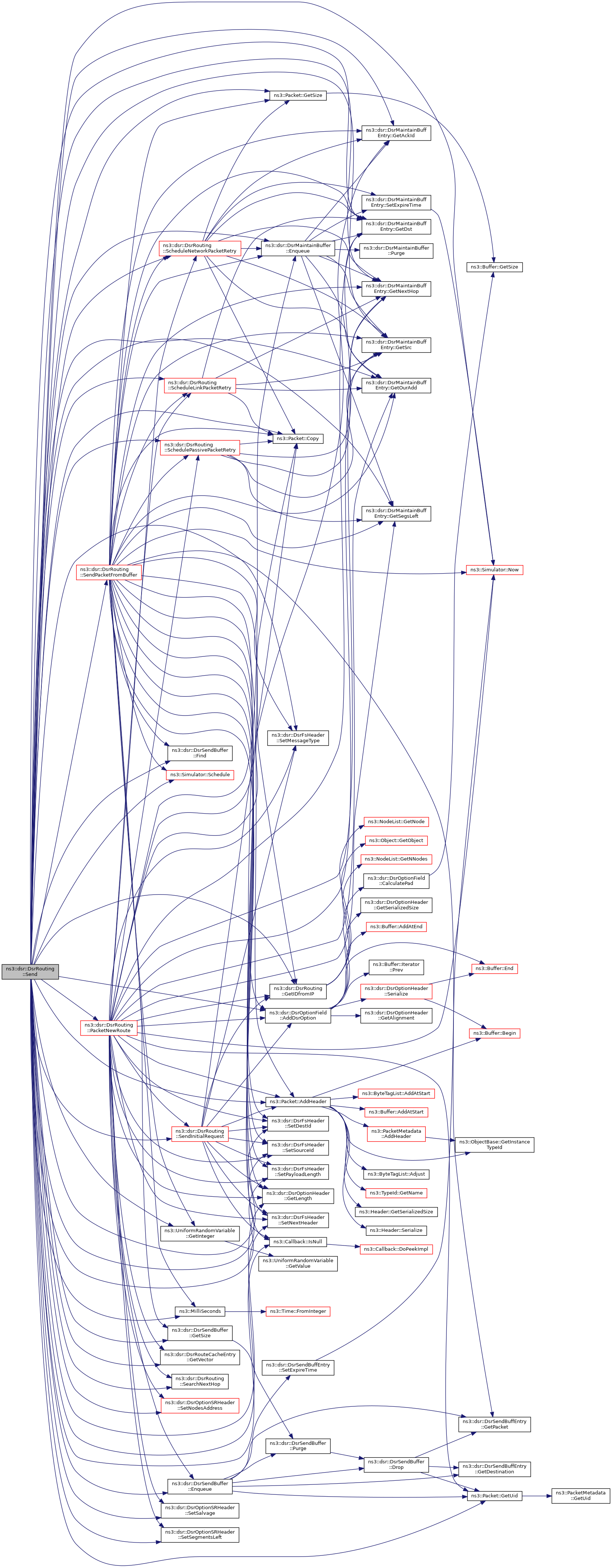

Here is the call graph for this function:

◆ AddRoute_Link()

bool ns3::dsr::DsrRouting::AddRoute_Link	(	DsrRouteCacheEntry::IP_VECTOR	nodelist,
		Ipv4Address	source
	)

dd route link to cache See also DsrRouteCache::AddRoute_Link

Parameters

nodelist	vector of nodes
source	ip address of node to add

Returns: true if the link is cached

Definition at line 681 of file dsr-routing.cc.

References ns3::dsr::DsrErrorBuffer::DropPacketForErrLink(), m_errorBuffer, m_routeCache, and SearchNextHop().

Here is the call graph for this function:

◆ AssignStreams()

int64_t ns3::dsr::DsrRouting::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 2802 of file dsr-routing.cc.

References m_uniformRandomVariable, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

◆ CallCancelPacketTimer()

void ns3::dsr::DsrRouting::CallCancelPacketTimer	(	uint16_t	ackId,
		const Ipv4Header &	ipv4Header,
		Ipv4Address	realSrc,
		Ipv4Address	realDst
	)

Call the cancel packet retransmission timer function.

Parameters

ackId	acknowledge ID
ipv4Header	header
realSrc	source IP address
realDst	destination IP address

Definition at line 2199 of file dsr-routing.cc.

References CancelNetworkPacketTimer(), ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetSource(), ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CancelLinkPacketTimer()

void ns3::dsr::DsrRouting::CancelLinkPacketTimer ( DsrMaintainBuffEntry & mb )

Cancel the link packet retransmission timer for a specific maintenance entry.

Parameters

mb	maintain buffer entry

TODO need to think about this part

Definition at line 2233 of file dsr-routing.cc.

References ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrMaintainBuffer::GetSize(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::DsrMaintainBuffer::LinkEqual(), ns3::dsr::LinkKey::m_destination, m_linkAckTimer, m_linkCnt, m_maintainBuffer, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::LinkKey::m_source, NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by CancelPacketAllTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CancelNetworkPacketTimer()

void ns3::dsr::DsrRouting::CancelNetworkPacketTimer ( DsrMaintainBuffEntry & mb )

Cancel the network packet retransmission timer for a specific maintenance entry.

Parameters

mb	maintain buffer entry

Definition at line 2281 of file dsr-routing.cc.

References ns3::dsr::DsrMaintainBuffEntry::GetAckId(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrMaintainBuffEntry::GetSegsLeft(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::NetworkKey::m_ackId, m_addressForwardCnt, m_addressForwardTimer, ns3::dsr::NetworkKey::m_destination, m_maintainBuffer, ns3::dsr::NetworkKey::m_nextHop, ns3::dsr::NetworkKey::m_ourAdd, ns3::dsr::NetworkKey::m_source, ns3::dsr::DsrMaintainBuffer::NetworkEqual(), NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by CallCancelPacketTimer(), and CancelPacketAllTimer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CancelPacketAllTimer()

void ns3::dsr::DsrRouting::CancelPacketAllTimer ( DsrMaintainBuffEntry & mb )

Cancel all the packet timers.

Parameters

mb	maintain buffer entry

Definition at line 2224 of file dsr-routing.cc.

References CancelLinkPacketTimer(), CancelNetworkPacketTimer(), CancelPassivePacketTimer(), and NS_LOG_FUNCTION.

Referenced by CancelPacketTimerNextHop().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CancelPacketTimerNextHop()

void ns3::dsr::DsrRouting::CancelPacketTimerNextHop	(	Ipv4Address	nextHop,
		uint8_t	protocol
	)

Cancel the packet retransmission timer for a all maintenance entries with nextHop address.

Parameters

nextHop	next hop IP address
protocol	number

TODO if the errorDst is not seen before

TODO need to think about whether we need the network queue entry or not

Definition at line 2362 of file dsr-routing.cc.

References CancelPacketAllTimer(), ns3::Packet::Copy(), ns3::Packet::CopyData(), ns3::dsr::DsrMaintainBuffer::Dequeue(), ns3::dsr::DsrMaintainBuffer::Find(), ns3::dsr::DsrOptionField::GetDsrOptionsOffset(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::UniformRandomVariable::GetInteger(), ns3::dsr::DsrOptionSRHeader::GetNodesAddress(), ns3::dsr::DsrMaintainBuffEntry::GetPacket(), ns3::dsr::DsrOptionSRHeader::GetSalvage(), ns3::dsr::DsrMaintainBuffer::GetSize(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), m_maintainBuffer, m_uniformRandomVariable, ns3::MilliSeconds(), NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, PrintVector(), ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), SalvagePacket(), ns3::Simulator::Schedule(), SendUnreachError(), and ns3::dsr::DsrOptionSRHeader::SetNumberAddress().

Referenced by LinkScheduleTimerExpire(), and NetworkScheduleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CancelPassivePacketTimer()

void ns3::dsr::DsrRouting::CancelPassivePacketTimer ( DsrMaintainBuffEntry & mb )

Cancel the passive packet retransmission timer for a specific maintenance entry.

Parameters

mb	maintain buffer entry

Definition at line 2328 of file dsr-routing.cc.

References ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetSegsLeft(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::PassiveKey::m_ackId, ns3::dsr::PassiveKey::m_destination, m_passiveAckTimer, m_passiveCnt, ns3::dsr::PassiveKey::m_segsLeft, ns3::dsr::PassiveKey::m_source, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by CancelPacketAllTimer(), CancelPassiveTimer(), PassiveEntryCheck(), and PassiveScheduleTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CancelPassiveTimer()

bool ns3::dsr::DsrRouting::CancelPassiveTimer	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	segsLeft
	)

Cancel the passive timer.

Parameters

packet	to process
source	IP address
destination	IP address
segsLeft	segments left

Returns

Definition at line 2170 of file dsr-routing.cc.

References CancelPassivePacketTimer(), ns3::Packet::Copy(), m_maintainBuffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::dsr::DsrMaintainBuffer::PromiscEqual(), segsLeft, ns3::dsr::DsrMaintainBuffEntry::SetAckId(), ns3::dsr::DsrMaintainBuffEntry::SetDst(), ns3::dsr::DsrMaintainBuffEntry::SetPacket(), ns3::dsr::DsrMaintainBuffEntry::SetSegsLeft(), and ns3::dsr::DsrMaintainBuffEntry::SetSrc().

Here is the call graph for this function:

◆ CancelRreqTimer()

void ns3::dsr::DsrRouting::CancelRreqTimer	(	Ipv4Address	dst,
		bool	isRemove
	)

Cancel the route request timer.

Parameters

dst	The dst address of the route request timer
isRemove	whether to remove the route request entry or not

Definition at line 3089 of file dsr-routing.cc.

References m_addressReqTimer, m_nonPropReqTimer, m_rreqTable, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by RouteRequestTimerExpire(), and SendErrorRequest().

Here is the caller graph for this function:

◆ CheckSendBuffer()

void ns3::dsr::DsrRouting::CheckSendBuffer ( )

Check the send buffer of packets with route when send buffer timer expire.

When found a route and use it, UseExtends to the link cache

This will be priority 0

Todo:: New DsrNetworkQueueEntry

Definition at line 863 of file dsr-routing.cc.

Referenced by SendBuffTimerExpire().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeleteAllRoutesIncludeLink()

void ns3::dsr::DsrRouting::DeleteAllRoutesIncludeLink	(	Ipv4Address	errorSrc,
		Ipv4Address	unreachNode,
		Ipv4Address	node
	)

Delete all the routes which includes the link from next hop address that has just been notified as unreachable.

Parameters

errorSrc	The error source address
unreachNode	The unreachable node
node	This node's ip address

Definition at line 698 of file dsr-routing.cc.

References m_routeCache.

◆ DoDispose()

void ns3::dsr::DsrRouting::DoDispose ( void )

overrideprotectedvirtual

Drop trace callback.

Reimplemented from ns3::Object.

Definition at line 564 of file dsr-routing.cc.

References ns3::Object::DoDispose(), m_ipv4, m_node, m_routeCache, third::mac, NS_LOG_FUNCTION_NOARGS, and third::wifi.

Here is the call graph for this function:

◆ FindSourceEntry()

bool ns3::dsr::DsrRouting::FindSourceEntry	(	Ipv4Address	src,
		Ipv4Address	dst,
		uint16_t	id
	)

Find the source request entry in the route request queue, return false if not found.

◆ ForwardErrPacket()

void ns3::dsr::DsrRouting::ForwardErrPacket	(	DsrOptionRerrUnreachHeader &	rerr,
		DsrOptionSRHeader &	sourceRoute,
		Ipv4Address	nextHop,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

This function is responsible for forwarding error packets along the route.

Parameters

rerr	unreachable header
sourceRoute	source routing header
nextHop	IP address of next hop
protocol	number
route	IP route

Todo:: New DsrNetworkQueueEntry

Definition at line 1477 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::dsr::DSR_CONTROL_PACKET, ns3::dsr::DsrOptionRerrUnreachHeader::GetErrorDst(), ns3::dsr::DsrOptionRerrUnreachHeader::GetErrorSrc(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), GetPriority(), ns3::Callback< R, UArgs >::IsNull(), m_downTarget, m_ip, m_mainAddress, m_priorityQueue, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, Scheduler(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrFsHeader::SetPayloadLength(), and ns3::dsr::DsrFsHeader::SetSourceId().

Here is the call graph for this function:

◆ ForwardPacket()

void ns3::dsr::DsrRouting::ForwardPacket	(	Ptr< const Packet >	packet,
		DsrOptionSRHeader &	sourceRoute,
		const Ipv4Header &	ipv4Header,
		Ipv4Address	source,
		Ipv4Address	destination,
		Ipv4Address	targetAddress,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

Forward the packet using the route saved in the source route option header.

Parameters

packet	The packet
sourceRoute	Source route saved in option header
ipv4Header	IPv4 Header
source	source address
destination	destination address
targetAddress	target address
protocol	protocol number
route	route

Definition at line 2846 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffer::Enqueue(), ns3::dsr::DsrMaintainBuffEntry::GetAckId(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrOptionSRHeader::GetSegmentsLeft(), ns3::dsr::DsrMaintainBuffEntry::GetSegsLeft(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::Callback< R, UArgs >::IsNull(), ns3::dsr::NetworkKey::m_ackId, ns3::dsr::PassiveKey::m_ackId, m_ackId, m_addressForwardCnt, ns3::dsr::LinkKey::m_destination, ns3::dsr::NetworkKey::m_destination, ns3::dsr::PassiveKey::m_destination, m_downTarget, m_linkAck, m_linkCnt, m_mainAddress, m_maintainBuffer, m_maxMaintainTime, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::NetworkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::NetworkKey::m_ourAdd, m_passiveCnt, ns3::dsr::PassiveKey::m_segsLeft, ns3::dsr::LinkKey::m_source, ns3::dsr::NetworkKey::m_source, ns3::dsr::PassiveKey::m_source, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrFsHeader::SetPayloadLength(), and ns3::dsr::DsrFsHeader::SetSourceId().

Here is the call graph for this function:

◆ GetDownTarget()

IpL4Protocol::DownTargetCallback ns3::dsr::DsrRouting::GetDownTarget ( ) const

overridevirtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 3739 of file dsr-routing.cc.

References m_downTarget.

◆ GetDownTarget6()

IpL4Protocol::DownTargetCallback6 ns3::dsr::DsrRouting::GetDownTarget6 ( ) const

overridevirtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 3745 of file dsr-routing.cc.

References NS_FATAL_ERROR.

◆ GetElementsFromContext()

std::vector< std::string > ns3::dsr::DsrRouting::GetElementsFromContext ( std::string context )

Get the elements from the tracing context.

Parameters

context context

Returns: the elements we are looking for

Definition at line 548 of file dsr-routing.cc.

Referenced by GetNetDeviceFromContext().

Here is the caller graph for this function:

◆ GetIDfromIP()

uint16_t ns3::dsr::DsrRouting::GetIDfromIP ( Ipv4Address address )

Get the node id from ip address.

Parameters

address IPv4 address

Returns: the node id

Definition at line 809 of file dsr-routing.cc.

References first::address, ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), and nsclick-simple-lan::ipv4.

Referenced by CheckSendBuffer(), ForwardErrPacket(), ForwardPacket(), PacketNewRoute(), SalvagePacket(), Send(), SendAck(), SendErrorRequest(), SendGratuitousReply(), SendInitialRequest(), SendPacketFromBuffer(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIPfromID()

Ipv4Address ns3::dsr::DsrRouting::GetIPfromID ( uint16_t id )

Get the ip address from id.

Parameters

id unique ID

Returns: the ip address for the id

Definition at line 825 of file dsr-routing.cc.

References ns3::NodeList::GetNode(), ns3::Object::GetObject(), nsclick-simple-lan::ipv4, and NS_LOG_DEBUG.

Referenced by PromiscReceive(), and Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetIPfromMAC()

Ipv4Address ns3::dsr::DsrRouting::GetIPfromMAC ( Mac48Address address )

Get the Ip address from mac address.

Parameters

address Mac48Address

Returns: the ip address

Definition at line 718 of file dsr-routing.cc.

References first::address, ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), nsclick-simple-lan::ipv4, and NS_LOG_FUNCTION.

Referenced by PromiscReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNetDeviceFromContext()

Ptr< NetDevice > ns3::dsr::DsrRouting::GetNetDeviceFromContext ( std::string context )

Get the netdevice from the context.

Parameters

context context

Returns: the netdevice we are looking for

Definition at line 536 of file dsr-routing.cc.

References ns3::Node::GetDevice(), GetElementsFromContext(), ns3::NodeList::GetNode(), and NS_ASSERT.

Here is the call graph for this function:

◆ GetNode()

Ptr< Node > ns3::dsr::DsrRouting::GetNode ( ) const

Get the node.

Returns: the node

Definition at line 596 of file dsr-routing.cc.

References m_node, and NS_LOG_FUNCTION_NOARGS.

Referenced by Receive().

Here is the caller graph for this function:

◆ GetNodeWithAddress()

Ptr< Node > ns3::dsr::DsrRouting::GetNodeWithAddress ( Ipv4Address ipv4Address )

Get the node with give ip address.

Parameters

ipv4Address IPv4 address

Returns: the node associated with the ip address

Definition at line 645 of file dsr-routing.cc.

References ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), ns3::Object::GetObject(), nsclick-simple-lan::ipv4, and NS_LOG_FUNCTION.

Referenced by PromiscReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetOption()

Ptr< dsr::DsrOptions > ns3::dsr::DsrRouting::GetOption ( int optionNumber )

Get the option corresponding to optionNumber.

Parameters

optionNumber the option number of the option to retrieve

Returns: a matching Dsr option

Definition at line 3758 of file dsr-routing.cc.

References m_options.

Referenced by PromiscReceive(), and Receive().

Here is the caller graph for this function:

◆ GetPassiveBuffer()

Ptr< dsr::DsrPassiveBuffer > ns3::dsr::DsrRouting::GetPassiveBuffer ( ) const

Get the passive buffer.

Returns: the passive buffer

Definition at line 638 of file dsr-routing.cc.

References m_passiveBuffer.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetPriority()

uint32_t ns3::dsr::DsrRouting::GetPriority ( DsrMessageType messageType )

Set the priority of the packet in network queue.

Parameters

messageType Message type

Returns: the priority value

Definition at line 839 of file dsr-routing.cc.

References ns3::dsr::DSR_CONTROL_PACKET.

Referenced by CheckSendBuffer(), ForwardErrPacket(), IncreaseRetransTimer(), SalvagePacket(), SendAck(), SendPacket(), SendPacketFromBuffer(), SendReply(), SendRequest(), and SendUnreachError().

Here is the caller graph for this function:

◆ GetProtocolNumber()

int ns3::dsr::DsrRouting::GetProtocolNumber ( ) const

overridevirtual

Get the dsr protocol number.

Returns: protocol number

Implements ns3::IpL4Protocol.

Definition at line 802 of file dsr-routing.cc.

References PROT_NUMBER.

Referenced by SendRealDown().

Here is the caller graph for this function:

◆ GetRequestTable()

Ptr< dsr::DsrRreqTable > ns3::dsr::DsrRouting::GetRequestTable ( ) const

Get the request table.

Returns: the request table

Definition at line 624 of file dsr-routing.cc.

References m_rreqTable.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetRouteCache()

Ptr< dsr::DsrRouteCache > ns3::dsr::DsrRouting::GetRouteCache ( ) const

Get the route cache.

Returns: the route cache

Definition at line 610 of file dsr-routing.cc.

References m_routeCache.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::dsr::DsrRouting::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 116 of file dsr-routing.cc.

References GetPassiveBuffer(), GetRequestTable(), GetRouteCache(), m_blacklistTimeout, m_broadcastJitter, m_cacheType, m_discoveryHopLimit, m_dropTrace, m_graReplyTableSize, m_gratReplyHoldoff, m_initStability, m_linkAck, m_linkAckTimeout, m_maxCacheLen, m_maxCacheTime, m_maxEntriesEachDst, m_maxMaintainLen, m_maxMaintainTime, m_maxMaintRexmt, m_maxNetworkDelay, m_maxNetworkSize, m_maxRequestPeriod, m_maxRreqId, m_maxSalvageCount, m_maxSendBuffLen, m_minLifeTime, m_nodeTraversalTime, m_nonpropRequestTimeout, m_numPriorityQueues, m_passiveAckTimeout, m_requestPeriod, m_requestTableIds, m_requestTableSize, m_retransIncr, m_rreqRetries, m_sendBufferTimeout, m_sendBuffInterval, m_stabilityDecrFactor, m_stabilityIncrFactor, m_subRoute, m_tryLinkAcks, m_tryPassiveAcks, m_txPacketTrace, m_useExtends, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeStringAccessor(), ns3::MakeStringChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), ns3::MilliSeconds(), ns3::Seconds(), ns3::TypeId::SetParent(), SetPassiveBuffer(), SetRequestTable(), and SetRouteCache().

Here is the call graph for this function:

◆ IncreaseRetransTimer()

void ns3::dsr::DsrRouting::IncreaseRetransTimer ( )

This function is called to increase the retransmission timer for data packet in the network queue.

Definition at line 1845 of file dsr-routing.cc.

References ns3::dsr::DSR_DATA_PACKET, GetPriority(), m_addressForwardTimer, m_priorityQueue, m_retransIncr, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by PriorityScheduler().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Insert()

void ns3::dsr::DsrRouting::Insert ( Ptr< dsr::DsrOptions > option )

Insert a new Dsr Option.

Parameters

option the option to insert

Definition at line 3752 of file dsr-routing.cc.

References m_options.

Referenced by DsrRouting().

Here is the caller graph for this function:

◆ IsLinkCache()

bool ns3::dsr::DsrRouting::IsLinkCache ( )

Checks if the link is cached in the route cache See also DsrRouteCache::IsLinkCache.

Returns: true if the link is cached

Definition at line 663 of file dsr-routing.cc.

References m_routeCache.

◆ LinkScheduleTimerExpire()

void ns3::dsr::DsrRouting::LinkScheduleTimerExpire	(	DsrMaintainBuffEntry &	mb,
		uint8_t	protocol
	)

This function deals with packet retransmission timer expire using link acknowledgment.

Parameters

mb	maintenance buffer entry
protocol	the protocol number

Definition at line 2718 of file dsr-routing.cc.

References CancelPacketTimerNextHop(), ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrMaintainBuffEntry::GetPacket(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::LinkKey::m_destination, m_linkAckTimer, m_linkCnt, m_linkRetries, m_mainAddress, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, m_routeCache, ns3::dsr::LinkKey::m_source, m_tryLinkAcks, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ScheduleLinkPacketRetry(), and SetRoute().

Referenced by ScheduleLinkPacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LookupRoute()

bool ns3::dsr::DsrRouting::LookupRoute	(	Ipv4Address	id,
		DsrRouteCacheEntry &	rt
	)

Lookup route cache entry with destination address dst See also DsrRouteCache::LookupRoute.

Parameters

id	destination address
rt	entry with destination address id, if exists

Returns: true on success

Definition at line 675 of file dsr-routing.cc.

References m_routeCache.

◆ NetworkScheduleTimerExpire()

void ns3::dsr::DsrRouting::NetworkScheduleTimerExpire	(	DsrMaintainBuffEntry &	mb,
		uint8_t	protocol
	)

This function deals with packet retransmission timer expire using network acknowledgment.

Parameters

mb	maintenance buffer entry
protocol	the protocol number

Definition at line 2810 of file dsr-routing.cc.

References CancelPacketTimerNextHop(), ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffEntry::GetAckId(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrMaintainBuffEntry::GetPacket(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::NetworkKey::m_ackId, m_addressForwardCnt, ns3::dsr::NetworkKey::m_destination, m_mainAddress, m_maxMaintRexmt, ns3::dsr::NetworkKey::m_nextHop, ns3::dsr::NetworkKey::m_ourAdd, m_routeCache, m_sendRetries, ns3::dsr::NetworkKey::m_source, and ScheduleNetworkPacketRetry().

Referenced by ScheduleNetworkPacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyNewAggregate()

void ns3::dsr::DsrRouting::NotifyNewAggregate ( )

overrideprotectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overridden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 406 of file dsr-routing.cc.

References ns3::Object::GetObject(), m_ip, m_ipv4, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), ns3::Ipv4L3Protocol::Send(), SetDownTarget(), SetNode(), and Start().

Here is the call graph for this function:

◆ PacketNewRoute()

void ns3::dsr::DsrRouting::PacketNewRoute	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol
	)

When route vector corrupted, originate a new packet, normally not happening.

Parameters

packet	to route
source	address
destination	address
protocol	number

When found a route and use it, UseExtends to the link cache

Definition at line 1210 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffer::Enqueue(), ns3::dsr::DsrSendBuffer::Enqueue(), ns3::dsr::DsrMaintainBuffEntry::GetAckId(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrMaintainBuffEntry::GetSegsLeft(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::Packet::GetUid(), ns3::dsr::DsrRouteCacheEntry::GetVector(), ns3::dsr::NetworkKey::m_ackId, ns3::dsr::PassiveKey::m_ackId, m_addressForwardCnt, m_addressReqTimer, ns3::dsr::LinkKey::m_destination, ns3::dsr::NetworkKey::m_destination, ns3::dsr::PassiveKey::m_destination, m_linkAck, m_linkCnt, m_mainAddress, m_maintainBuffer, m_maxMaintainTime, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::NetworkKey::m_nextHop, m_nonPropReqTimer, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::NetworkKey::m_ourAdd, m_passiveCnt, m_routeCache, ns3::dsr::PassiveKey::m_segsLeft, m_sendBuffer, m_sendBufferTimeout, ns3::dsr::LinkKey::m_source, ns3::dsr::NetworkKey::m_source, ns3::dsr::PassiveKey::m_source, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Time::S, ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), SearchNextHop(), SendInitialRequest(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrOptionSRHeader::SetNodesAddress(), ns3::dsr::DsrFsHeader::SetPayloadLength(), SetRoute(), ns3::dsr::DsrOptionSRHeader::SetSalvage(), ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft(), and ns3::dsr::DsrFsHeader::SetSourceId().

Referenced by CheckSendBuffer(), RouteRequestTimerExpire(), SalvagePacket(), Send(), SendErrorRequest(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PassiveEntryCheck()

bool ns3::dsr::DsrRouting::PassiveEntryCheck	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	segsLeft,
		uint16_t	fragmentOffset,
		uint16_t	identification,
		bool	saveEntry
	)

Find the same passive entry.

Parameters

packet	to process
source	IP address
destination	IP address
segsLeft	segments left
fragmentOffset
identification
saveEntry

Returns: true if passive buffer entry

Save this passive buffer entry for later check

Definition at line 2123 of file dsr-routing.cc.

References CancelPassivePacketTimer(), ns3::Packet::Copy(), m_passiveBuffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, segsLeft, ns3::dsr::DsrMaintainBuffEntry::SetAckId(), ns3::dsr::DsrPassiveBuffEntry::SetDestination(), ns3::dsr::DsrMaintainBuffEntry::SetDst(), ns3::dsr::DsrPassiveBuffEntry::SetFragmentOffset(), ns3::dsr::DsrPassiveBuffEntry::SetIdentification(), ns3::dsr::DsrMaintainBuffEntry::SetPacket(), ns3::dsr::DsrPassiveBuffEntry::SetPacket(), ns3::dsr::DsrPassiveBuffEntry::SetSegsLeft(), ns3::dsr::DsrMaintainBuffEntry::SetSegsLeft(), ns3::dsr::DsrPassiveBuffEntry::SetSource(), and ns3::dsr::DsrMaintainBuffEntry::SetSrc().

Here is the call graph for this function:

◆ PassiveScheduleTimerExpire()

void ns3::dsr::DsrRouting::PassiveScheduleTimerExpire	(	DsrMaintainBuffEntry &	mb,
		uint8_t	protocol
	)

This function deals with packet retransmission timer expire using passive acknowledgment.

Parameters

mb	maintenance buffer entry
protocol	the protocol number

Definition at line 2763 of file dsr-routing.cc.

References CancelPassivePacketTimer(), ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetPacket(), ns3::dsr::DsrMaintainBuffEntry::GetSegsLeft(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::PassiveKey::m_ackId, ns3::dsr::PassiveKey::m_destination, m_mainAddress, m_passiveAckTimer, m_passiveCnt, m_passiveRetries, ns3::dsr::PassiveKey::m_segsLeft, ns3::dsr::PassiveKey::m_source, m_tryPassiveAcks, NS_LOG_DEBUG, NS_LOG_FUNCTION, ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), and SetRoute().

Referenced by SchedulePassivePacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PrintVector()

void ns3::dsr::DsrRouting::PrintVector ( std::vector< Ipv4Address > & vec )

Print the route vector.

Parameters

vec	the vector to print.

Definition at line 737 of file dsr-routing.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by CancelPacketTimerNextHop().

Here is the caller graph for this function:

◆ PriorityScheduler()

void ns3::dsr::DsrRouting::PriorityScheduler	(	uint32_t	priority,
		bool	continueWithFirst
	)

This function is called to schedule sending packets from the network queue by priority.

Parameters

priority	schedule
continueWithFirst	use all priorities

Definition at line 1767 of file dsr-routing.cc.

References ns3::UniformRandomVariable::GetInteger(), IncreaseRetransTimer(), m_numPriorityQueues, m_priorityQueue, m_uniformRandomVariable, ns3::MicroSeconds(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, queueSize, ns3::Simulator::Schedule(), ns3::Seconds(), and SendRealDown().

Referenced by Scheduler().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Process()

uint8_t ns3::dsr::DsrRouting::Process	(	Ptr< Packet > &	packet,
		const Ipv4Header &	ipv4Header,
		Ipv4Address	dst,
		uint8_t *	nextHeader,
		uint8_t	protocol,
		bool &	isDropped
	)

Process method Called from Ipv4L3Protocol::Receive.

Parameters

packet	the packet
ipv4Header	IPv4 header of the packet
dst	destination address of the packet received (i.e. us)
nextHeader	the next header
protocol	the protocol number
isDropped	if the packet must be dropped

Returns: the size processed

◆ PromiscReceive()

bool ns3::dsr::DsrRouting::PromiscReceive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Address &	from,
		const Address &	to,
		NetDevice::PacketType	packetType
	)

private

Promiscuous receive data packets destined to some other node.

Parameters

device	The network device
packet	Data packet we just received
protocol	The protocol we receive, need to verify it is dsr protocol
from	The from address we received the packet
to	The address this packet is destined for
packetType	The dsr packet type, 0 is for control packet, 1 for data packet

Returns: true if the packet was processed, false otherwise

This is the ip address we just received data packet from

Remember this is the entry for previous node

Get the previous node's maintenance buffer and passive ack

Definition at line 1097 of file dsr-routing.cc.

References ns3::Mac48Address::ConvertFrom(), ns3::Packet::Copy(), ns3::Packet::CopyData(), data, ns3::dsr::DsrFsHeader::GetDestId(), ns3::Ipv4Header::GetDestination(), ns3::dsr::DsrOptionField::GetDsrOptionsOffset(), GetIPfromID(), GetIPfromMAC(), ns3::dsr::DsrFsHeader::GetMessageType(), ns3::dsr::DsrFsHeader::GetNextHeader(), GetNodeWithAddress(), ns3::Object::GetObject(), GetOption(), ns3::Ipv4Header::GetProtocol(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::dsr::DsrFsHeader::GetSourceId(), ns3::Packet::GetUid(), m_ipv4, m_mainAddress, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_INFO, ns3::NetDevice::PACKET_OTHERHOST, PROT_NUMBER, ns3::Ipv4L3Protocol::PROT_NUMBER, ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), ns3::Time::S, ns3::dsr::DsrMaintainBuffEntry::SetDst(), ns3::dsr::DsrMaintainBuffEntry::SetNextHop(), ns3::dsr::DsrMaintainBuffEntry::SetOurAdd(), ns3::dsr::DsrMaintainBuffEntry::SetPacket(), and ns3::dsr::DsrMaintainBuffEntry::SetSrc().

Referenced by Start().

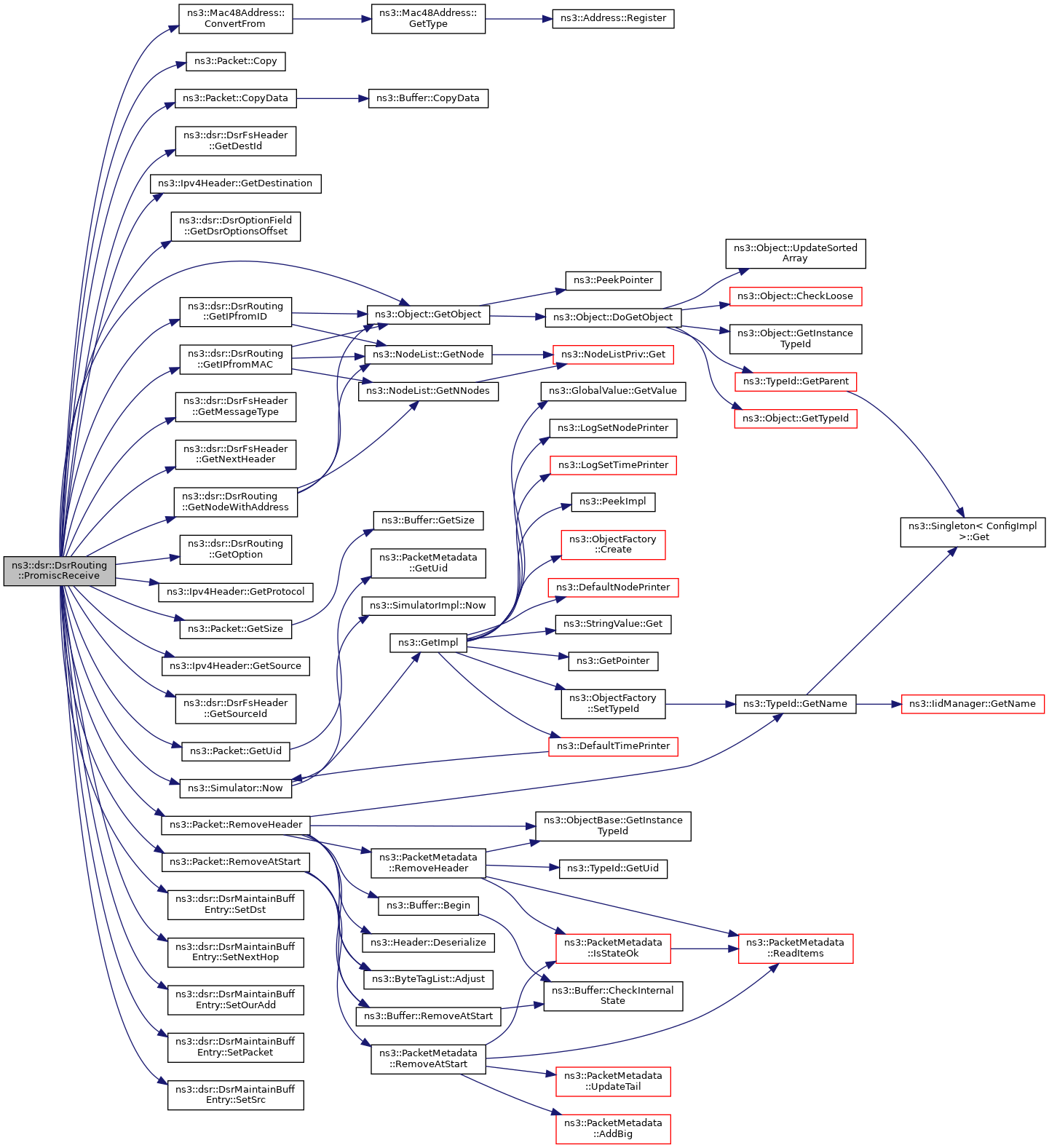

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Receive() [1/2]

IpL4Protocol::RxStatus ns3::dsr::DsrRouting::Receive	(	Ptr< Packet >	p,
		const Ipv4Header &	header,
		Ptr< Ipv4Interface >	incomingInterface
	)

overridevirtual

Parameters

p	packet to forward up
header	IPv4 Header information
incomingInterface	the Ipv4Interface on which the packet arrived

Returns: receive status

Called from lower-level layers to send the packet up in the stack.

this is just here for the sake of passing in the promisc source

Implements ns3::IpL4Protocol.

Definition at line 3520 of file dsr-routing.cc.

References ns3::Packet::Copy(), ns3::Packet::CopyData(), data, ns3::Ipv4Header::GetDestination(), ns3::dsr::DsrOptionField::GetDsrOptionsOffset(), GetIPfromID(), ns3::dsr::DsrFsHeader::GetNextHeader(), GetNode(), ns3::Object::GetObject(), GetOption(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), ns3::dsr::DsrFsHeader::GetSourceId(), ns3::Packet::GetUid(), ns3::Ipv4Address::IsBroadcast(), ns3::Ipv4Address::IsMulticast(), m_dropTrace, m_mainAddress, m_node, m_rreqTable, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), ns3::IpL4Protocol::RX_CSUM_FAILED, ns3::IpL4Protocol::RX_ENDPOINT_CLOSED, ns3::IpL4Protocol::RX_ENDPOINT_UNREACH, ns3::IpL4Protocol::RX_OK, ns3::dsr::DsrOptionRerrUnsupportedHeader::SetErrorDst(), ns3::dsr::DsrOptionRerrUnsupportedHeader::SetErrorSrc(), ns3::dsr::DsrOptionRerrHeader::SetErrorType(), ns3::dsr::DsrOptionRerrUnsupportedHeader::SetSalvage(), and ns3::dsr::DsrOptionRerrUnsupportedHeader::SetUnsupported().

Here is the call graph for this function:

◆ Receive() [2/2]

IpL4Protocol::RxStatus ns3::dsr::DsrRouting::Receive	(	Ptr< Packet >	p,
		const Ipv6Header &	header,
		Ptr< Ipv6Interface >	incomingInterface
	)

overridevirtual

Parameters

p	packet to forward up
header	IPv6 Header information
incomingInterface	the Ipv6Interface on which the packet arrived

Returns: receive status

Called from lower-level layers to send the packet up in the stack. Not implemented (IPv6).

Implements ns3::IpL4Protocol.

Definition at line 3720 of file dsr-routing.cc.

References ns3::Ipv6Header::GetDestination(), ns3::Ipv6Header::GetSource(), NS_LOG_FUNCTION, and ns3::IpL4Protocol::RX_ENDPOINT_UNREACH.

Here is the call graph for this function:

◆ RouteRequestTimerExpire()

void ns3::dsr::DsrRouting::RouteRequestTimerExpire	(	Ptr< Packet >	packet,
		std::vector< Ipv4Address >	address,
		uint32_t	requestId,
		uint8_t	protocol
	)

Handle route discovery timer.

Parameters

packet	the original packet
address	List of IPv4 addresses
requestId	Unique request ID
protocol	the protocol number

Set the salvage value to 0

Try to send out data packet from the send buffer if found

Definition at line 3213 of file dsr-routing.cc.

References ns3::Packet::AddPacketTag(), first::address, CancelRreqTimer(), ns3::Packet::Copy(), ns3::dsr::DsrSendBuffer::DropPacketWithDst(), ns3::dsr::DsrSendBuffer::Find(), ns3::dsr::DsrSendBuffer::GetSize(), ns3::dsr::DsrRouteCacheEntry::GetVector(), m_discoveryHopLimit, m_mainAddress, m_routeCache, m_rreqRetries, m_rreqTable, m_sendBuffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PacketNewRoute(), ns3::Packet::RemoveHeader(), ScheduleRreqRetry(), SearchNextHop(), SendPacketFromBuffer(), SendRequest(), ns3::dsr::DsrOptionSRHeader::SetNodesAddress(), SetRoute(), ns3::dsr::DsrOptionSRHeader::SetSalvage(), ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by ScheduleRreqRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SalvagePacket()

void ns3::dsr::DsrRouting::SalvagePacket	(	Ptr< const Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	dst,
		uint8_t	protocol
	)

Salvage the packet which has been transmitted for 3 times.

Parameters

packet	to process
source	IP address
dst	destination IP address
protocol	number

When found a route and use it, UseExtends to the link cache

Todo:: New DsrNetworkQueueEntry

Definition at line 2442 of file dsr-routing.cc.

Referenced by CancelPacketTimerNextHop().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScheduleCachedReply()

void ns3::dsr::DsrRouting::ScheduleCachedReply	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		Ptr< Ipv4Route >	route,
		double	hops
	)

Schedule the cached reply to a random start time to avoid possible route reply storm.

Parameters

packet	the original packet
source	IPv4 address of the source (i.e. request originator)
destination	IPv4 address of the destination
route	Route
hops	number of hops

Definition at line 3445 of file dsr-routing.cc.

References ns3::UniformRandomVariable::GetValue(), m_nodeTraversalTime, m_uniformRandomVariable, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and SendReply().

Here is the call graph for this function:

◆ ScheduleInitialReply()

void ns3::dsr::DsrRouting::ScheduleInitialReply	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	nextHop,
		Ptr< Ipv4Route >	route
	)

this is a generating the initial route reply from the destination address, a random delay time [0, m_broadcastJitter] is used before unicasting back the route reply packet

Parameters

packet	the original packet
source	IPv4 address of the source (i.e. request originator)
nextHop	IPv4 address of the next hop
route	Route

Definition at line 3435 of file dsr-routing.cc.

References NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and SendReply().

Here is the call graph for this function:

◆ ScheduleInterRequest()

void ns3::dsr::DsrRouting::ScheduleInterRequest ( Ptr< Packet > packet )

Schedule the intermediate route request.

Parameters

packet the original packet

Definition at line 3320 of file dsr-routing.cc.

References ns3::UniformRandomVariable::GetInteger(), m_broadcastJitter, m_mainAddress, m_uniformRandomVariable, ns3::MilliSeconds(), NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and SendRequest().

Here is the call graph for this function:

◆ ScheduleLinkPacketRetry()

void ns3::dsr::DsrRouting::ScheduleLinkPacketRetry	(	DsrMaintainBuffEntry &	mb,
		uint8_t	protocol
	)

Schedule the packet retransmission based on link-layer acknowledgment.

Parameters

mb	maintenance buffer entry
protocol	the protocol number

Definition at line 2547 of file dsr-routing.cc.

References ns3::Timer::CANCEL_ON_DESTROY, ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrMaintainBuffEntry::GetPacket(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), LinkScheduleTimerExpire(), ns3::dsr::LinkKey::m_destination, m_linkAckTimeout, m_linkAckTimer, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::LinkKey::m_source, NS_LOG_FUNCTION, and SendPacket().

Referenced by CheckSendBuffer(), ForwardPacket(), LinkScheduleTimerExpire(), PacketNewRoute(), Send(), and SendPacketFromBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScheduleNetworkPacketRetry()

void ns3::dsr::DsrRouting::ScheduleNetworkPacketRetry	(	DsrMaintainBuffEntry &	mb,
		bool	isFirst,
		uint8_t	protocol
	)

Schedule the packet retransmission based on network layer acknowledgment.

Parameters

mb	maintenance buffer entry
isFirst	see if this is the first packet retry or not
protocol	the protocol number

Definition at line 2606 of file dsr-routing.cc.

References AddAckReqHeader(), ns3::dsr::DsrMaintainBuffer::AllEqual(), ns3::Timer::CANCEL_ON_DESTROY, ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffer::Enqueue(), ns3::dsr::DsrMaintainBuffEntry::GetAckId(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrMaintainBuffEntry::GetPacket(), ns3::Packet::GetSize(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::NetworkKey::m_ackId, m_addressForwardCnt, m_addressForwardTimer, ns3::dsr::NetworkKey::m_destination, m_maintainBuffer, m_maxMaintainTime, ns3::dsr::NetworkKey::m_nextHop, m_nodeTraversalTime, ns3::dsr::NetworkKey::m_ourAdd, m_sendRetries, ns3::dsr::NetworkKey::m_source, NetworkScheduleTimerExpire(), NS_LOG_DEBUG, NS_LOG_ERROR, ns3::Time::S, SendPacket(), ns3::dsr::DsrMaintainBuffEntry::SetAckId(), ns3::dsr::DsrMaintainBuffEntry::SetExpireTime(), and ns3::dsr::DsrMaintainBuffEntry::SetPacket().

Referenced by CheckSendBuffer(), ForwardPacket(), NetworkScheduleTimerExpire(), PacketNewRoute(), PassiveScheduleTimerExpire(), Send(), and SendPacketFromBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SchedulePassivePacketRetry()

void ns3::dsr::DsrRouting::SchedulePassivePacketRetry	(	DsrMaintainBuffEntry &	mb,
		uint8_t	protocol
	)

Schedule the packet retransmission based on passive acknowledgment.

Parameters

mb	maintenance buffer entry
protocol	the protocol number

Definition at line 2576 of file dsr-routing.cc.

References ns3::Timer::CANCEL_ON_DESTROY, ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetPacket(), ns3::dsr::DsrMaintainBuffEntry::GetSegsLeft(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::PassiveKey::m_ackId, ns3::dsr::PassiveKey::m_destination, m_passiveAckTimeout, m_passiveAckTimer, ns3::dsr::PassiveKey::m_segsLeft, ns3::dsr::PassiveKey::m_source, NS_LOG_DEBUG, NS_LOG_FUNCTION, PassiveScheduleTimerExpire(), and SendPacket().

Referenced by CheckSendBuffer(), ForwardPacket(), PacketNewRoute(), PassiveScheduleTimerExpire(), Send(), and SendPacketFromBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Scheduler()

void ns3::dsr::DsrRouting::Scheduler ( uint32_t priority )

This function is called to schedule sending packets from the network queue.

Parameters

priority for sending

Definition at line 1760 of file dsr-routing.cc.

References NS_LOG_FUNCTION, and PriorityScheduler().

Referenced by CheckSendBuffer(), ForwardErrPacket(), SalvagePacket(), SendAck(), SendPacket(), SendPacketFromBuffer(), SendReply(), SendRequest(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScheduleRreqRetry()

void ns3::dsr::DsrRouting::ScheduleRreqRetry	(	Ptr< Packet >	packet,
		std::vector< Ipv4Address >	address,
		bool	nonProp,
		uint32_t	requestId,
		uint8_t	protocol
	)

Schedule the route request retry.

Parameters

packet	the original packet
address	List of IPv4 addresses
nonProp	flag if RREQ is non-propagating
requestId	Unique request ID
protocol	the protocol number

Definition at line 3136 of file dsr-routing.cc.

References first::address, ns3::Time::As(), ns3::Timer::CANCEL_ON_DESTROY, m_addressReqTimer, m_maxRequestPeriod, m_nonPropReqTimer, m_nonpropRequestTimeout, m_requestPeriod, m_rreqTable, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, RouteRequestTimerExpire(), and ns3::Time::S.

Referenced by RouteRequestTimerExpire(), SendErrorRequest(), and SendInitialRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SearchNextHop()

Ipv4Address ns3::dsr::DsrRouting::SearchNextHop	(	Ipv4Address	ipv4Address,
		std::vector< Ipv4Address > &	vec
	)

Get the next hop of the route.

Parameters

ipv4Address
vec	Route

Returns: the next hop address of the route

Definition at line 758 of file dsr-routing.cc.

References NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by AddRoute(), AddRoute_Link(), CheckSendBuffer(), PacketNewRoute(), RouteRequestTimerExpire(), SalvagePacket(), Send(), SendErrorRequest(), and SendUnreachError().

Here is the caller graph for this function:

◆ Send()

void ns3::dsr::DsrRouting::Send	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

This function is called by higher layer protocol when sending packets.

Parameters

packet	to send
source	IP address
destination	IP address
protocol	number
route	IP route

When found a route and use it, UseExtends to the link cache

Definition at line 1522 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::dsr::DsrMaintainBuffer::Enqueue(), ns3::dsr::DsrSendBuffer::Enqueue(), ns3::dsr::DsrSendBuffer::Find(), ns3::dsr::DsrMaintainBuffEntry::GetAckId(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), GetIDfromIP(), ns3::UniformRandomVariable::GetInteger(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrMaintainBuffEntry::GetSegsLeft(), ns3::dsr::DsrSendBuffer::GetSize(), ns3::Packet::GetSize(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::Packet::GetUid(), ns3::dsr::DsrRouteCacheEntry::GetVector(), ns3::Callback< R, UArgs >::IsNull(), ns3::dsr::NetworkKey::m_ackId, ns3::dsr::PassiveKey::m_ackId, m_addressForwardCnt, m_addressReqTimer, ns3::dsr::LinkKey::m_destination, ns3::dsr::NetworkKey::m_destination, ns3::dsr::PassiveKey::m_destination, m_downTarget, m_linkAck, m_linkCnt, m_mainAddress, m_maintainBuffer, m_maxMaintainTime, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::NetworkKey::m_nextHop, m_nonPropReqTimer, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::NetworkKey::m_ourAdd, m_passiveCnt, m_routeCache, m_rreqTable, ns3::dsr::PassiveKey::m_segsLeft, m_sendBuffer, m_sendBufferTimeout, ns3::dsr::LinkKey::m_source, ns3::dsr::NetworkKey::m_source, ns3::dsr::PassiveKey::m_source, m_uniformRandomVariable, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PacketNewRoute(), ns3::Time::S, ns3::Simulator::Schedule(), ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), SearchNextHop(), SendInitialRequest(), SendPacketFromBuffer(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrOptionSRHeader::SetNodesAddress(), ns3::dsr::DsrFsHeader::SetPayloadLength(), ns3::dsr::DsrOptionSRHeader::SetSalvage(), ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft(), and ns3::dsr::DsrFsHeader::SetSourceId().

Referenced by ns3::DsrHelper::Create().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendAck()

void ns3::dsr::DsrRouting::SendAck	(	uint16_t	ackId,
		Ipv4Address	destination,
		Ipv4Address	realSrc,
		Ipv4Address	realDst,
		uint8_t	protocol,
		Ptr< Ipv4Route >	route
	)

Send network layer acknowledgment back to the earlier hop to notify the receipt of data packet.

Parameters

ackId	ACK ID
destination	IPv4 address of the immediate ACK receiver
realSrc	IPv4 address of the real source
realDst	IPv4 address of the real destination
protocol	the protocol number
route	Route

Todo:: New DsrNetworkQueueEntry

Definition at line 3463 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::dsr::DSR_CONTROL_PACKET, GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), GetPriority(), ns3::Callback< R, UArgs >::IsNull(), m_downTarget, m_ip, m_mainAddress, m_priorityQueue, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, Scheduler(), ns3::dsr::DsrOptionAckHeader::SetAckId(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrFsHeader::SetPayloadLength(), ns3::dsr::DsrOptionAckHeader::SetRealDst(), ns3::dsr::DsrOptionAckHeader::SetRealSrc(), and ns3::dsr::DsrFsHeader::SetSourceId().

Here is the call graph for this function:

◆ SendBuffTimerExpire()

void ns3::dsr::DsrRouting::SendBuffTimerExpire ( )

The send buffer timer expire.

Definition at line 852 of file dsr-routing.cc.

References ns3::Timer::Cancel(), CheckSendBuffer(), ns3::Timer::IsRunning(), m_sendBuffInterval, m_sendBuffTimer, and ns3::Timer::Schedule().

Referenced by DsrRouting(), and CheckSendBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendErrorRequest()

void ns3::dsr::DsrRouting::SendErrorRequest	(	DsrOptionRerrUnreachHeader &	rerr,
		uint8_t	protocol
	)

Send the error request packet.

Parameters

rerr	the route error header
protocol	the protocol number

When found a route and use it, UseExtends to the link cache

Try to send out the packet from the buffer once we found one route

Definition at line 2979 of file dsr-routing.cc.

Referenced by SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendGratuitousReply()

void ns3::dsr::DsrRouting::SendGratuitousReply	(	Ipv4Address	replyTo,
		Ipv4Address	replyFrom,
		std::vector< Ipv4Address > &	nodeList,
		uint8_t	protocol
	)

Send the gratuitous reply.

Parameters

replyTo	The destination address to send the reply to
replyFrom	The source address sending the reply
nodeList	Route
protocol	the protocol number

Push back the node addresses other than those between srcAddress and our own ip address

Definition at line 3335 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::dsr::DsrGraReply::AddEntry(), ns3::Packet::AddHeader(), ns3::dsr::DsrGraReply::FindAndUpdate(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), m_finalRoute, m_graReply, m_gratReplyHoldoff, m_ipv4Route, m_mainAddress, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, SendReply(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrOptionRrepHeader::SetNodesAddress(), ns3::dsr::DsrFsHeader::SetPayloadLength(), SetRoute(), and ns3::dsr::DsrFsHeader::SetSourceId().

Here is the call graph for this function:

◆ SendInitialRequest()

void ns3::dsr::DsrRouting::SendInitialRequest	(	Ipv4Address	source,
		Ipv4Address	destination,
		uint8_t	protocol
	)

Broadcast the route request packet in subnet.

Parameters

source	source address
destination	destination address
protocol	protocol number

Definition at line 2931 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::dsr::DsrOptionRreqHeader::AddNodeAddress(), ns3::Packet::AddPacketTag(), first::address, ns3::Packet::Copy(), GetIDfromIP(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::Callback< R, UArgs >::IsNull(), m_downTarget, m_mainAddress, m_requestId, m_rreqTable, NS_ASSERT_MSG, NS_LOG_FUNCTION, ScheduleRreqRetry(), SendRequest(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrOptionRreqHeader::SetId(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrFsHeader::SetPayloadLength(), ns3::dsr::DsrFsHeader::SetSourceId(), ns3::dsr::DsrOptionRreqHeader::SetTarget(), and ns3::SocketIpTtlTag::SetTtl().

Referenced by PacketNewRoute(), Send(), and SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPacket()

void ns3::dsr::DsrRouting::SendPacket	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	nextHop,
		uint8_t	protocol
	)

This function is called by when really sending out the packet.

Parameters

packet	to send
source	IP address
nextHop	IP address
protocol	number

Todo:: New DsrNetworkQueueEntry

Definition at line 1728 of file dsr-routing.cc.

References ns3::dsr::DSR_DATA_PACKET, GetPriority(), m_ip, m_ipv4Route, m_mainAddress, m_priorityQueue, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_INFO, Scheduler(), and SetRoute().

Referenced by ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), and SchedulePassivePacketRetry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendPacketFromBuffer()

void ns3::dsr::DsrRouting::SendPacketFromBuffer	(	const DsrOptionSRHeader &	sourceRoute,
		Ipv4Address	nextHop,
		uint8_t	protocol
	)

This function is responsible for sending out data packets when have route, if no route found, it will cache the packet and send out route requests.

Parameters

sourceRoute	source route
nextHop	next hop IP address
protocol	number

When found a route and use it, UseExtends to the link cache

Todo:: New DsrNetworkQueueEntry

Definition at line 1882 of file dsr-routing.cc.

References ns3::dsr::DsrOptionField::AddDsrOption(), ns3::Packet::AddHeader(), ns3::Packet::Copy(), ns3::Packet::CopyData(), data, ns3::dsr::DsrErrorBuffer::Dequeue(), ns3::dsr::DsrSendBuffer::Dequeue(), ns3::dsr::DSR_CONTROL_PACKET, ns3::dsr::DsrMaintainBuffer::Enqueue(), ns3::dsr::DsrErrorBuffer::Find(), ns3::dsr::DsrSendBuffer::Find(), ns3::dsr::DsrMaintainBuffEntry::GetAckId(), ns3::dsr::DsrOptionField::GetDsrOptionsOffset(), ns3::dsr::DsrMaintainBuffEntry::GetDst(), ns3::dsr::DsrOptionRerrUnreachHeader::GetErrorDst(), ns3::dsr::DsrOptionRerrUnreachHeader::GetErrorSrc(), GetIDfromIP(), ns3::UniformRandomVariable::GetInteger(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrMaintainBuffEntry::GetNextHop(), ns3::dsr::DsrOptionSRHeader::GetNodesAddress(), ns3::dsr::DsrOptionRerrUnreachHeader::GetOriginalDst(), ns3::dsr::DsrMaintainBuffEntry::GetOurAdd(), ns3::dsr::DsrErrorBuffEntry::GetPacket(), ns3::dsr::DsrSendBuffEntry::GetPacket(), GetPriority(), ns3::dsr::DsrOptionRerrUnreachHeader::GetSalvage(), ns3::dsr::DsrMaintainBuffEntry::GetSegsLeft(), ns3::dsr::DsrErrorBuffer::GetSize(), ns3::dsr::DsrSendBuffer::GetSize(), ns3::Packet::GetSize(), ns3::dsr::DsrMaintainBuffEntry::GetSrc(), ns3::dsr::DsrOptionRerrUnreachHeader::GetUnreachNode(), ns3::Callback< R, UArgs >::IsNull(), ns3::dsr::NetworkKey::m_ackId, ns3::dsr::PassiveKey::m_ackId, m_addressForwardCnt, ns3::dsr::LinkKey::m_destination, ns3::dsr::NetworkKey::m_destination, ns3::dsr::PassiveKey::m_destination, m_downTarget, m_errorBuffer, m_ip, m_ipv4Route, m_linkAck, m_linkCnt, m_mainAddress, m_maintainBuffer, m_maxMaintainTime, ns3::dsr::LinkKey::m_nextHop, ns3::dsr::NetworkKey::m_nextHop, ns3::dsr::LinkKey::m_ourAdd, ns3::dsr::NetworkKey::m_ourAdd, m_passiveCnt, m_priorityQueue, m_routeCache, ns3::dsr::PassiveKey::m_segsLeft, m_sendBuffer, ns3::dsr::LinkKey::m_source, ns3::dsr::NetworkKey::m_source, ns3::dsr::PassiveKey::m_source, m_uniformRandomVariable, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), ns3::Simulator::Schedule(), ScheduleLinkPacketRetry(), ScheduleNetworkPacketRetry(), SchedulePassivePacketRetry(), Scheduler(), ns3::dsr::DsrFsHeader::SetDestId(), ns3::dsr::DsrOptionRerrUnreachHeader::SetErrorDst(), ns3::dsr::DsrOptionRerrUnreachHeader::SetErrorSrc(), ns3::dsr::DsrOptionRerrHeader::SetErrorType(), ns3::dsr::DsrFsHeader::SetMessageType(), ns3::dsr::DsrFsHeader::SetNextHeader(), ns3::dsr::DsrOptionRerrUnreachHeader::SetOriginalDst(), ns3::dsr::DsrFsHeader::SetPayloadLength(), SetRoute(), ns3::dsr::DsrOptionRerrUnreachHeader::SetSalvage(), ns3::dsr::DsrFsHeader::SetSourceId(), and ns3::dsr::DsrOptionRerrUnreachHeader::SetUnreachNode().

Referenced by RouteRequestTimerExpire(), Send(), and SendErrorRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRealDown()

bool ns3::dsr::DsrRouting::SendRealDown ( DsrNetworkQueueEntry & newEntry )

This function is called to send packets down stack.

Parameters

newEntry queue entry

Returns: true if success

Definition at line 1870 of file dsr-routing.cc.

References ns3::Packet::Copy(), ns3::dsr::DsrNetworkQueueEntry::GetIpv4Route(), ns3::dsr::DsrNetworkQueueEntry::GetNextHopAddress(), ns3::dsr::DsrNetworkQueueEntry::GetPacket(), GetProtocolNumber(), ns3::dsr::DsrNetworkQueueEntry::GetSourceAddress(), m_downTarget, and NS_LOG_FUNCTION.

Referenced by PriorityScheduler().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendReply()

void ns3::dsr::DsrRouting::SendReply	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	nextHop,
		Ptr< Ipv4Route >	route
	)

Send the route reply back to the request originator with the cumulated route.

Parameters

packet	the original packet
source	IPv4 address of the source (i.e. request originator)
nextHop	IPv4 address of the next hop
route	Route

Todo:: New DsrNetworkQueueEntry

Definition at line 3403 of file dsr-routing.cc.

References ns3::dsr::DSR_CONTROL_PACKET, GetPriority(), ns3::Callback< R, UArgs >::IsNull(), m_downTarget, m_ipv4, m_mainAddress, m_priorityQueue, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, and Scheduler().

Referenced by ScheduleCachedReply(), ScheduleInitialReply(), and SendGratuitousReply().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRequest()

void ns3::dsr::DsrRouting::SendRequest	(	Ptr< Packet >	packet,
		Ipv4Address	source
	)

Forward the route request if the node is not the destination.

Parameters

packet	the original packet
source	address

Todo:: New DsrNetworkQueueEntry

Definition at line 3292 of file dsr-routing.cc.

References ns3::dsr::DSR_CONTROL_PACKET, GetPriority(), ns3::Callback< R, UArgs >::IsNull(), m_broadcast, m_downTarget, m_priorityQueue, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, and Scheduler().

Referenced by RouteRequestTimerExpire(), ScheduleInterRequest(), SendErrorRequest(), and SendInitialRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendRerrWhenBreaksLinkToNextHop()

void ns3::dsr::DsrRouting::SendRerrWhenBreaksLinkToNextHop	(	Ipv4Address	nextHop,
		uint8_t	protocol
	)

private

Send the route error message when the link breaks to the next hop.

Parameters

nextHop	next hop address
protocol	protocol number

◆ SendUnreachError()

void ns3::dsr::DsrRouting::SendUnreachError	(	Ipv4Address	unreachNode,
		Ipv4Address	destination,
		Ipv4Address	originalDst,
		uint8_t	salvage,
		uint8_t	protocol
	)

This function is responsible for sending error packets in case of break link to next hop.

Parameters

unreachNode	unreachable node
destination	address
originalDst	address
salvage	packet flag
protocol	number

When found a route and use it, UseExtends to the link cache

Todo:: New DsrNetworkQueueEntry

Definition at line 1345 of file dsr-routing.cc.

Referenced by CancelPacketTimerNextHop().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDownTarget()

void ns3::dsr::DsrRouting::SetDownTarget ( IpL4Protocol::DownTargetCallback cb )

overridevirtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case)

Parameters

cb	current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 3727 of file dsr-routing.cc.

References m_downTarget.

Referenced by NotifyNewAggregate().

Here is the caller graph for this function:

◆ SetDownTarget6()

void ns3::dsr::DsrRouting::SetDownTarget6 ( IpL4Protocol::DownTargetCallback6 cb )

overridevirtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case)

Parameters

cb	current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 3733 of file dsr-routing.cc.

References NS_FATAL_ERROR.

◆ SetNode()

void ns3::dsr::DsrRouting::SetNode ( Ptr< Node > node )

Set the node.

Parameters

node	the node to set

Definition at line 590 of file dsr-routing.cc.

References m_node.

Referenced by NotifyNewAggregate().

Here is the caller graph for this function:

◆ SetPassiveBuffer()

void ns3::dsr::DsrRouting::SetPassiveBuffer ( Ptr< dsr::DsrPassiveBuffer > r )

Set the node.

Parameters

r	the passive buffer to set

Definition at line 631 of file dsr-routing.cc.

References m_passiveBuffer.

Referenced by GetTypeId(), and Start().

Here is the caller graph for this function:

◆ SetRequestTable()

void ns3::dsr::DsrRouting::SetRequestTable ( Ptr< dsr::DsrRreqTable > r )

Set the node.

Parameters

r	the request table to set

Definition at line 617 of file dsr-routing.cc.

References m_rreqTable.

Referenced by GetTypeId(), and Start().

Here is the caller graph for this function:

◆ SetRoute()

Ptr< Ipv4Route > ns3::dsr::DsrRouting::SetRoute	(	Ipv4Address	nextHop,
		Ipv4Address	srcAddress
	)

Set the route to use for data packets, used by the option headers when sending data/control packets.

Parameters

nextHop	next hop IPv4 address
srcAddress	IPv4 address of the source

Returns: the route

Definition at line 791 of file dsr-routing.cc.

References m_ipv4Route, and NS_LOG_FUNCTION.

Referenced by CheckSendBuffer(), LinkScheduleTimerExpire(), PacketNewRoute(), PassiveScheduleTimerExpire(), RouteRequestTimerExpire(), SalvagePacket(), SendErrorRequest(), SendGratuitousReply(), SendPacket(), SendPacketFromBuffer(), and SendUnreachError().

Here is the caller graph for this function:

◆ SetRouteCache()

void ns3::dsr::DsrRouting::SetRouteCache ( Ptr< dsr::DsrRouteCache > r )

Set the route cache.

Parameters

r	the route cache to set

Definition at line 603 of file dsr-routing.cc.

References m_routeCache.

Referenced by GetTypeId(), and Start().

Here is the caller graph for this function:

◆ Start()

void ns3::dsr::DsrRouting::Start ( )

private

TODO whether this SendRerrWhenBreaksLinkToNextHop is used or not

Definition at line 434 of file dsr-routing.cc.

References ns3::Time::As(), m_broadcast, m_cacheType, m_discoveryHopLimit, m_errorBuffer, m_graReply, m_graReplyTableSize, m_initStability, m_ipv4, m_mainAddress, m_maintainBuffer, m_maxCacheLen, m_maxCacheTime, m_maxEntriesEachDst, m_maxMaintainLen, m_maxMaintainTime, m_maxNetworkDelay, m_maxNetworkSize, m_maxRreqId, m_maxSendBuffLen, m_minLifeTime, m_numPriorityQueues, m_priorityQueue, m_requestTableIds, m_requestTableSize, m_sendBuffer, m_sendBufferTimeout, m_stabilityDecrFactor, m_stabilityIncrFactor, m_subRoute, m_useExtends, third::mac, ns3::MakeCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, PromiscReceive(), ns3::Time::S, ns3::dsr::DsrErrorBuffer::SetErrorBufferTimeout(), ns3::dsr::DsrGraReply::SetGraTableSize(), ns3::dsr::DsrMaintainBuffer::SetMaintainBufferTimeout(), ns3::dsr::DsrErrorBuffer::SetMaxQueueLen(), ns3::dsr::DsrMaintainBuffer::SetMaxQueueLen(), ns3::dsr::DsrSendBuffer::SetMaxQueueLen(), SetPassiveBuffer(), SetRequestTable(), SetRouteCache(), ns3::dsr::DsrSendBuffer::SetSendBufferTimeout(), and third::wifi.

Referenced by NotifyNewAggregate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateRouteEntry()

bool ns3::dsr::DsrRouting::UpdateRouteEntry ( Ipv4Address dst )

Update route cache entry if it has been recently used and successfully delivered the data packet.

Parameters

dst	destination address of the route

Returns: true in success

Definition at line 706 of file dsr-routing.cc.

References m_routeCache.

◆ UseExtends()

void ns3::dsr::DsrRouting::UseExtends ( DsrRouteCacheEntry::IP_VECTOR rt )

Extends the lifetime of a route cache entry.

Member Data Documentation

◆ m_ackId

uint16_t ns3::dsr::DsrRouting::m_ackId

private

The ack id assigned to each acknowledge.

Definition at line 855 of file dsr-routing.h.

Referenced by AddAckReqHeader(), and ForwardPacket().

◆ m_addresses

std::vector<Ipv4Address> ns3::dsr::DsrRouting::m_addresses

private

The bind ipv4 addresses with next hop, src, destination address in sequence.

Definition at line 945 of file dsr-routing.h.

◆ m_addressForwardCnt

std::map<NetworkKey, uint32_t> ns3::dsr::DsrRouting::m_addressForwardCnt

private

Map network key + forward counts.

Definition at line 914 of file dsr-routing.h.

Referenced by CancelNetworkPacketTimer(), CheckSendBuffer(), ForwardPacket(), NetworkScheduleTimerExpire(), PacketNewRoute(), ScheduleNetworkPacketRetry(), Send(), and SendPacketFromBuffer().

◆ m_addressForwardTimer

std::map<NetworkKey, Timer> ns3::dsr::DsrRouting::m_addressForwardTimer

private

Map network key + forward timer.

Definition at line 912 of file dsr-routing.h.

Referenced by CancelNetworkPacketTimer(), IncreaseRetransTimer(), and ScheduleNetworkPacketRetry().

◆ m_addressReqTimer

std::map<Ipv4Address, Timer> ns3::dsr::DsrRouting::m_addressReqTimer

private

Map IP address + RREQ timer.

Definition at line 908 of file dsr-routing.h.

Referenced by CancelRreqTimer(), PacketNewRoute(), ScheduleRreqRetry(), Send(), SendErrorRequest(), and SendUnreachError().

◆ m_blacklistTimeout

Time ns3::dsr::DsrRouting::m_blacklistTimeout

private

The black list time out.

Definition at line 863 of file dsr-routing.h.

Referenced by GetTypeId().

◆ m_broadcast

Ipv4Address ns3::dsr::DsrRouting::m_broadcast

private

The broadcast IP address.

Definition at line 865 of file dsr-routing.h.

Referenced by SendRequest(), and Start().

◆ m_broadcastJitter

uint32_t ns3::dsr::DsrRouting::m_broadcastJitter

private

The max time to delay route request broadcast.

Definition at line 867 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleInterRequest().

◆ m_cacheType

std::string ns3::dsr::DsrRouting::m_cacheType

private

The type of route cache.

Definition at line 888 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_clearList

std::vector<Ipv4Address> ns3::dsr::DsrRouting::m_clearList

private

The node that is clear to send packet to.

Definition at line 943 of file dsr-routing.h.

◆ m_discoveryHopLimit

uint32_t ns3::dsr::DsrRouting::m_discoveryHopLimit

private

Maximum hops to go for route request.

Definition at line 808 of file dsr-routing.h.

Referenced by GetTypeId(), RouteRequestTimerExpire(), SendErrorRequest(), and Start().

◆ m_downTarget

IpL4Protocol::DownTargetCallback ns3::dsr::DsrRouting::m_downTarget

private

The callback for down layer.

Definition at line 802 of file dsr-routing.h.

Referenced by ForwardErrPacket(), ForwardPacket(), GetDownTarget(), Send(), SendAck(), SendErrorRequest(), SendInitialRequest(), SendPacketFromBuffer(), SendRealDown(), SendReply(), SendRequest(), and SetDownTarget().

◆ m_dropTrace

TracedCallback<Ptr<const Packet> > ns3::dsr::DsrRouting::m_dropTrace

protected

The trace for drop, receive and send data packets.

packet drop trace callback

Definition at line 754 of file dsr-routing.h.

Referenced by GetTypeId(), and Receive().

◆ m_errorBuffer

DsrErrorBuffer ns3::dsr::DsrRouting::m_errorBuffer

private

The error buffer to save the error messages.

Definition at line 837 of file dsr-routing.h.

Referenced by AddRoute(), AddRoute_Link(), SendPacketFromBuffer(), SendUnreachError(), and Start().

◆ m_finalRoute

std::vector<Ipv4Address> ns3::dsr::DsrRouting::m_finalRoute

private

The route cache.

Definition at line 906 of file dsr-routing.h.

Referenced by SendGratuitousReply().

◆ m_graReply

DsrGraReply ns3::dsr::DsrRouting::m_graReply

private

The gratuitous route reply.

Definition at line 939 of file dsr-routing.h.

Referenced by SendGratuitousReply(), and Start().

◆ m_graReplyTableSize

uint32_t ns3::dsr::DsrRouting::m_graReplyTableSize

private

Set the gratuitous reply table size.

Definition at line 886 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_gratReplyHoldoff

Time ns3::dsr::DsrRouting::m_gratReplyHoldoff

private

The max gratuitous reply hold off time.

Definition at line 882 of file dsr-routing.h.

Referenced by GetTypeId(), and SendGratuitousReply().

◆ m_initStability

Time ns3::dsr::DsrRouting::m_initStability

private

The initial stability value for link cache.

Definition at line 896 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_ip

Ptr<Ipv4> ns3::dsr::DsrRouting::m_ip

private

The ip ptr.

Definition at line 794 of file dsr-routing.h.

Referenced by CheckSendBuffer(), ForwardErrPacket(), NotifyNewAggregate(), SalvagePacket(), SendAck(), SendPacket(), SendPacketFromBuffer(), and SendUnreachError().

◆ m_ipv4

Ptr<Ipv4L3Protocol> ns3::dsr::DsrRouting::m_ipv4

private

Ipv4l3Protocol.

Definition at line 790 of file dsr-routing.h.

Referenced by DoDispose(), NotifyNewAggregate(), PromiscReceive(), SendReply(), and Start().

◆ m_ipv4Route

Ptr<Ipv4Route> ns3::dsr::DsrRouting::m_ipv4Route

private

Ipv4 Route.

Definition at line 792 of file dsr-routing.h.

Referenced by CheckSendBuffer(), SalvagePacket(), SendGratuitousReply(), SendPacket(), SendPacketFromBuffer(), SendUnreachError(), and SetRoute().

◆ m_linkAck

bool ns3::dsr::DsrRouting::m_linkAck

private

define if we use link acknowledgement or not

Definition at line 935 of file dsr-routing.h.

Referenced by CheckSendBuffer(), ForwardPacket(), GetTypeId(), PacketNewRoute(), Send(), and SendPacketFromBuffer().

◆ m_linkAckTimeout

Time ns3::dsr::DsrRouting::m_linkAckTimeout

private

The timeout value for link acknowledge.

Definition at line 874 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleLinkPacketRetry().

◆ m_linkAckTimer

std::map<LinkKey, Timer> ns3::dsr::DsrRouting::m_linkAckTimer

private

The timer for link acknowledgment.

Definition at line 922 of file dsr-routing.h.

Referenced by CancelLinkPacketTimer(), LinkScheduleTimerExpire(), and ScheduleLinkPacketRetry().

◆ m_linkCnt

std::map<LinkKey, uint32_t> ns3::dsr::DsrRouting::m_linkCnt

private

Map packet key + link forward counts.

Definition at line 920 of file dsr-routing.h.

Referenced by CancelLinkPacketTimer(), CheckSendBuffer(), ForwardPacket(), LinkScheduleTimerExpire(), PacketNewRoute(), Send(), and SendPacketFromBuffer().

◆ m_linkRetries

uint32_t ns3::dsr::DsrRouting::m_linkRetries

private

of retries have been sent for link acknowledgment

Definition at line 820 of file dsr-routing.h.

Referenced by LinkScheduleTimerExpire().

◆ m_macToNodeIdMap

std::map<std::string, uint32_t> ns3::dsr::DsrRouting::m_macToNodeIdMap

private

The map of mac address to node id.

Definition at line 948 of file dsr-routing.h.

◆ m_mainAddress

Ipv4Address ns3::dsr::DsrRouting::m_mainAddress

private

Our own Ip address.

Definition at line 798 of file dsr-routing.h.

Referenced by AddRoute(), CheckSendBuffer(), ForwardErrPacket(), ForwardPacket(), LinkScheduleTimerExpire(), NetworkScheduleTimerExpire(), PacketNewRoute(), PassiveScheduleTimerExpire(), PromiscReceive(), Receive(), RouteRequestTimerExpire(), SalvagePacket(), ScheduleInterRequest(), Send(), SendAck(), SendErrorRequest(), SendGratuitousReply(), SendInitialRequest(), SendPacket(), SendPacketFromBuffer(), SendReply(), SendUnreachError(), and Start().

◆ m_maintainBuffer

DsrMaintainBuffer ns3::dsr::DsrRouting::m_maintainBuffer

private

The declaration of maintain buffer.

Definition at line 851 of file dsr-routing.h.

Referenced by CancelLinkPacketTimer(), CancelNetworkPacketTimer(), CancelPacketTimerNextHop(), CancelPassiveTimer(), CheckSendBuffer(), ForwardPacket(), PacketNewRoute(), ScheduleNetworkPacketRetry(), Send(), SendPacketFromBuffer(), and Start().

◆ m_maxCacheLen

uint32_t ns3::dsr::DsrRouting::m_maxCacheLen

private

Max # of cache entries for route cache.

Definition at line 843 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_maxCacheTime

Time ns3::dsr::DsrRouting::m_maxCacheTime

private

Max time for caching the route cache entry.

Definition at line 845 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_maxEntriesEachDst

uint32_t ns3::dsr::DsrRouting::m_maxEntriesEachDst

private

Max number of route entries to save for each destination.

Definition at line 849 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_maxMaintainLen

uint32_t ns3::dsr::DsrRouting::m_maxMaintainLen

private

Max # of entries for maintenance buffer.

Definition at line 839 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_maxMaintainTime

Time ns3::dsr::DsrRouting::m_maxMaintainTime

private

Time out for maintenance buffer.

Definition at line 841 of file dsr-routing.h.

Referenced by CheckSendBuffer(), ForwardPacket(), GetTypeId(), PacketNewRoute(), ScheduleNetworkPacketRetry(), Send(), SendPacketFromBuffer(), and Start().

◆ m_maxMaintRexmt

uint32_t ns3::dsr::DsrRouting::m_maxMaintRexmt

private

Maximum number of retransmissions of data packets.

Definition at line 825 of file dsr-routing.h.

Referenced by GetTypeId(), and NetworkScheduleTimerExpire().

◆ m_maxNetworkDelay

Time ns3::dsr::DsrRouting::m_maxNetworkDelay

private

Maximum network delay.

Definition at line 806 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_maxNetworkSize

uint32_t ns3::dsr::DsrRouting::m_maxNetworkSize

private

Maximum network queue size.

Definition at line 804 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_maxRequestPeriod

Time ns3::dsr::DsrRouting::m_maxRequestPeriod

private

The max request period.

Definition at line 884 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleRreqRetry().

◆ m_maxRreqId

uint32_t ns3::dsr::DsrRouting::m_maxRreqId

private

The max number of request ids for a single destination.

Definition at line 861 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_maxRreqTime

Time ns3::dsr::DsrRouting::m_maxRreqTime

private

Max time for caching the route request entry.

Definition at line 847 of file dsr-routing.h.

◆ m_maxSalvageCount

uint8_t ns3::dsr::DsrRouting::m_maxSalvageCount

private

Maximum # times to salvage a packet.

Definition at line 810 of file dsr-routing.h.

Referenced by GetTypeId(), and SalvagePacket().

◆ m_maxSendBuffLen

uint32_t ns3::dsr::DsrRouting::m_maxSendBuffLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 829 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_minLifeTime

Time ns3::dsr::DsrRouting::m_minLifeTime

private

The min life time.

Definition at line 898 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_networkQueue

DsrNetworkQueue ns3::dsr::DsrRouting::m_networkQueue

private

The network queue.

Definition at line 941 of file dsr-routing.h.

◆ m_node

Ptr<Node> ns3::dsr::DsrRouting::m_node

private

The node ptr.

Definition at line 796 of file dsr-routing.h.

Referenced by DoDispose(), GetNode(), NotifyNewAggregate(), Receive(), and SetNode().

◆ m_nodeTraversalTime

Time ns3::dsr::DsrRouting::m_nodeTraversalTime

private

Time estimated for packet to travel between two nodes.

Definition at line 827 of file dsr-routing.h.

Referenced by GetTypeId(), ScheduleCachedReply(), and ScheduleNetworkPacketRetry().

◆ m_nonPropReqTimer

std::map<Ipv4Address, Timer> ns3::dsr::DsrRouting::m_nonPropReqTimer

private

Map IP address + RREQ timer.

Definition at line 910 of file dsr-routing.h.

Referenced by CancelRreqTimer(), PacketNewRoute(), ScheduleRreqRetry(), Send(), SendErrorRequest(), and SendUnreachError().

◆ m_nonpropRequestTimeout

Time ns3::dsr::DsrRouting::m_nonpropRequestTimeout

private

The non-propagation request timeout.

Definition at line 814 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleRreqRetry().

◆ m_numPriorityQueues

uint32_t ns3::dsr::DsrRouting::m_numPriorityQueues

private

The number of priority queues used.

Definition at line 933 of file dsr-routing.h.

Referenced by GetTypeId(), PriorityScheduler(), and Start().

◆ m_options

DsrOptionList_t ns3::dsr::DsrRouting::m_options

private

List of DSR Options supported.

Definition at line 788 of file dsr-routing.h.

Referenced by GetOption(), and Insert().

◆ m_passiveAckTimeout

Time ns3::dsr::DsrRouting::m_passiveAckTimeout

private

The timeout value for passive acknowledge.

Definition at line 869 of file dsr-routing.h.

Referenced by GetTypeId(), and SchedulePassivePacketRetry().

◆ m_passiveAckTimer

std::map<PassiveKey, Timer> ns3::dsr::DsrRouting::m_passiveAckTimer

private

The timer for passive acknowledgment.

Definition at line 918 of file dsr-routing.h.

Referenced by CancelPassivePacketTimer(), PassiveScheduleTimerExpire(), and SchedulePassivePacketRetry().

◆ m_passiveBuffer

Ptr<dsr::DsrPassiveBuffer> ns3::dsr::DsrRouting::m_passiveBuffer

private

A "drop-front" queue used by the routing layer to cache route request sent.

Definition at line 930 of file dsr-routing.h.

Referenced by GetPassiveBuffer(), PassiveEntryCheck(), and SetPassiveBuffer().

◆ m_passiveCnt

std::map<PassiveKey, uint32_t> ns3::dsr::DsrRouting::m_passiveCnt

private

Map packet key + passive forward counts.

Definition at line 916 of file dsr-routing.h.

Referenced by CancelPassivePacketTimer(), CheckSendBuffer(), ForwardPacket(), PacketNewRoute(), PassiveScheduleTimerExpire(), Send(), and SendPacketFromBuffer().

◆ m_passiveRetries

uint32_t ns3::dsr::DsrRouting::m_passiveRetries

private

of retries have been sent for passive acknowledgment

Definition at line 818 of file dsr-routing.h.

Referenced by PassiveScheduleTimerExpire().

◆ m_priorityQueue

std::map<uint32_t, Ptr<dsr::DsrNetworkQueue> > ns3::dsr::DsrRouting::m_priorityQueue

private

priority queues

Definition at line 937 of file dsr-routing.h.

Referenced by CheckSendBuffer(), ForwardErrPacket(), IncreaseRetransTimer(), PriorityScheduler(), SalvagePacket(), SendAck(), SendPacket(), SendPacketFromBuffer(), SendReply(), SendRequest(), SendUnreachError(), and Start().

◆ m_requestId

uint32_t ns3::dsr::DsrRouting::m_requestId

private

The id assigned to each route request.

Definition at line 853 of file dsr-routing.h.

Referenced by SendErrorRequest(), and SendInitialRequest().

◆ m_requestPeriod

Time ns3::dsr::DsrRouting::m_requestPeriod

private

The base time interval between route requests.

Definition at line 812 of file dsr-routing.h.

Referenced by GetTypeId(), and ScheduleRreqRetry().

◆ m_requestTableIds

uint32_t ns3::dsr::DsrRouting::m_requestTableIds

private

The request table identifiers.

Definition at line 859 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_requestTableSize

uint32_t ns3::dsr::DsrRouting::m_requestTableSize

private

The max size of the request table size.

Definition at line 857 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_retransIncr

Time ns3::dsr::DsrRouting::m_retransIncr

private

the increase time for retransmission timer when face network congestion

Definition at line 904 of file dsr-routing.h.

Referenced by GetTypeId(), and IncreaseRetransTimer().

◆ m_routeCache

Ptr<dsr::DsrRouteCache> ns3::dsr::DsrRouting::m_routeCache

private

A "drop-front" queue used by the routing layer to cache routes found.

Definition at line 925 of file dsr-routing.h.

Referenced by AddAckReqHeader(), AddRoute(), AddRoute_Link(), CheckSendBuffer(), DeleteAllRoutesIncludeLink(), DoDispose(), GetRouteCache(), IsLinkCache(), LinkScheduleTimerExpire(), LookupRoute(), NetworkScheduleTimerExpire(), PacketNewRoute(), RouteRequestTimerExpire(), SalvagePacket(), Send(), SendErrorRequest(), SendPacketFromBuffer(), SendUnreachError(), SetRouteCache(), UpdateRouteEntry(), and UseExtends().

◆ m_routeSortType

std::string ns3::dsr::DsrRouting::m_routeSortType

private

The type of route sort methods.

Definition at line 890 of file dsr-routing.h.

◆ m_rreqRetries

uint32_t ns3::dsr::DsrRouting::m_rreqRetries

private

Maximum number of retransmissions of RREQ with TTL = NetDiameter to discover a route.

Definition at line 822 of file dsr-routing.h.

Referenced by GetTypeId(), and RouteRequestTimerExpire().

◆ m_rreqTable

Ptr<dsr::DsrRreqTable> ns3::dsr::DsrRouting::m_rreqTable

private

A "drop-front" queue used by the routing layer to cache route request sent.

Definition at line 927 of file dsr-routing.h.

Referenced by CancelRreqTimer(), FindSourceEntry(), GetRequestTable(), Receive(), RouteRequestTimerExpire(), ScheduleRreqRetry(), Send(), SendErrorRequest(), SendInitialRequest(), and SetRequestTable().

◆ m_sendBuffer

DsrSendBuffer ns3::dsr::DsrRouting::m_sendBuffer

private

The send buffer.

Definition at line 835 of file dsr-routing.h.

Referenced by CheckSendBuffer(), PacketNewRoute(), RouteRequestTimerExpire(), Send(), SendErrorRequest(), SendPacketFromBuffer(), and Start().

◆ m_sendBufferTimeout

Time ns3::dsr::DsrRouting::m_sendBufferTimeout

private

The maximum period of time that a routing protocol is allowed to buffer a packet for.

Definition at line 832 of file dsr-routing.h.

Referenced by GetTypeId(), PacketNewRoute(), Send(), SendUnreachError(), and Start().

◆ m_sendBuffInterval

Time ns3::dsr::DsrRouting::m_sendBuffInterval

private

how often to check send buffer

Definition at line 880 of file dsr-routing.h.

Referenced by CheckSendBuffer(), GetTypeId(), and SendBuffTimerExpire().

◆ m_sendBuffTimer

Timer ns3::dsr::DsrRouting::m_sendBuffTimer

private

The send buffer timer.

Definition at line 878 of file dsr-routing.h.

Referenced by DsrRouting(), CheckSendBuffer(), and SendBuffTimerExpire().

◆ m_sendRetries

uint32_t ns3::dsr::DsrRouting::m_sendRetries

private

of retries have been sent for network acknowledgment

Definition at line 816 of file dsr-routing.h.

Referenced by NetworkScheduleTimerExpire(), and ScheduleNetworkPacketRetry().

◆ m_stabilityDecrFactor

uint32_t ns3::dsr::DsrRouting::m_stabilityDecrFactor

private

The initial decrease factor for link cache.

Definition at line 892 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_stabilityIncrFactor

uint32_t ns3::dsr::DsrRouting::m_stabilityIncrFactor

private

The initial increase factor for link cache.

Definition at line 894 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_subRoute

bool ns3::dsr::DsrRouting::m_subRoute

private

Whether to save sub route or not.

Definition at line 902 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ m_tryLinkAcks

uint32_t ns3::dsr::DsrRouting::m_tryLinkAcks

private

Maximum number of packet transmission using link acknowledgment.

Definition at line 876 of file dsr-routing.h.

Referenced by GetTypeId(), and LinkScheduleTimerExpire().

◆ m_tryPassiveAcks

uint32_t ns3::dsr::DsrRouting::m_tryPassiveAcks

private

Maximum number of packet transmission using passive acknowledgment.

Definition at line 872 of file dsr-routing.h.

Referenced by GetTypeId(), and PassiveScheduleTimerExpire().

◆ m_txPacketTrace

TracedCallback<const DsrOptionSRHeader&> ns3::dsr::DsrRouting::m_txPacketTrace

protected

packet trace callback

Definition at line 755 of file dsr-routing.h.

Referenced by GetTypeId().

◆ m_uniformRandomVariable

Ptr<UniformRandomVariable> ns3::dsr::DsrRouting::m_uniformRandomVariable

private

Provides uniform random variables.

Definition at line 950 of file dsr-routing.h.

Referenced by DsrRouting(), AssignStreams(), CancelPacketTimerNextHop(), PriorityScheduler(), ScheduleCachedReply(), ScheduleInterRequest(), Send(), and SendPacketFromBuffer().

◆ m_useExtends

Time ns3::dsr::DsrRouting::m_useExtends

private

The use extension of the life time for link cache.

Definition at line 900 of file dsr-routing.h.

Referenced by GetTypeId(), and Start().

◆ PROT_NUMBER

const uint8_t ns3::dsr::DsrRouting::PROT_NUMBER = 48

static

Define the dsr protocol number.

Definition at line 108 of file dsr-routing.h.

Referenced by GetProtocolNumber(), and PromiscReceive().

◆ segsLeft

uint8_t ns3::dsr::DsrRouting::segsLeft

private

The segment left value from SR header.

Definition at line 800 of file dsr-routing.h.

Referenced by CancelPassiveTimer(), and PassiveEntryCheck().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-routing.h
src/dsr/model/dsr-routing.cc

src	the source address we just received the source request
dst	the destination address the request is targeted at
id	the identification number for this request

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ DsrOptionList_t

Constructor & Destructor Documentation

◆ DsrRouting()

◆ ~DsrRouting()

Member Function Documentation

◆ AddAckReqHeader()

◆ AddRoute()

◆ AddRoute_Link()

◆ AssignStreams()

◆ CallCancelPacketTimer()

◆ CancelLinkPacketTimer()

◆ CancelNetworkPacketTimer()

◆ CancelPacketAllTimer()

◆ CancelPacketTimerNextHop()

◆ CancelPassivePacketTimer()

◆ CancelPassiveTimer()

◆ CancelRreqTimer()

◆ CheckSendBuffer()

◆ DeleteAllRoutesIncludeLink()

◆ DoDispose()

◆ FindSourceEntry()

◆ ForwardErrPacket()

◆ ForwardPacket()

◆ GetDownTarget()

◆ GetDownTarget6()

◆ GetElementsFromContext()

◆ GetIDfromIP()

◆ GetIPfromID()

◆ GetIPfromMAC()

◆ GetNetDeviceFromContext()

◆ GetNode()

◆ GetNodeWithAddress()

◆ GetOption()

◆ GetPassiveBuffer()

◆ GetPriority()

◆ GetProtocolNumber()

◆ GetRequestTable()

◆ GetRouteCache()

◆ GetTypeId()

◆ IncreaseRetransTimer()

◆ Insert()

◆ IsLinkCache()

◆ LinkScheduleTimerExpire()

◆ LookupRoute()

◆ NetworkScheduleTimerExpire()

◆ NotifyNewAggregate()

◆ PacketNewRoute()

◆ PassiveEntryCheck()

◆ PassiveScheduleTimerExpire()

◆ PrintVector()

◆ PriorityScheduler()

◆ Process()

◆ PromiscReceive()

◆ Receive() [1/2]

◆ Receive() [2/2]

◆ RouteRequestTimerExpire()

◆ SalvagePacket()

◆ ScheduleCachedReply()

◆ ScheduleInitialReply()

◆ ScheduleInterRequest()

◆ ScheduleLinkPacketRetry()

◆ ScheduleNetworkPacketRetry()

◆ SchedulePassivePacketRetry()

◆ Scheduler()

◆ ScheduleRreqRetry()

◆ SearchNextHop()

◆ Send()

◆ SendAck()

◆ SendBuffTimerExpire()
